Specifications
- Category
- Portable colorimeter
- Sensor type
- Triple Stimulus Value
Variants / Sale Attributes
Model: LS173 is commonly used in industries such as paint, plastic, and metal.
Package Contents
Product x1, instruction manual x1, certificate of conformity x1
Product Description
Product Specifications
Overview
- Brand
- Linshang
- Model
- LS173 Portable High-Precision Colorimeter
- Measurement Geometry
- D/8° with 8 mm aperture
- Display

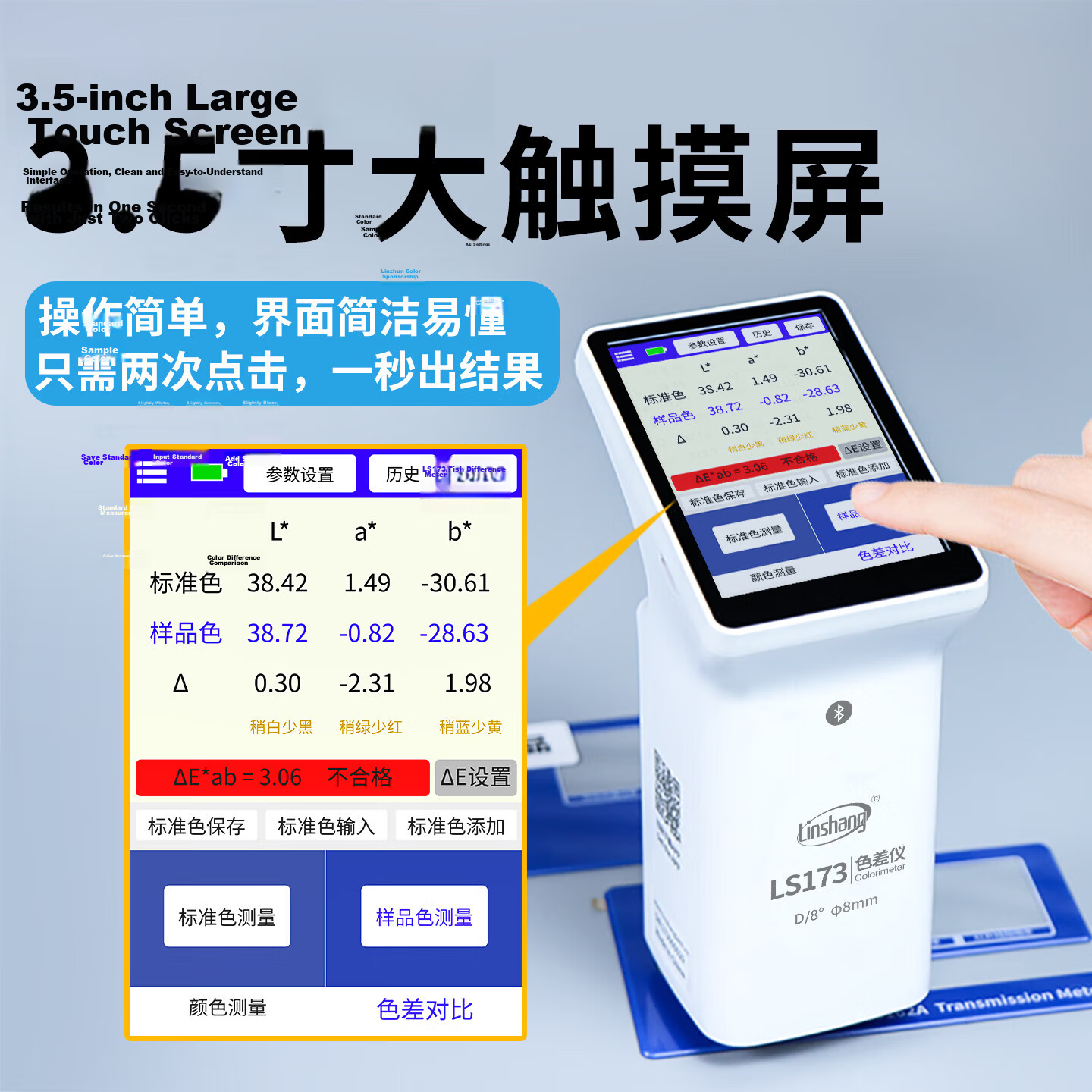

- 3.5-inch large touchscreen with 30° tilt design for easy reading
- Light Source
- Full-spectrum LED light source, D65 illumination condition
- Measurement Time
- Approx. 1 second per measurement
- Color Spaces Supported
Similar Products
In Stock
Out of Stock
Out of Stock
Color Difference FormulasΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(1:1), ΔE*cmc(2:1), ΔE*cmc(1.4:1), ΔE*00 RepeatabilityΔE*ab ≤ 0.03 (measured on whiteboard, 30 measurements with 3s interval) Meets National First-Class Metering Standard (JG595-2002)
Total color difference tolerance ranges
- 0~0.25: negligible or no difference, ideal match
- 0.25~0.5: slight difference, acceptable match
- 0.5~1.0: slight to moderate difference, acceptable in some applications
- 1.0~2.0: moderate difference, acceptable in specific applications
- 2.0~4.0: noticeable difference, acceptable in specific applications
- >4.0: large difference, generally unacceptable
Additional details
- Measurement Aperture
- 8 mm diameter
- Calibration
- Comes with built-in calibration white plate on base; easy calibration process; calibration certificate included
- Battery
- Built-in rechargeable lithium battery 3.7V 4000mAh; supports up to 10,000 continuous measurements per full charge; USB Type-C charging interface
- Temperature
- 0~45°C
- Humidity
- 0~85% RH (non-condensing)
- Temperature
- -25~55°C
- Humidity
- 0~85% RH (non-condensing)
Simple operation with only two clicks to get color difference results
Supports saving, inputting, and adding standard colors

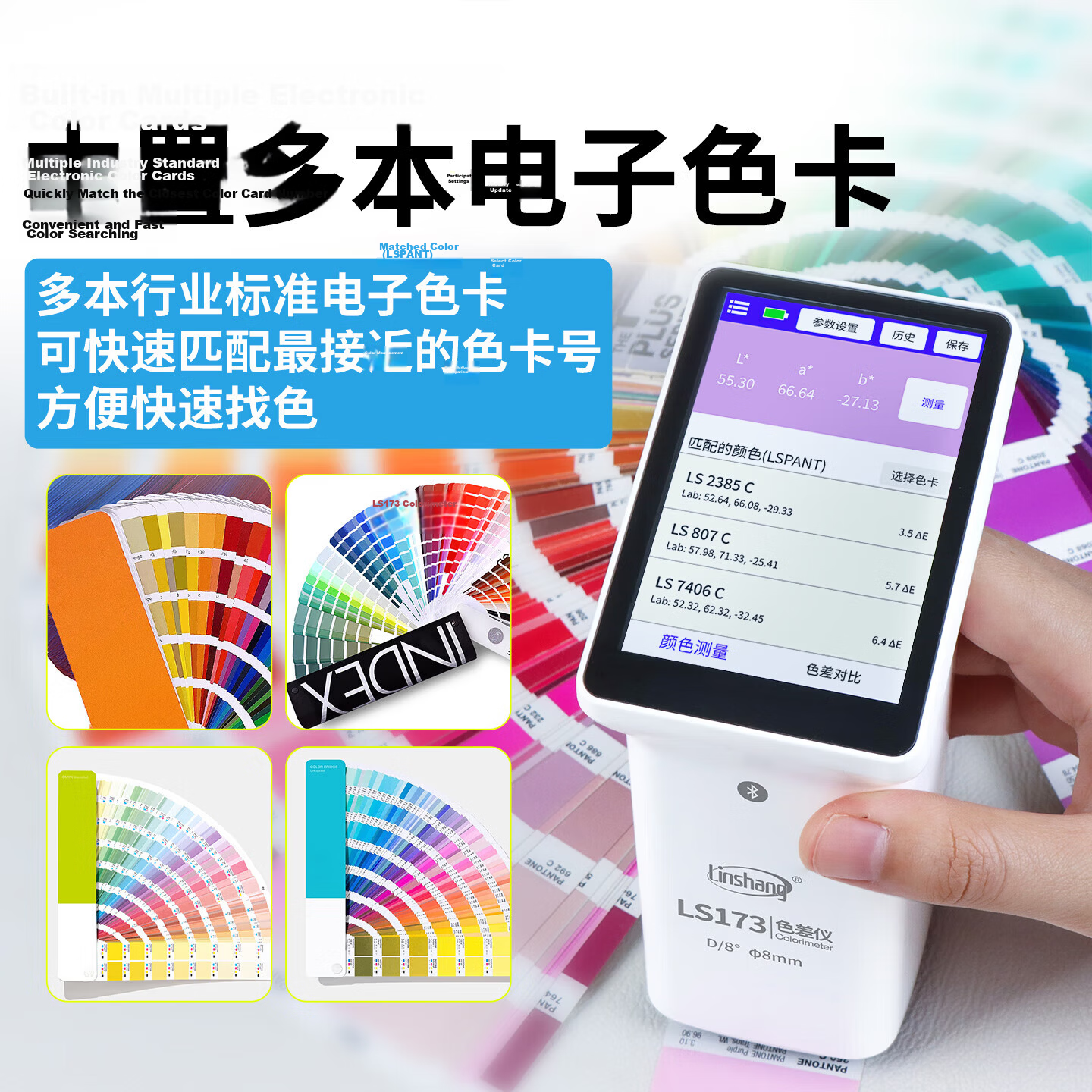

Built-in 4 electronic standard color cards and supports importing industry-specific color libraries (paint, fabric, coatings, plastics, etc.)
Provides color deviation hints (e.g., bias towards white/black, green/red) to assist color matching and reduce human error
Supports multiple color spaces and seven color difference formulas selectable
Displays spectral reflectance curve for advanced color analysis
White and yellowness measurement with 4 industry-standard methods (White-R457, White-Hunter, White-Gauz, Yellowness-98)
Automatic pass/fail judgment for quality control
History records and parameter settings available
Supports multiple system languages including Simplified Chinese and English
Silicone buttons for comfortable grip and durability
Compact and portable design suitable for factory QC and field use
LED white light source for consistent measurement unaffected by ambient light
Screen with 30° tilt for better viewing angle
Widely used in paint, fabric, printing, coatings, metal processing, plastics, stone, decorative materials, packaging, automotive parts, and more
Developed with independent intellectual property rights; holds national invention patent (Patent No. ZL202110038218.6)
Supports Lab, RGB, CMYK color spaces and multiple color difference formulas
Supports fast color matching with built-in multiple industry standard electronic color cards
Avoids aging and discoloration issues of physical standard samples
Supports large capacity color sample library storage
Product manufactured in Linshang’s own large-scale factory ensuring quality assurance
Calibration white plate integrated in base
USB Type-C charging cable
Additional details
- Measurement conditions
- preheating and calibration required for optimal accuracy
Meets national metrology first-class accuracy standards
Additional details
- Manufacturer
- Linshang Technology Co., Ltd.
- Country of Origin
- China
