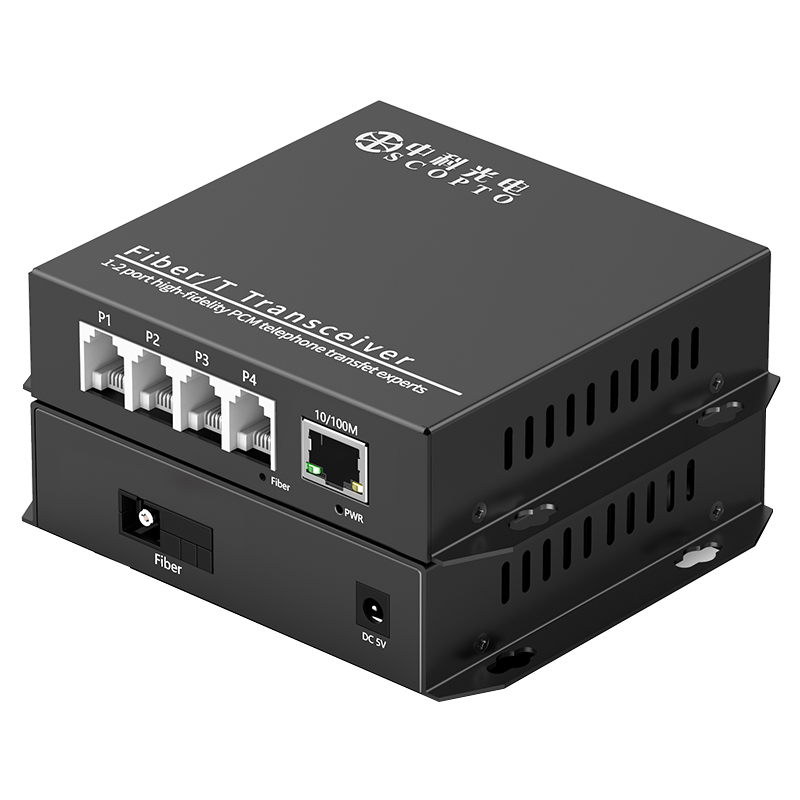

Zhongkeguangdian 4-Channel Telephone Optical Terminal + 1-Channel 100Mbps Network PCM Voice Optical Terminal, Telephone Fiber Optic Transceiver, Optical-Electrical Converter, SC Port One Pair, ZK-4P1E

Overview

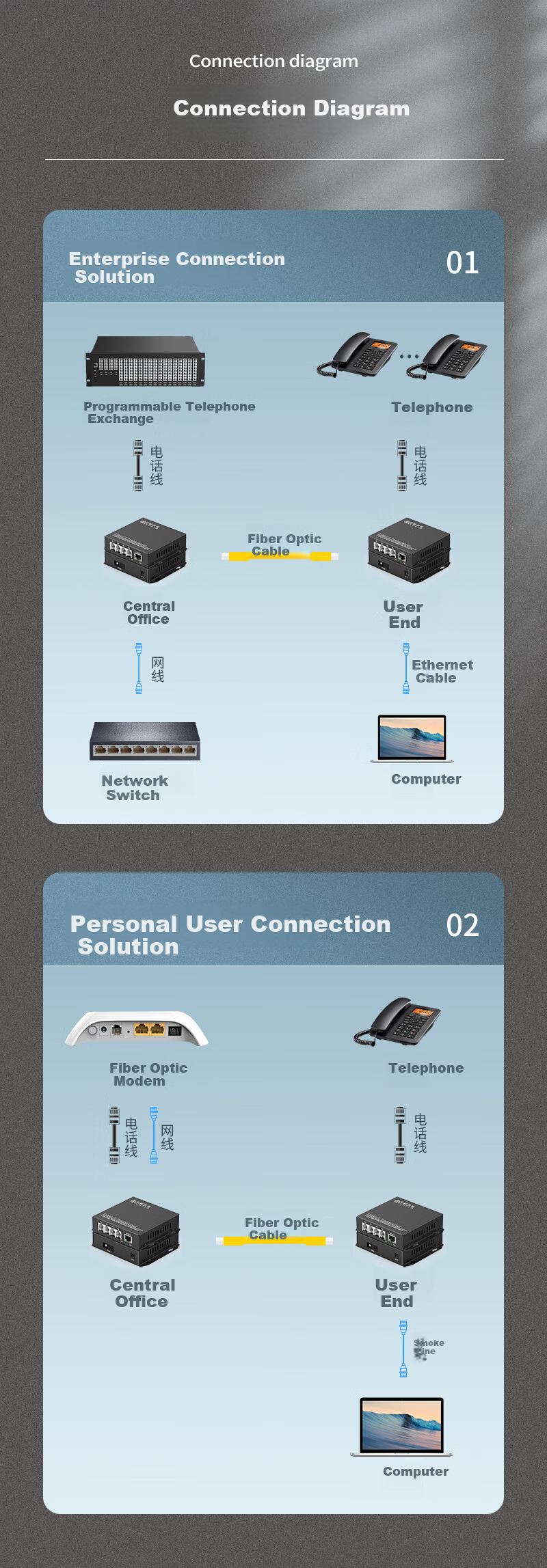

1. Enterprise Connection Scheme 01

• Equipment: Programmable Telephone Exchange, Telephone, Fiber Optic Cable, Central Office End, User End, Ethernet Cable, Network Switch, Computer

2. Personal User Connection Scheme 02

• Equipment: Fiber Optic Modem, Telephone, Fiber Optic Cable, Central Office End, User End, Telephone Line, Computer

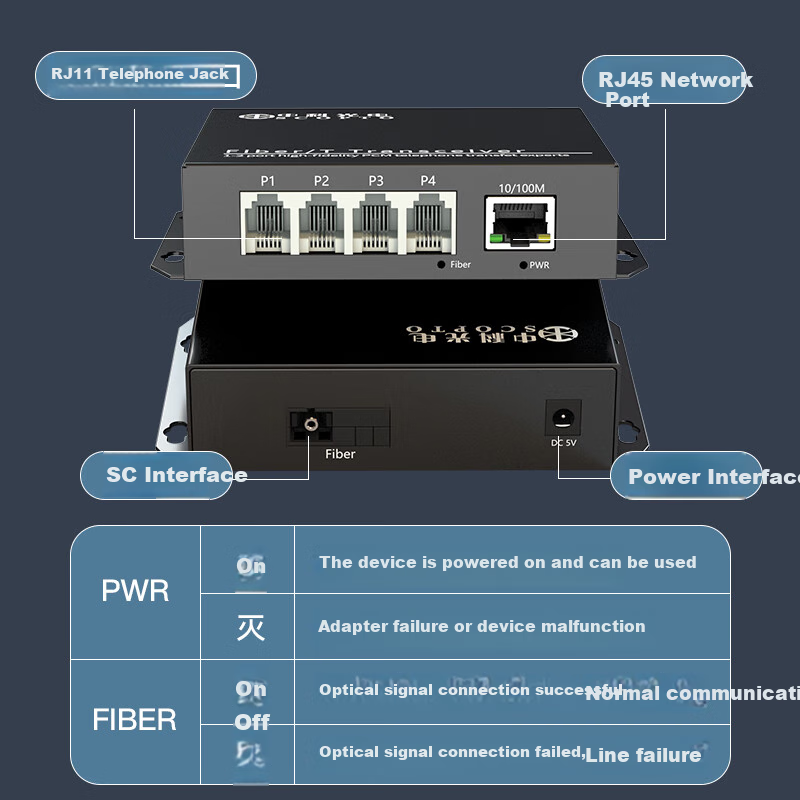

Indicator Lights

• RJ11 Telephone Interface
• RJ45 Network Interface
• P1, P2, P3, P4
• 10/100M
• Fiber
• PWR

Interfaces

• SC Interface
• Power Interface

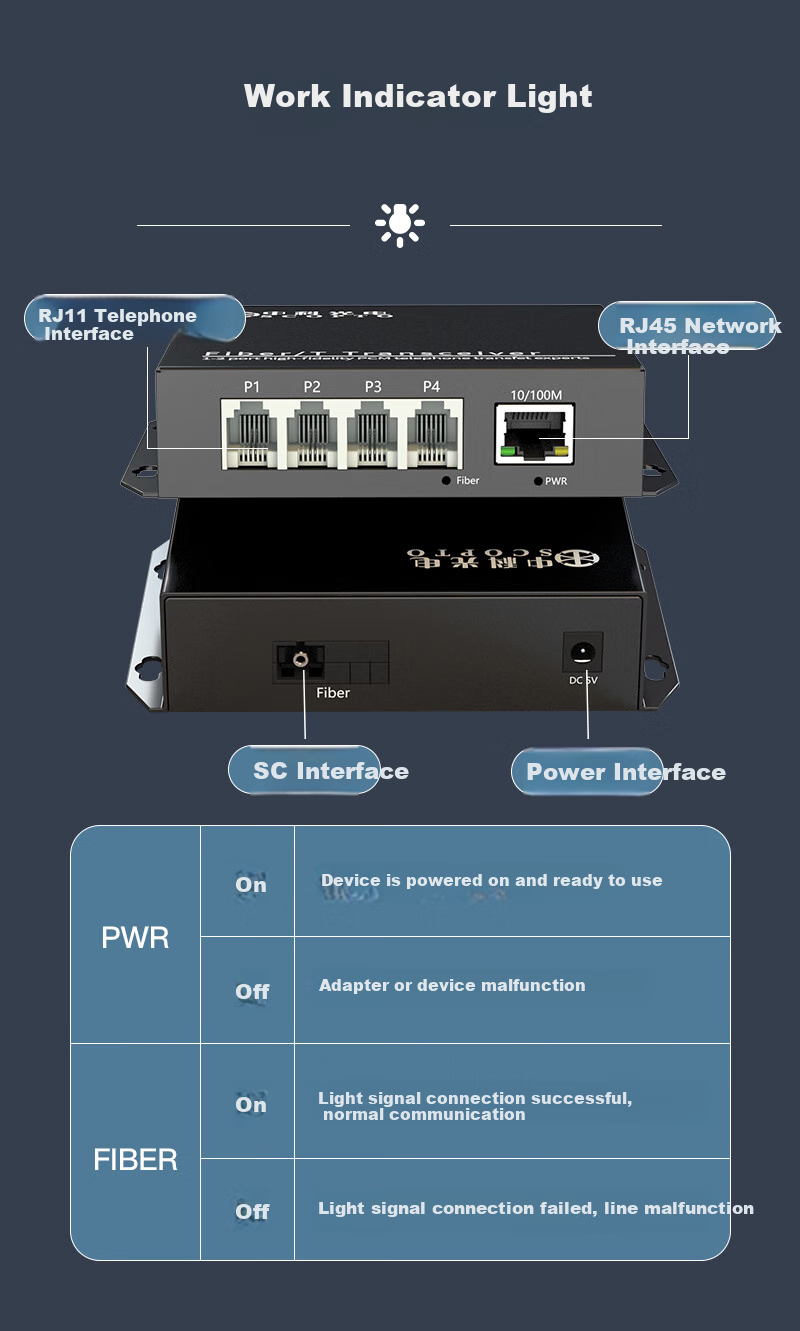

Status Indicators

• Power Indicator (PWR):
• On: Device is powered on and ready for use
• Off: Adapter or device malfunction
• Fiber Indicator (Fiber):
• On: Successful optical signal connection, normal communication
