JINLING Window Wall Exhaust Fan with Anti-Theft and Mosquito Net, 8-Inch Direct Ventilation Bathroom Kitchen Ventilator 20-2C

Stable and firm mounting ring to prevent shaking

| Model | APC10-0-2C | APC15-2-2C | APC20-3-2C |

|---------------|------------|------------|------------|

| Size | 4 inch | 6 inch | 8 inch |

| Rated Voltage | 220 V | 220 V | 220 V |

| Rated Frequency | 50 Hz | 50 Hz | 50 Hz |

| Rated Power | 10 W | 16 W | 23 W |

| Nominal Airflow | 66 m³/h | 150 m³/h | 246 m³/h |

| Noise Level | 40 dB(A) | 43 dB(A) | 45 dB(A) |

| Installation Hole Diameter | Φ104-110 mm | Φ151-160 mm | Φ183-185 mm |

| Applicable Area | 4-6 m² | 7-10 m² | 12-20 m² |

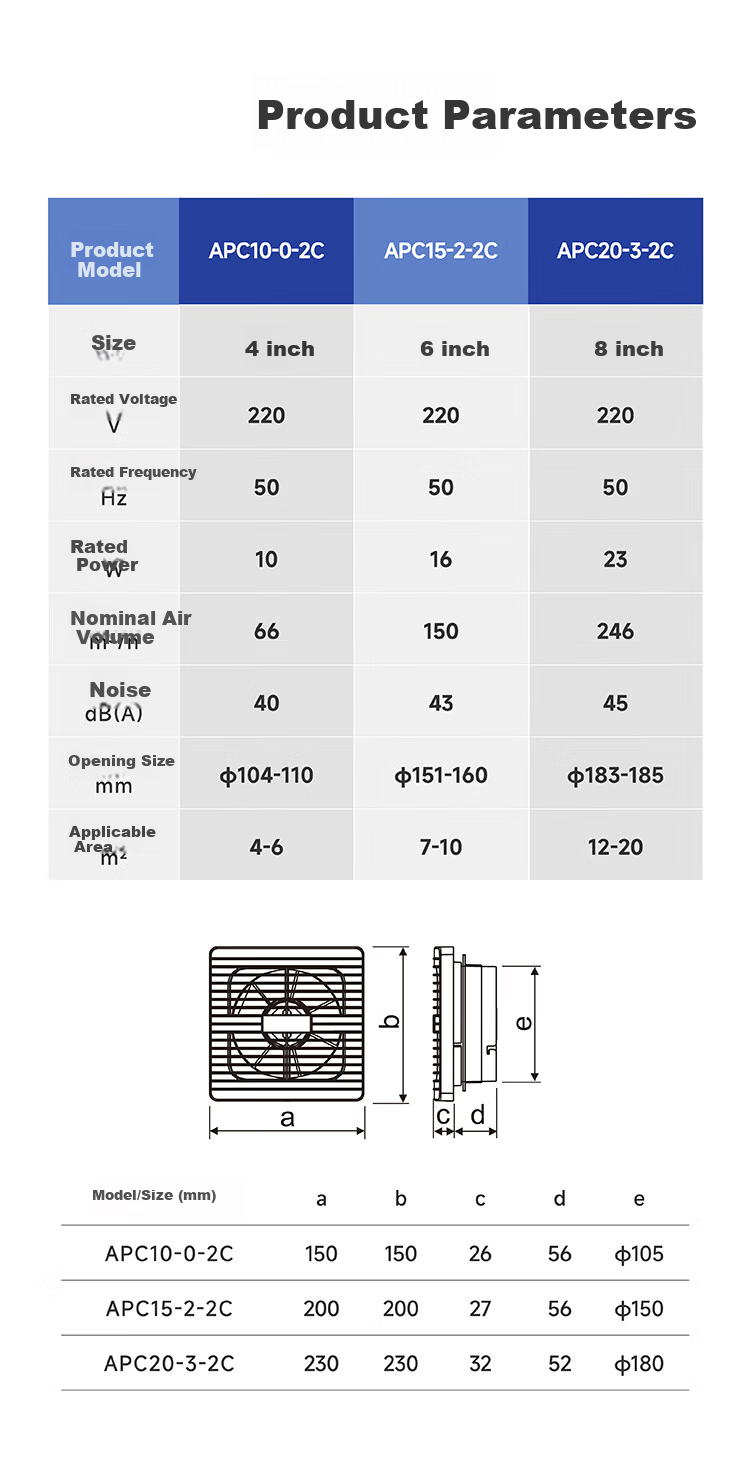

| Model | a | b | c | d | e (Hole Diameter) |

|---------------|-----|-----|----|----|-------------------|

| APC10-0-2C | 150 | 150 | 26 | 56 | Φ105 |

| APC15-2-2C | 200 | 200 | 27 | 56 | Φ150 |

| APC20-3-2C | 230 | 230 | 32 | 52 | Φ180 |

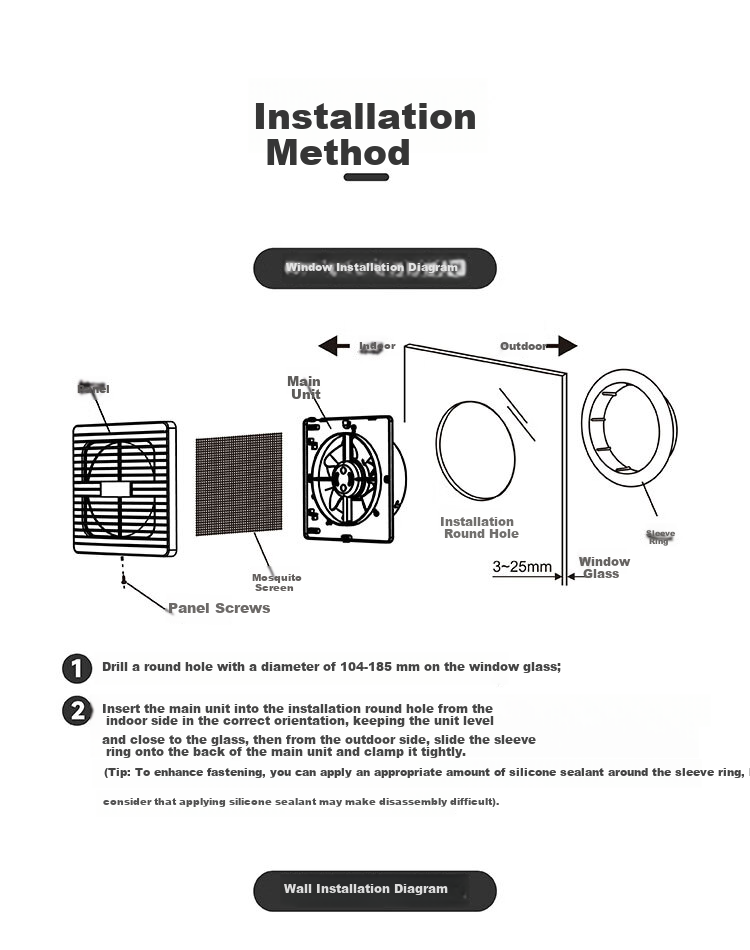

Drill a circular hole of 104-185 mm diameter on the window glass.

Insert the fan body from the indoor side into the hole, keeping it level and flush with the glass.

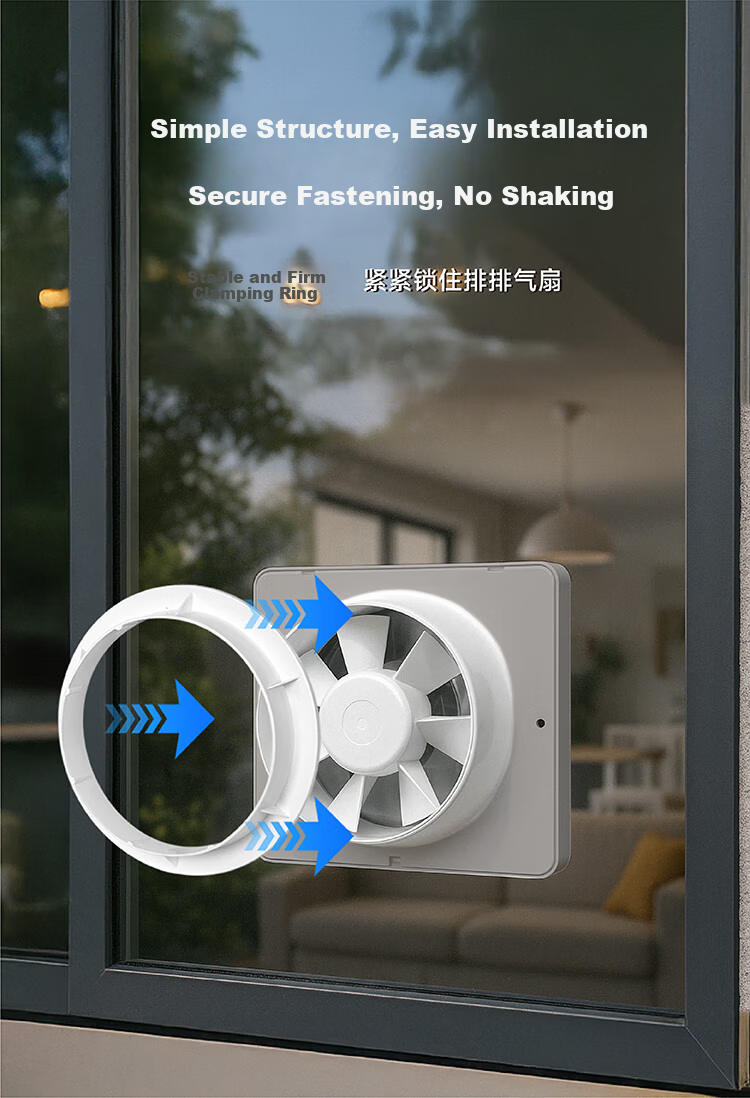

From the outdoor side, secure the fan by fitting and tightening the mounting ring behind the fan body.

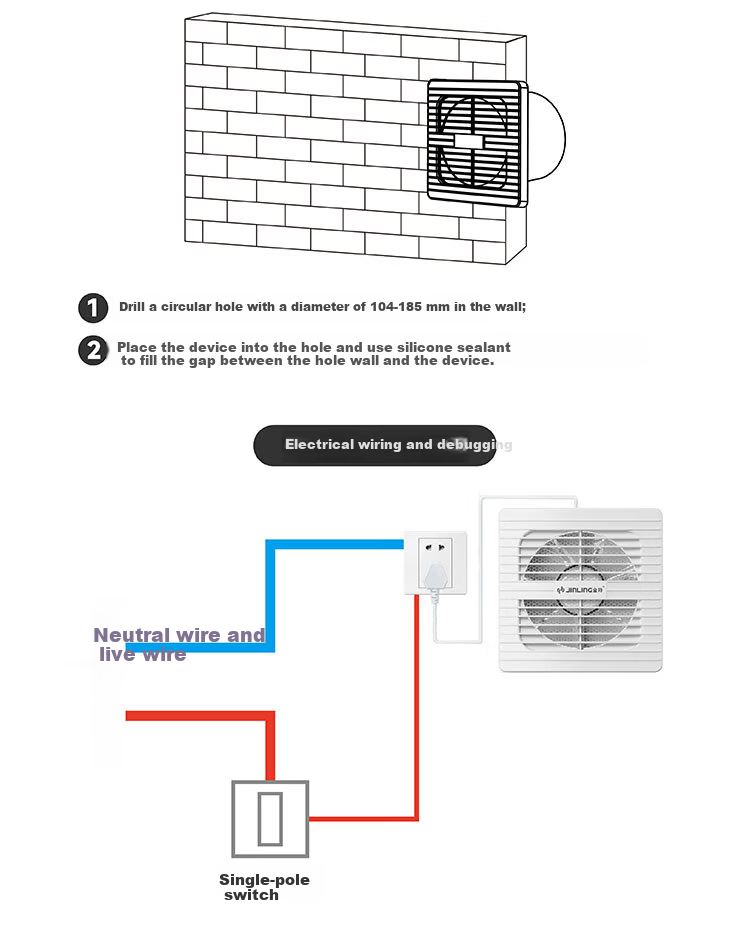

Drill a circular hole of 104-185 mm diameter on the wall.

Insert the fan body into the hole and fill the gap between the fan and the wall with silicone sealant for secure installation.

Connect live and neutral wires.

Use a single control switch for operation.

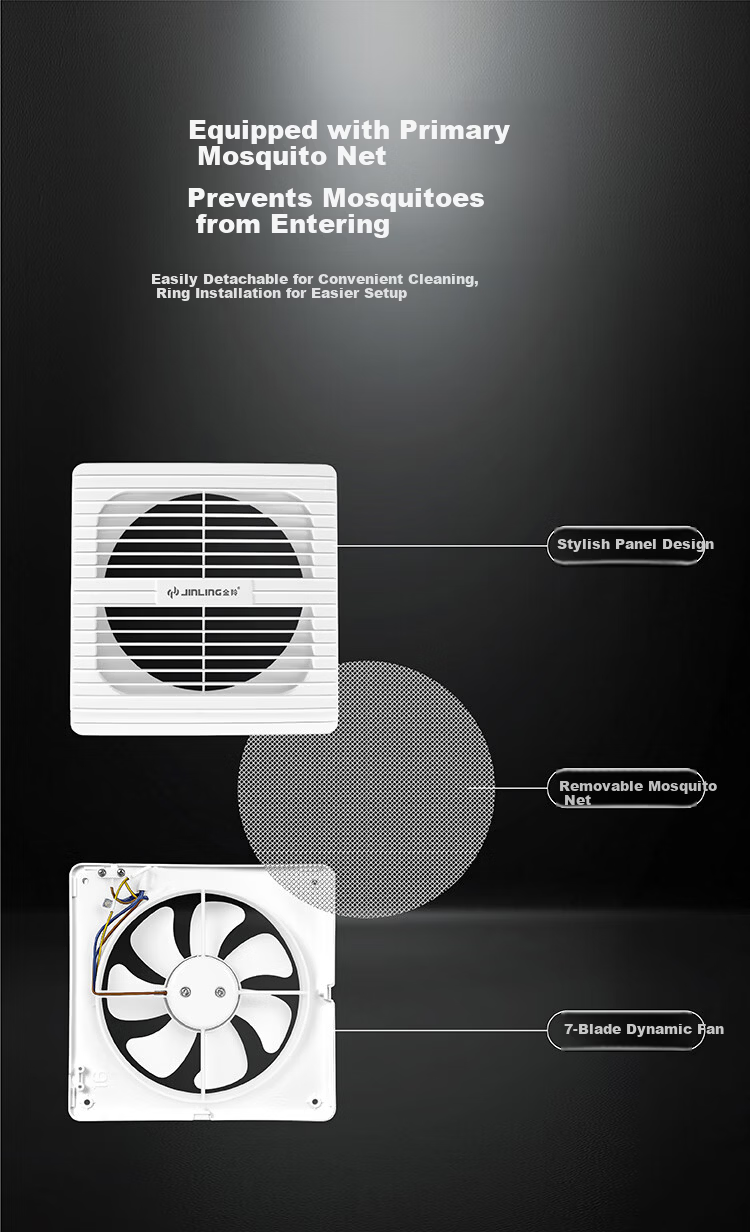

The fan features a removable mosquito net for easy cleaning.

The mounting ring accommodates glass thickness from 3 to 25 mm.

The product is designed for both indoor and outdoor use with a stylish panel and secure installation components.
