JINLING Window Wall Exhaust Fan with Anti-Theft and Mosquito Net, 6-Inch Direct Vent Bathroom Kitchen Ventilation Fan 15-2C

Equipped with removable and washable mosquito nets and stylish panels.

7-blade dynamic fan design for stable and quiet operation.

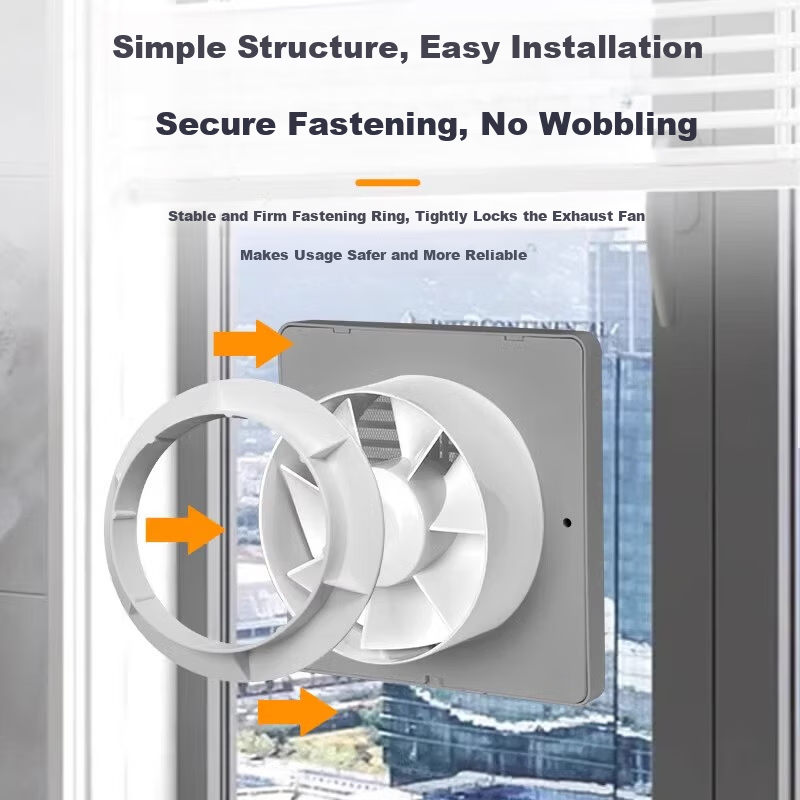

Simple structure with secure and stable mounting rings.

| Model | APC10-0-2C | APC15-2-2C | APC20-3-2C |

|-------------|------------|------------|------------|

| Size | 4 inch | 6 inch | 8 inch |

| Rated Voltage | 220 V | 220 V | 220 V |

| Rated Frequency | 50 Hz | 50 Hz | 50 Hz |

| Rated Power | 10 W | 16 W | 23 W |

| Nominal Airflow | 66 m³/h | 150 m³/h | 246 m³/h |

| Noise Level | 40 dB(A) | 43 dB(A) | 45 dB(A) |

| Opening Size | Φ104-110 mm | Φ151-160 mm | Φ183-185 mm |

| Applicable Area | 4-6 m² | 7-10 m² | 12-20 m² |

| Model | a | b | c | d | e (Opening Diameter) |

|-------------|-----|-----|----|----|----------------------|

| APC10-0-2C | 150 | 150 | 26 | 56 | Φ105 |

| APC15-2-2C | 200 | 200 | 27 | 56 | Φ150 |

| APC20-3-2C | 230 | 230 | 32 | 52 | Φ180 |

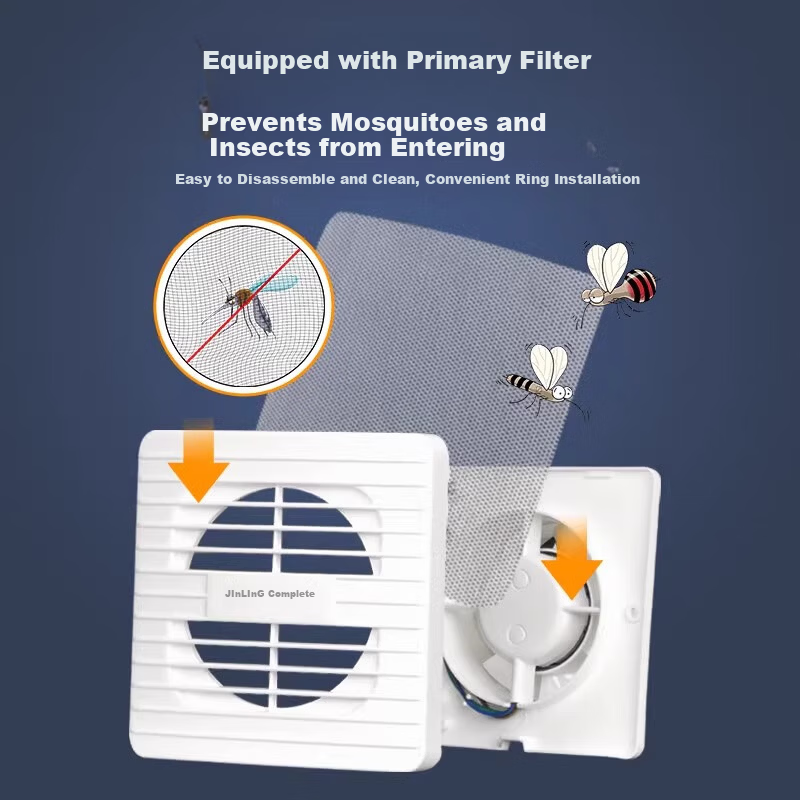

Mosquito-proof net included, removable and washable.

Strong airflow capable of exchanging air 21 times per hour in a 5 m² space.

Simple and secure mounting with stable and vibration-free operation.

Stylish panel design with easy installation and maintenance.

Comprehensive electrical parameter testing.

Airflow and noise testing conducted in JINLING’s engineering technology center.

Strict quality control and energy efficiency compliance.

Suitable for residential, commercial, and institutional ventilation needs.

Widely used in airports, universities, hospitals, metro stations, and industrial facilities.

Shipment data and product performance are based on JINLING’s 2024 internal statistics.

For optimal performance, ensure correct opening size and installation method as per guidelines.
