Back to CatalogJINLING 8-Inch Low Noise Front and Rear Circular Window Wall Exhaust Fan for Bathroom and Kitchen Strong Ventilation 20-C(B8)
Specifications
- Coverage
- 15 square meters or more
- Installation
- Window, Wall
- Energy efficiency rating
- Grade 1 energy efficiency
Variants / Sale Attributes
Style: 8inch [Opening φ182185mm] 258m³/h
Package Contents
One unit of the complete machine and one user manual
Product Description
Product Specifications
Window Glass Exhaust Fan Series (for round openings)
Louver Exhaust Fan Series (for square openings)
1. Confirm Opening Type
- Round opening: Choose Window Glass Exhaust Fan Series
- Square opening: Choose Louver Exhaust Fan Series
2. Confirm Opening Size and Panel Size
| Item | Detail |
|---|
| Opening size must be smaller than panel size | — |
| Measure the red line diameter to determine opening size | — |
| Select model based on opening size | — |
| Red line indicates product opening size; blue line indicates panel size |
Similar Products
In Stock
In Stock
| Model | Size (inch) | Rated Voltage (V) | Frequency (Hz) | Power (W) | Airflow (m³/h) | Noise (dB(A)) | Opening Size (mm) | Applicable Area (m²) |
|-----------------|-------------|-------------------|----------------|-----------|----------------|---------------|-------------------|----------------------|
| APC10-2-C(B8) | 4 | 220 | 50 | 10 | 66 | 38 | 100-110 | 4-7 |
| APC15-2-C(B8) | 6 | 220 | 50 | 16 | 180 | 39 | 152-155 | 7-10 |
| APC20-3-C(B8) | 8 | 220 | 50 | 23 | 258 | 42 | Φ180-185 | 12-20 |
| APC25-4-C(B8) | 10 | 220 | 50 | 23 | 378 | 45 | Φ233-240 | 20-25 |
| Model | a | b | c | d | e |
|-----------------|-----|-----|----|-----|-------|
| APC10-2-C(B8) | 150 | 150 | 12 | 78 | Φ98 |
| APC15-2-C(B8) | 200 | 200 | 12 | 99 | Φ150 |
| APC20-3-C(B8) | 250 | 250 | 13 | 104 | Φ180 |
| APC25-4-C(B8) | 283 | 283 | 15 | 128 | Φ230 |
Established in 1974, JINLING is a professional brand with over 50 years of experience.
Additional details
- Low noise operation
- as low as 42 dB(A), quieter than typical exhaust fans and comparable to a gentle shower (58 dB).

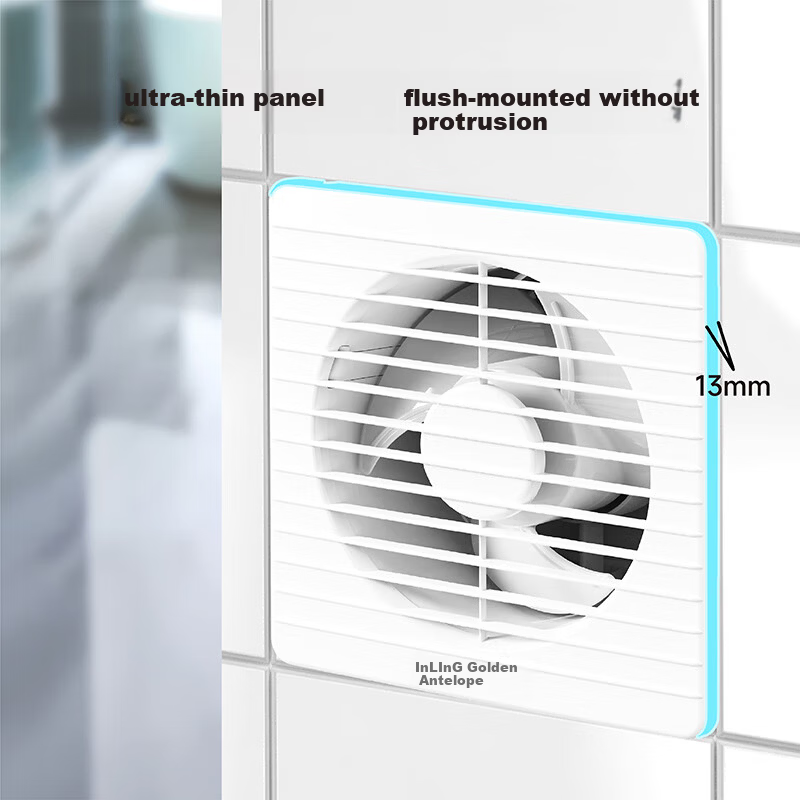

Ultra-thin panel design with strong suction and high energy efficiency.

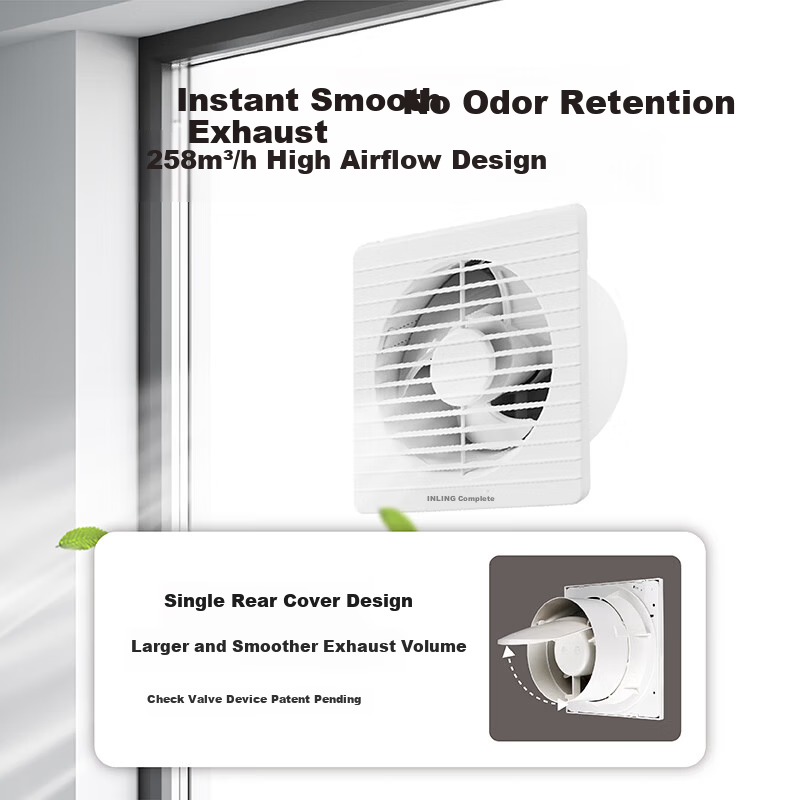

Easy installation with single open rear cover design for larger and smoother airflow.
Patented automatic check valve prevents backflow, insects, odors, wind, dust, and rain intrusion.

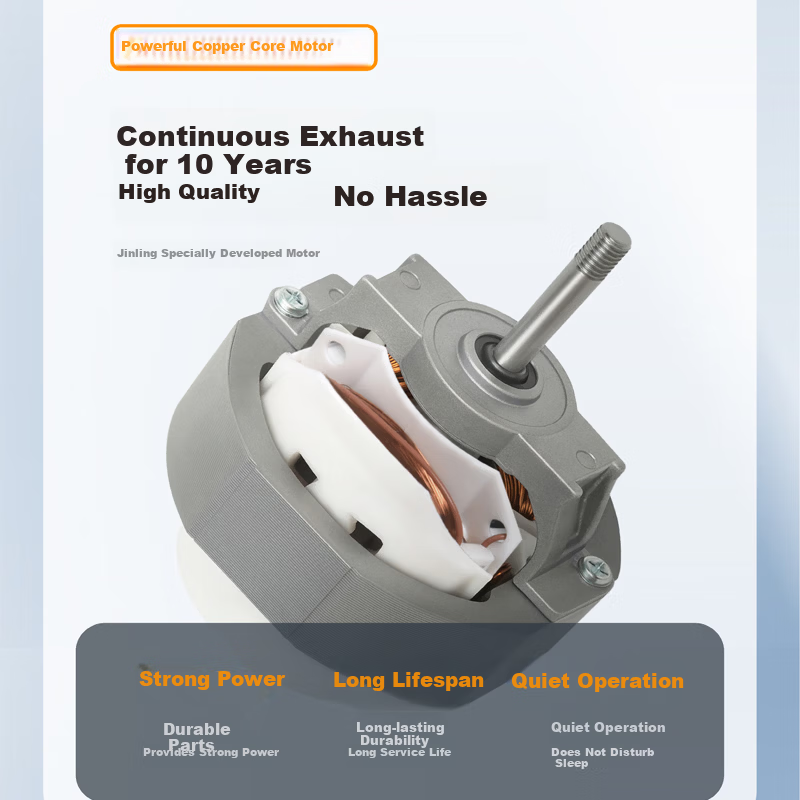

Durable copper core motor developed by JINLING ensures strong power, long lifespan, and quiet operation.

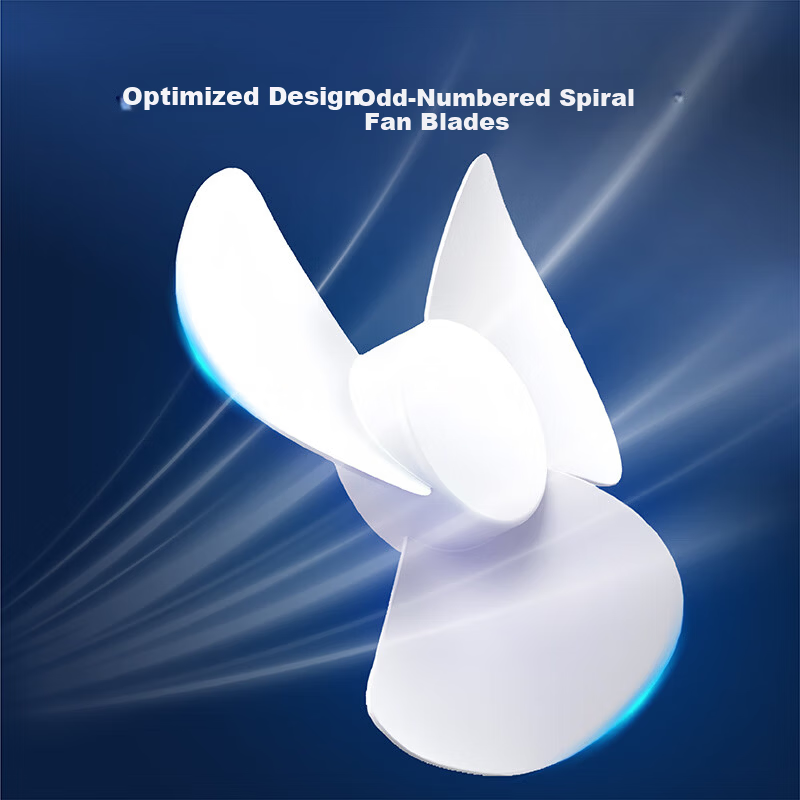

Optimized odd-number spiral fan blades increase airflow and reduce noise.
Additional details
- Suitable for multiple scenarios
- bathrooms, kitchens, dining rooms, game rooms.
- High-quality ABS material
- resistant to deformation, yellowing, easy to clean, and electrically insulated.
Cross-frame body structure for stable operation and secure fastening ring to lock glass and fan tightly.
Comes with 1-meter power cord, certified by 3C, meeting national safety standards.
Additional details
- Window Installation
- Drill a round hole (110-240 mm diameter) in the glass, insert the fan body, fix the sealing ring from outside, and seal gaps with glass glue.
- Wall Installation
- Suitable for round openings in walls with proper sealing and mounting.
Comprehensive electrical parameter testing
Airflow testing laboratory
Engineering technology center
Mature production and storage systems
Products sold domestically and exported to over 40 countries including Europe, Japan, Southeast Asia, South America, Middle East, and South Africa.
Nearly 50 years of offline sales and distribution network.
For any questions or unclear information, please contact customer service.
