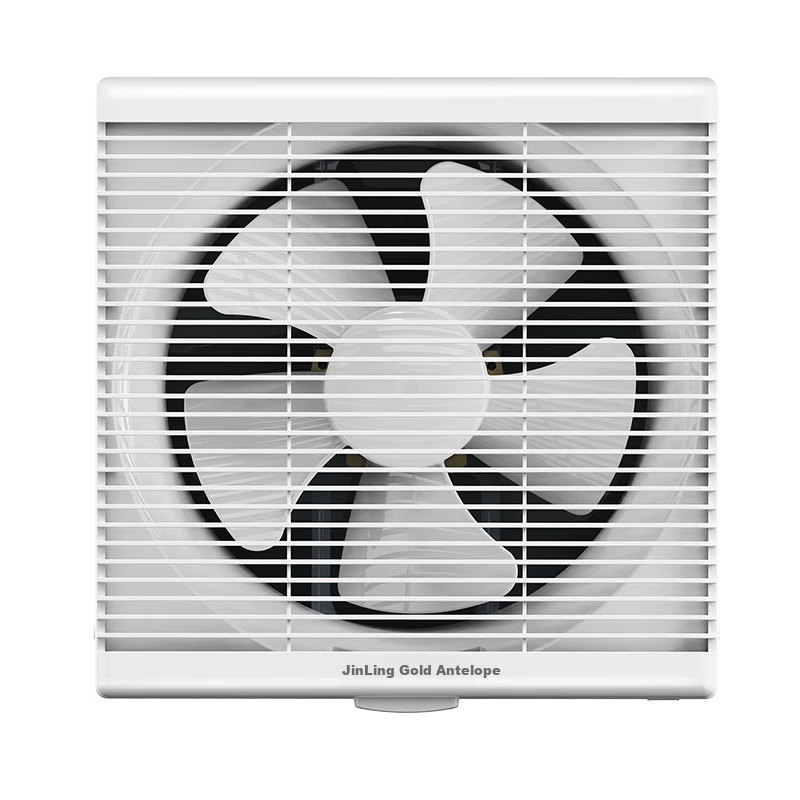

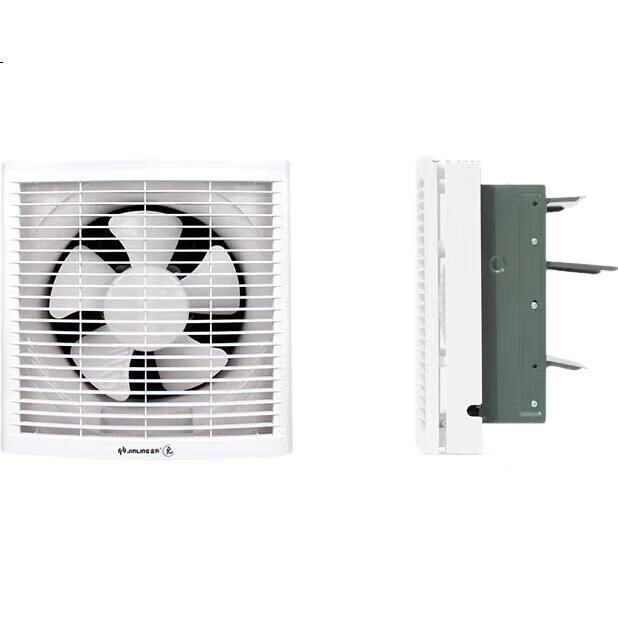

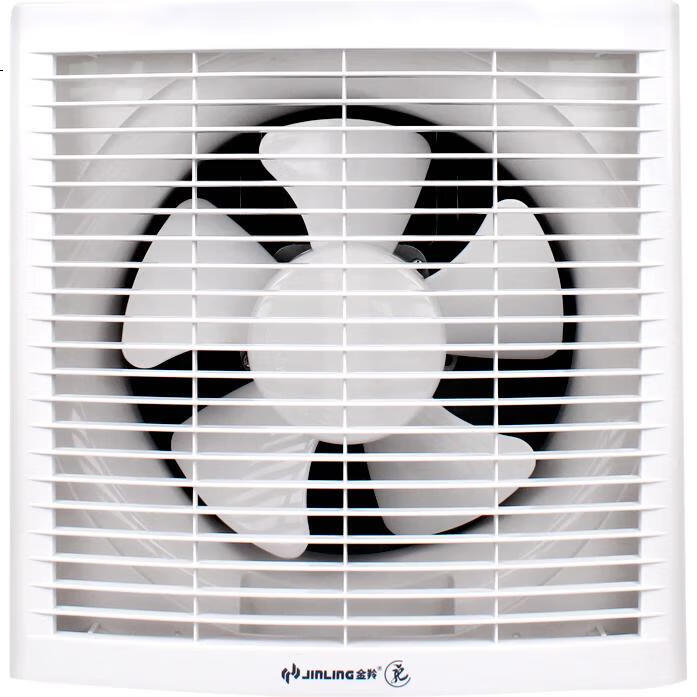

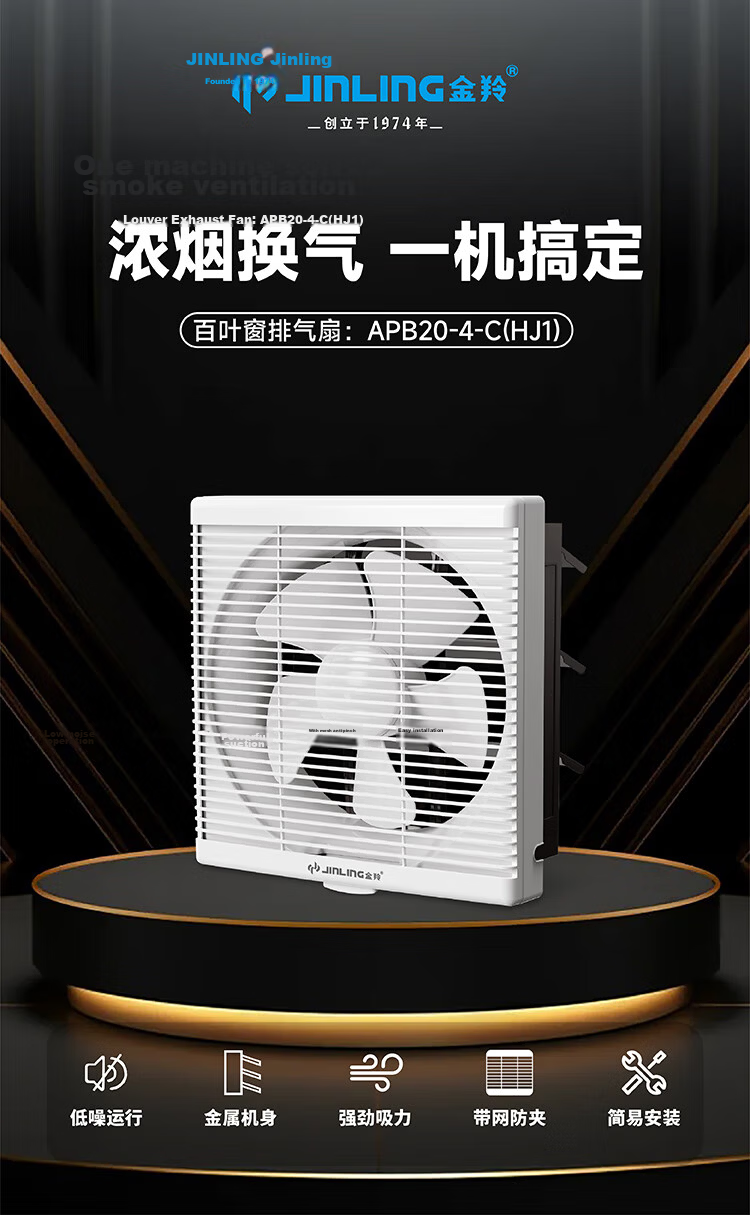

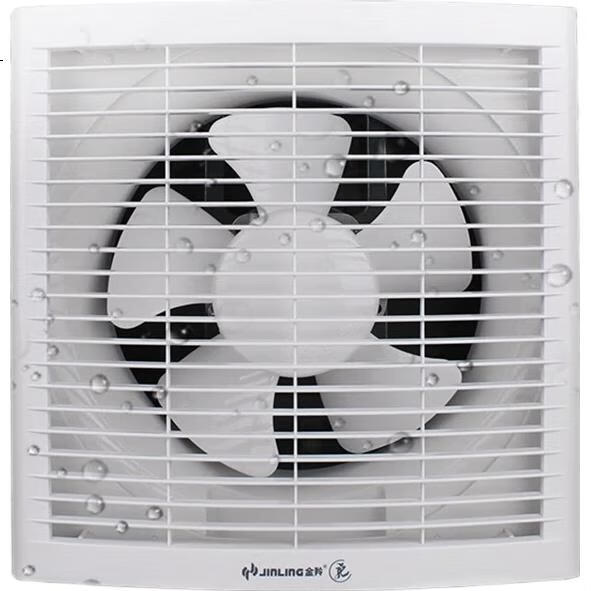

JINLING Powerful Exhaust Fan for Kitchen and Bathroom, Metal Body, Window and Wall Mounted

JINLING•Window wall exhaust fan

JINLING Powerful Exhaust Fan for Kitchen and Bathroom, Metal Body, Window and Wall Mounted

CN¥157.60

SKU: 100218292804

Status:In Stock (9)

ID: 100218292804

Weight: 3000.00 g

Dims:410x405x145 mm

Specifications

Energy efficiency rating: Grade 2 energy efficiency
Coverage: 15 square meters or more
Installation: Window, Wall

Variants / Sale Attributes

Style: 12inch [Opening 347~353mm] with mesh

Package Contents

One unit of the complete machine and one user manual

Product Description

Product Specifications

Overview

Brand: JINLING

Established in 1974, JINLING is a professional exhaust fan brand with 50 years of experience.

Recognized as the national standard setter for ventilation fans and fans in China.

Certified by a national energy efficiency testing laboratory.

Annual shipment volume approximately 3,000,000 units (2024 internal data).

Products are sold domestically and exported to over 40 countries including Europe, Japan, Southeast Asia, South America, Middle East, and South Africa.

Extensive offline sales and distribution network with nearly 50 years of operation.

Notable project installations include Beijing Daxing International Airport, South China Normal University (Guangzhou), South China University of Technology, and many others.

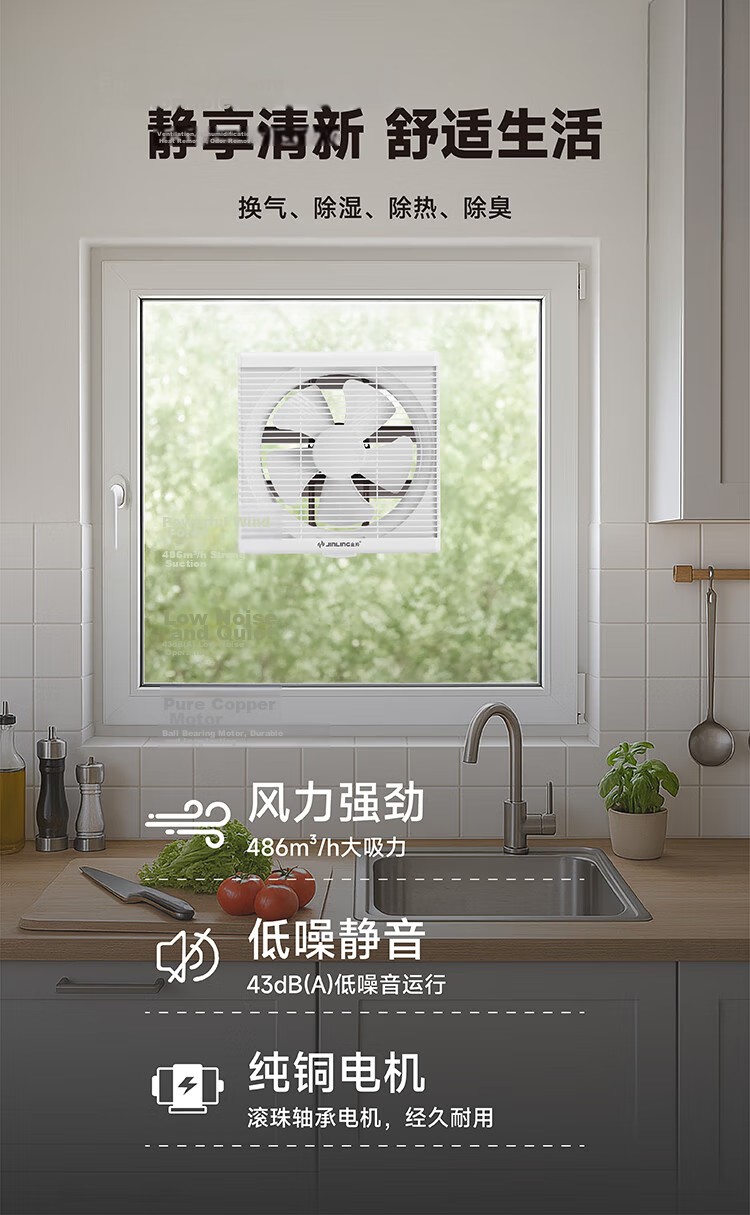

Suitable for smoke ventilation, dehumidification, heat removal, and odor elimination.

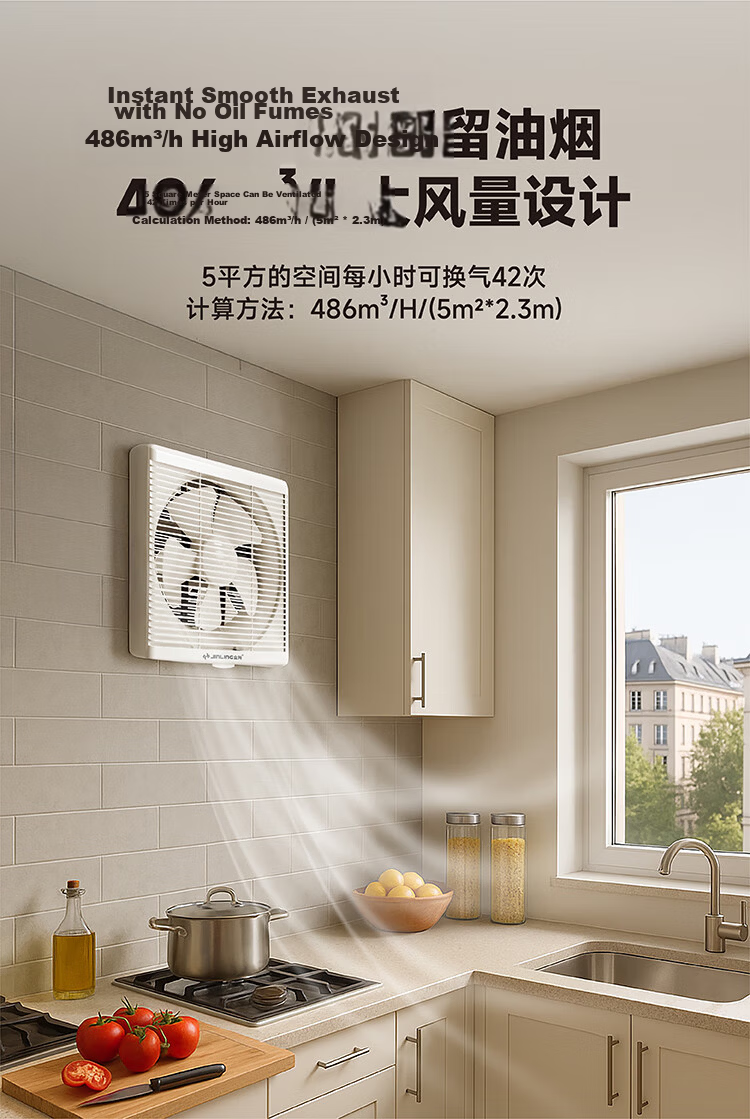

Strong airflow with up to 486 m³/h air volume.

Low noise operation at 40-46 dB(A).

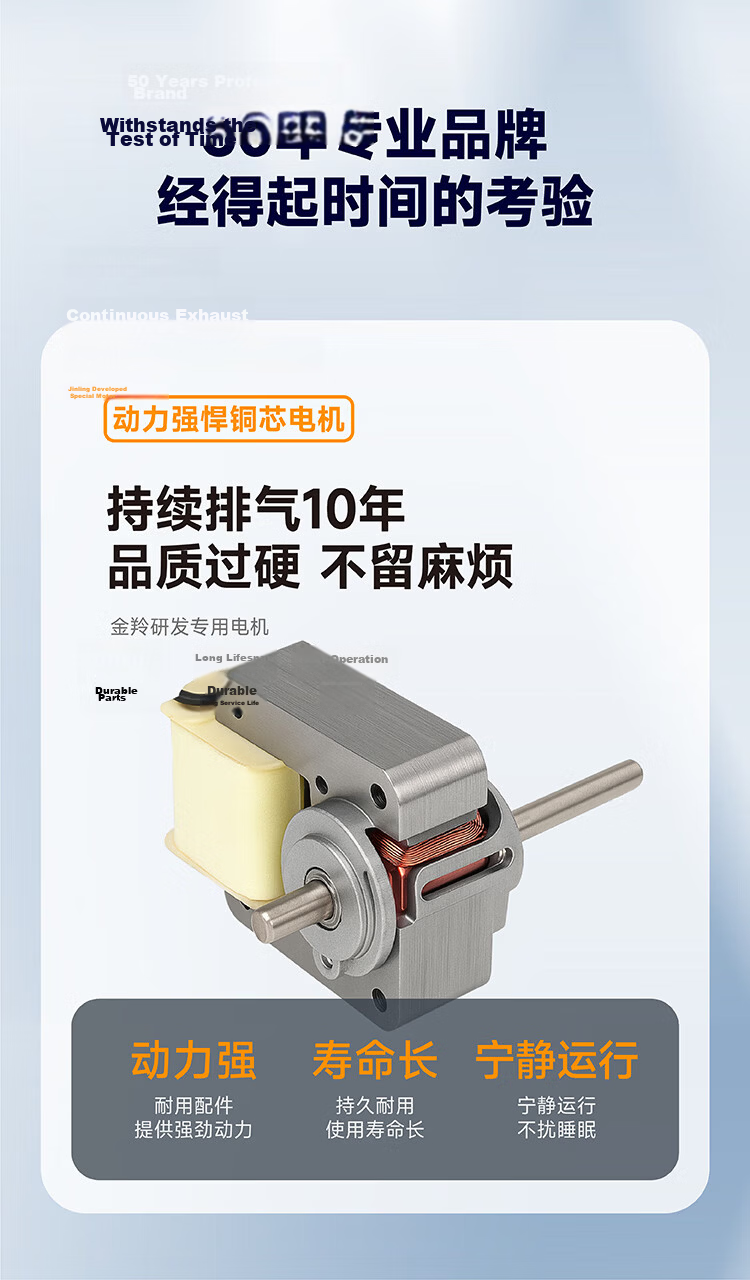

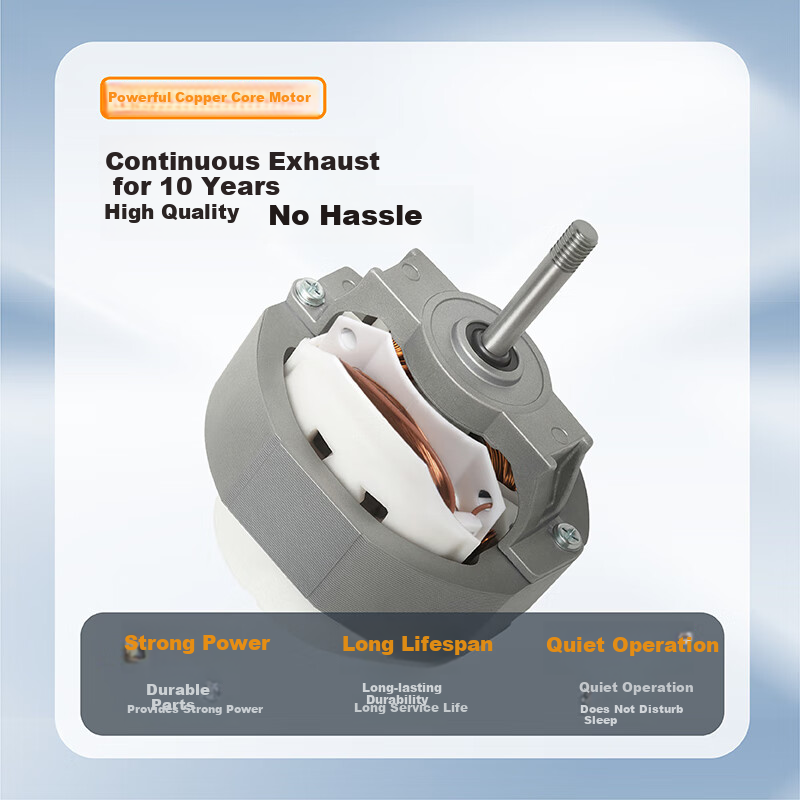

Durable pure copper motor with ball bearings.

Metal body construction for reliability.

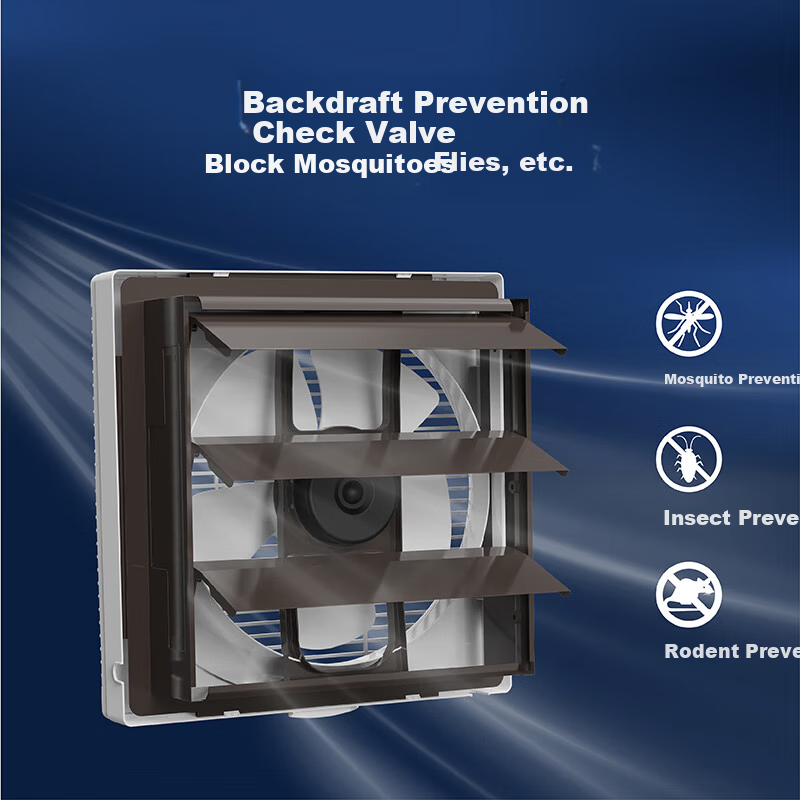

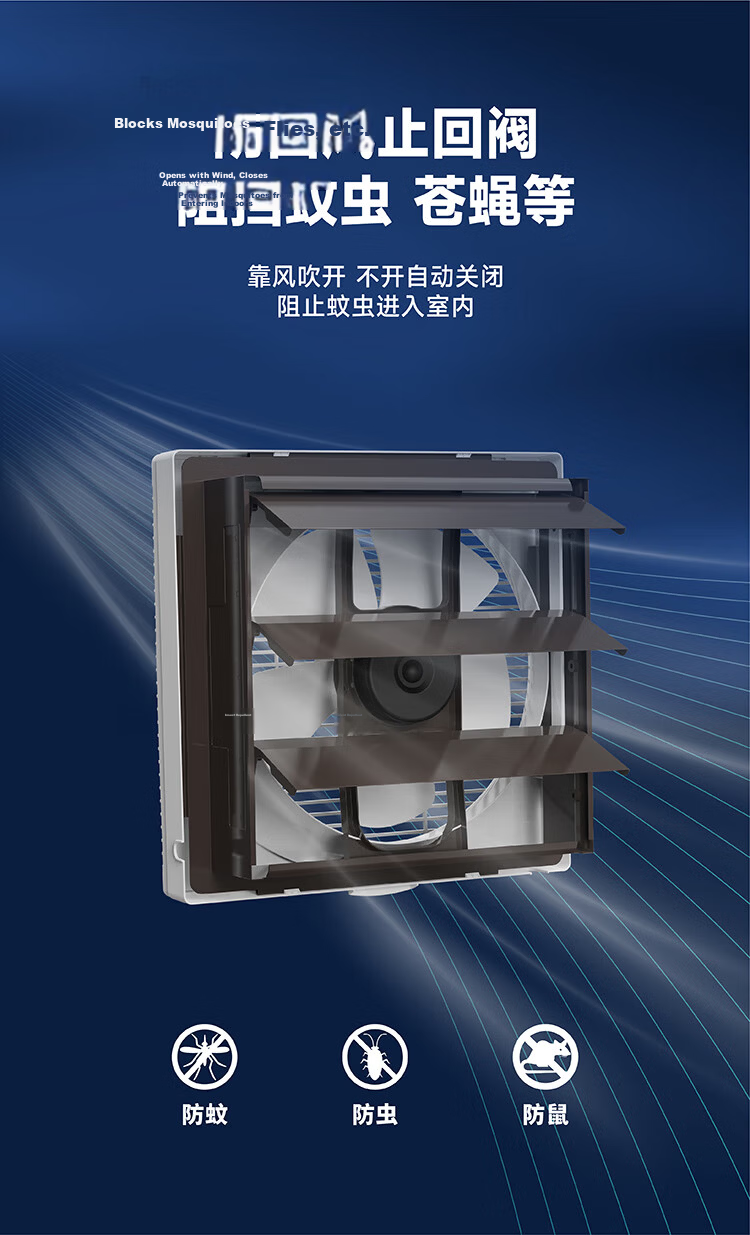

Equipped with anti-backflow check valve to prevent insects and rodents.

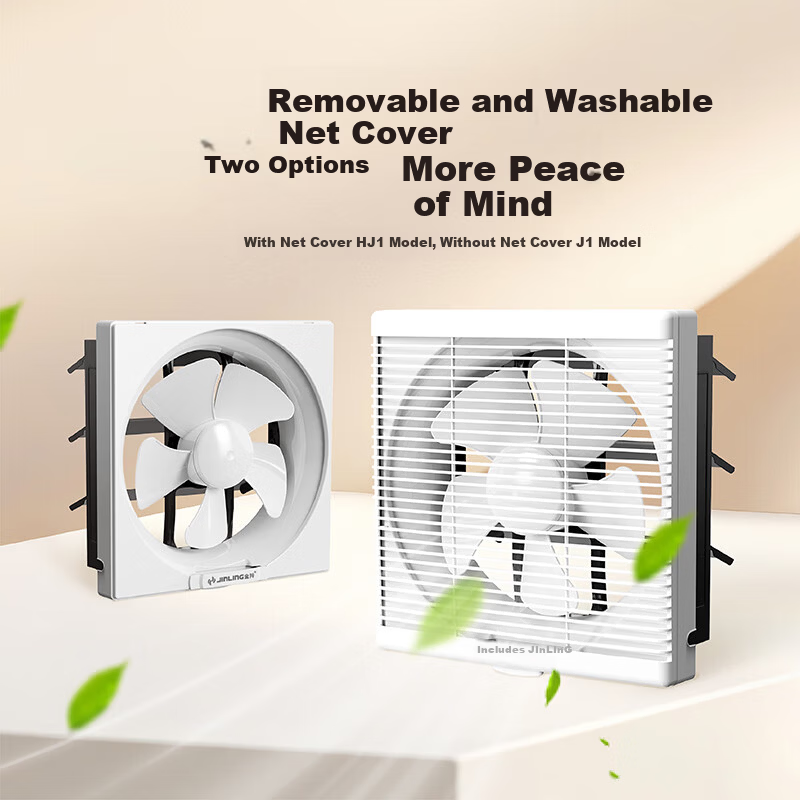

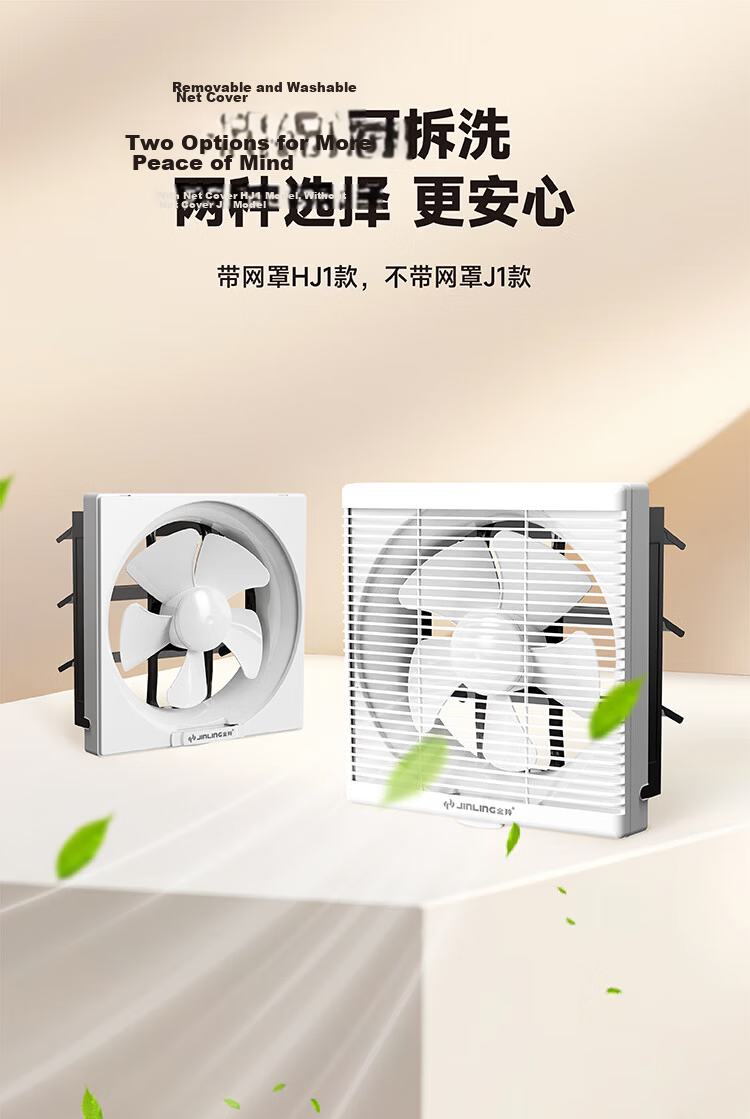

Removable and washable mesh cover available (HJ1 model with mesh, J1 model without mesh).

Similar Products

In Stock

NedfonWindow wall exhaust fan

Nedfon APB15-3 Exhaust Fan, Kitchen And Bathroom Window-Mounted Wall-Mounted Ventilation Fan, Range Hood, Extractor Fan with Square Opening

270 CFM | Square Opening 198x198mm

CN¥70.11

View

In Stock

NedfonWindow wall exhaust fan

Nedfon APB20-4 Exhaust Fan, Bathroom Window-Mounted Wall Fan, Smoke Extractor, Ventilation Fan, Air Exchanger, Square Opening

492 Air Volume | Square Opening 248x248mm

CN¥82.80

View

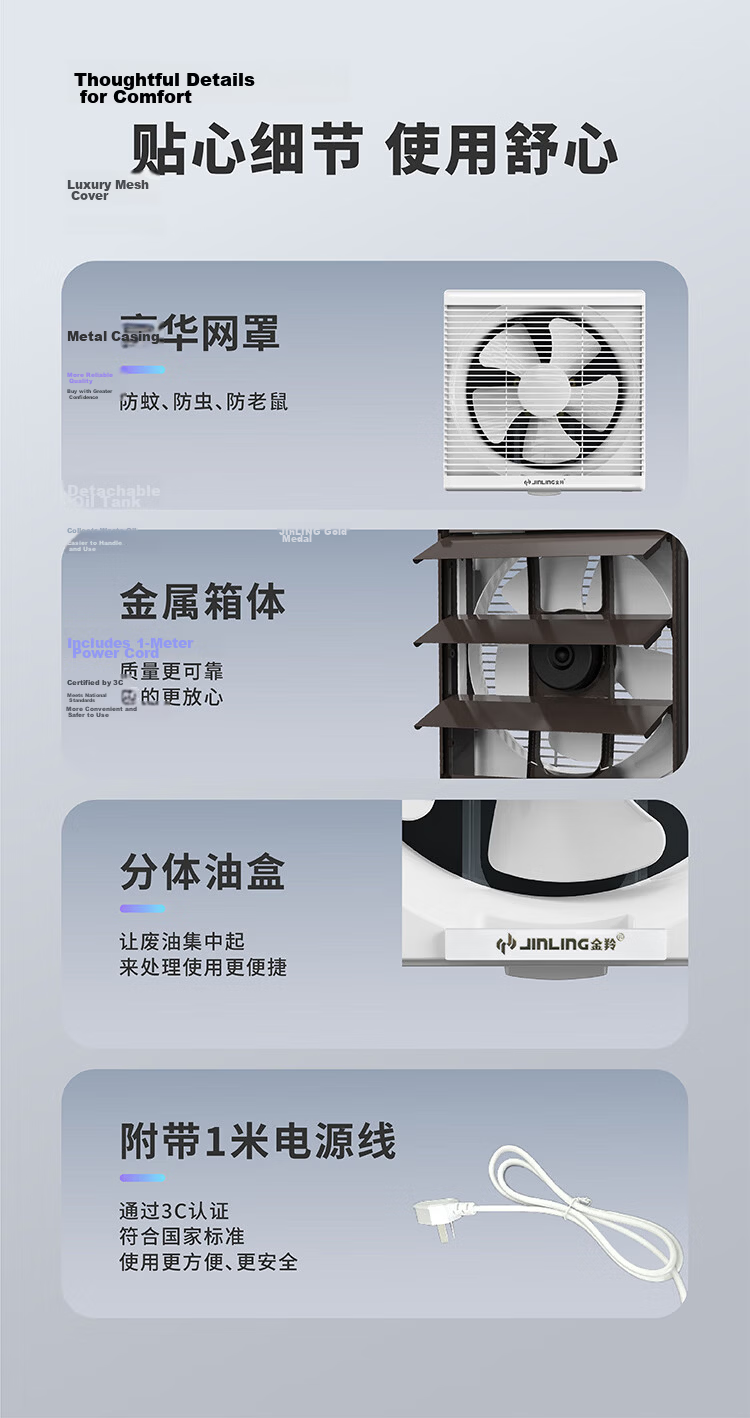

Separate oil collection box for easy maintenance.

Comes with 1-meter power cord, certified by 3C, compliant with national standards.

Easy installation with options for wall or window frame mounting.

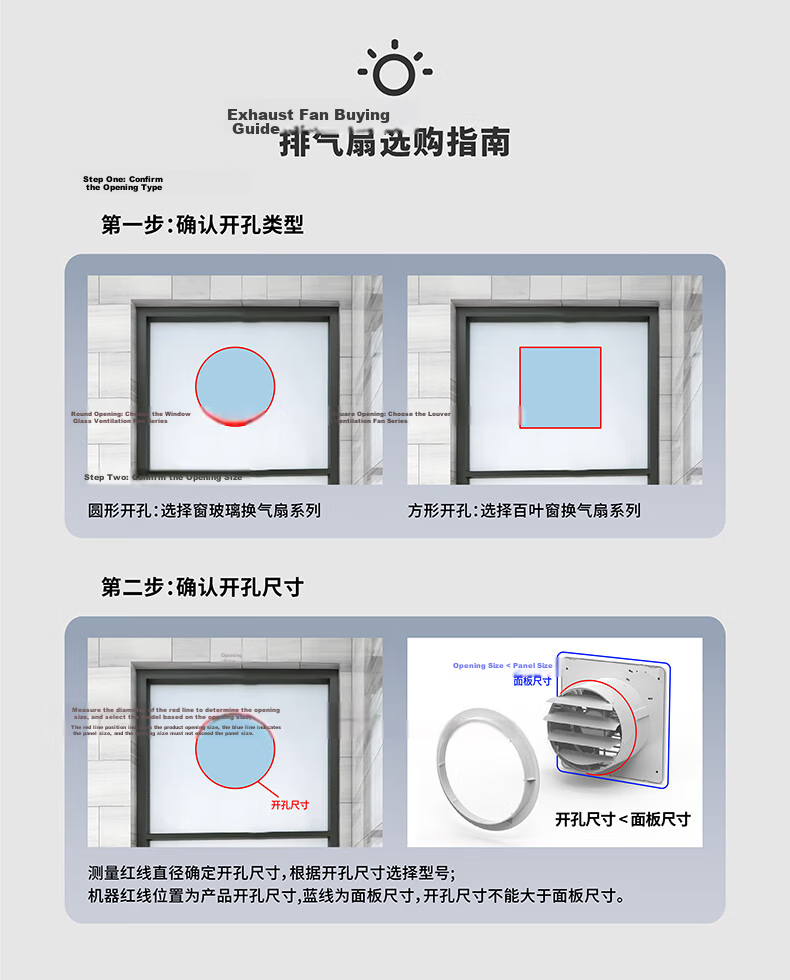

1. Confirm opening type

Item	Detail
Round opening	choose window glass ventilation fan series.
Square opening	choose louver ventilation fan series.

2. Confirm opening size and panel size

Item	Detail
Opening size must be smaller than panel size.	—
Measure diameter or side length to select appropriate model.	—

|---------------------|-------------|-------------------|----------------|-----------|-------------------|---------------|-------------------|----------------------|

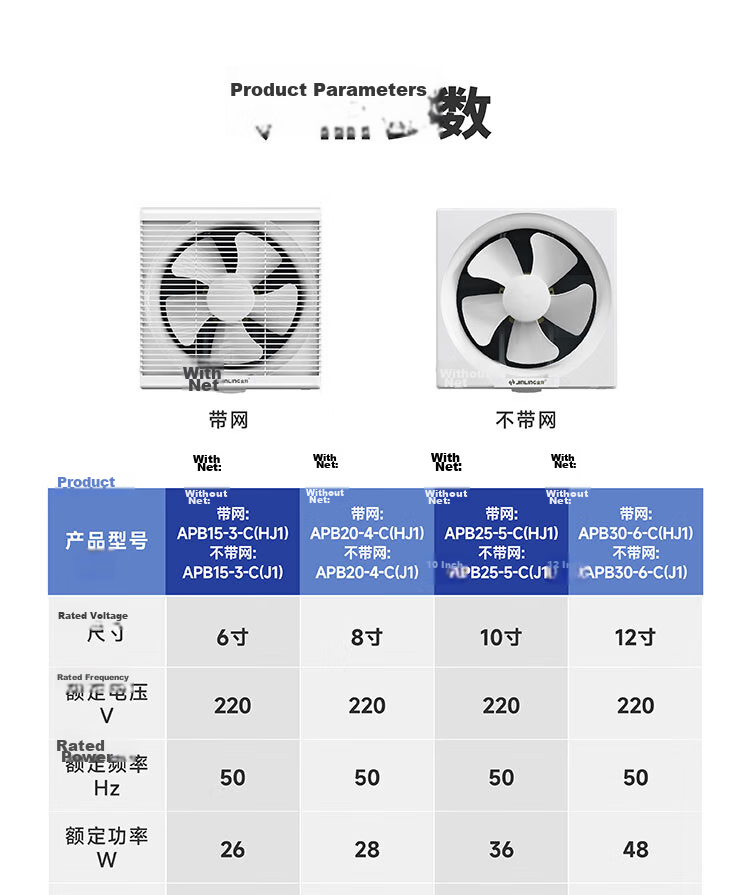

| APB15-3-C(HJ1/J1) | 6 | 220 | 50 | 26 | 241 | 40 | 200x200 | 16-20 |

| APB20-4-C(HJ1/J1) | 8 | 220 | 50 | 28 | 486 | 42 | 250x250 | 20-25 |

| APB25-5-C(HJ1/J1) | 10 | 220 | 50 | 36 | 750 | 45 | 300x300 | 30-37 |

| APB30-6-C(HJ1/J1) | 12 | 220 | 50 | 48 | 1200 | 46 | 350x350 | 45-55 |

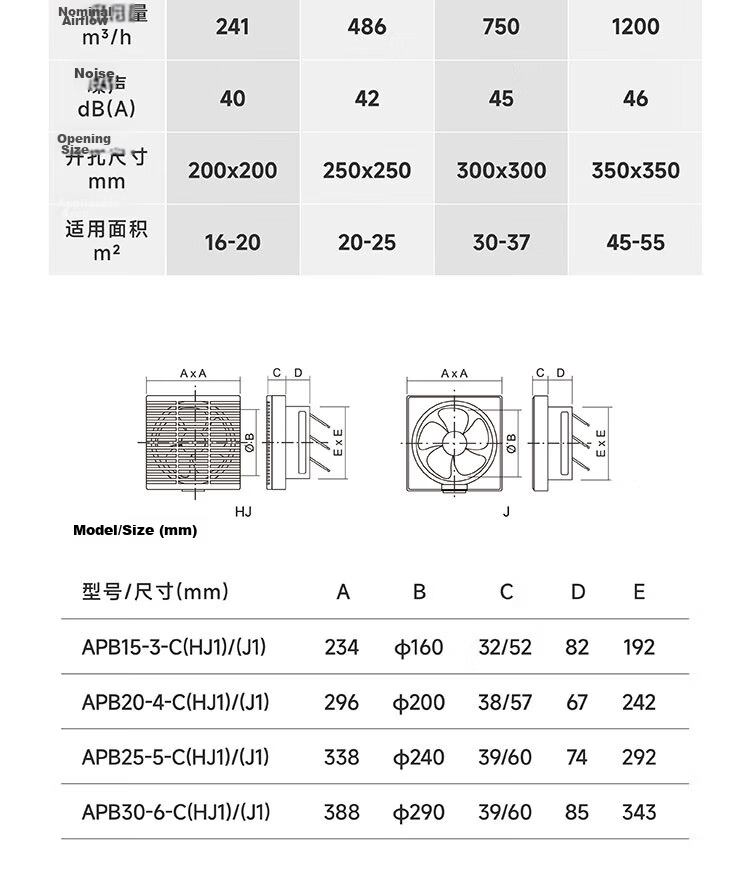

| Model | A | B (Diameter) | C (Thickness) | D | E |

|---------------------|-----|--------------|---------------|-----|-----|

| APB15-3-C(HJ1/J1) | 234 | Φ160 | 32/52 | 82 | 192 |

| APB20-4-C(HJ1/J1) | 296 | Φ200 | 38/57 | 67 | 242 |

| APB25-5-C(HJ1/J1) | 338 | Φ240 | 39/60 | 74 | 292 |

| APB30-6-C(HJ1/J1) | 388 | Φ290 | 39/60 | 85 | 343 |

Cut a square opening in the wall between 200-350 mm.

Insert the fan body into the wall opening.
