Jingchuang LM-200 Illuminance Meter Split-Type Light Intensity Monitor High-Precision Photometer 200,000 Lux Brightness Tester

elitech•Illuminance meter

Jingchuang LM-200 Illuminance Meter Split-Type Light Intensity Monitor High-Precision Photometer 200,000 Lux Brightness Tester

CN¥159.00

SKU: 100284174086

Status:In Stock (23)

ID: 100284174086

Weight: 440.00 g

Dims:212x144x72 mm

Specifications

Suitable Scenarios: Indoor
Category: digital luxmeter

Package Contents

Illuminance meter *1, protective pouch *1, AAA batteries *3, user manual *1

Product Description

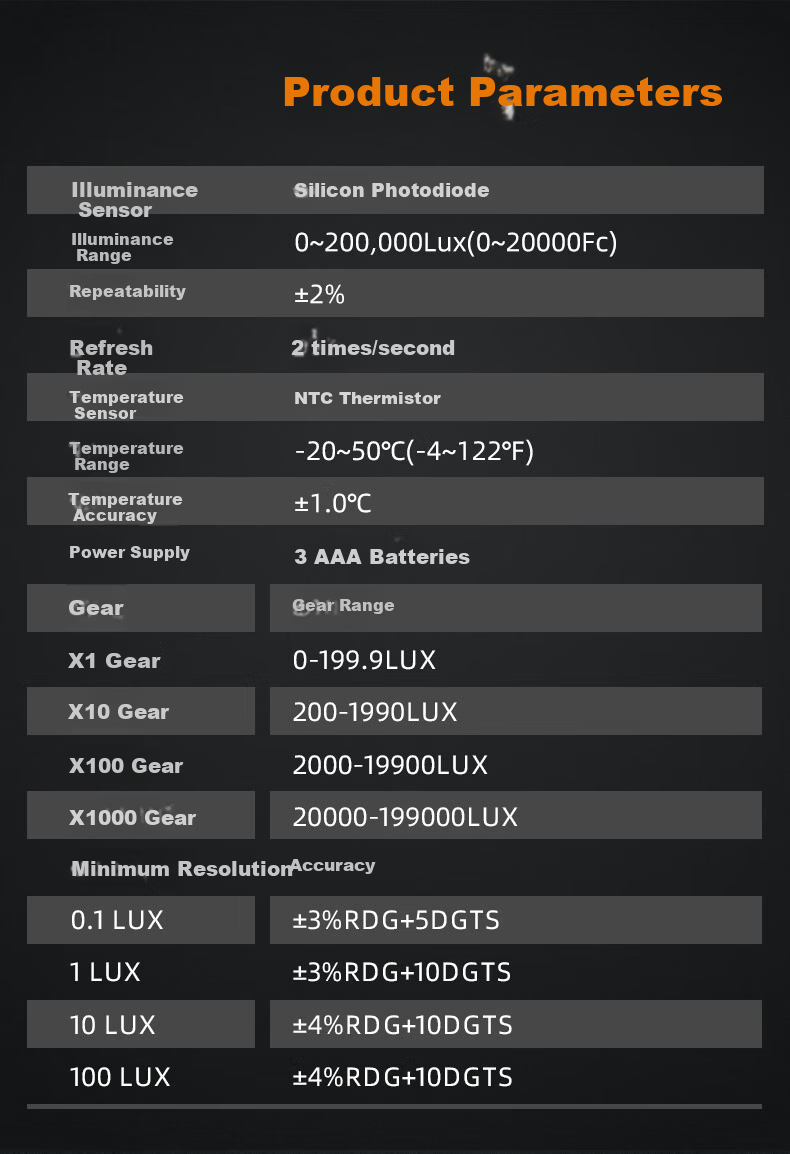

Product Specifications

Overview

Brand: Elitech
Model: LM-200
Type: Split Type Lux Meter with Separate Sensor and Main Unit
Type: Silicon Photodiode Illuminance Sensor

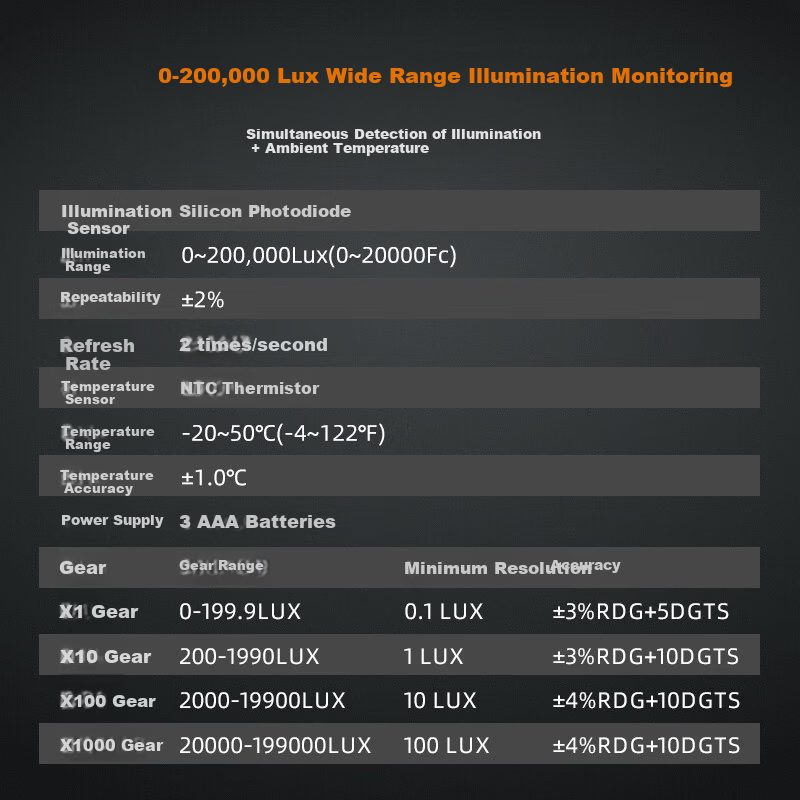

Illuminance Range: 0 to 200,000 Lux (0 to 20,000 Fc)
Repeatability: ±2%
Refresh Rate: 2 times per second

Measurement Accuracy

Similar Products

In Stock

Illuminance meter

Teans Digital Lux Meter High Precision Light Meter Illuminance Tester Photometer

[200,000 LUX+ Integrated Measurement] TA630A

CN¥59.00

View

In Stock

Illuminance meter

Teansi Illuminance Meter, Photometric Instrument, High-Precision Luminous Flux Tester, Brightness Meter, Photometric Measuring Instrument TA631B

[300,000 LUX + Alarm + Temperature And Humidity] TA631B

CN¥79.00

View

Item	Detail
0.1 Lux resolution	±3% RDG + 5 digits
1 Lux resolution	±3% RDG + 10 digits
10 Lux resolution	±4% RDG + 10 digits
100 Lux resolution	±4% RDG + 10 digits

Additional details

Type: NTC Thermistor
Temperature Range: -20°C to 50°C (-4°F to 122°F)
Accuracy: ±1.0°C
X1: 0 to 199.9 Lux
X10: 200 to 1990 Lux
X100: 2000 to 19,900 Lux
X1000: 20,000 to 199,000 Lux

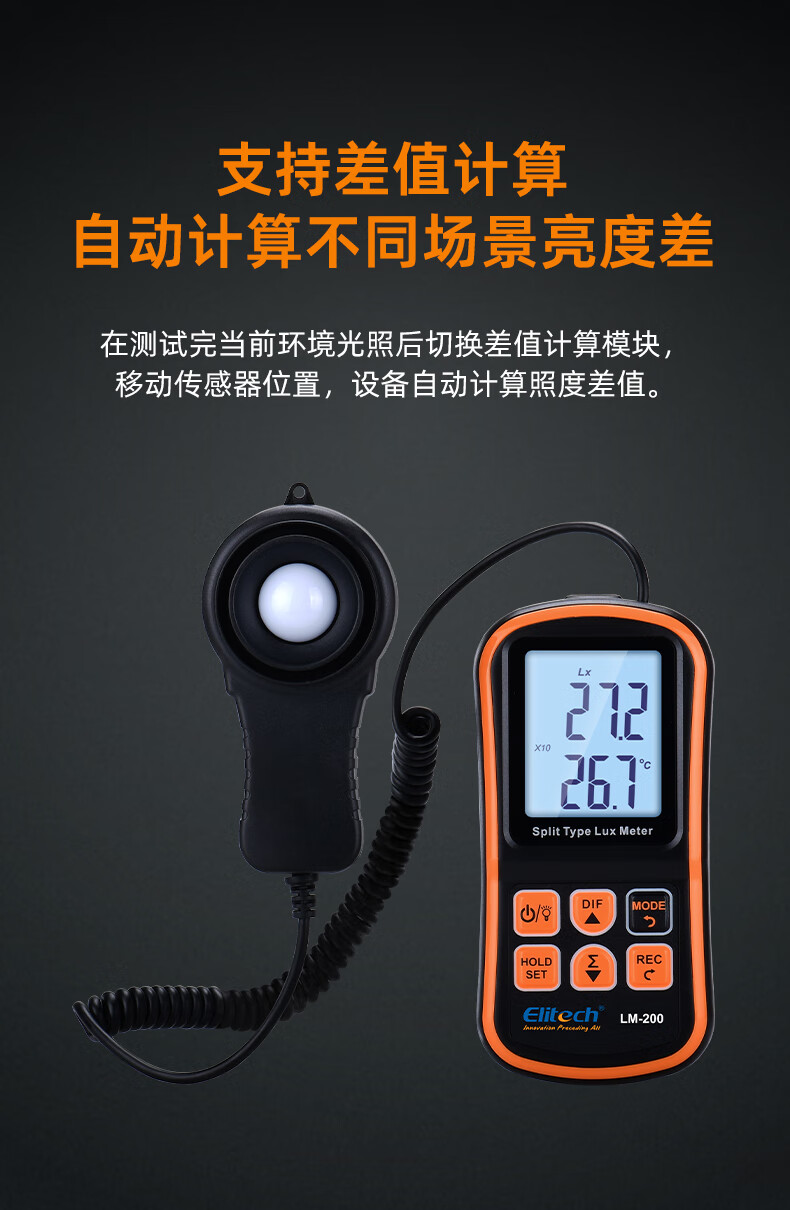

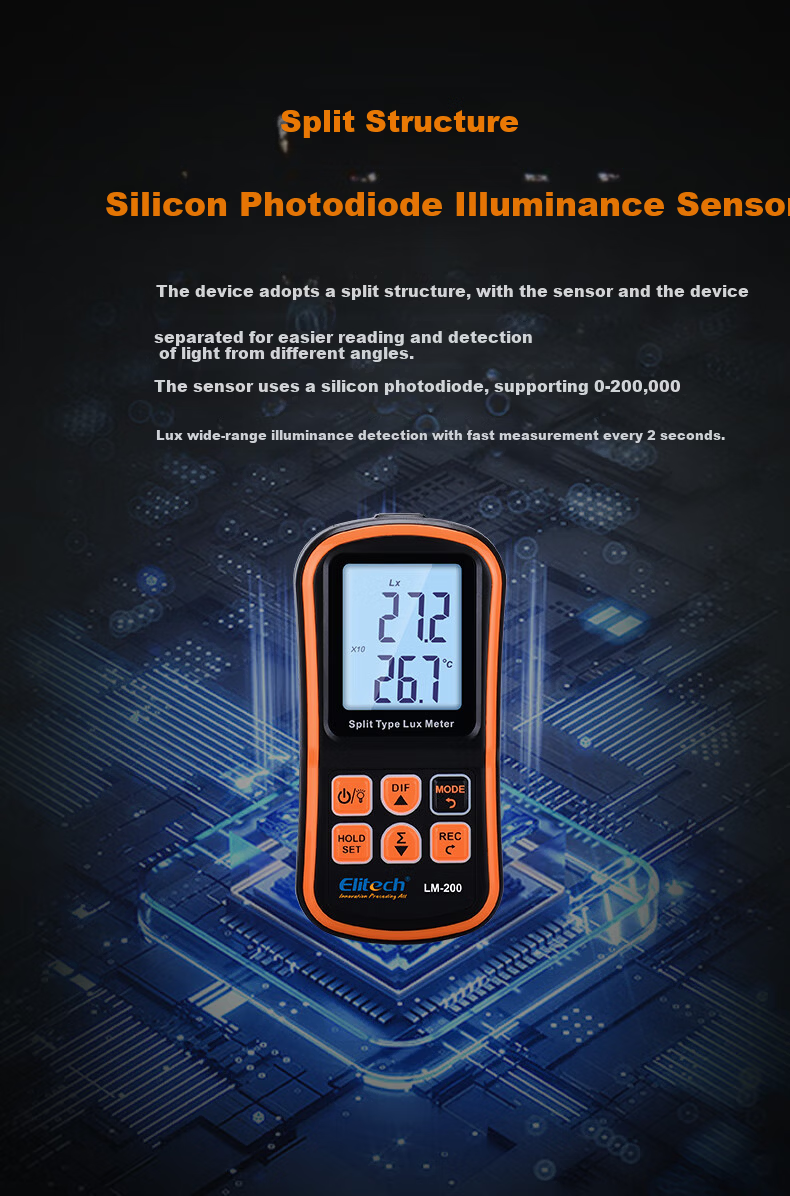

Split structure design allows sensor and main unit separation for easier reading and multi-angle light detection

Supports wide range illuminance detection up to 200,000 Lux

Fast measurement with 2-second interval per reading

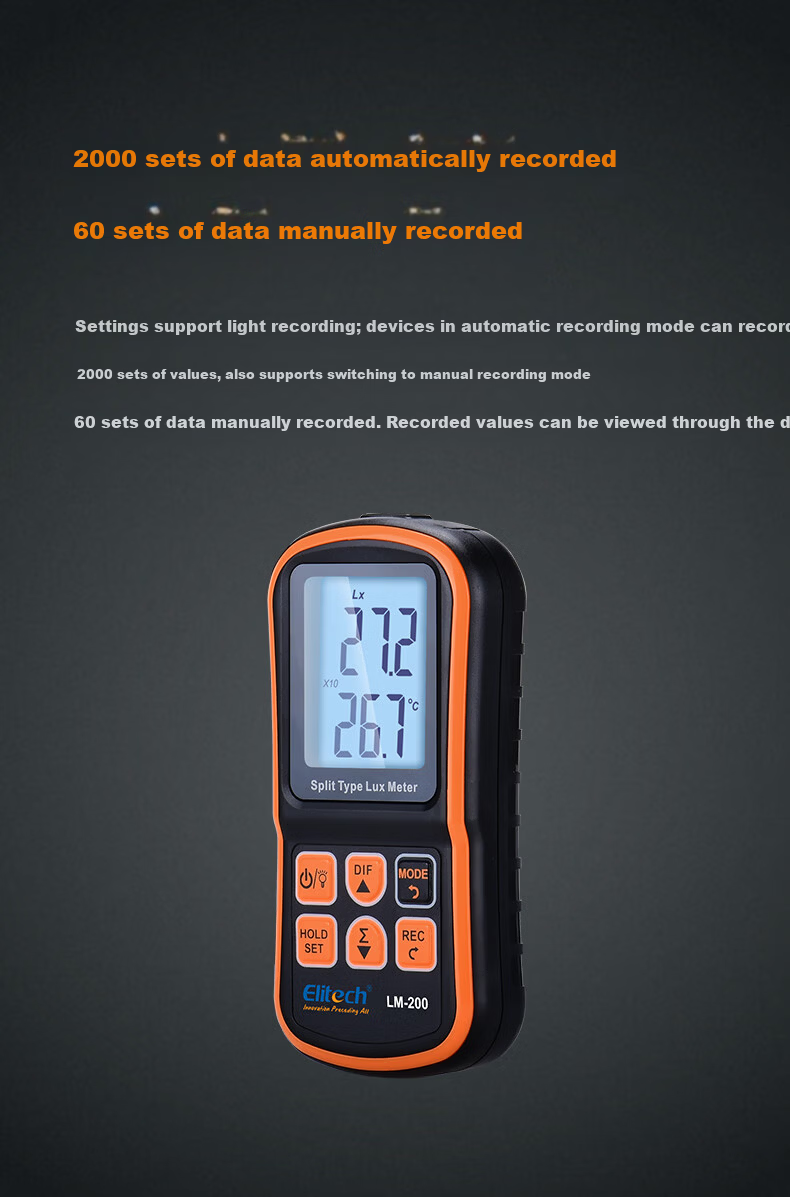

Data recording

Item	Detail
Automatic mode	up to 2000 data sets
Manual mode	up to 60 data sets

Data can be viewed directly on the device

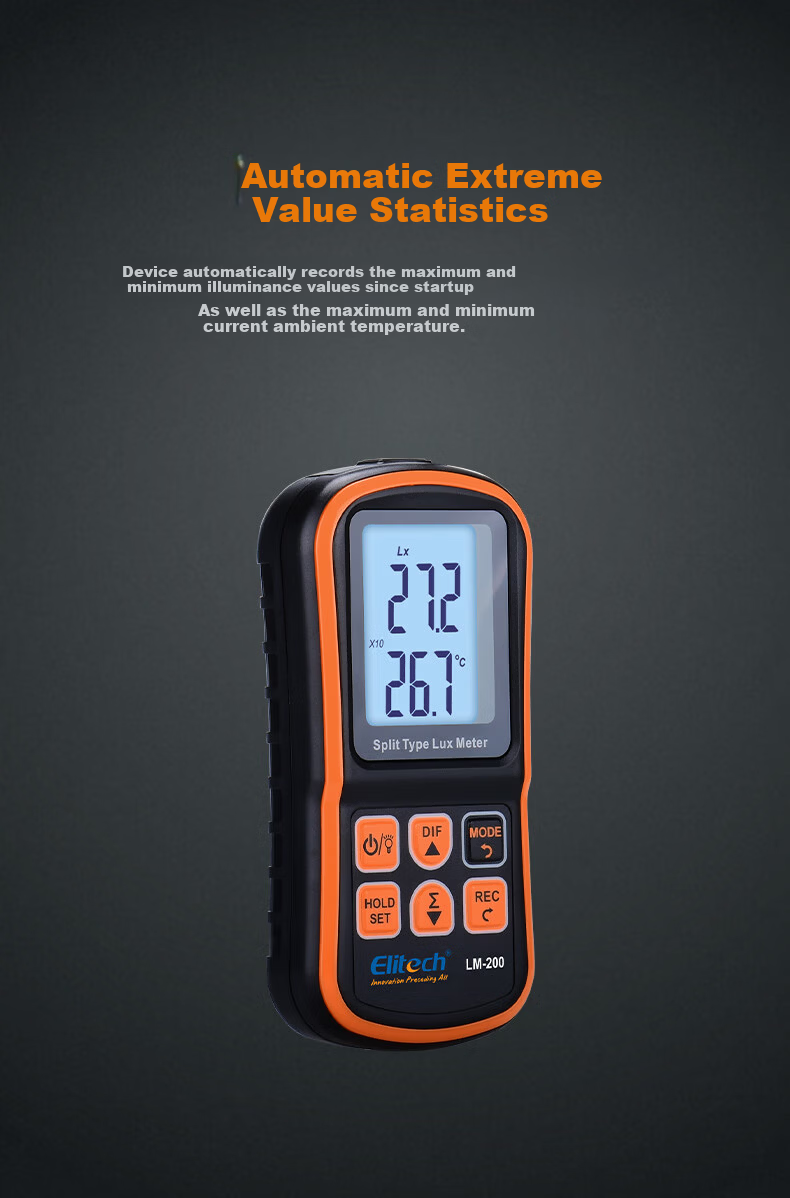

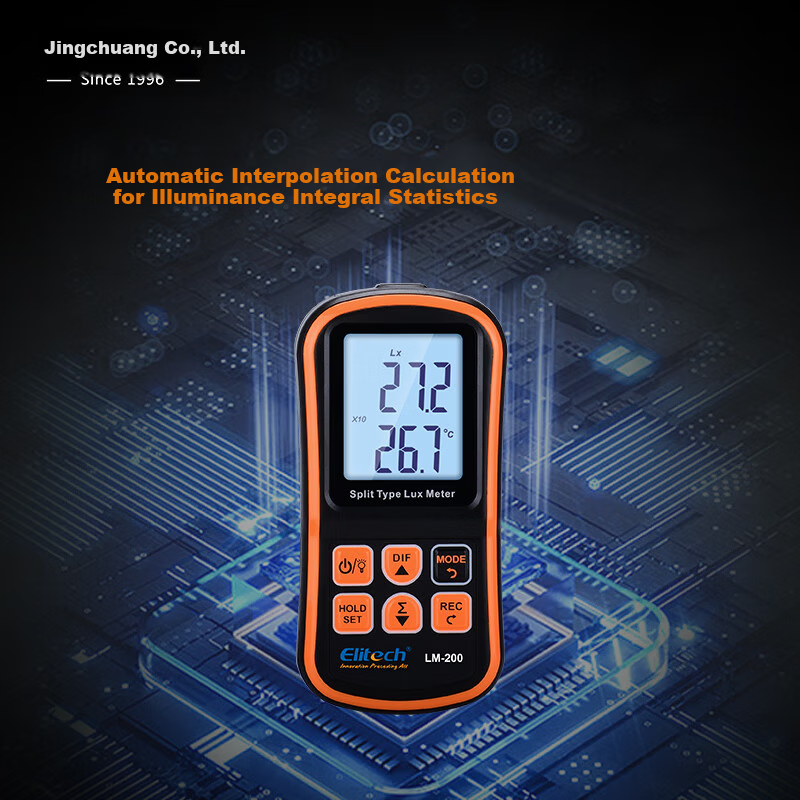

Automatic max/min illuminance and temperature statistics from power-on

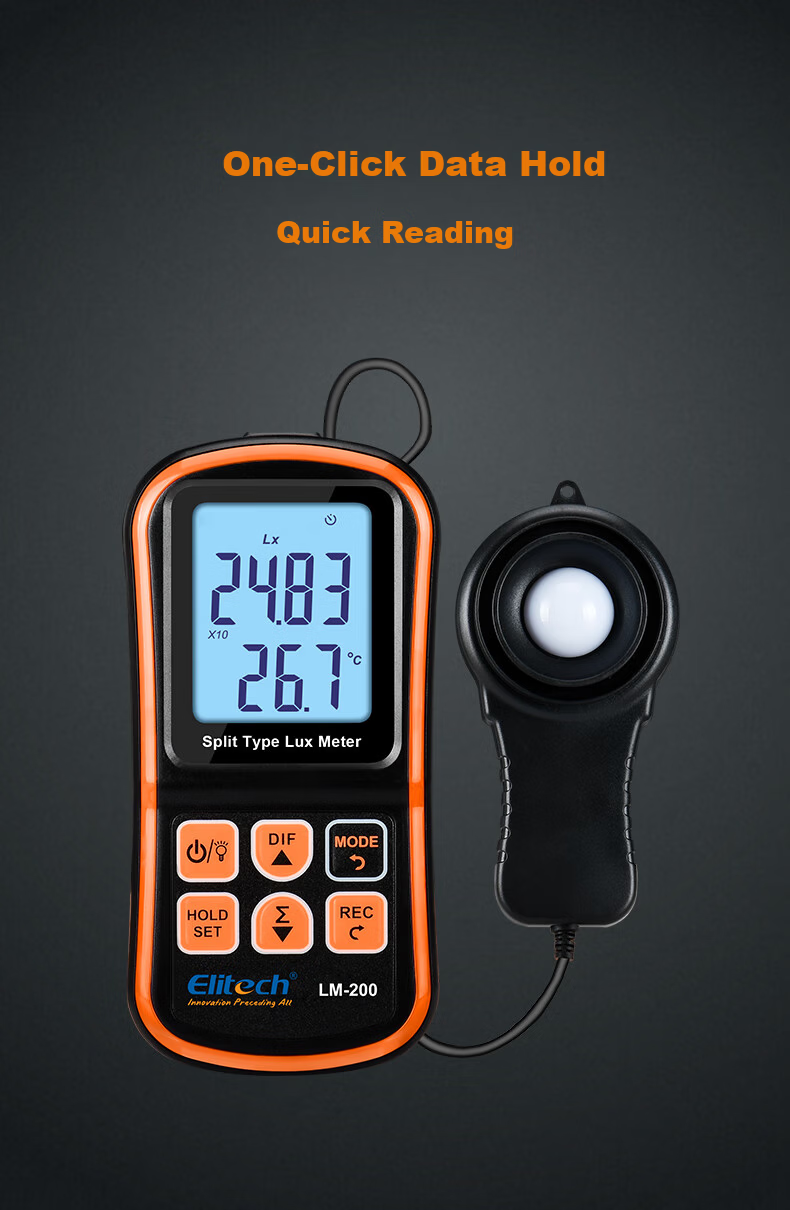

One-key data hold for quick reading

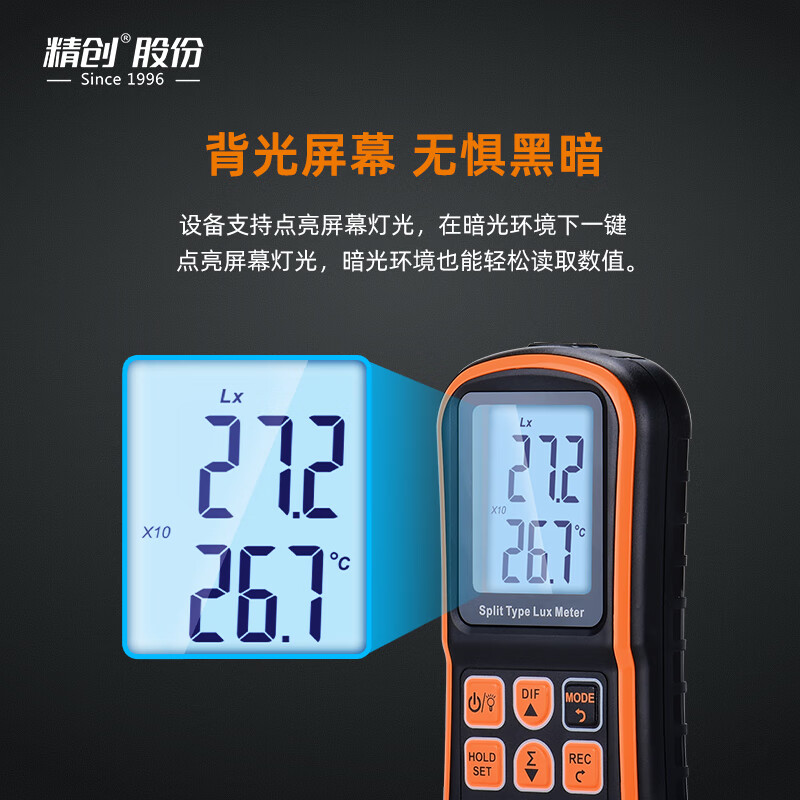

Backlit LCD screen for easy reading in dark environments without affecting ambient light measurement

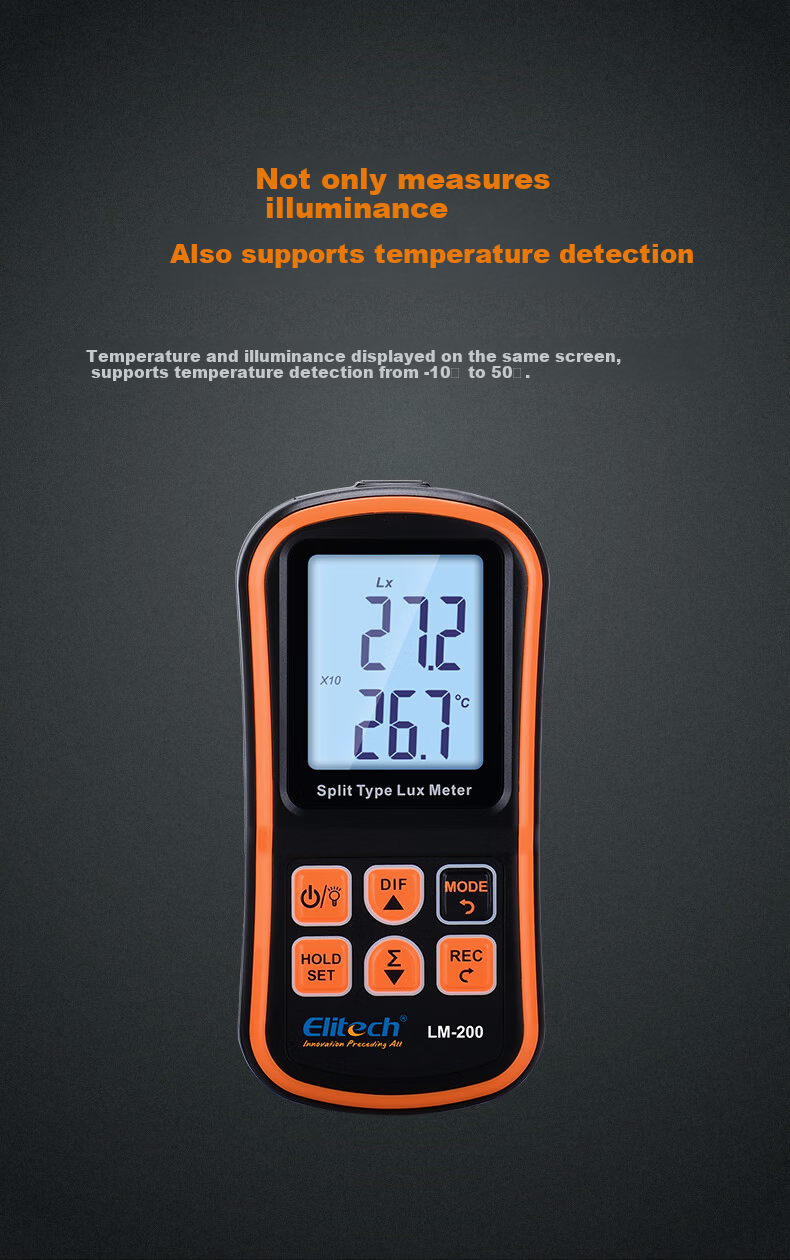

Simultaneous display of illuminance and temperature on screen

Additional details

Temperature measurement range: -10°C to 50°C for simultaneous display
Power supply: 3 AAA batteries

Suitable for applications such as greenhouse cultivation, agricultural research, factory lighting measurement, and indoor lighting measurement

Additional details

Control Buttons: HOLD, REC, SET, MODE, DIF, C (Celsius)
Sensor viewing angle: 26.7°
Model number: LM-200
Brand: Elitech
