DOREWIN POE Splitter Network Camera Power over Ethernet Module Standard 1-to-2 48V to 12V Adapter

DOREWIN•Network accessories

DOREWIN POE Splitter Network Camera Power over Ethernet Module Standard 1-to-2 48V to 12V Adapter

CN¥9.90

SKU: 100300879302

Status:In Stock (23)

ID: 100300879302

Weight: 52.00 g

Dims:230x127x31 mm

Specifications

Type: Other
Category: Other

Variants / Sale Attributes

Model: POE Splitter [Isolated Type]

Package Contents

Separator *1

Product Description

Product Specifications

Overview

Brand: DOREWIN

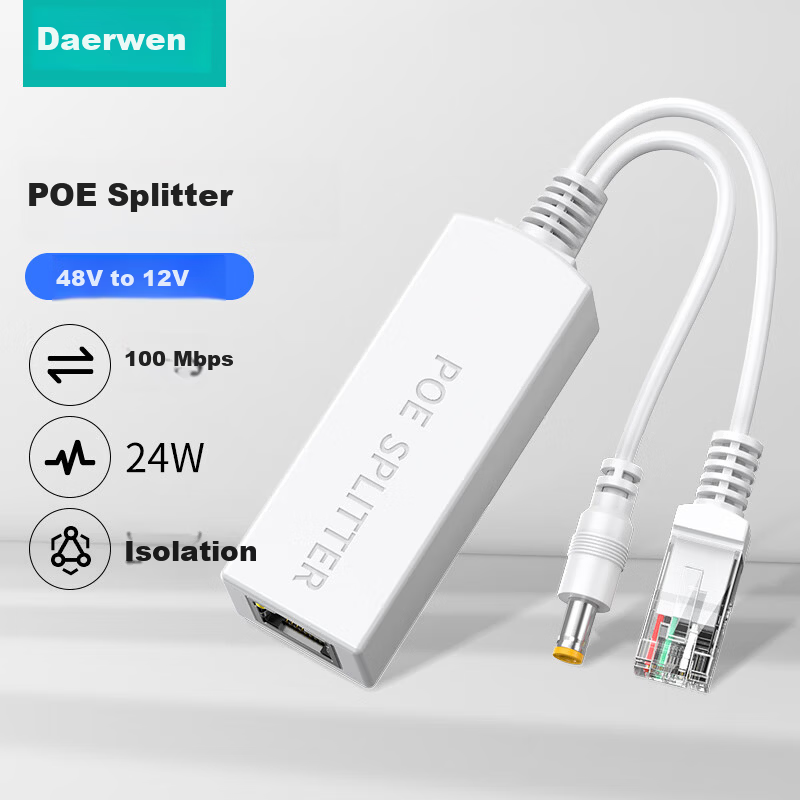

Product Name: Indoor PoE Splitter with Isolation
Model Number: DW-Poef02
PoE Protocol: IEEE 802.3af/at

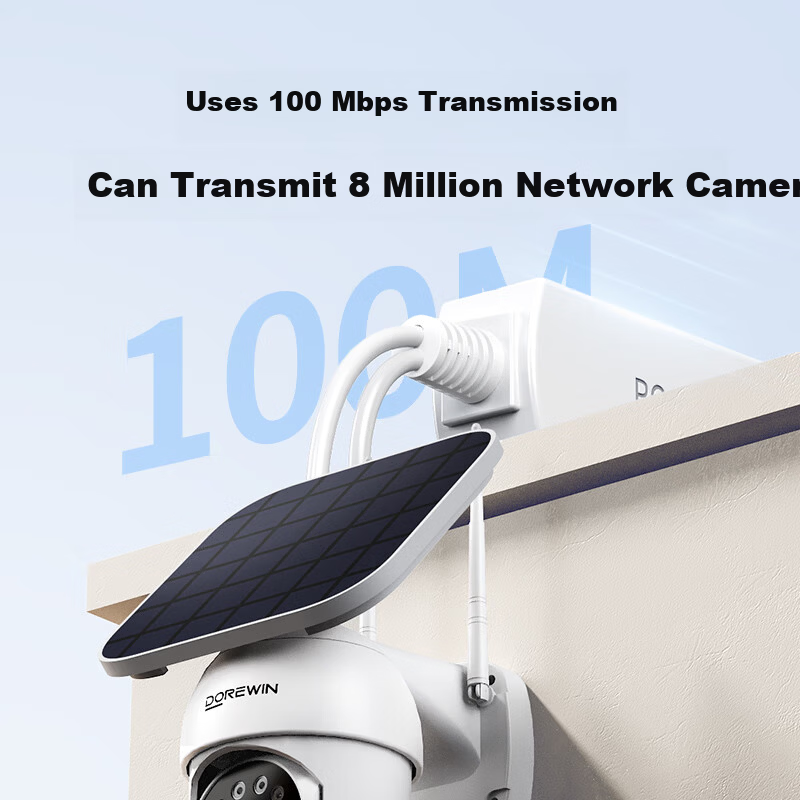

Transmission Speed: 10/100 Mbps
PoE Power Output: 24W (Indoor isolated version)
Isolation Voltage: 1500V
Input Voltage

Similar Products

In Stock

EB-LINKNetwork accessories

EB-LINK RS485 Data Fiber Optic Extender Industrial Serial Port Control Optical Modem Bidirectional 485 to Fiber Optic Transceiver Optical-Electrical Converter

1channel bidirectional 485 optical transceiver

CN¥145.00

View

In Stock

SAMZHENetwork accessories

ShanZe 100Mbps Single-Mode Dual-Fiber Optical Module 155M SFP Fiber Module (1310nm, 20KM, LC) XSZ-SMB20S

100Mbps LC Singlemode Dual Fiber [20 km] Single Strand

CN¥77.00

View

Output Voltage

DC 12V, 2A

RJ45 Input Pin Assignment

(1,2)+ / (3,6)-

Power Output Connector

5.5×2.1 mm DC male plug (center positive, outer negative)

Transmission Distance

Up to 150 meters

Transmission Quality

Stable signal transmission with low packet loss, clear image quality within 150 m, no impact on surveillance performance

Compatibility

Broad compatibility with major PoE network cameras and PoE NVRs including brands such as Xiongmai, Jufeng, Zhongwei, Huachuang, Ruishi, Hikvision, and most other brands

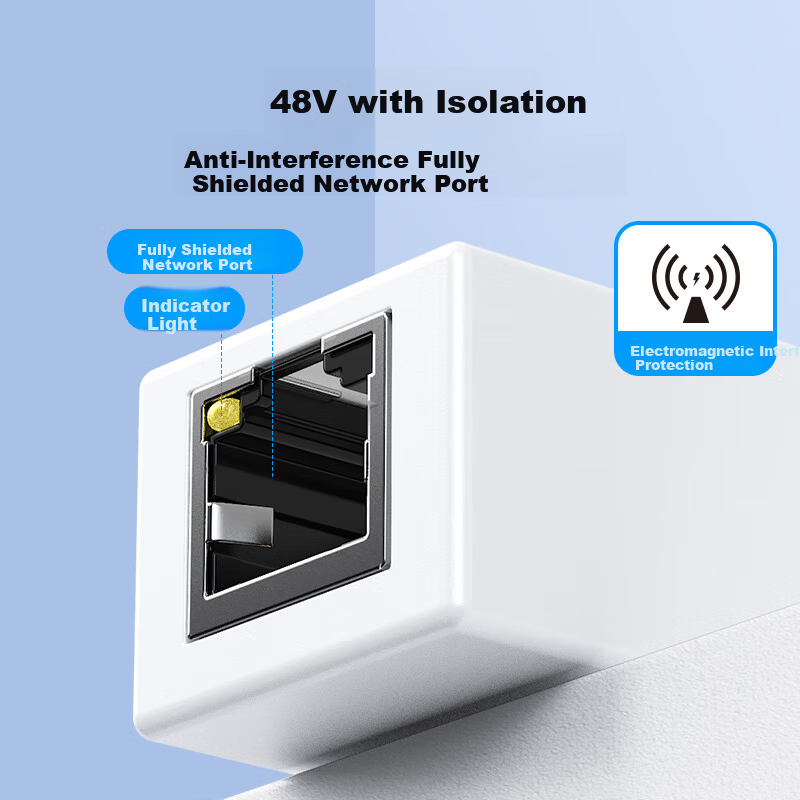

Built-in isolated high-frequency transformer for isolation, filtering, and anti-interference

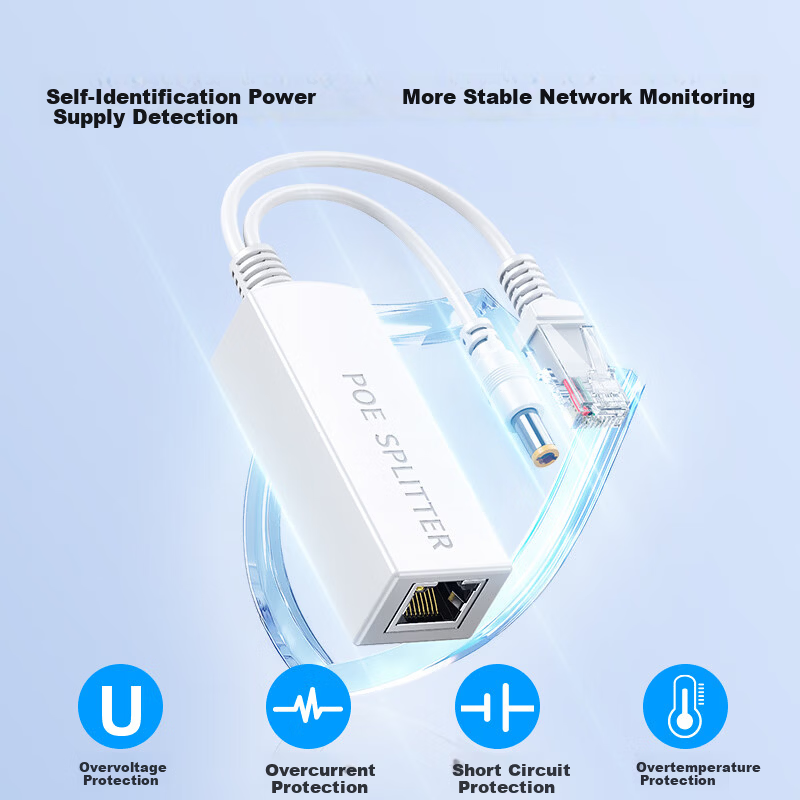

Overcurrent, overvoltage, short circuit, and over-temperature protection

Stable and smooth power supply with automatic detection and continuous power output

Uses MCU control scheme with built-in power short circuit protection

High-efficiency forwarding with low loss and strong anti-interference capability

Voltage regulator chip ensures stable voltage and current output, preventing signal delay

Multi-scene and multi-purpose use suitable for roads, lamp poles, student dormitories, shopping malls, hotels, offices, hospitals, and residential areas

Additional details

Packaging: Stylish color box
Length: 80 mm
Width: 40 mm
Height: 27 mm
Other dimensions: 23 mm, 31 mm (refer to actual product)

Chip and circuit board images are renderings; some structural details may not be fully shown. Actual product shall prevail. Weight and size data are manually measured and for reference only; actual values may vary due to individual differences, environment, or product batch/iteration.
