Back to CatalogCHOOSEAL (CHOSEAL) Category 7 Crystal Head, Gold-Plated Gigabit Ethernet Cable RJ45 Shielded Network Crystal Connector, CAT7 Compatible with Category 6 Double-Shielded Ultra Category 6 Connector, 10 Pieces, QS907
Specifications
- Type
- RJ45 connector
- Functions
- Joining tool, Connector accessory
- Category
- Structured cabling
Variants / Sale Attributes
Model: Category 7 Shielding [50U Thickened Gold-Plated Upgraded Version]
Version: 10
Customized: Block
Product Description
Overview
- Brand
- CHOSEAL
- Product Name
- Seven-category Shielded Crystal Head
- Color
- Transparent
- Chip Type
- Triple Chip
- Chip Craft
- Copper Plating Gold
- Material
- PVC
- Interface
- RJ45
- Aperture Inner Diameter
- 1.5 mm
Similar Products
In Stock

In Stock

ApplicationSwitches, ADSL, Routers, Network TVs, etc.Product Parameters
| Item | Detail |
|---|
| Length | 22.65 mm |
| Width | 11.67 mm |
| Height | 8.76 mm |
Hand measurements may have slight errors, which are considered normal.
Features
- Seven-category, double-shielded crystal head suitable for various types of network cables.

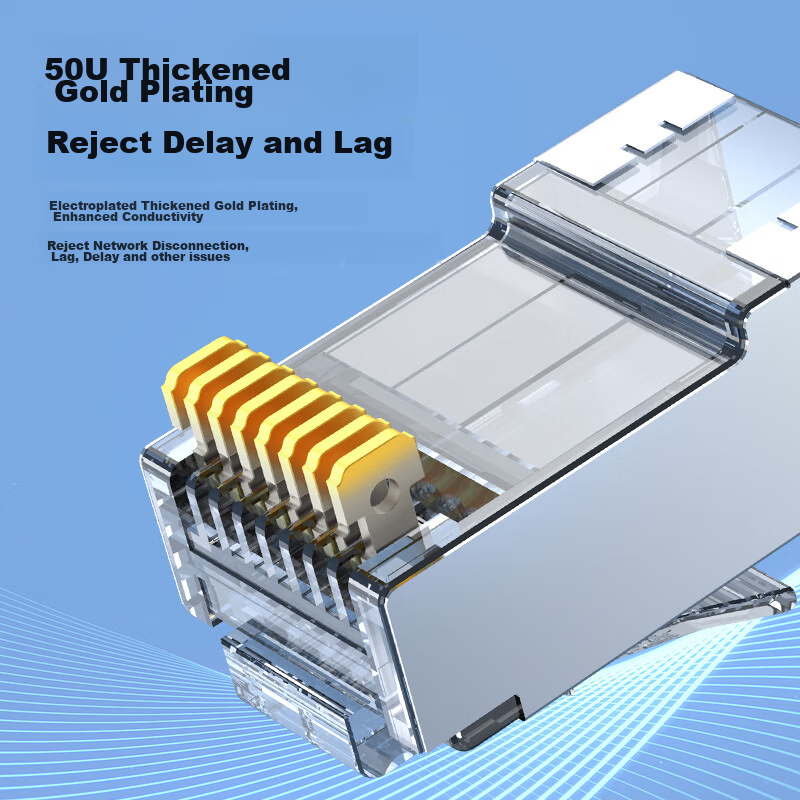

- Upgraded 50U thick gold-plated pins for high-speed and stable transmission, with nickel-plated shield casing.
- Durable and environmentally friendly PVC material with strong bending and break resistance.
- Y-shaped clip design for secure cable fixation and stable signal transmission.

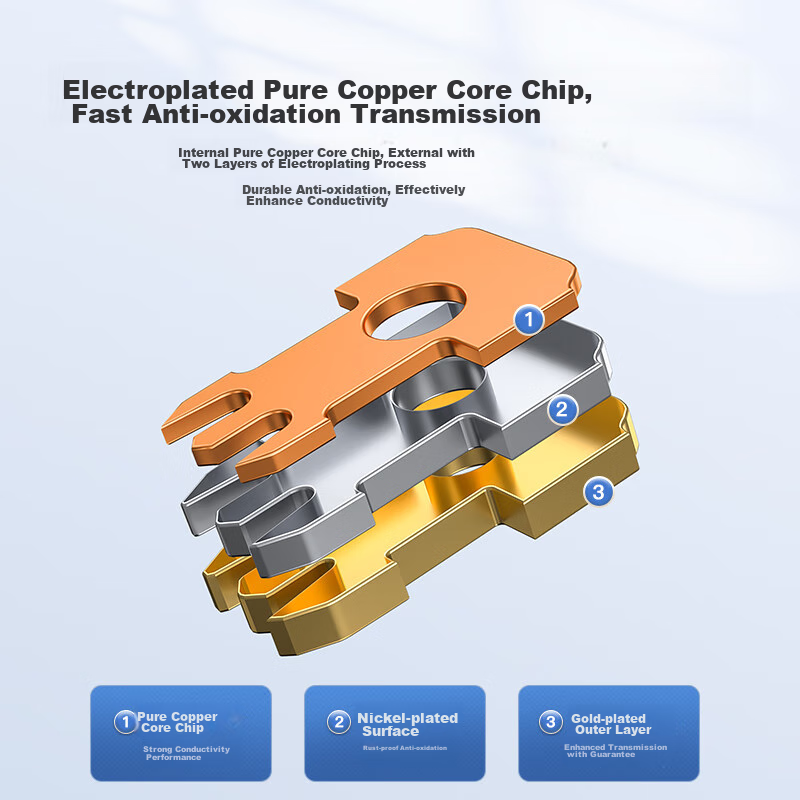

- Pure copper chip for fast and anti-oxidative transmission.
- 50U thick gold plating for enhanced conductivity and prevention of network issues.

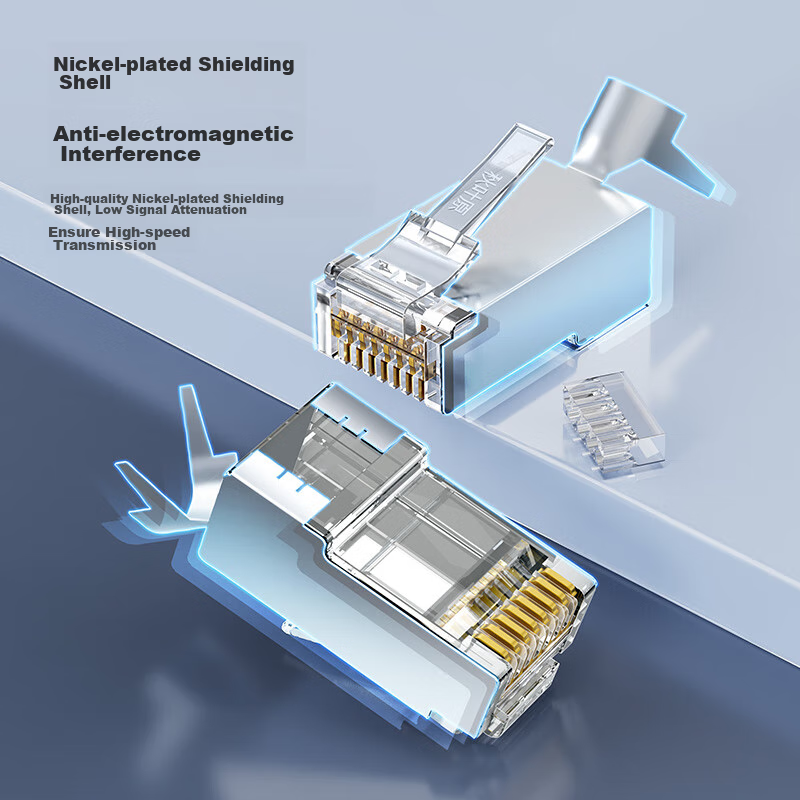

- Nickel-plated shield casing for eliminating electromagnetic interference and ensuring high-speed transmission.
- Supports 10Gbps transmission for smooth networking experience with compatibility for RJ45 interfaces.

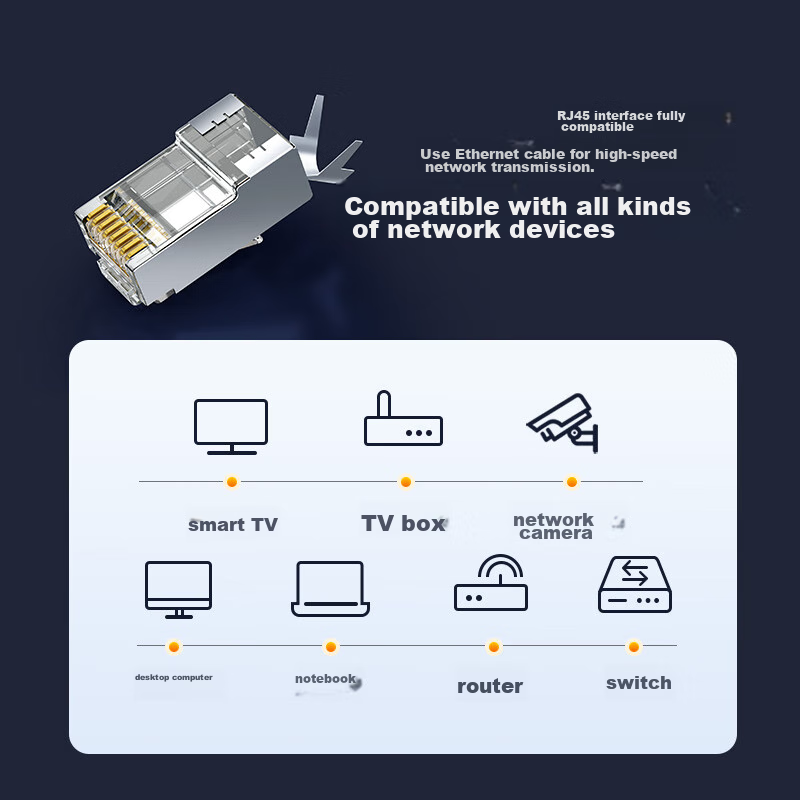

- Suitable for various network devices such as smart TVs, routers, desktops, laptops, etc.
1. Strip the outer cover of the network cable using a wire stripper.
2. Arrange the eight metal wires according to the T568B standard.
3. Insert the wires into the crystal head following the correct sequence.
4. Use a wire crimper to secure the crystal head onto the cable.
5. Ensure proper connection by checking the signal lights on both sides of the crystal head.
It is recommended to use a wire crimper with a clip function for installing crystal heads with Y-shaped clips.
Additional details
- Package Includes
- Seven-category Shielded Crystal Head x 1
