BOYANG Telephone Line Terminal, 8-Channel Pure Telephone Voice, Intercom Audio, Fiber Optic Transmission, FC Interface, 1 Pair, BY-8P

CN¥999.00

SKU: 4236710

Status:In Stock (1)

ID: 3770307

Weight: 1283.00 g

Dims:367x267x65 mm

Specifications

Type: Optical Network Unit (ONU)
Category: Fiber Optic Product Accessories

Variants / Sale Attributes

Model: 8-line pure telephone

Package Contents

BOYANG telephone optical terminal 8-channel telephone voice + 2-channel network intercom audio with 2-channel Ethernet fiber transmission FC interface 1 pair BY-8P2E × 1

Product Description

Product Overview

Item	Detail
Product Name	8-Channel Telephone Optical Terminal
Model	BY-8P
Quantity	1 pair (2 units)
Appearance	Desktop device

Technical Parameters

Item	Detail
Physical Characteristics	—
Business Ports	1 FC optical port + 8 telephone interfaces
Product Dimensions	157 mm x 103 mm x 28 mm
Color	RAL7035 Light Grey
Material

Similar Products

In Stock

EB-LINKNetwork accessories

EB-LINK RS485 Data Fiber Optic Extender Industrial Serial Port Control Optical Modem Bidirectional 485 to Fiber Optic Transceiver Optical-Electrical Converter

1channel bidirectional 485 optical transceiver

CN¥145.00

View

In Stock

SAMZHENetwork accessories

ShanZe 100Mbps Single-Mode Dual-Fiber Optical Module 155M SFP Fiber Module (1310nm, 20KM, LC) XSZ-SMB20S

100Mbps LC Singlemode Dual Fiber [20 km] Single Strand

CN¥77.00

View

Packaging Specifications

Item	Detail
Packaging	Carton
Unit Weight	1 kg
Accessories	Optical terminal x1 pair, User Manual x1, 220V to 5V Adapter x2, Product Warranty Card/Certificate x1

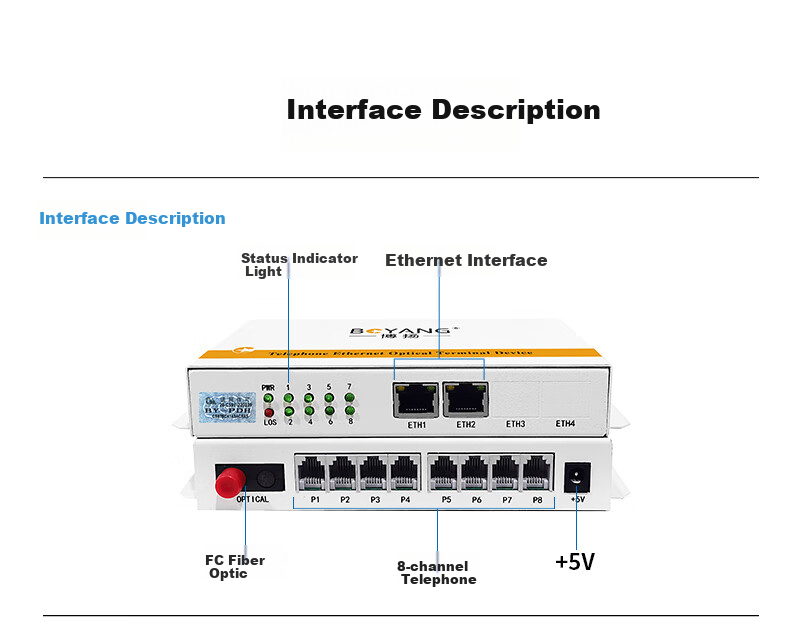

Interface Description

Item	Detail
Interfaces	DC5V, Status Indicator Lights, Telephone Ports, FC Single Fiber Interface

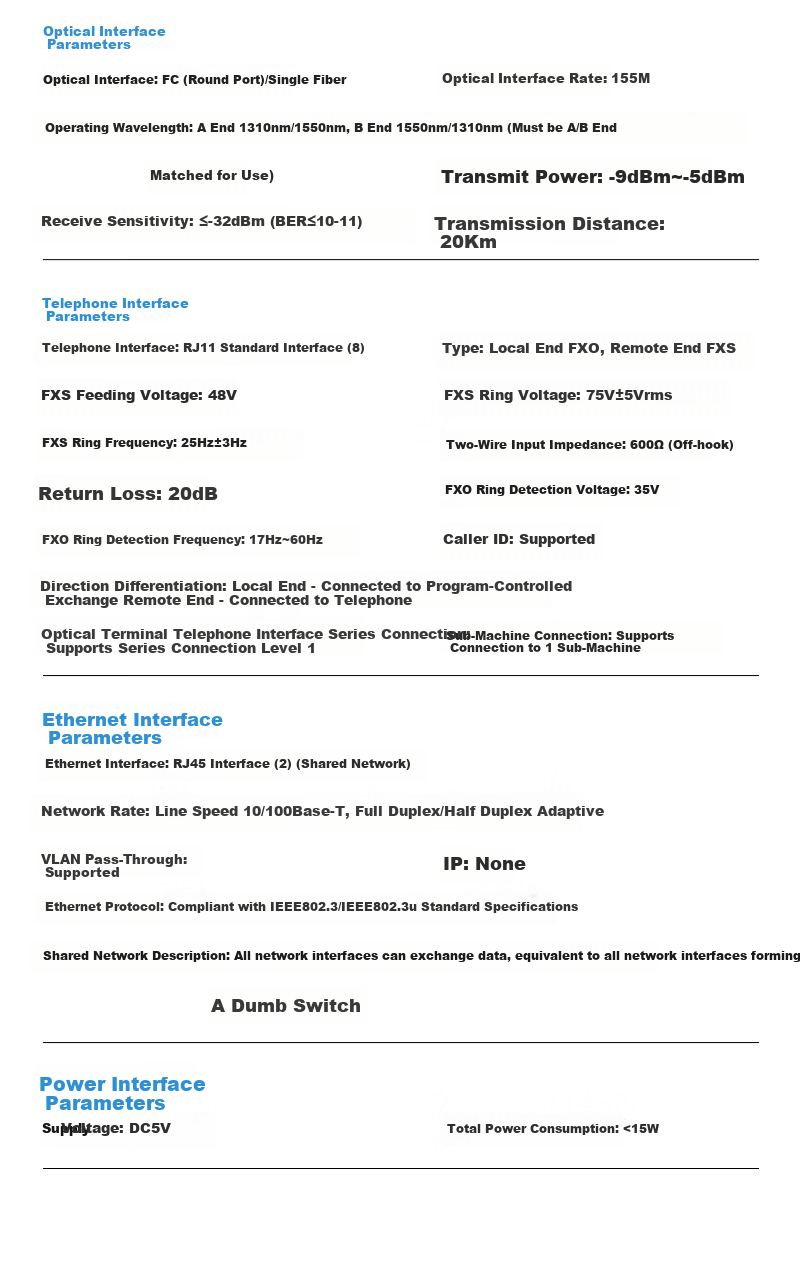

Optical Interface Parameters	—
Optical Interface	FC (Round Port)/Single Fiber
Optical Port Rate	155 M
Operating Wavelength	A End 1310nm/1550nm, B End 1550nm/1310nm
Transmit Power	-9dBm to -5dBm
Receive Sensitivity	-32dBm
Transmission Distance	20km
Telephone Interface Parameters	—
Telephone Interface	RJ11 Standard Interface (8 ports)
Type	Local End FXO, Remote End FXS
FXS Feeding Voltage	48V
FXS Ring Voltage	75V ± 5Vrms
FXS Ring Frequency	25Hz ± 3Hz
Two-Wire Input Impedance	600Ω (Off-hook)
Return Loss	20dB
FXO Ring Detection Voltage	35V
FXO Ring Detection Frequency	17Hz to 60Hz
Caller ID Support	—
Direction Differentiation	Local End - Connected to Program-Controlled Exchange, Remote End - Connected to Telephone
Power Interface Parameters	—
Power Supply	DC5V
Total Power Consumption	<10W

High Integration, Strong Expandability

Customizable according to customer's business needs
Independent R&D and Production
Delivery Time: 2-3 days

Current Standard Features

8-Channel Pure Telephone
001010, 0101, 1010010, 100101011
Customizable Business Functions:

Overview

1. Optical Transmission Distance: Customizable to 40km, 60km, 80km, 100km, 120km
2. Optical Module Types: Customizable Single Fiber/Dual Fiber SFP (LC) Modules, SC Single Fiber/Dual Fiber Modules
