HAILE 2-In 2-Out Horizontal Optical Cable Joint Box, 24-Core Fusion Splicing Kit, Fiber Optic Splice Box, Termination Kit, Outdoor Waterproof, Overhead And Underground Type, Black HT-JX

Capacity

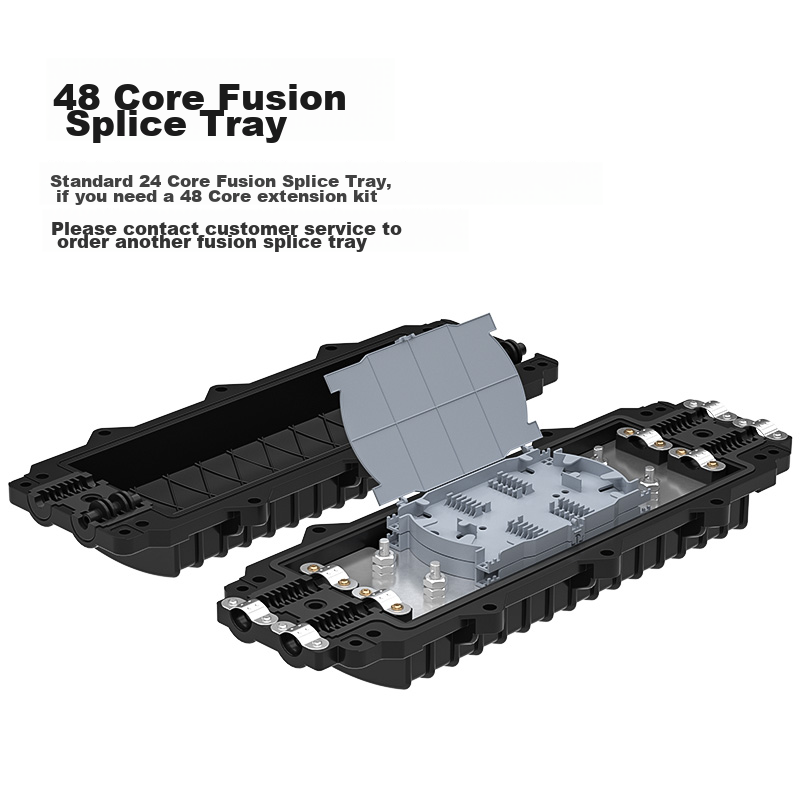

Supports 12/24/48/72/96/120 fibers, comes with standard 24-fiber splice tray, can be configured with 24-120 fiber splice tray

Waterproof

Yes

Durability

Sturdy and long-lasting

Quality

High-quality engineering-grade splice closure

Sealing

Upgraded sealing ring for improved waterproof performance

Color

Available in black and white

Impact Resistance

High strength engineering plastic construction

Installation

Suitable for telecom, railway, surveillance, medical equipment, fiber optic maintenance, large-scale LAN applications

Dimensions

450 × 180 × 110 mm (outer), 323 × 110 mm (inner)

Weight

2 kg

Tensile Strength

1000N

Operating Temperature

-40°C to +65°C

Material

PP

Wall Thickness

2.5 mm

Performance

Easy to operate, reliable sealing, convenient for repeated opening, suitable for buried or aerial installation

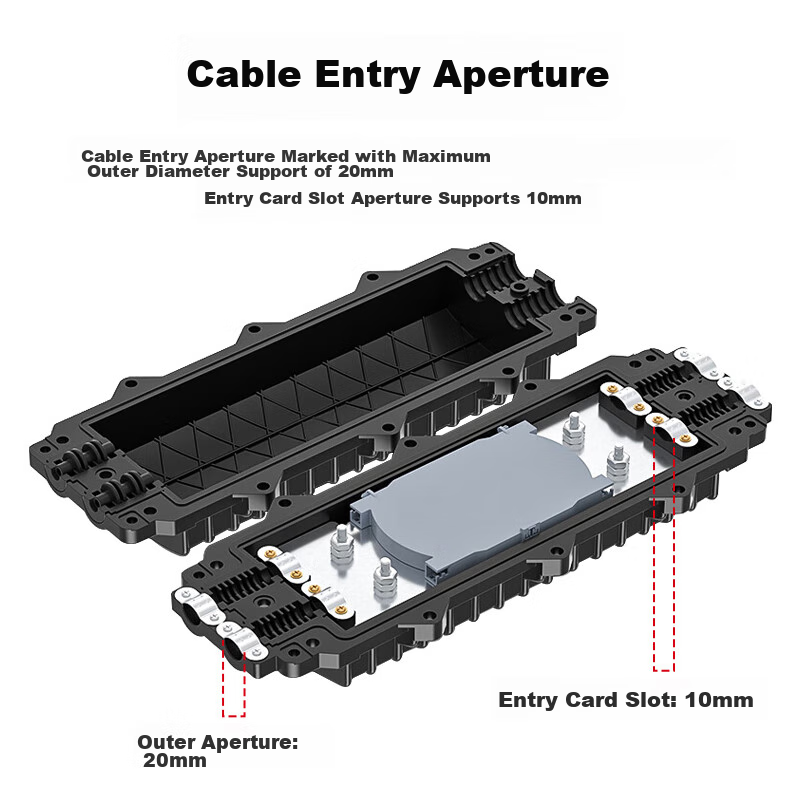

Cable Entry Diameter

Supports up to 20 mm outer diameter, cable entry port diameter 10 mm

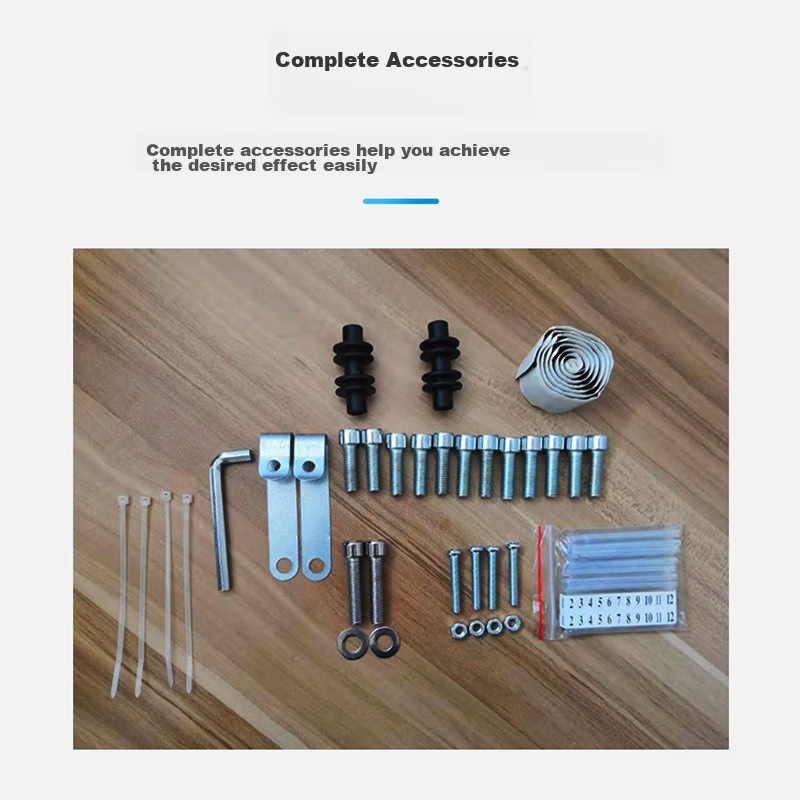

Accessories

Complete set of accessories included for easy installation and use

Measurements are in millimeters. Please refer to the actual product for accurate dimensions.
