BOYANG BY-SC-8 Fiber Optic Terminal Box SC8 Port Fiber Box [Full Set Pigtail + Flange] 8-Core Single-Mode Fiber Splice Box

BOYANG•Network accessories

BOYANG BY-SC-8 Fiber Optic Terminal Box SC8 Port Fiber Box [Full Set Pigtail + Flange] 8-Core Single-Mode Fiber Splice Box

CN¥99.00

SKU: 8509566

Status:In Stock (22)

ID: 8722649

Weight: 935.00 g

Dims:330x162x70 mm

Specifications

Category: Fiber Optic Product Accessories
Functions: Connector accessory
Type: fiber optic terminal box

Variants / Sale Attributes

Model: 8core terminal box

Version: SC singlemode

Package Contents

Boyang (BOYANG) BY-ST-8 Fiber Optic Terminal Box ST8 Port Fiber Box [Fully Equipped with Pigtail + Flange] 8-Core Single-Mode Fiber Splice Box *1 Certificate of Conformity *1 Warranty Card *1

Product Description

Product Specifications

Overview

Brand: BOYANG
Product Name: 8-Port Desktop SC Type Single-Mode Fiber Optic Terminal Box
Model Number: BY-SC-8
Adapter Interface: SC
Applicable Fiber Types for Fusion Splicing: G.652D, G.657A
Pigtail: 0.9 mm tight-buffered fiber
Pigtail Length and Color: 8 fibers (Blue, Orange, Green, Brown, Gray, White, Red, Black) × 1.2 meters each

Similar Products

In Stock

EB-LINK RS485 Data Fiber Optic Extender Industrial Serial Port Control Optical Modem Bidirectional 485 to Fiber Optic Transceiver Optical-Electrical Converter

EB-LINKNetwork accessories

EB-LINK RS485 Data Fiber Optic Extender Industrial Serial Port Control Optical Modem Bidirectional 485 to Fiber Optic Transceiver Optical-Electrical Converter

1channel bidirectional 485 optical transceiver

CN¥145.00

In Stock

ShanZe 100Mbps Single-Mode Dual-Fiber Optical Module 155M SFP Fiber Module (1310nm, 20KM, LC) XSZ-SMB20S

SAMZHENetwork accessories

ShanZe 100Mbps Single-Mode Dual-Fiber Optical Module 155M SFP Fiber Module (1310nm, 20KM, LC) XSZ-SMB20S

100Mbps LC Singlemode Dual Fiber [20 km] Single Strand

CN¥77.00

Enclosure Color

Black (RAL9004) with matte spray finish

Dimensions (W×D×H)

132 mm × 260 mm × 42 mm

Installation Method

Desktop or wall-mounted

Opening Method

Screw-fixed for easy maintenance and management

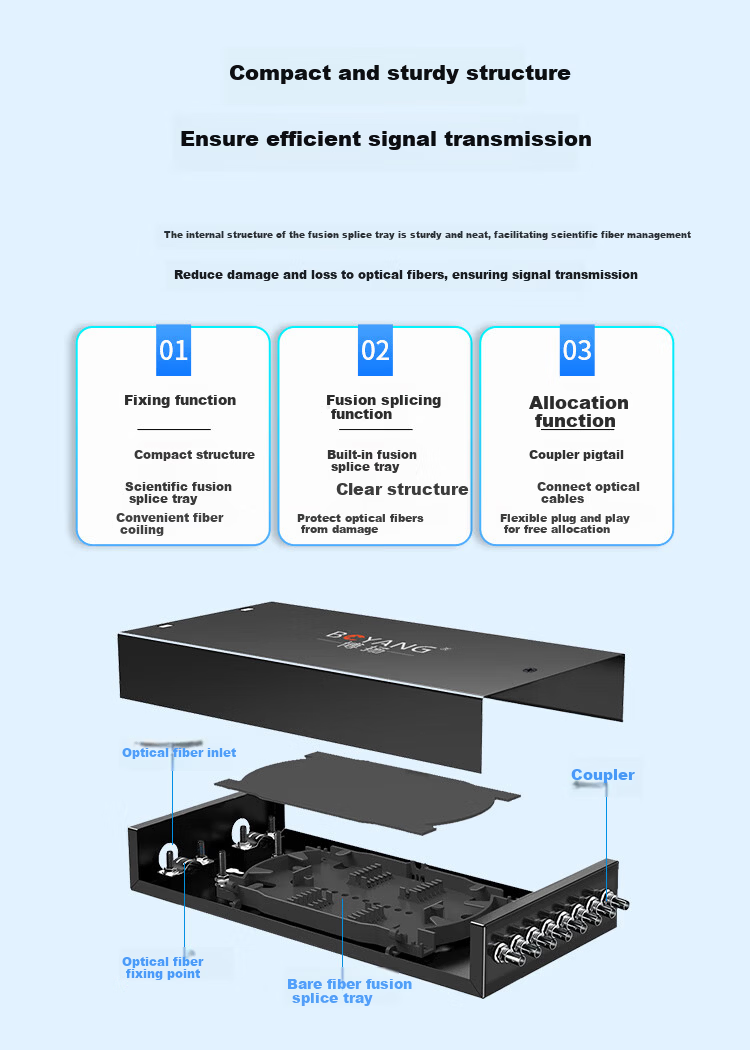

Integrated design including enclosure, couplers, and bundled pigtail fusion tray

Additional details

Fiber fixation: Fibers secured in dedicated fiber fixation grooves made of ABS material
Cable management: Reserved routing space with fiber bend radius ≥ 30 mm
Auxiliary accessories: Cable ties and heat shrink tubes included
Voltage Resistance: >3000V DC per minute
Material: Thickened and reinforced cold-rolled steel for enclosure; ABS for fiber fixation grooves
Operating Temperature: -40°C to 75°C
Relative Humidity: ≤85% at +30°C
Storage Temperature: -40°C to 85°C

1 × 12-slot fusion splice tray

8 × bundled pigtails

8 × SC couplers

Complies with YD/T778-2011 "Fiber Optic Distribution Frame" standard

Impact resistance meets GB/T2423.5-2019 requirements

Additional details

1. Fiber Mode Matching: Use single-mode terminal boxes for single-mode cables and multimode terminal boxes for multimode cables to avoid mode mismatch.
2. Core Count Matching: The number of cores in the bundled pigtail must match the fiber cable cores to ensure efficient wiring and minimize waste.
3. Fiber Patch Cord Selection: Choose fiber patch cords compatible with the terminal box port type (SC, LC, FC, ST, etc.) to ensure proper device interface connection.
4-Port SC Desktop Type: Single-mode/Multimode, Desktop/Wall-mounted, Height 37 mm, Size 112×200×37 mm
8-Port SC Desktop Type: Single-mode/Multimode, Desktop/Wall-mounted, Height 42 mm, Size 132×260×42 mm
12-Port SC Rack Mount: Single-mode/Multimode, 19-inch rack mount, Height 45 mm (without mounting ears), Size 430×200×45 mm (1U)
24-Port SC Rack Mount: Single-mode/Multimode, 19-inch rack mount, Height 45 mm (without mounting ears), Size 430×200×45 mm (1U)

All dimensions are standard and may have slight deviations due to manufacturing.

Terminal boxes come fully equipped with pigtails and couplers.

Interfaces are fully compatible and provide stable connections.

One-stop fiber access configuration supports diverse network access needs.

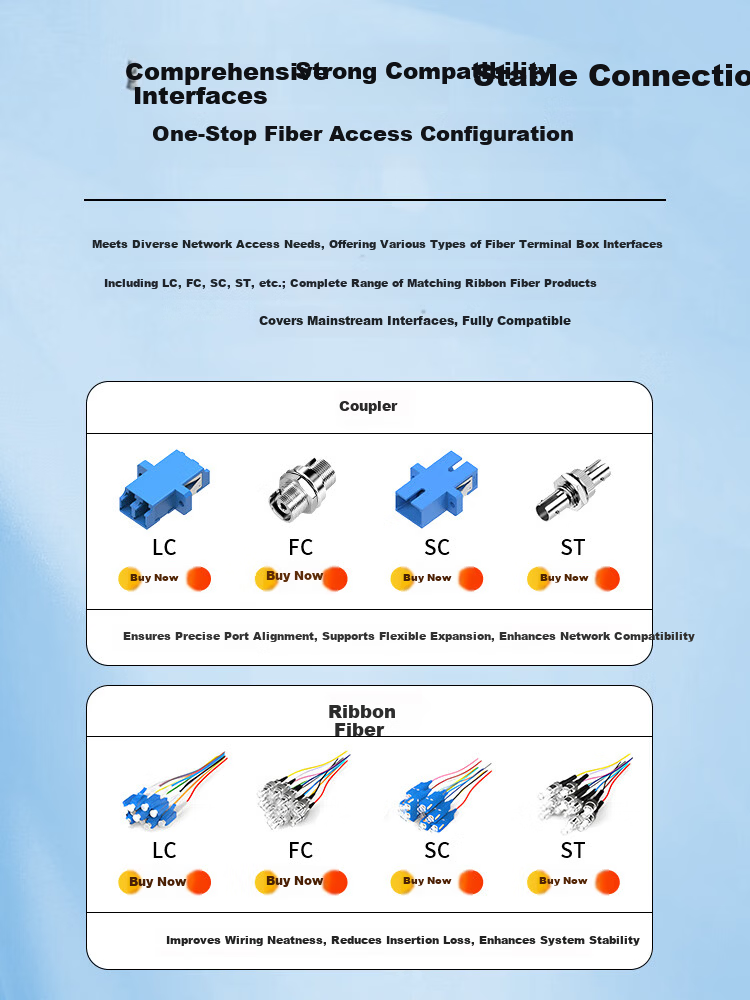

Available interface types include LC, FC, SC, ST, etc.

Bundled pigtails and couplers cover mainstream interfaces ensuring comprehensive compatibility.

Supports flexible expansion and enhances network compatibility.

Improves cable management neatness, reduces insertion loss, and enhances system stability.
