VICTOR Digital Illuminance Meter, Split-Type Light Meter, Brightness Meter, Illuminance Measuring Instrument, High Precision, VC1010D+

VICTOR•Illuminance meter

VICTOR Digital Illuminance Meter, Split-Type Light Meter, Brightness Meter, Illuminance Measuring Instrument, High Precision, VC1010D+

CN¥93.00

SKU: 8576759

Status:In Stock (5)

ID: 8576745

Weight: 150.00 g

Dims:248x95x53 mm

Specifications

Suitable Scenarios: Indoor
Category: digital luxmeter

Variants / Sale Attributes

Model: Separate Illuminance Meter VC1010D+

Package Contents

Host, instruction manual, certificate of conformity, battery, instrument bag, color box.

Product Description

Product Specifications

Overview

Brand: VICTOR

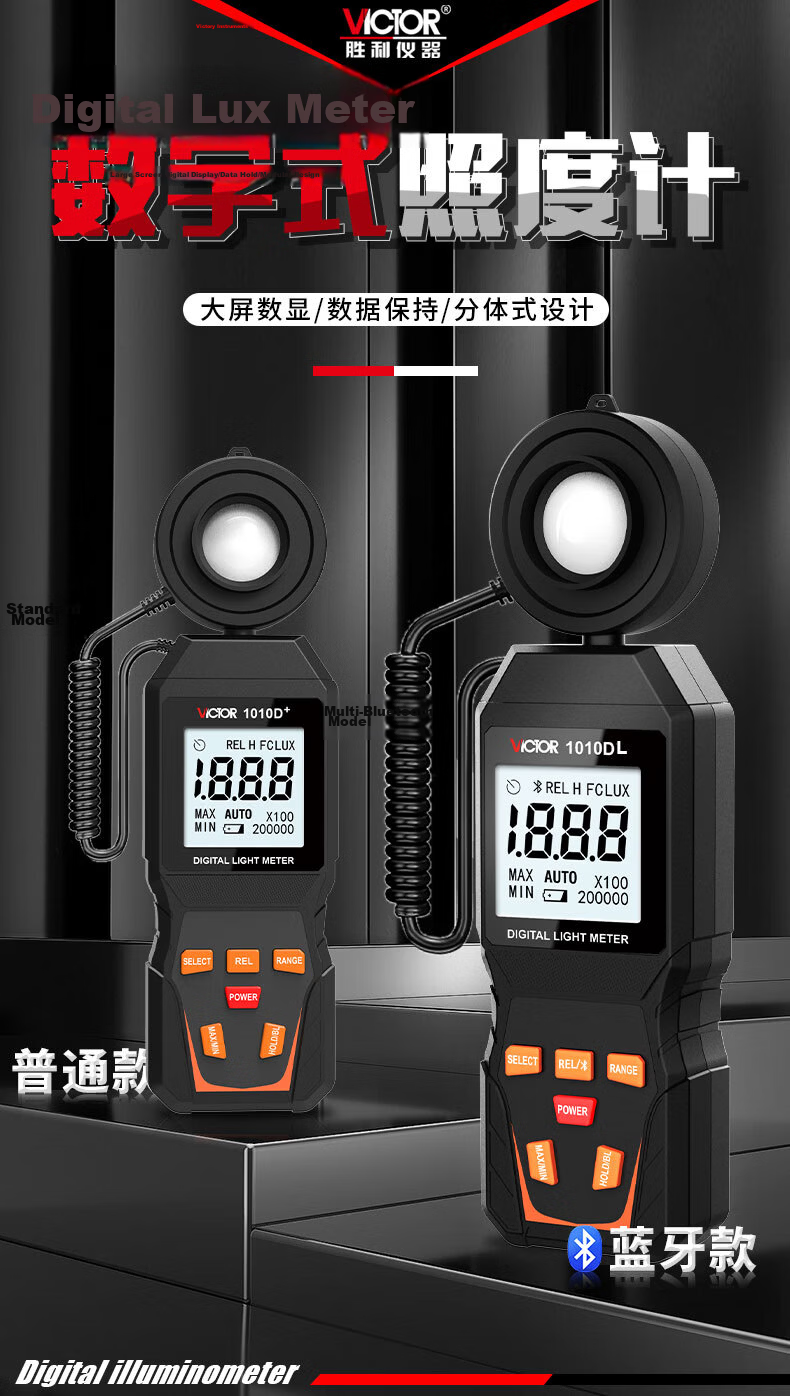

Model: VICTOR1010D+ (Standard Version), VICTOR1010DL (Bluetooth Version)
Product Type: Digital Illuminometer / Digital Light Meter

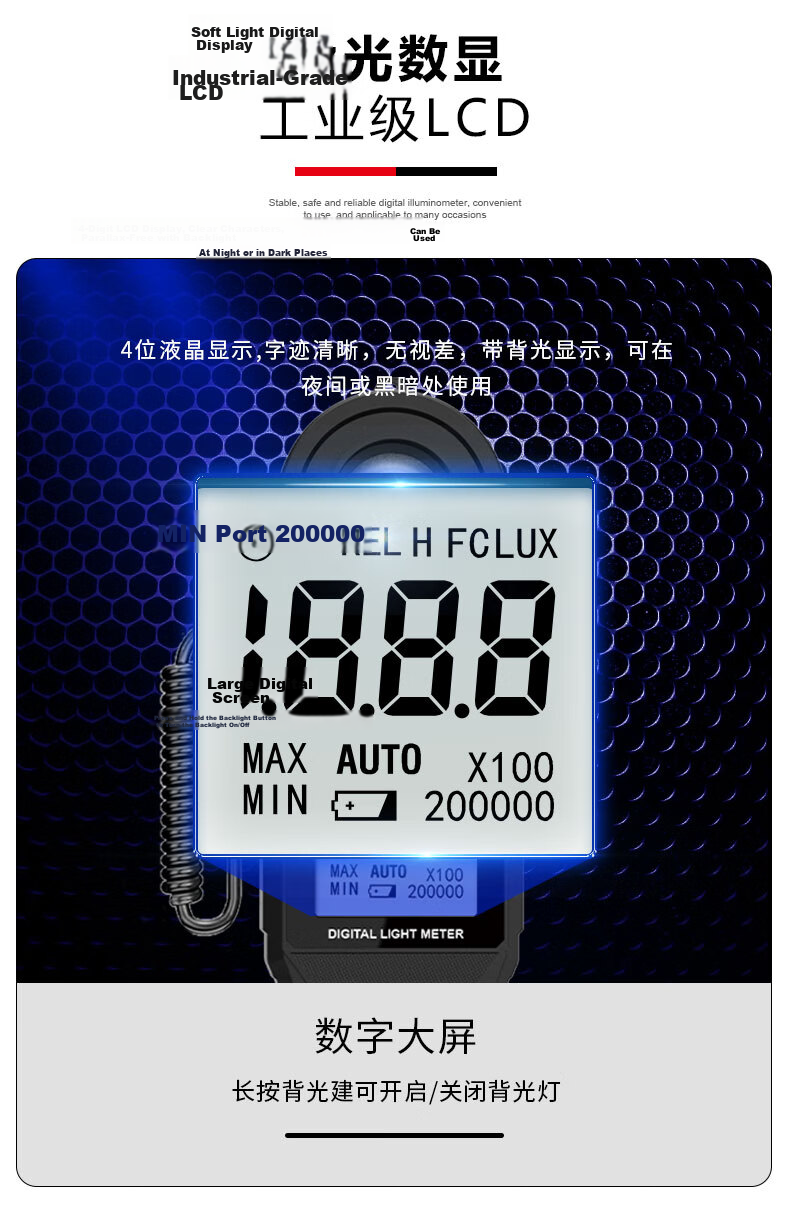

4-digit LCD with backlight

Large digital screen for clear readings

Backlight can be toggled on/off by long pressing the backlight button

Additional details

Illuminance: 0 to 199,999 LUX
Foot-candle (FC): 0 to 19,999 FC

±4% (calibrated with 2856K standard flat lamp)

Similar Products

In Stock

Teans Digital Lux Meter High Precision Light Meter Illuminance Tester Photometer

Illuminance meter

Teans Digital Lux Meter High Precision Light Meter Illuminance Tester Photometer

[200,000 LUX+ Integrated Measurement] TA630A

CN¥59.00

In Stock

Teansi Illuminance Meter, Photometric Instrument, High-Precision Luminous Flux Tester, Brightness Meter, Photometric Measuring Instrument TA631B

Illuminance meter

Teansi Illuminance Meter, Photometric Instrument, High-Precision Luminous Flux Tester, Brightness Meter, Photometric Measuring Instrument TA631B

[300,000 LUX + Alarm + Temperature And Humidity] TA631B

CN¥79.00

±(6% + 5 Lux) for other visible light sources

Additional details

Lux: <200 Lux: 0.1 Lux; ≥200 Lux: 1 Lux
FC: <20 FC: 0.01 FC; <200 FC: 0.1 FC; >200 FC: 1 FC

30° ± 2%

60° ± 6%

Additional details

Off-axis characteristic: 80° ± 25%

Data Hold

Relative Value Measurement (REL)

Maximum / Minimum Value Recording

Auto Power Off (default 10 minutes, can be disabled)

Low Battery Indicator

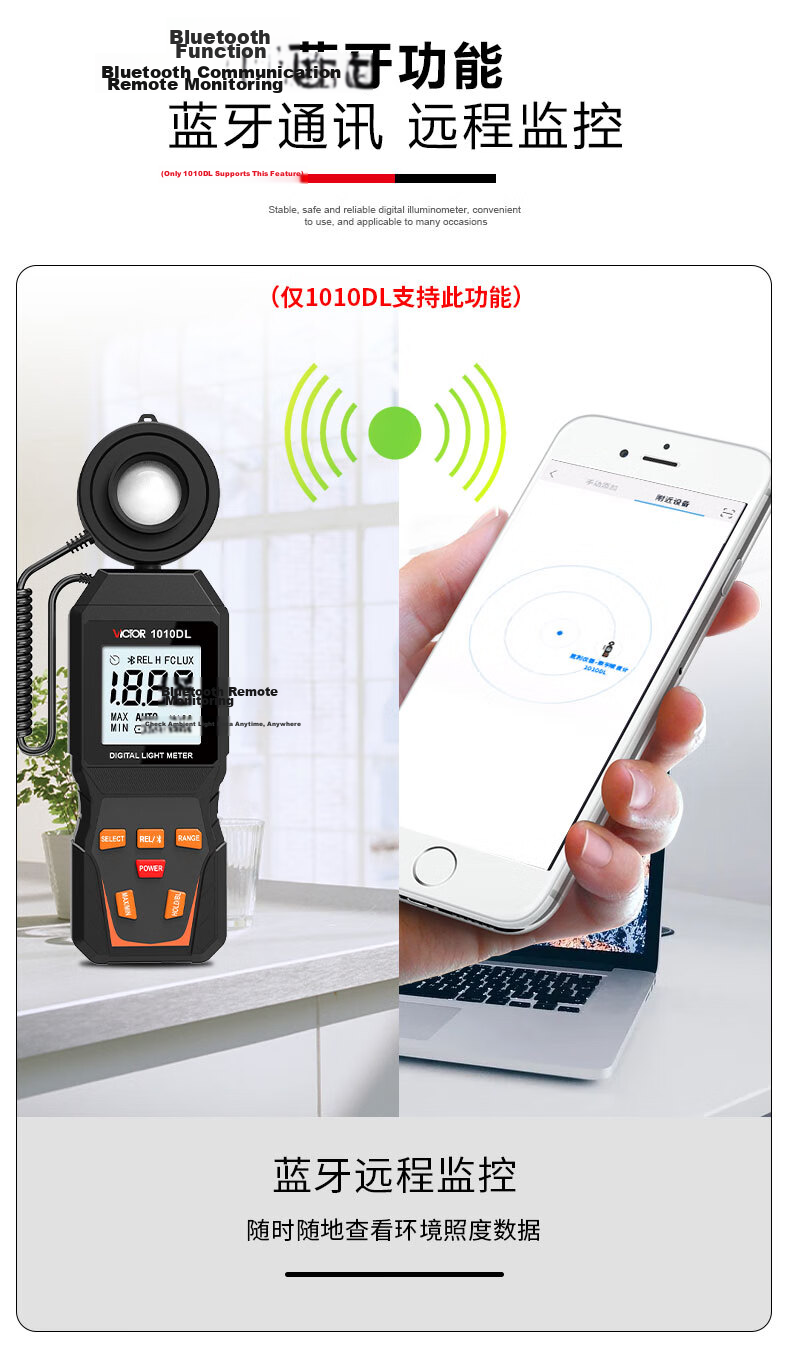

Bluetooth Remote Monitoring (only for VICTOR1010DL)

Real-time monitoring with fast sampling rate (2 times/second)

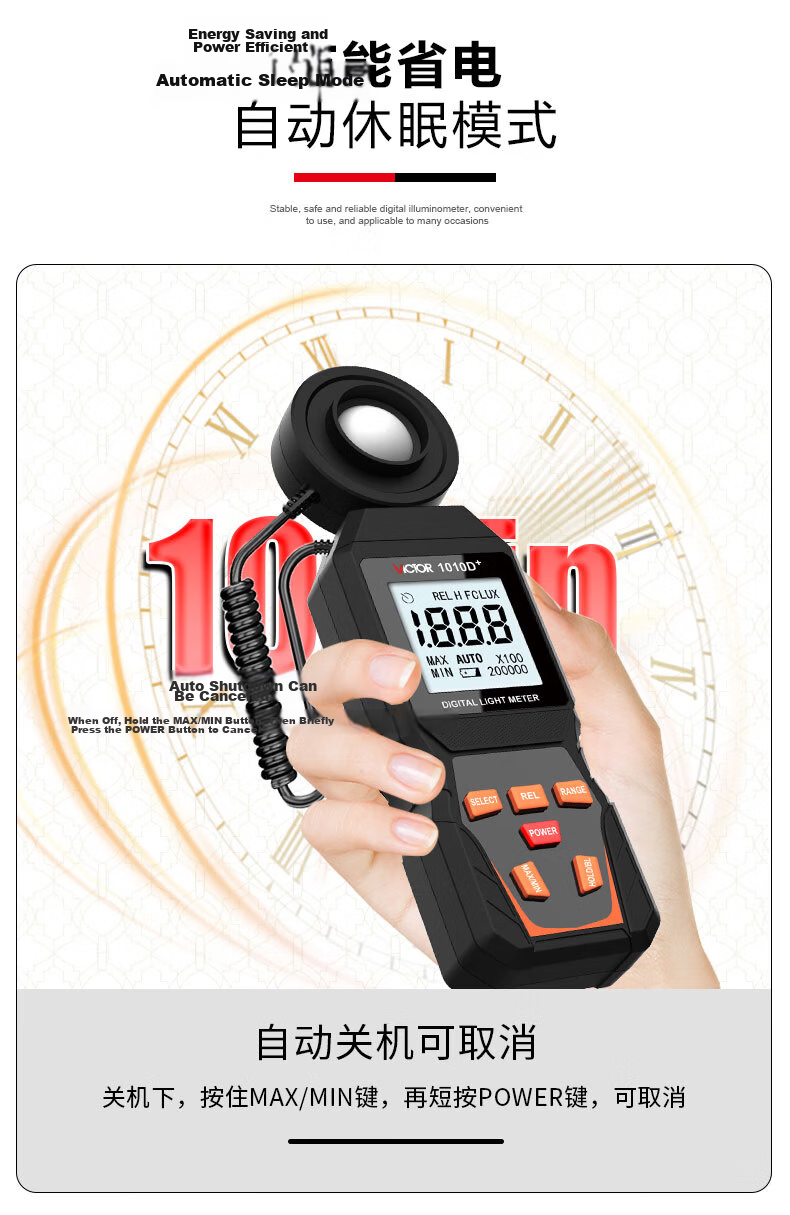

Automatic sleep mode for power saving

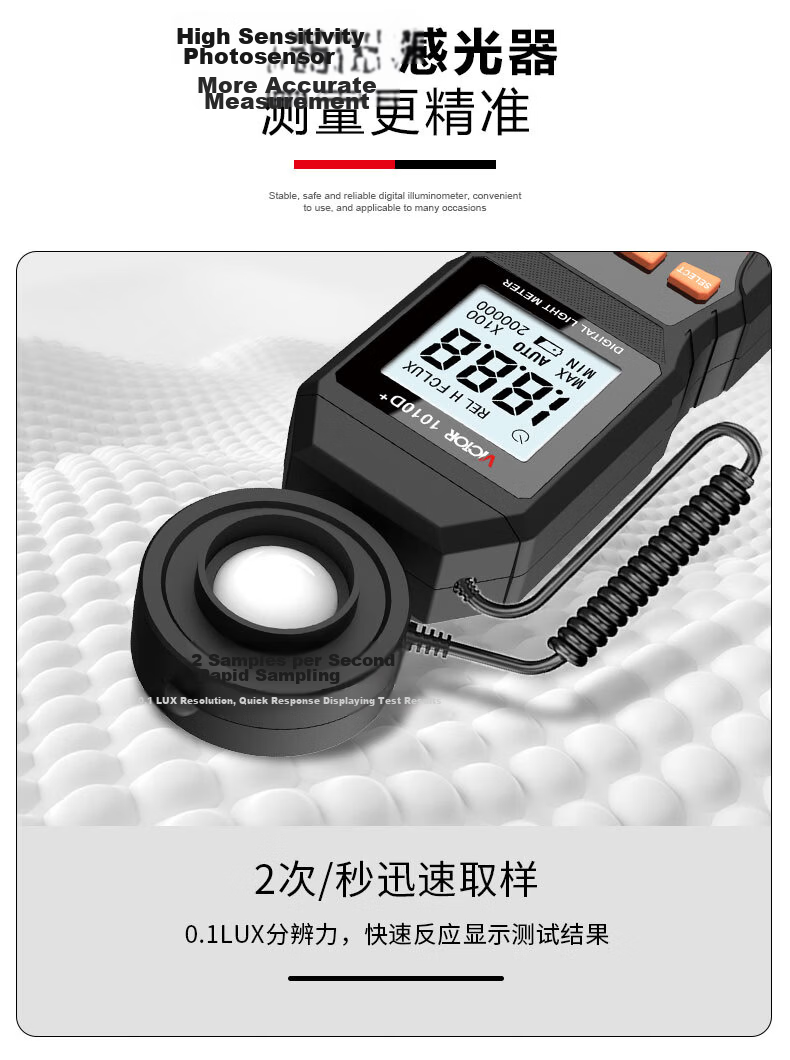

Silicon photodiode sensor

Additional details

Spectral response range: 320 nm to 730 nm

High sensitivity for precise measurement

2 samples per second

Additional details

Temperature: 0°C to 40°C
Humidity: <90% RH (non-condensing)
Temperature: -20°C to 60°C
Humidity: <75% RH

One 9V battery

154 mm × 60 mm × 31 mm

Approximately 185 g (including battery)

Split design for ease of use

Stable, safe, and reliable digital illuminometer suitable for various occasions

Industrial-grade LCD with clear, parallax-free digits

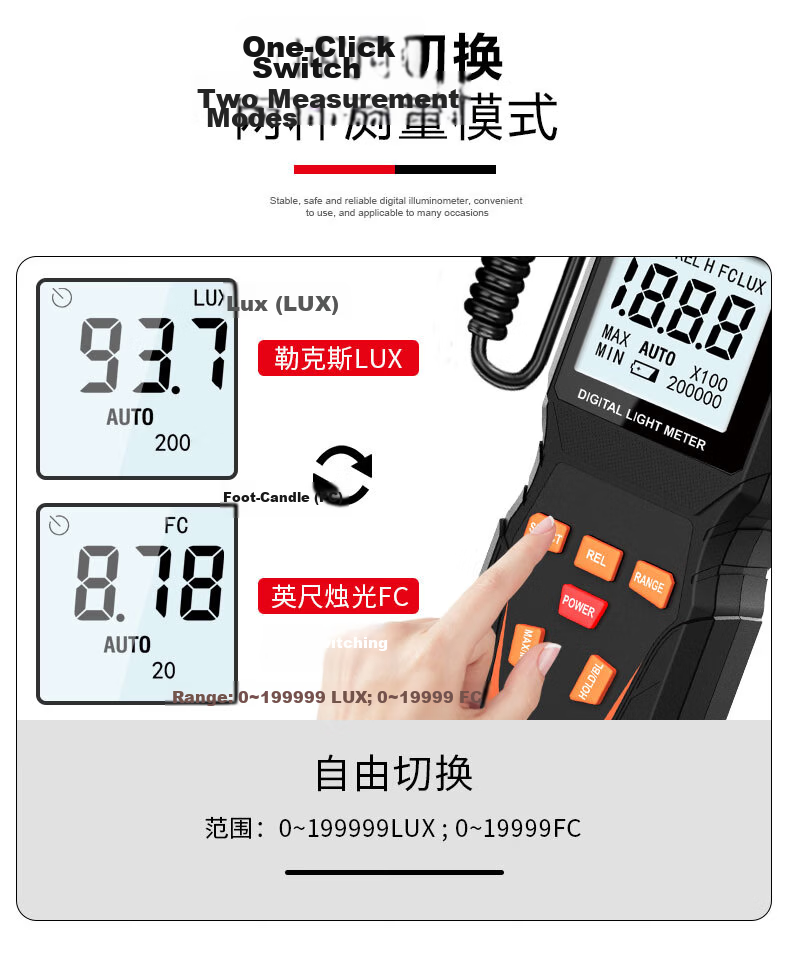

Supports quick switching between LUX and FC units

Bluetooth communication for remote data monitoring (VICTOR1010DL only)

Auto power off can be canceled by pressing MAX/MIN key and then POWER key

Suitable for professional and industrial lighting measurement

Real-time environmental illuminance monitoring with data hold and relative measurement functions
