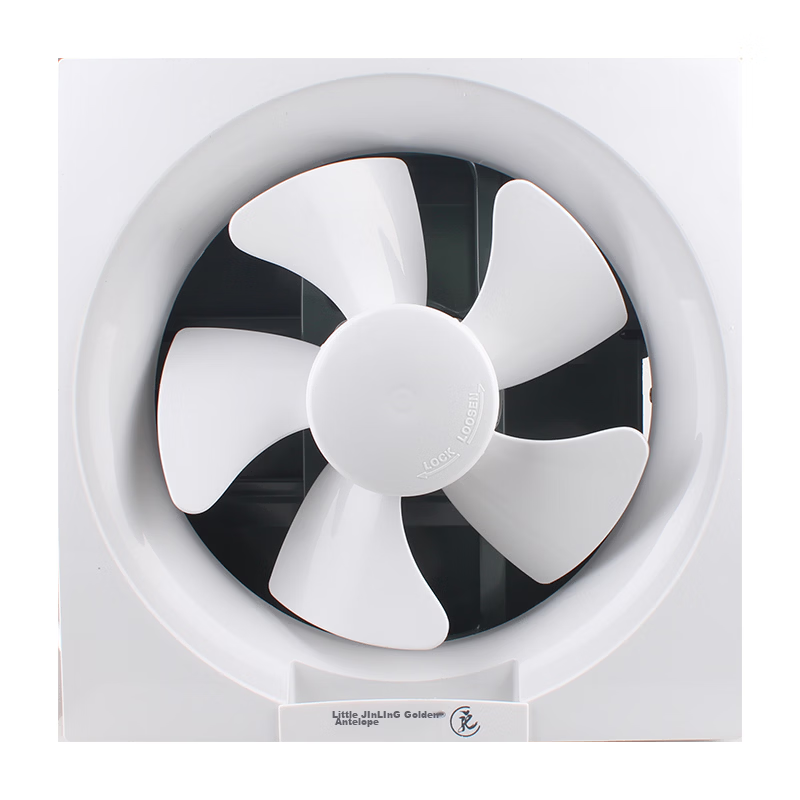

Back to CatalogJINLING Kitchen and Bathroom Exhaust Fan Ventilation Fan Bathroom Wall Window 8 Inch APB20-4-1
Specifications

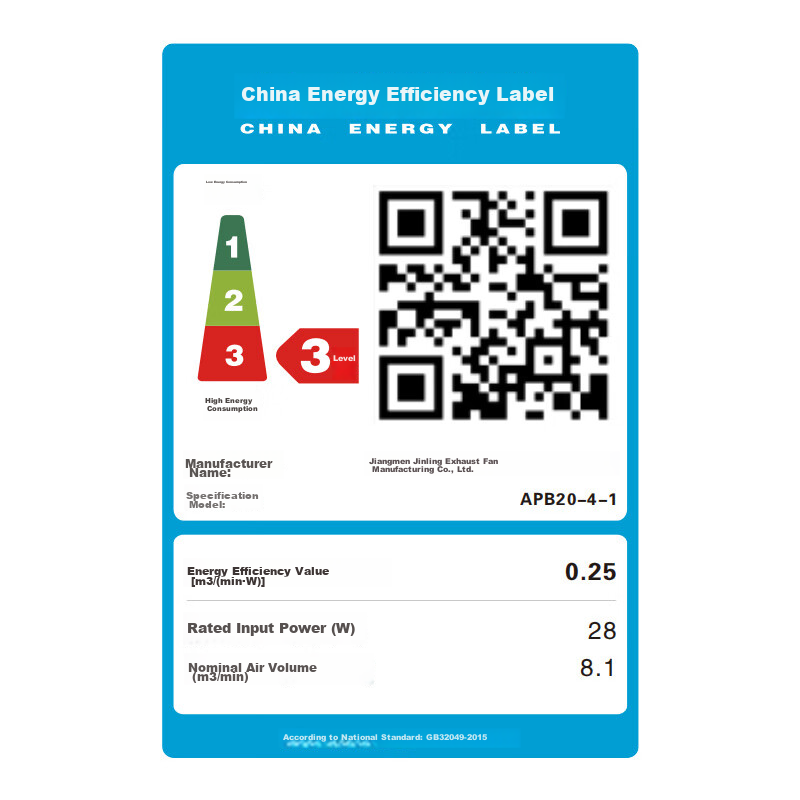

- Energy efficiency rating
- Grade 3 energy efficiency
- Coverage
- 15 square meters or more
- Installation
- Window, Wall
Variants / Sale Attributes
Style: 486m³/h 28W Opening diameter 247~253mm
Package Contents
Exhaust fan *1 Installation manual *1
Product Description

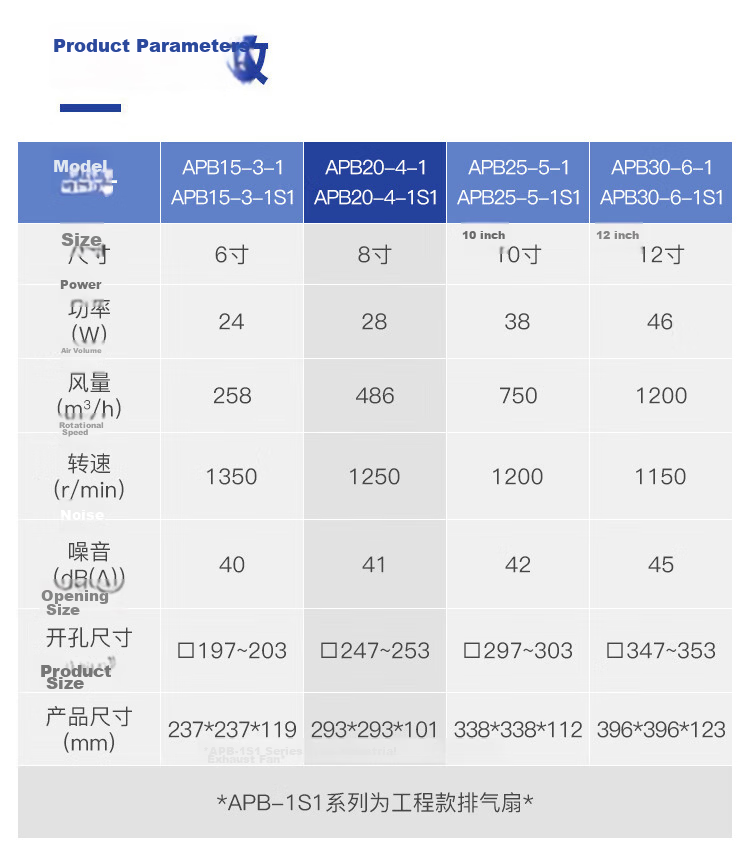

Product Specifications
Overview
- Brand
- JINLING
- Product Series
- APB-1S1 Engineering Exhaust Fan Series
APB15-3-1 / APB15-3-1S1
Additional details
- Size
- 9 inch
- Power
- 24 W
- Air Volume
- 258 m³/h
- Speed
- 1350 r/min
- Noise Level
Similar Products
In Stock
In Stock

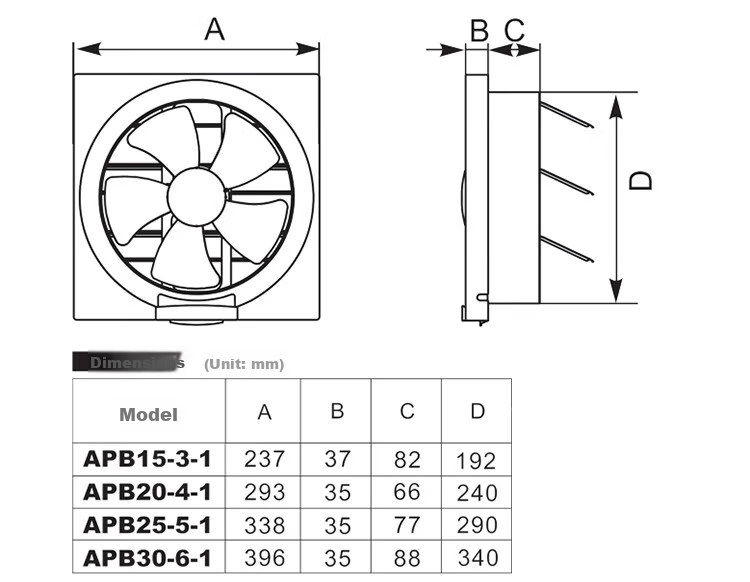

Product Size (L×W×H)237×237×119 mm External Dimensions (A×B×C×D)237×37×82×192 mm Additional details

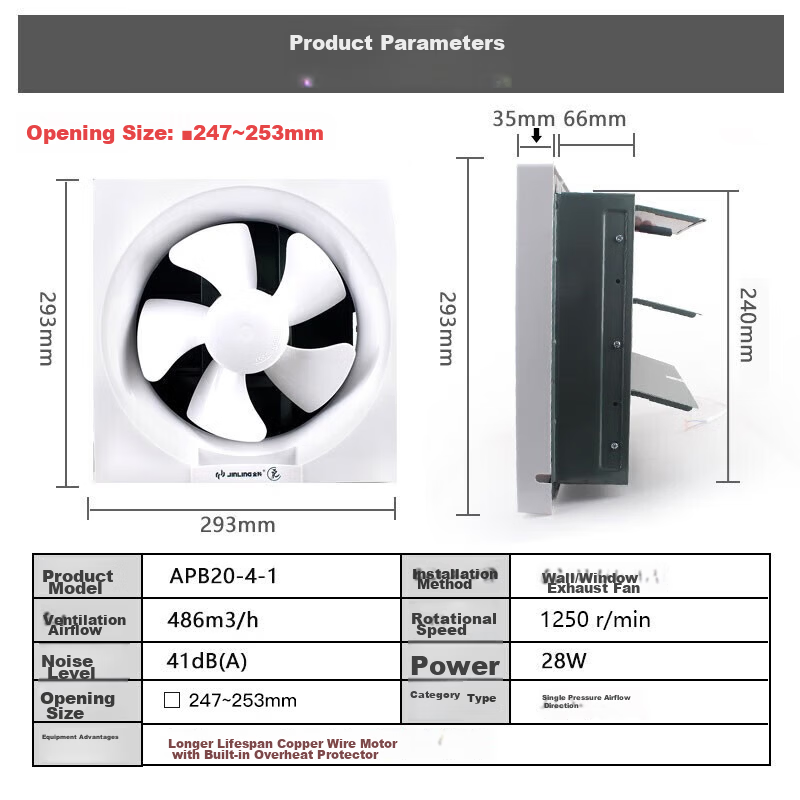

- Size
- 8 inch
- Power
- 28 W
- Air Volume
- 486 m³/h
- Speed
- 1250 r/min
- Noise Level
- 41 dB(A)
- Opening Size
- 247–253 mm
- Product Size (L×W×H)
- 293×293×101 mm
- External Dimensions (A×B×C×D)
- 293×35×66×240 mm
Additional details
- Size
- 10 inch
- Power
- 38 W
- Air Volume
- 750 m³/h
- Speed
- 1200 r/min
- Noise Level
- 42 dB(A)
- Opening Size
- 297–303 mm
- Product Size (L×W×H)
- 338×338×112 mm
- External Dimensions (A×B×C×D)
- 338×35×77×290 mm
Additional details
- Size
- 12 inch
- Power
- 46 W
- Air Volume
- 1200 m³/h
- Speed
- 1150 r/min
- Noise Level
- 45 dB(A)
- Opening Size
- 347–353 mm
- Product Size (L×W×H)
- 396×396×123 mm
- External Dimensions (A×B×C×D)
- 396×35×88×340 mm

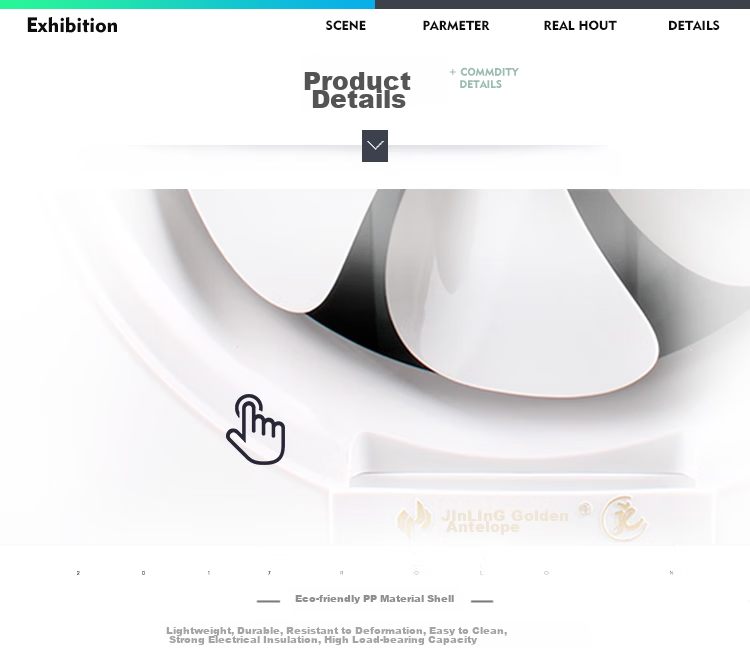

- Housing
- Environmentally friendly PP (Polypropylene) material, lightweight, durable, deformation resistant, easy to clean, strong electrical insulation and load-bearing capacity.

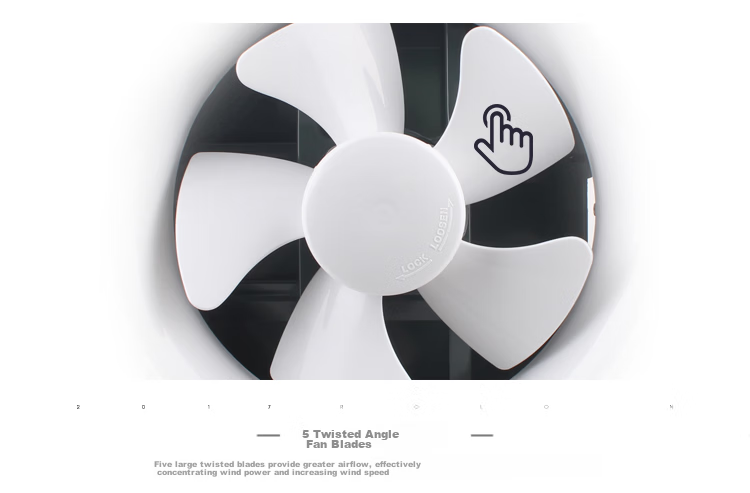

- Fan Blades
- 5 large blades with 5-degree twist angle for increased airflow and wind speed.

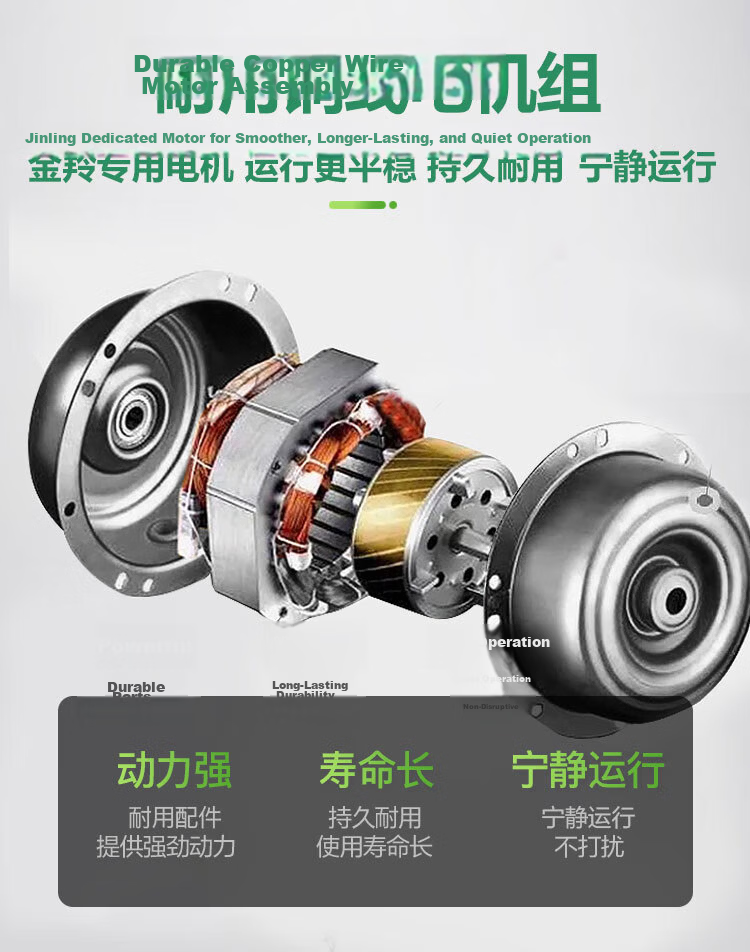

Durable copper wire motor specially designed by JINLING for stable, long-lasting, and quiet operation.
Provides strong power and extended service life without disturbance.
High air volume capacity up to 486 m³/h (model dependent).
Low noise operation ranging from 40 to 45 dB(A).
Suitable for household dust removal and ventilation.
IEC60665 ventilation fan air performance testing laboratory.
Over 40 years of experience in ventilation fan manufacturing.
Annual production capacity exceeding 2 million units.
Advanced intelligent manufacturing workshops.
Large factory area of 45,000 m².
Exported to over 40 countries and regions including Europe, America, Japan, Southeast Asia, South America, Middle East, and South Africa.
Household ventilation and dust removal.
JINLING is a private enterprise with import and export rights.
Product series includes ventilation fans, electric fans, ceiling fans, air curtains, hand dryers, and bathroom heaters.
Trusted brand with tens of millions of users since 1974.
APB-1S1 series are engineering models of exhaust fans.
