Xima AR4105A Ground Resistance Tester, Digital Lightning Protection Ground Resistance Meter

•Resistance tester

Xima AR4105A Ground Resistance Tester, Digital Lightning Protection Ground Resistance Meter

CN¥328.00

SKU: 100005168240

Status:In Stock (7)

ID: 100005168240

Weight: 2860.00 g

Dims:334x288x117 mm

Specifications

Functions: resistance testing
Category: Ground resistance tester

Variants / Sale Attributes

Model: AR4105A+ Ground Resistance (2~200Ω)

Package Contents

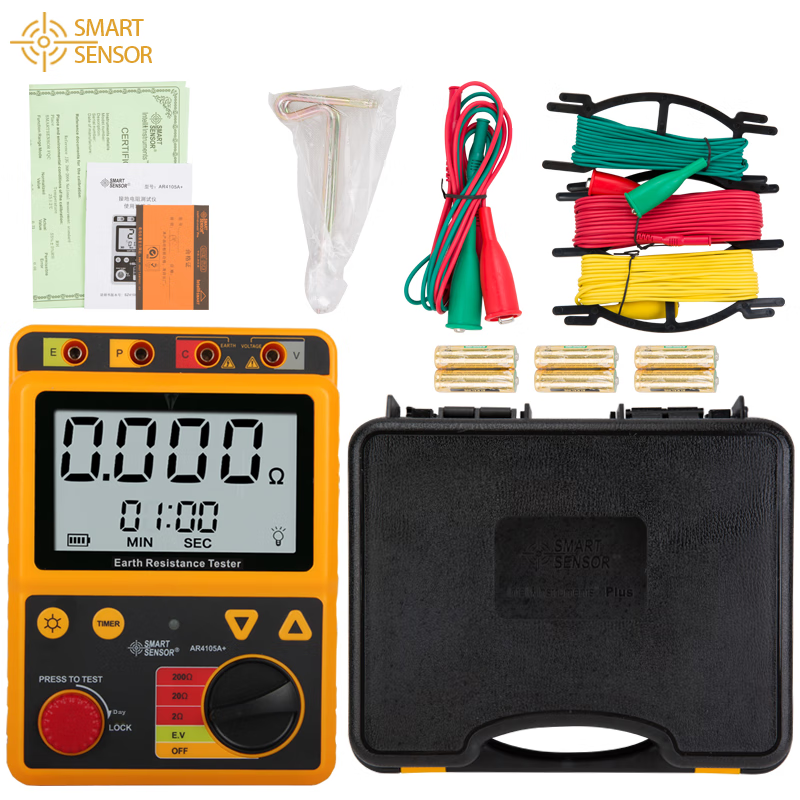

1 product, 1 manual, 1 battery, 1 warranty card certificate, 1 hard box packaging, 1 ground nail, 1 test line

Product Description

Overview

Brand: Hima
Model: SMART SENSOR Earth Resistance Tester AR4105A+

Features

Lightning protection

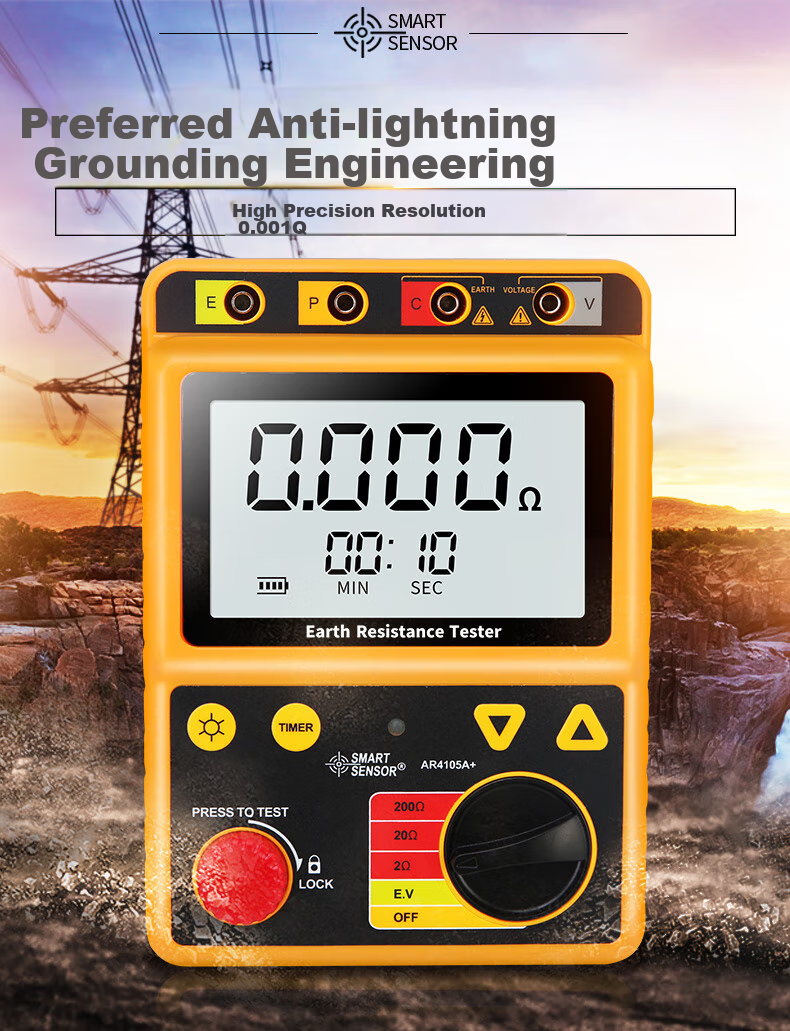

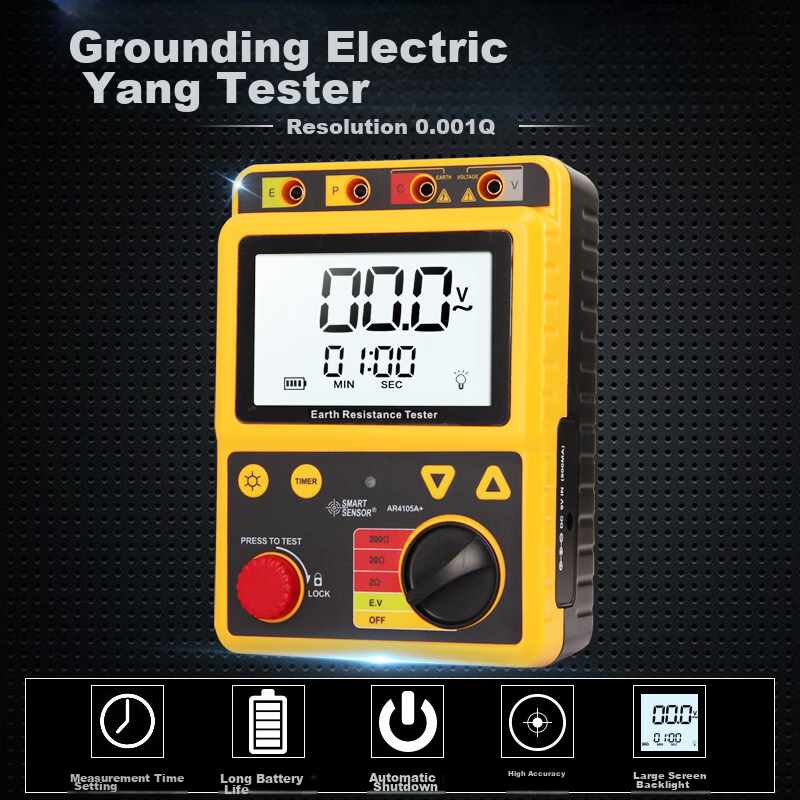

High accuracy with resolution of 0.001Ω
Various functions including TIMER
PRESSTOTEST

Similar Products

In Stock

希玛Resistance tester

Xima AS982 Surface Resistance Tester, Impedance Meter, Insulation Resistance Detector, Electrostatic Tester

resistance testing

CN¥106.00

View

In Stock

suweiResistance tester

Suwei Milliohm Meter DC Low Resistance Tester Micro Ohmmeter Ohmmeter Micro Ohm Meter Milliohm Resistance Tester SW6205

SW6205 Auto Range (0.01mΩ~30KΩ)

CN¥721.00

View

In Stock

XIANGRUIDE.2012Resistance tester

XIANGRUIDE.2012 Xiangruide Megohmmeter, Insulation Resistance Tester, Electrical Inspection Device, ZC25-3 Plastic Case, 500V/500M

ZC25-3 (For You) Plastic Case, 500V/500M

CN¥108.00

View

Adjustable gear position

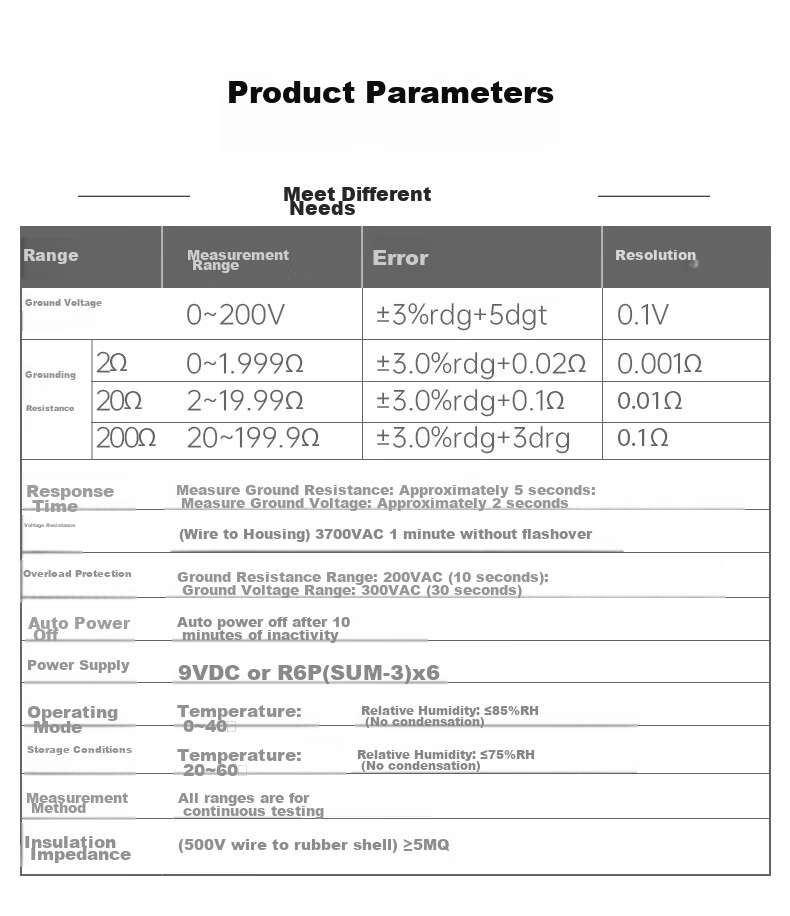

Measurement Parameters

Item	Detail
Earth Voltage	0~200V, ±3%rdg+5dgt, 0.1V
Earth Resistance	0~1.999Ω, ±3.0%rdg+0.02Ω, 0.001Ω
Resistance	20~199.9Ω, ±3.0%rdg+3dgt, 0.1Ω

Additional details

Response Time: Approx. 5 seconds for ground resistance, approx. 2 seconds for ground voltage
Insulation Resistance: ≥5 MΩ (500V wire to shell)
Operating Temperature: 0~40℃, ≤85%RH (non-condensing)
Storage Conditions: 20~60℃, ≤75%RH (non-condensing)
Power Supply: 9VDC or R6P(SUM-3)x6
Measurement Method: Continuous testing for all ranges

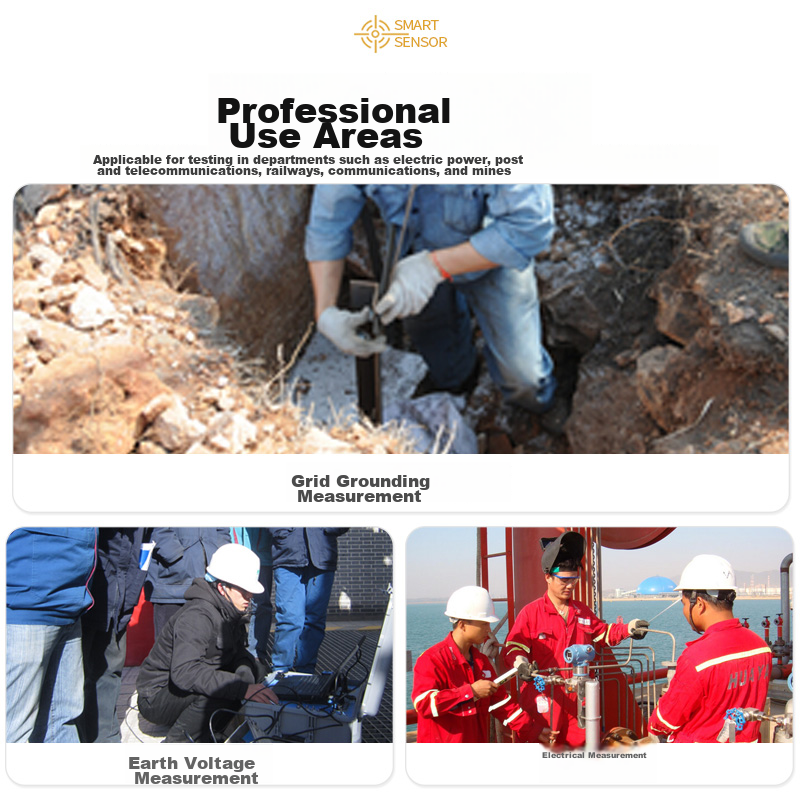

Applications: Suitable for power, telecommunications, railways, mining, and other departments for ground resistance and voltage measurements

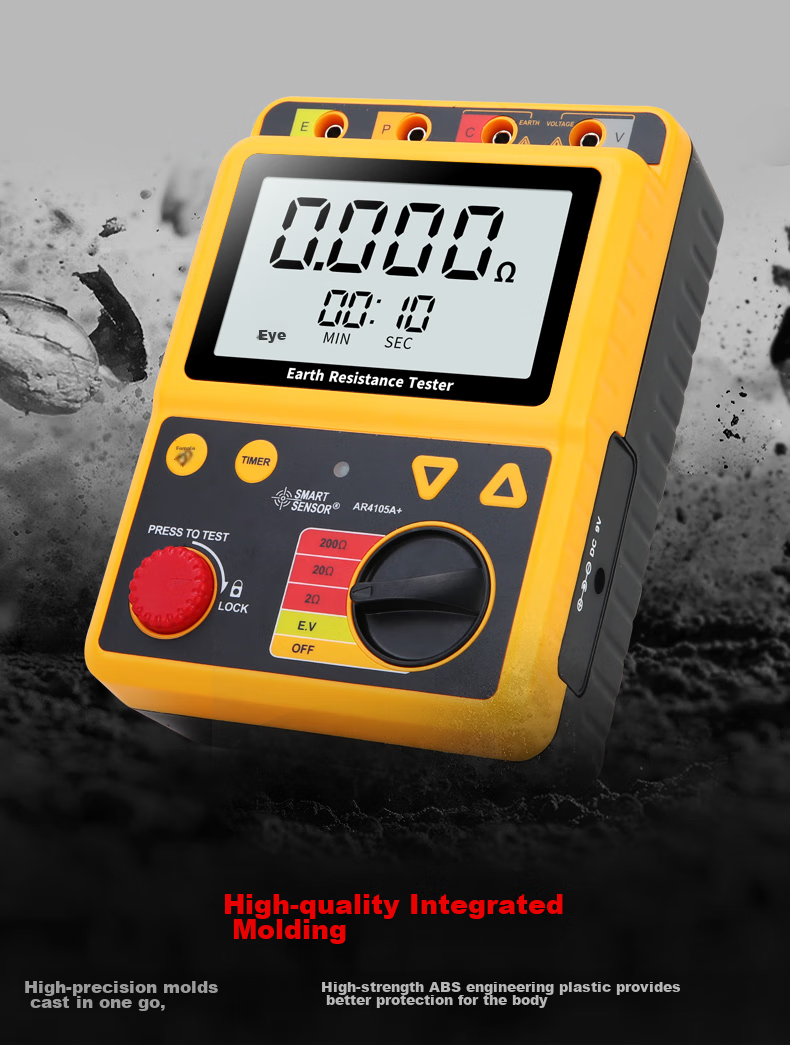

Construction: High-quality integrated design with high-precision mold casting and ABS engineering plastic for body protection

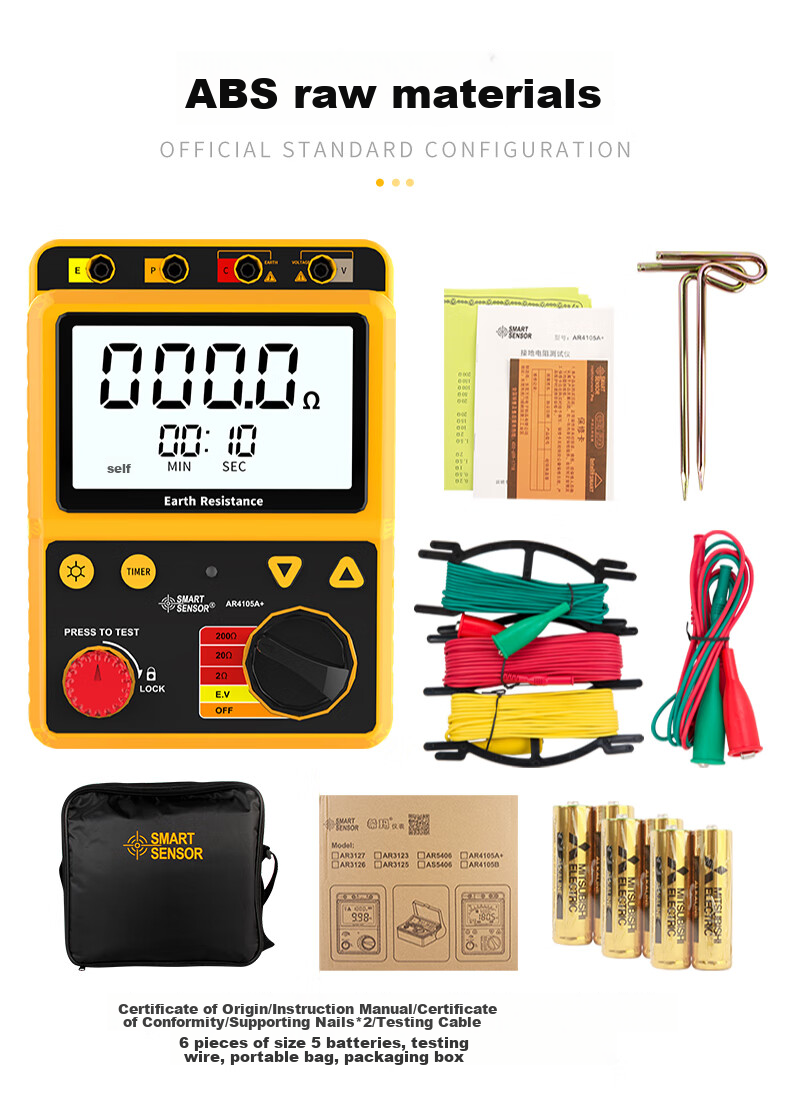

Accessories: Comes with official standard configuration including manual, certification, auxiliary nails, test leads, batteries, portable bag, and packaging box

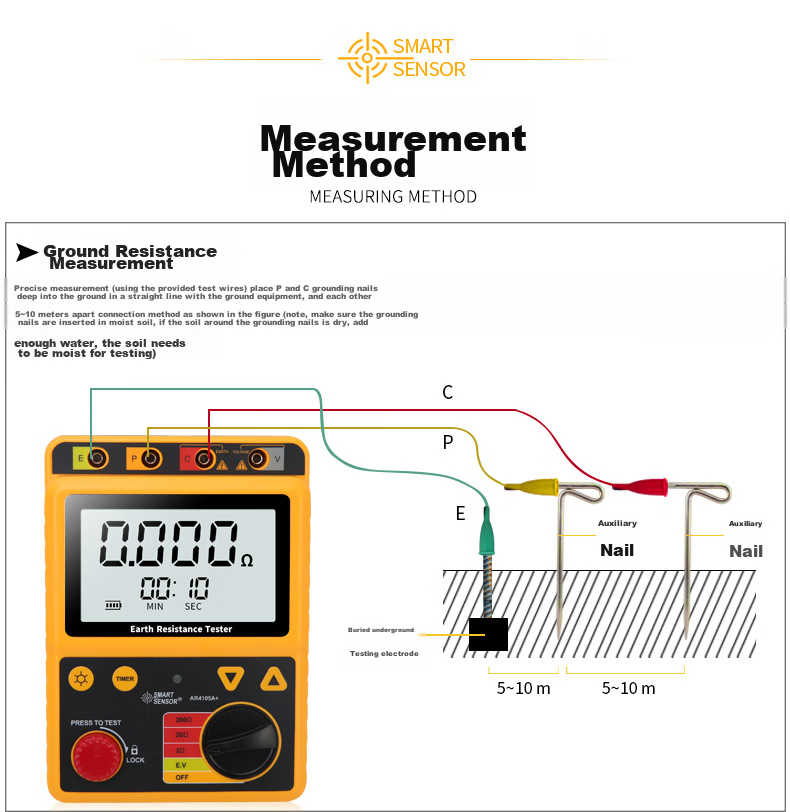

For precise ground resistance measurement, ensure proper grounding of test leads and equipment in a straight line with nails buried in moist soil at 5-10m intervals

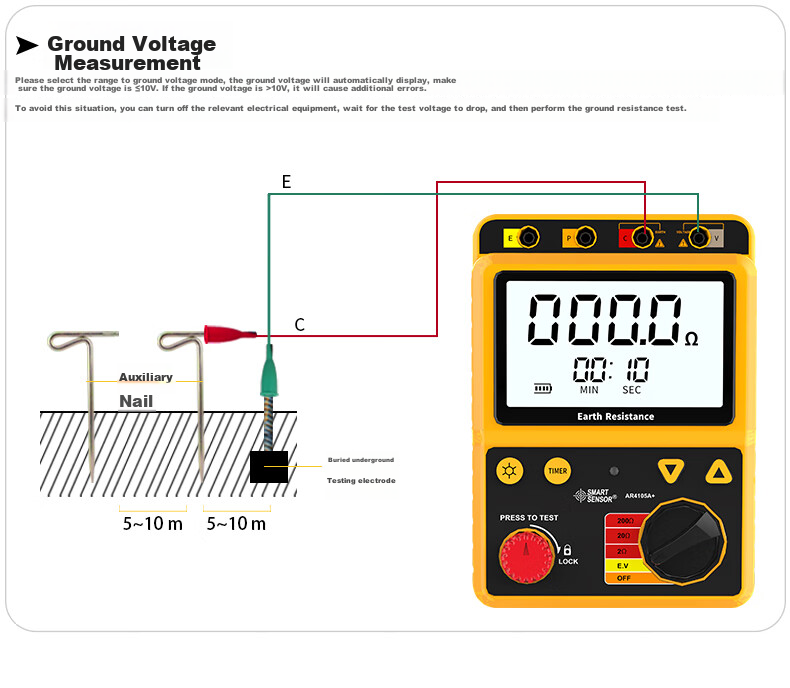

When measuring ground voltage, select the appropriate range and ensure voltage is ≤10V to avoid erroneous results

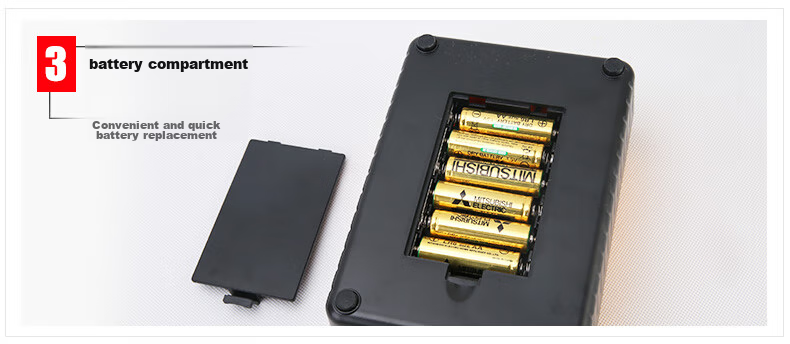

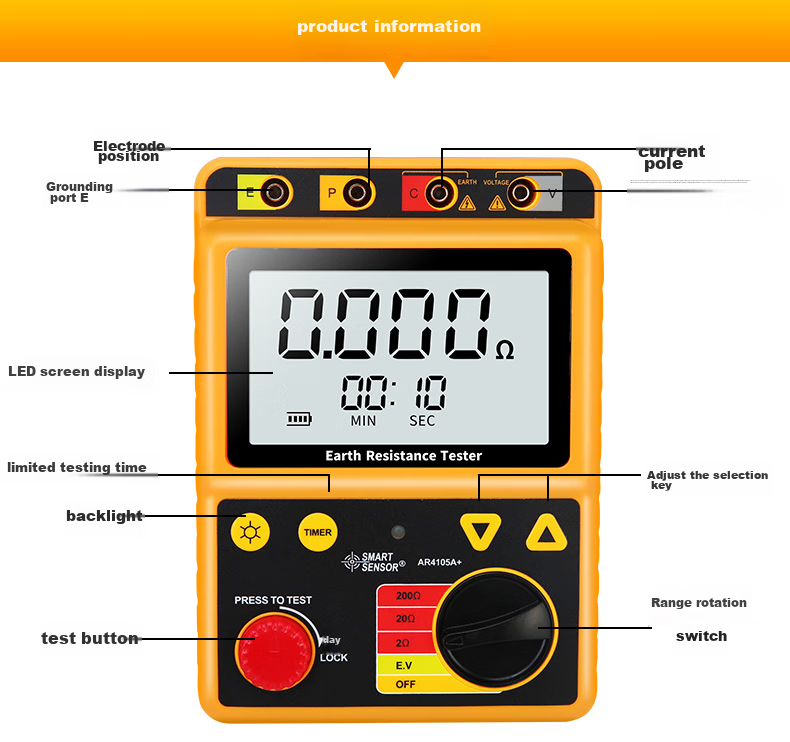

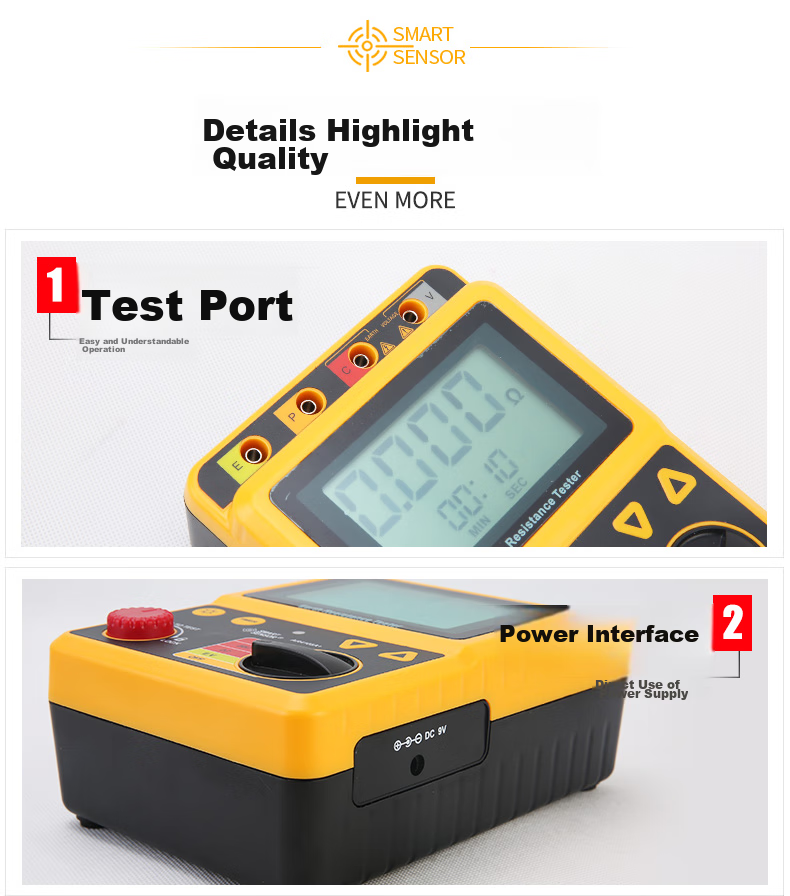

Detailed quality features include easy-to-use test ports, power interface for direct power supply, and convenient battery compartment

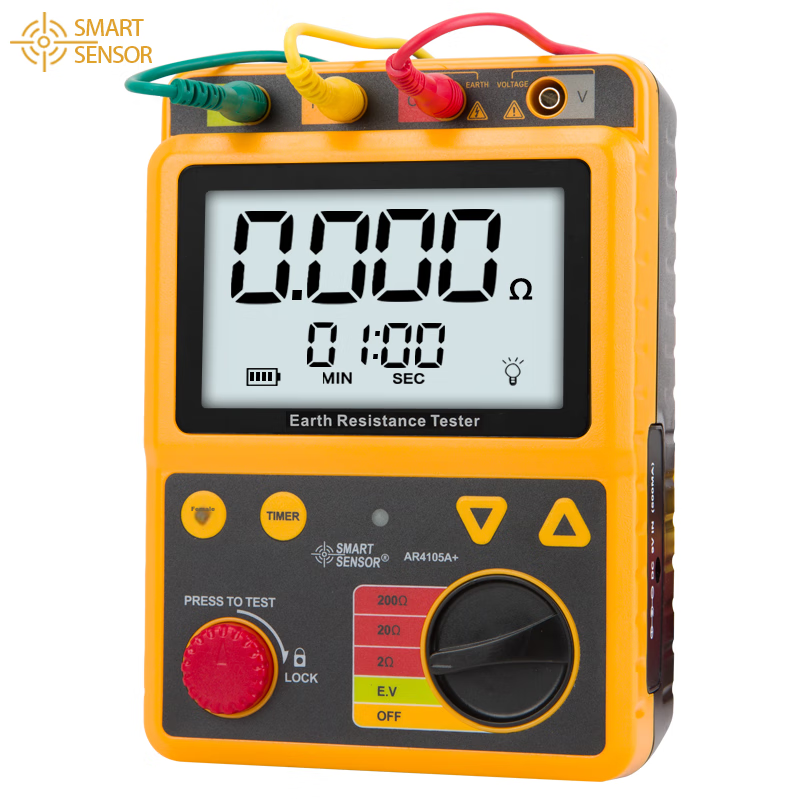

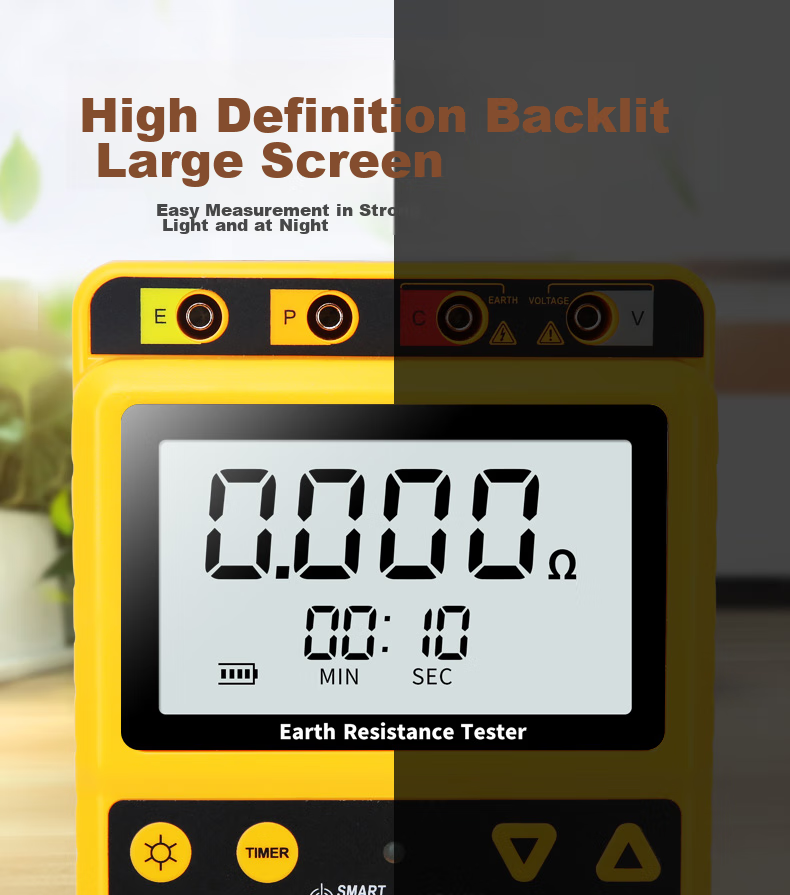

Display features LED screen with backlight for easy reading in various lighting conditions

The above specifications are subject to change without prior notice.
