Suwei Milliohm Meter DC Low Resistance Tester Micro Ohmmeter Ohmmeter Micro Ohm Meter Milliohm Resistance Tester SW6205

suwei•Resistance tester

Suwei Milliohm Meter DC Low Resistance Tester Micro Ohmmeter Ohmmeter Micro Ohm Meter Milliohm Resistance Tester SW6205

CN¥721.00

SKU: 100076194105

Status:In Stock (5)

ID: 100076194105

Weight: 985.00 g

Dims:272x195x93 mm

Specifications

Category: DC low resistance tester
Functions: resistance testing

Variants / Sale Attributes

Model: SW6205 Auto Range (0.01mΩ~30KΩ)

Package Contents

SW6205 Accessories: Instrument/Carrying Case/Manual/Certificate of Conformity/Test Clips/Data Cable/Plug

Product Description

Product Specifications

Overview

Brand: suwei

SW-6205 (Standard Model)

SW-6208 (High Precision Model)

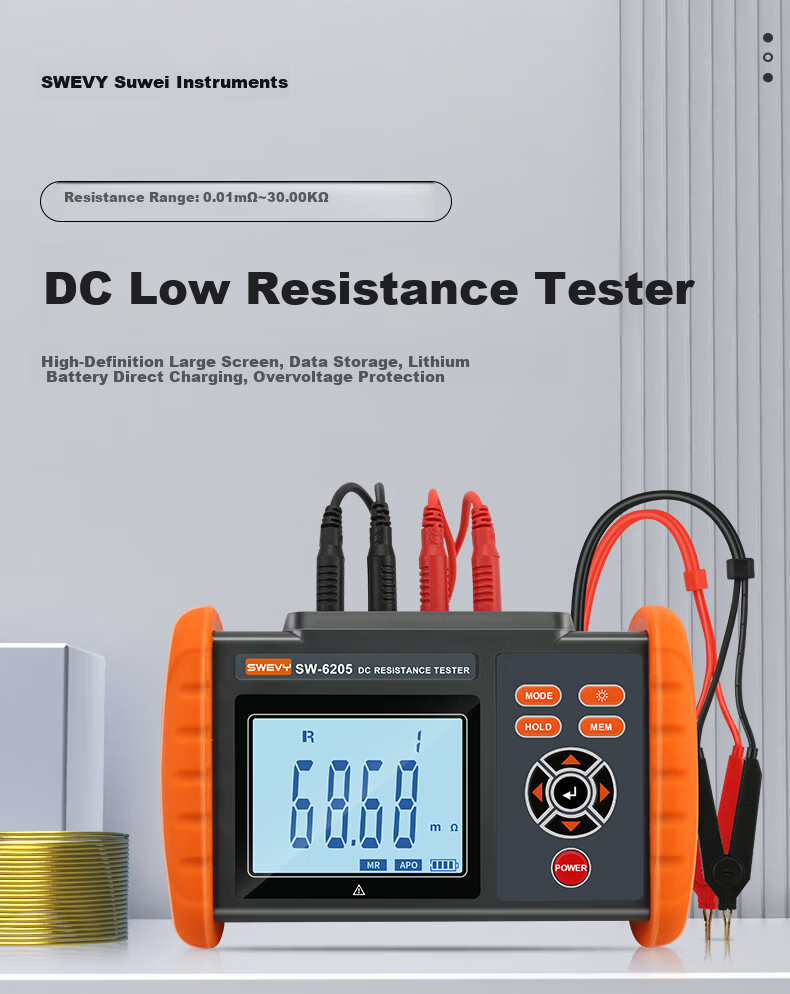

The suwei SW-6205 and SW-6208 are DC low resistance testers designed for precise measurement of electrical resistance in cables, switches, connectors, relays, coils, motors, and transformer windings. Both models feature a large high-definition screen, data storage, lithium battery with direct charging, and overvoltage protection. They support four-wire testing method for enhanced accuracy and reliability.

Resistance Measurement Range

Item	Detail
SW-6205	0.01 mΩ to 30.00 kΩ
SW-6208	0.001 mΩ to 300.0 kΩ

Resolution

Item	Detail

Similar Products

In Stock

希玛Resistance tester

Xima AS982 Surface Resistance Tester, Impedance Meter, Insulation Resistance Detector, Electrostatic Tester

resistance testing

CN¥106.00

View

In Stock

XIANGRUIDE.2012Resistance tester

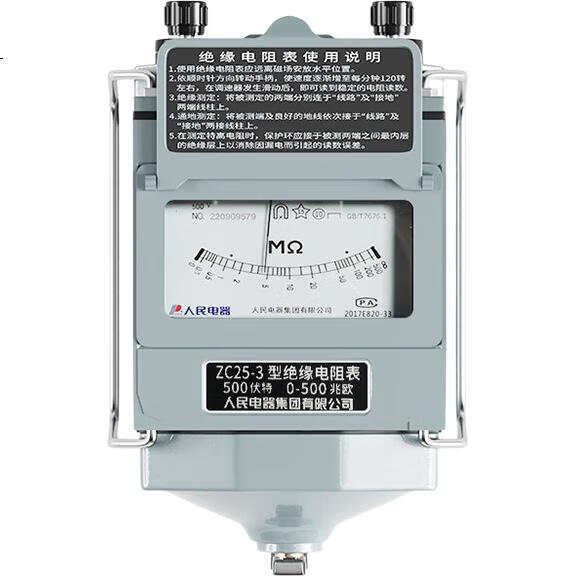

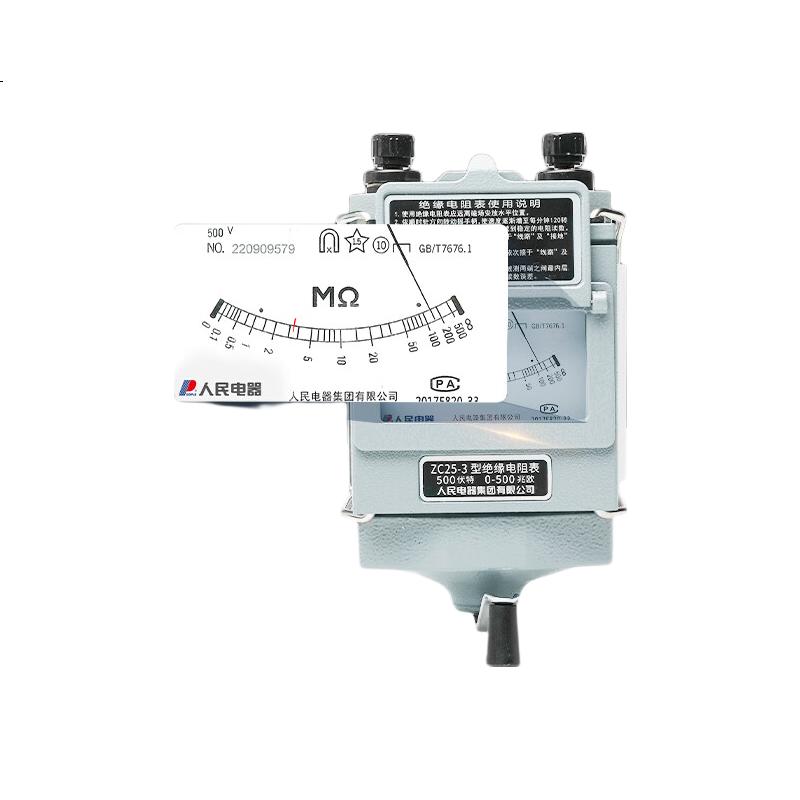

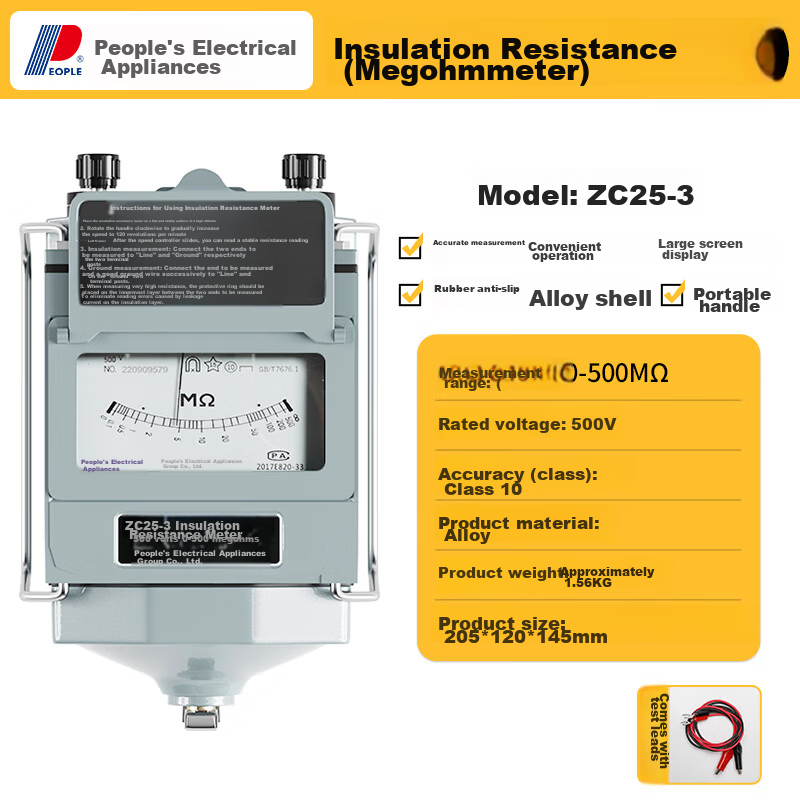

XIANGRUIDE.2012 Xiangruide Megohmmeter, Insulation Resistance Tester, Electrical Inspection Device, ZC25-3 Plastic Case, 500V/500M

ZC25-3 (For You) Plastic Case, 500V/500M

CN¥108.00

View

In Stock

Resistance tester

Xima AR4105A Ground Resistance Tester, Digital Lightning Protection Ground Resistance Meter

AR4105A+ Ground Resistance (2~200Ω)

CN¥328.00

View

Maximum Test Current

Up to 1.2 A depending on range

Data Storage

500 groups of measurement data with easy recall

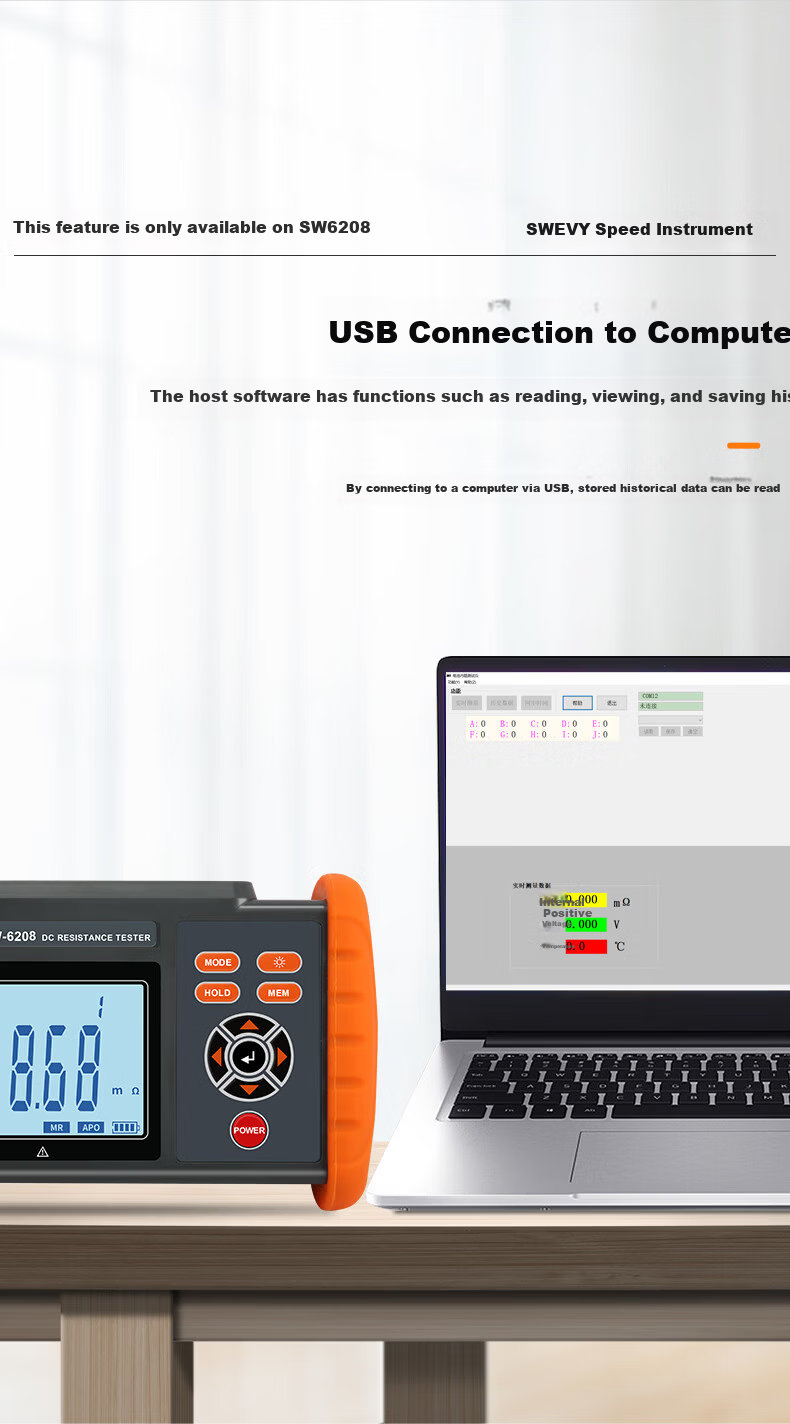

USB Connectivity

SW-6208 supports USB data upload and PC software for historical data reading, viewing, and saving

Power Supply

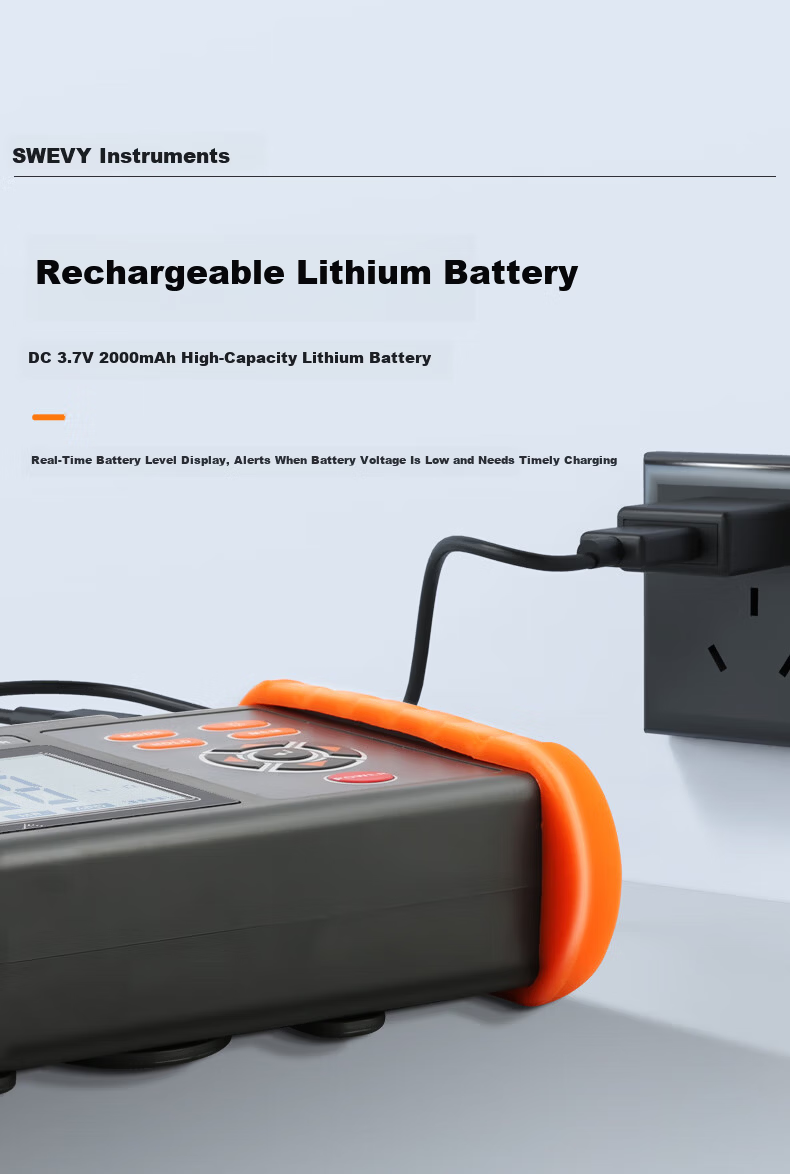

Rechargeable lithium battery (DC 3.7V, 2000mAh)
Real-time battery level display and low battery warning (SW-6208)

Display

Large HD backlit screen for clear readings

Protection

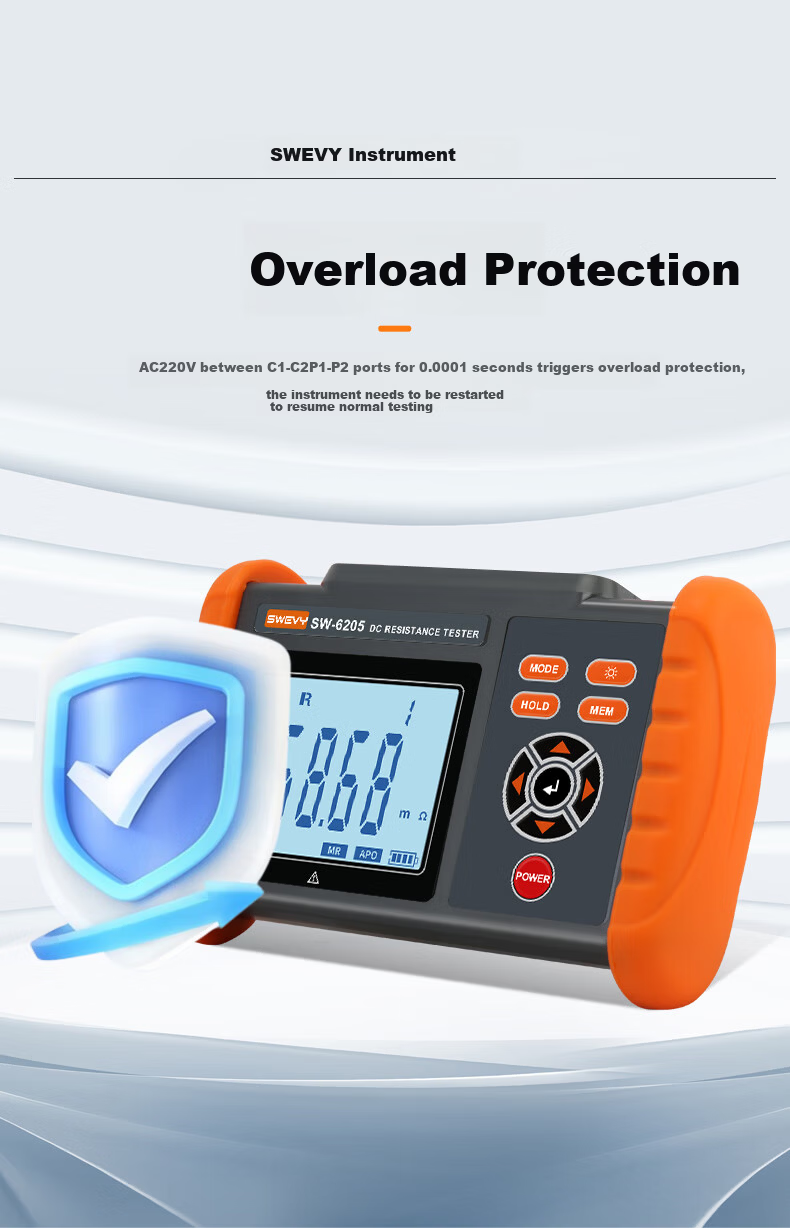

Overvoltage protection between terminals (AC 220V/0.0001s)
Automatic shutdown after 15 minutes of inactivity

Measurement Method

Item	Detail
Four-wire testing method ensuring precise and reliable results	—

Calibration

Official metrology certification and calibration certificates available

Accessories

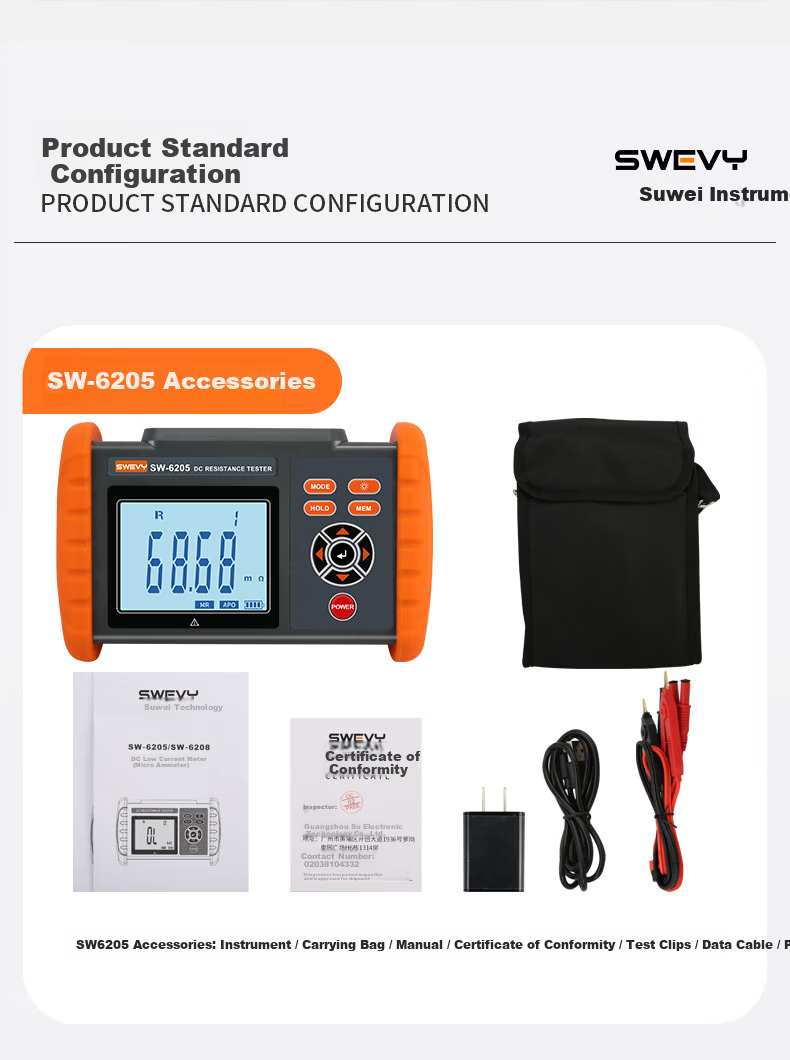

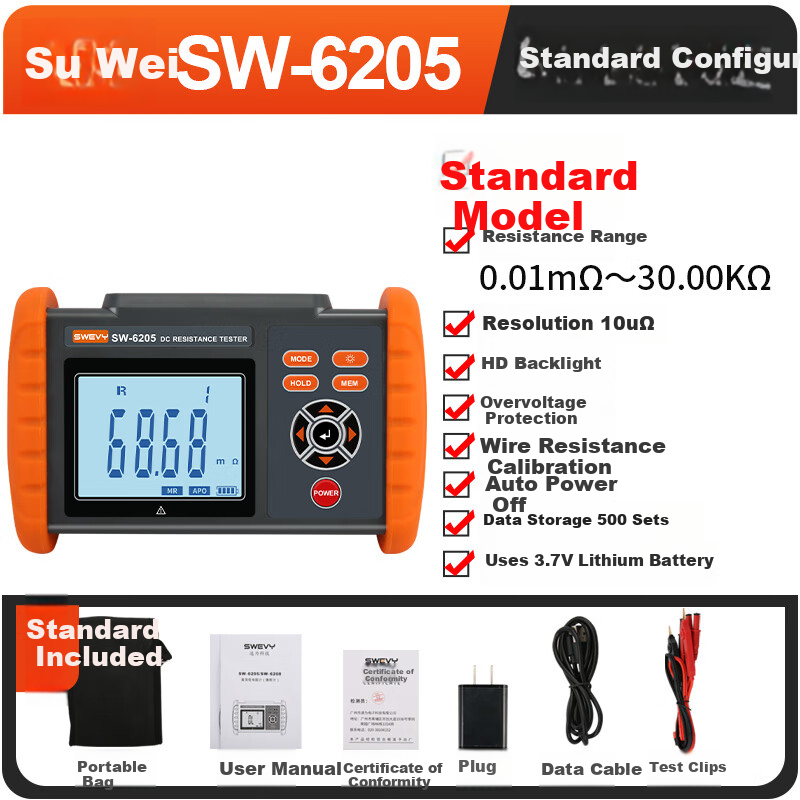

SW-6205: Instrument, carrying case, user manual, calibration certificate, test clips, data cable, plug

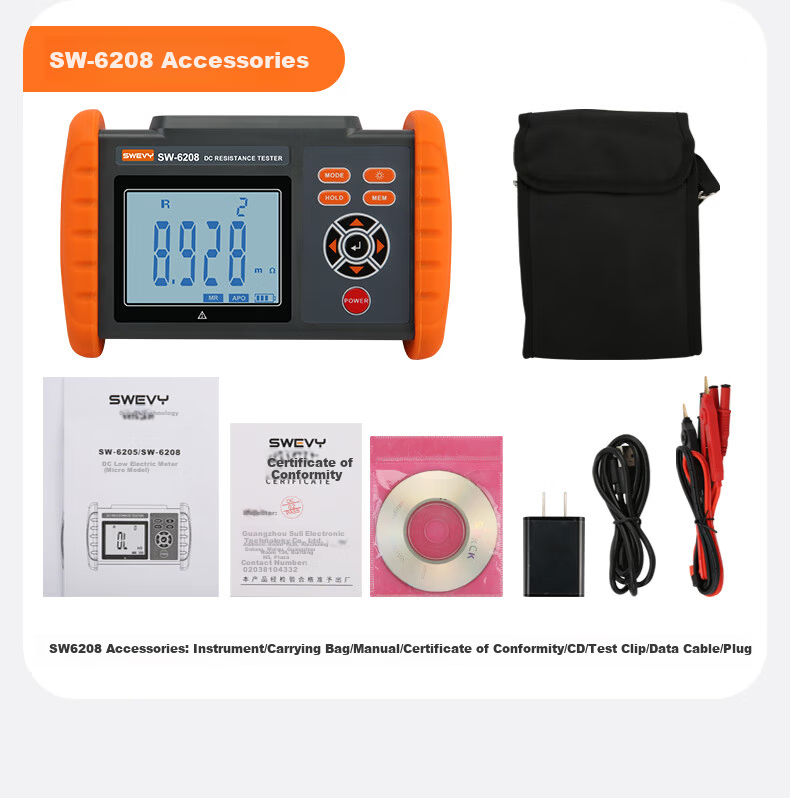

SW-6208: Instrument, carrying case, user manual, calibration certificate, CD, test clips, data cable, plug

Measurement of conductor resistance in cables

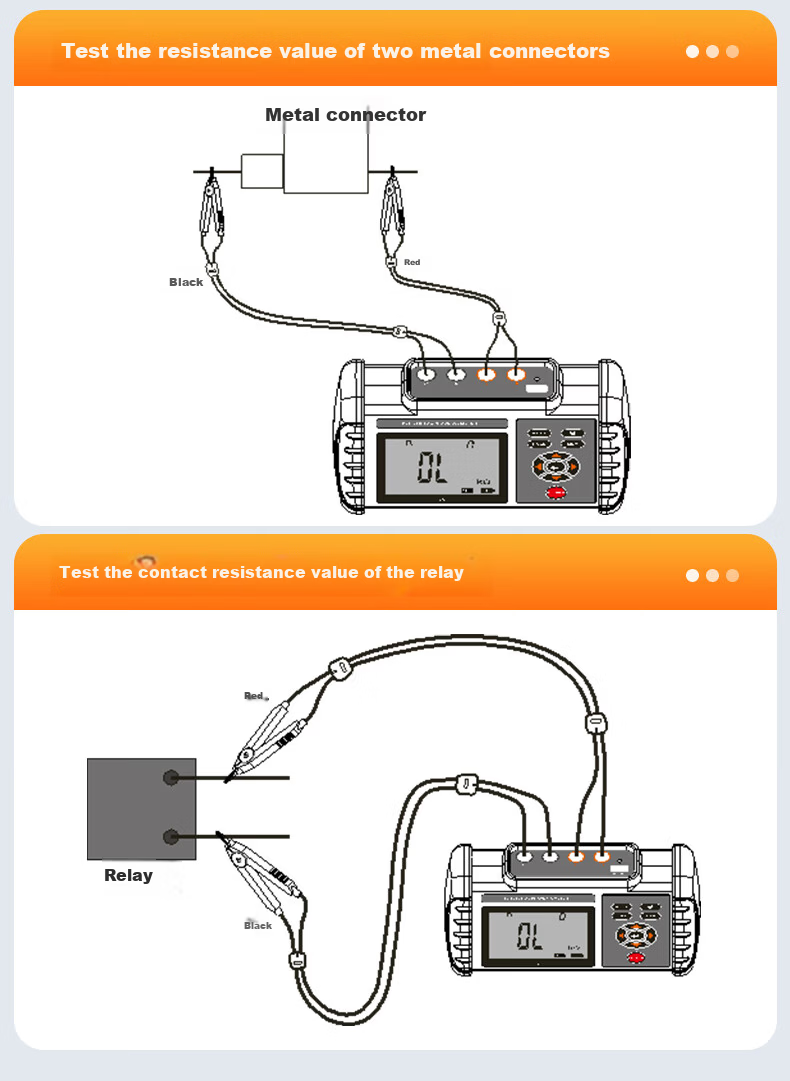

Contact resistance testing of switches, connectors, and relays

Coil, motor, and transformer winding resistance measurement

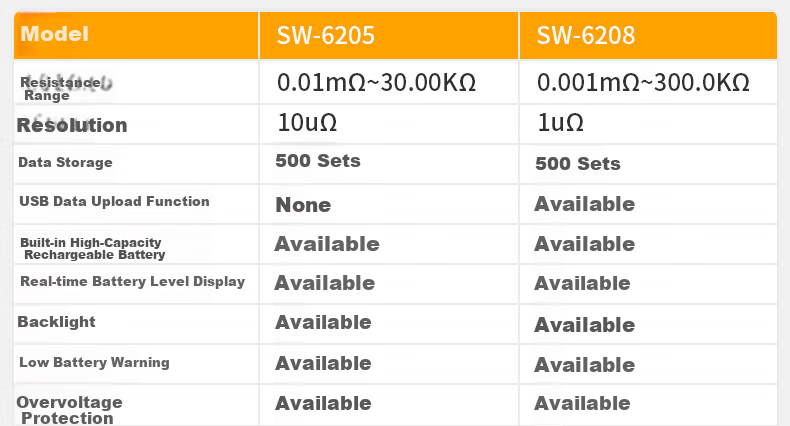

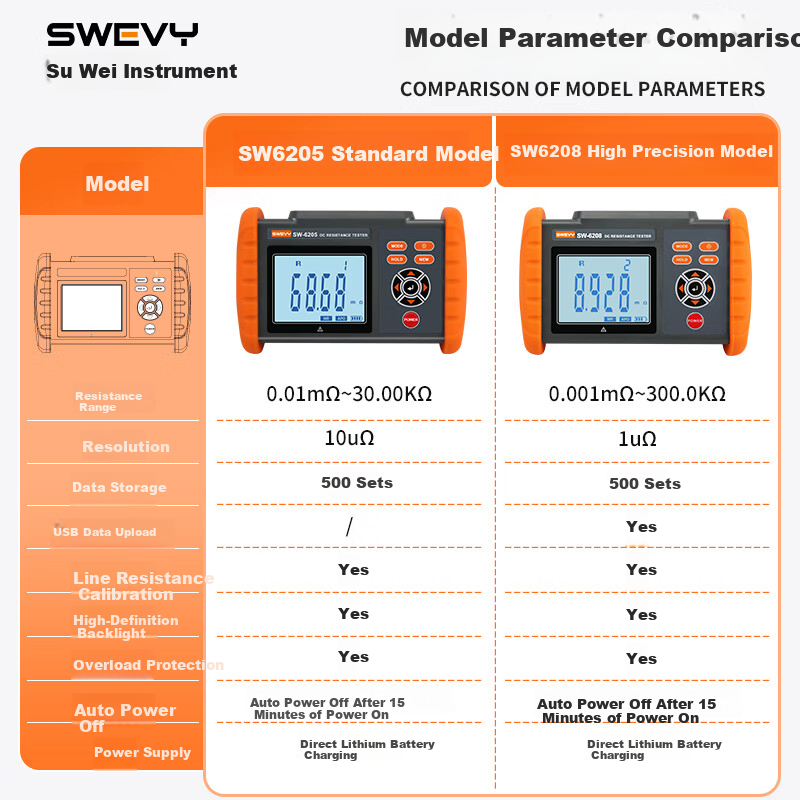

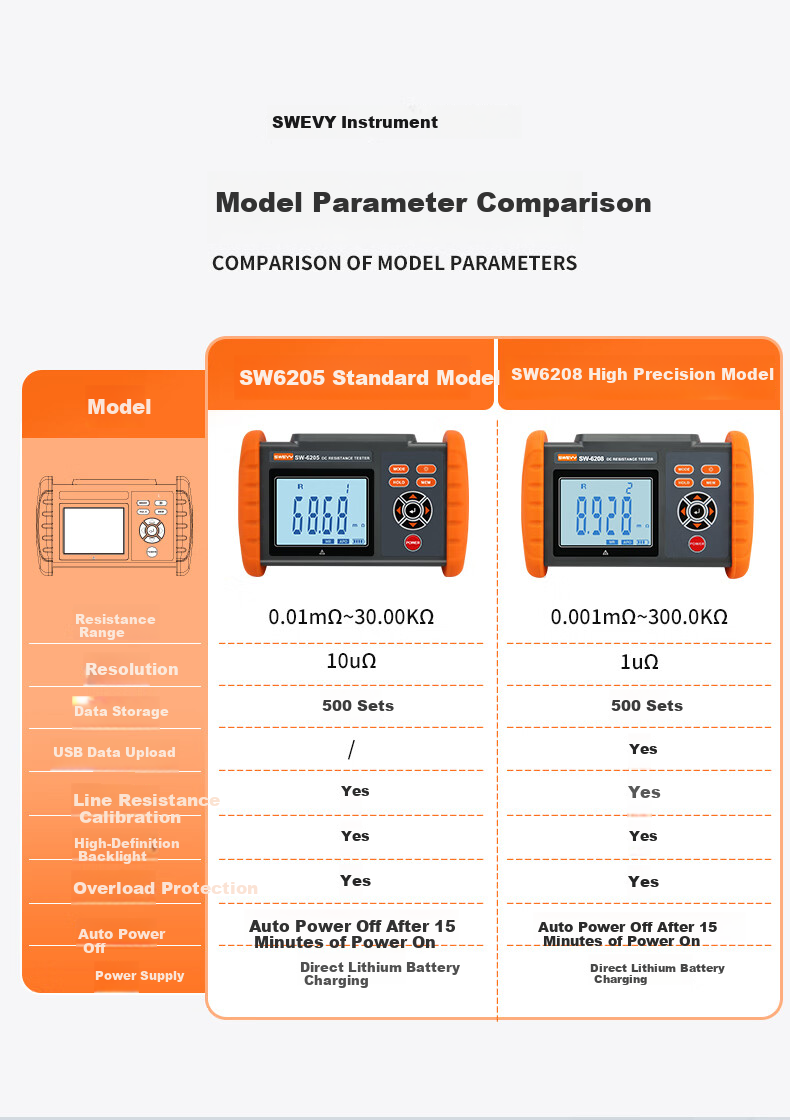

| Parameter | SW-6205 Standard Model | SW-6208 High Precision Model |

|------------------------|--------------------------------------|---------------------------------------|

| Resistance Range | 0.01 mΩ ~ 30.00 kΩ | 0.001 mΩ ~ 300.0 kΩ |

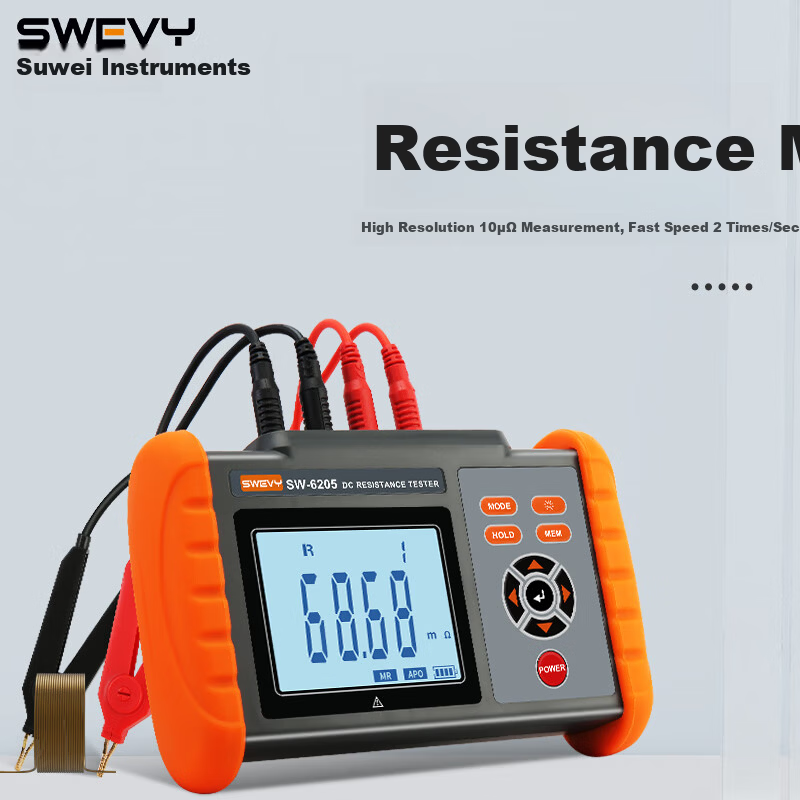

| Resolution | 10 μΩ | 1 μΩ |

| Accuracy | ±0.1% FS ± (varies by range) | ±0.1% FS ± (varies by range) |

| Max Test Current | Up to 1.2 A (depending on range) | Up to 1.2 A (depending on range) |

| Data Storage | 500 groups | 500 groups |

| USB Data Upload | No | Yes |

| Display | HD backlit screen | HD backlit screen |

| Battery | Rechargeable lithium battery | Rechargeable lithium battery with real-time display |

| Overvoltage Protection | Yes | Yes |

| Auto Power Off | After 15 minutes | After 15 minutes |

Additional details

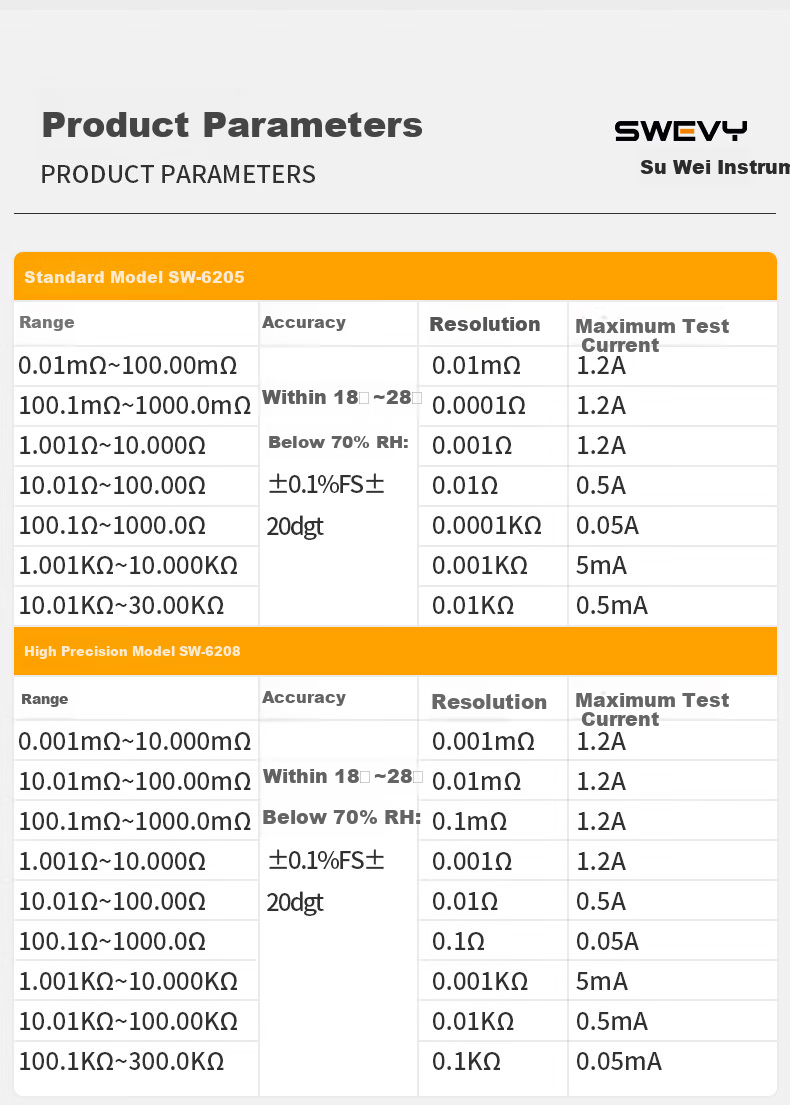

0.01 mΩ ~ 100.00 mΩ: Resolution 0.01 mΩ, Max current 1.2 A
100.1 mΩ ~ 1000.0 mΩ: Resolution 0.0001 Ω, Max current 1.2 A
1.001 Ω ~ 10.000 Ω: Resolution 0.001 Ω, Max current 1.2 A
10.01 Ω ~ 100.00 Ω: Resolution 0.01 Ω, Max current 0.5 A
100.10 Ω ~ 1000.0 Ω: Resolution 0.0001 kΩ, Max current 0.05 A
1.001 kΩ ~ 10.000 kΩ: Resolution 0.001 kΩ, Max current 5 mA
10.01 kΩ ~ 30.00 kΩ: Resolution 0.01 kΩ, Max current 0.5 mA
0.001 mΩ ~ 10.000 mΩ: Resolution 0.001 mΩ, Max current 1.2 A
10.01 mΩ ~ 100.00 mΩ: Resolution 0.01 mΩ, Max current 1.2 A
100.1 mΩ ~ 1000.0 mΩ: Resolution 0.1 mΩ, Max current 1.2 A
1.001 Ω ~ 10.000 Ω: Resolution 0.001 Ω, Max current 1.2 A
10.01 Ω ~ 100.00 Ω: Resolution 0.01 Ω, Max current 0.5 A
100.10 Ω ~ 1000.0 Ω: Resolution 0.1 Ω, Max current 0.05 A
1.001 kΩ ~ 10.000 kΩ: Resolution 0.001 kΩ, Max current 5 mA
10.01 kΩ ~ 100.00 kΩ: Resolution 0.01 kΩ, Max current 0.5 mA
100.1 kΩ ~ 300.0 kΩ: Resolution 0.1 kΩ, Max current 0.05 mA

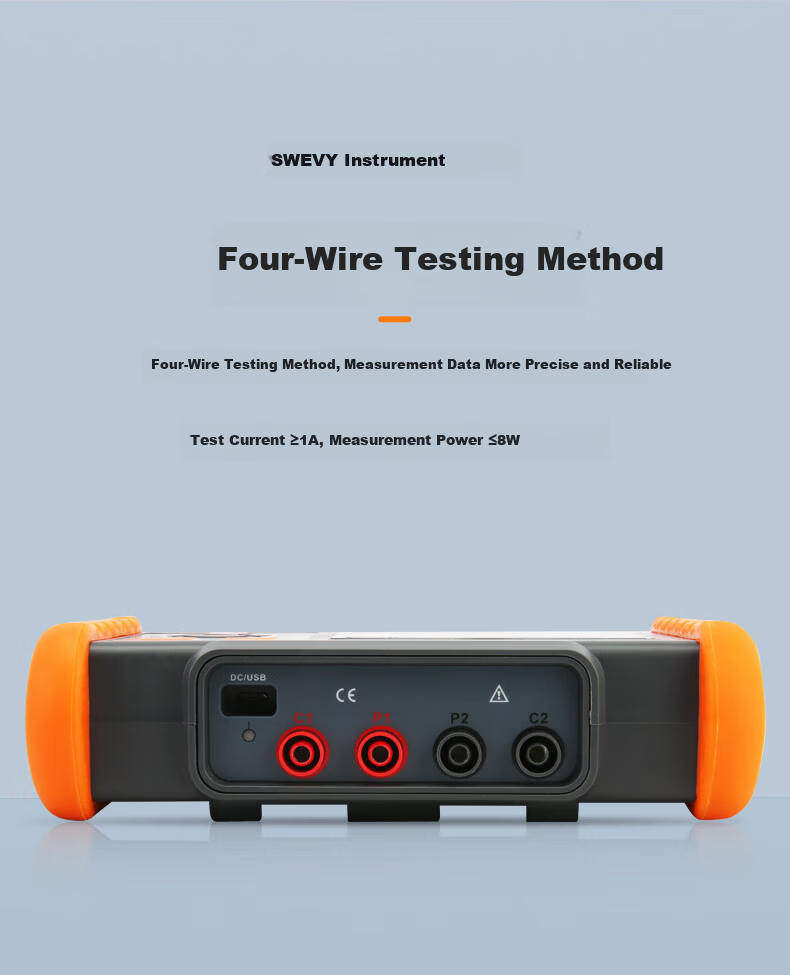

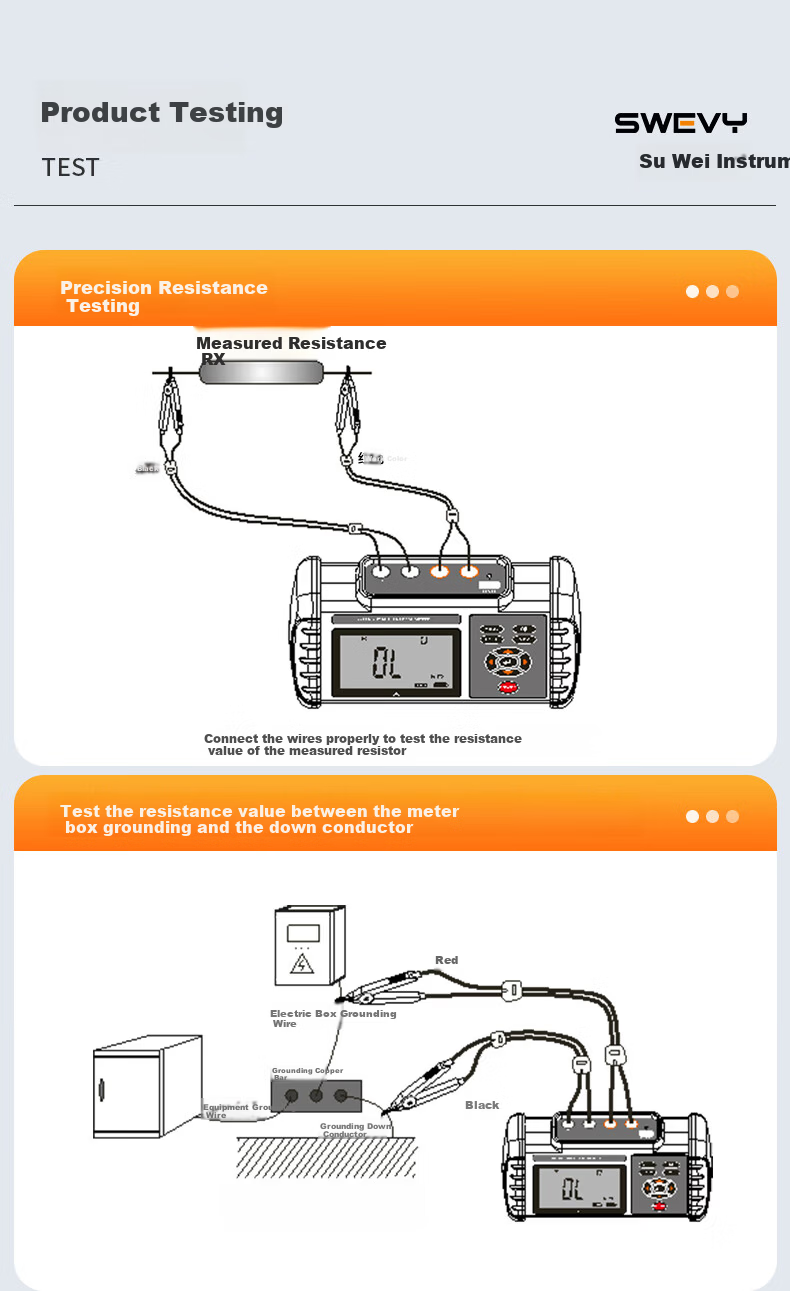

Four-wire measurement method for enhanced accuracy

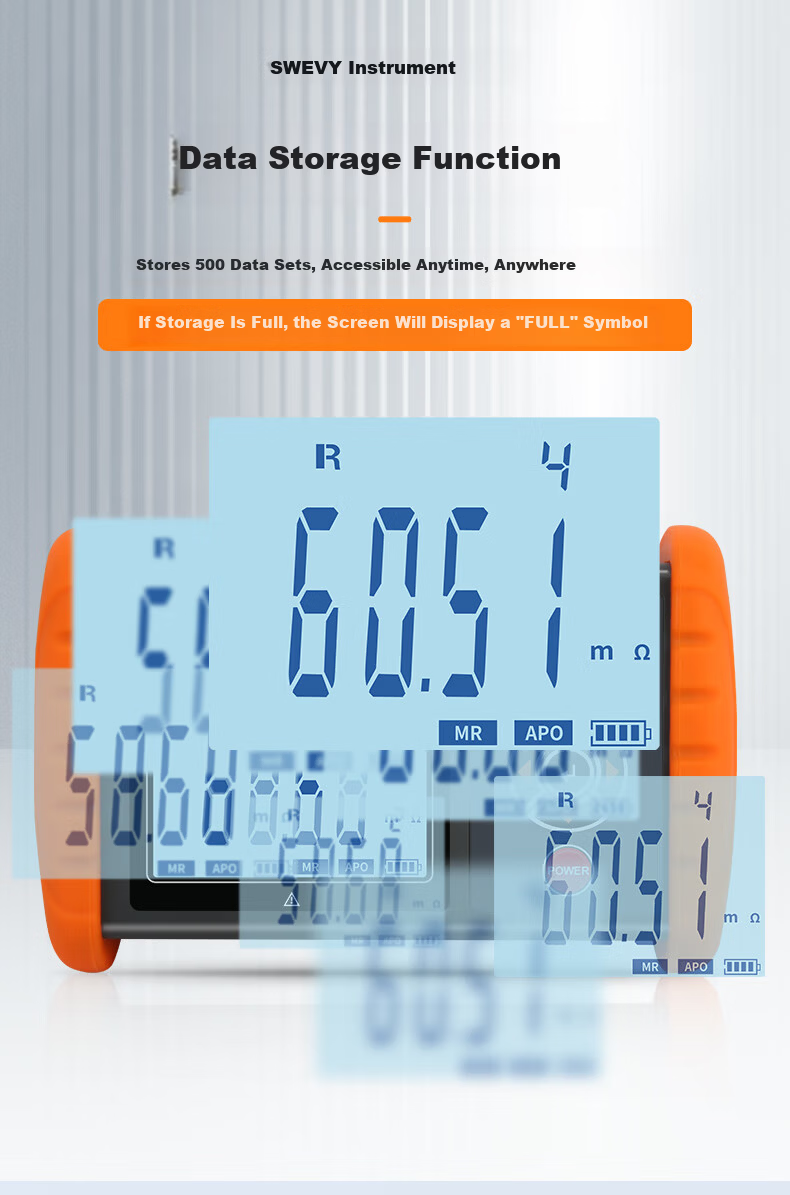

Data full indicator ("FULL" displayed on screen)

Overload protection requires instrument restart after activation

Real-time battery voltage display and charging status (SW-6208)

Automatic shutdown to conserve battery life

Official metrology certification by China National Accreditation Service (CNAS)

Calibration certificates provided with serial numbers

Shenzhen Sinotest Measurement Technology Co., Ltd.

Additional details

Address: Bao'an District, Shenzhen, China
Phone: +86 755 277xxxxxx
Website: https://m.so

The SW-6208 model includes additional features such as USB data upload, real-time battery display, and higher measurement resolution compared to the SW-6205 standard model.
