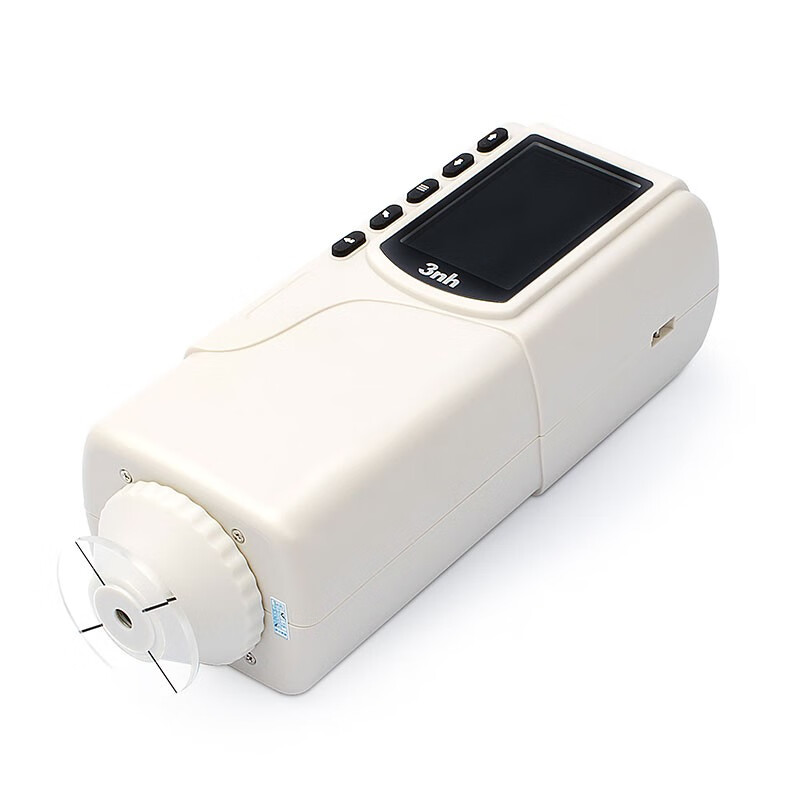

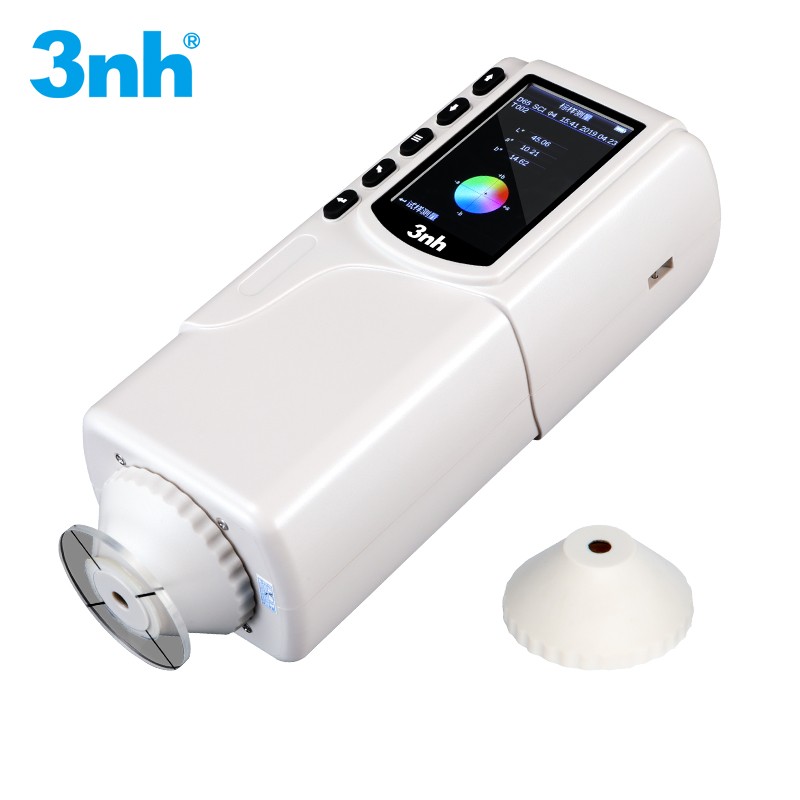

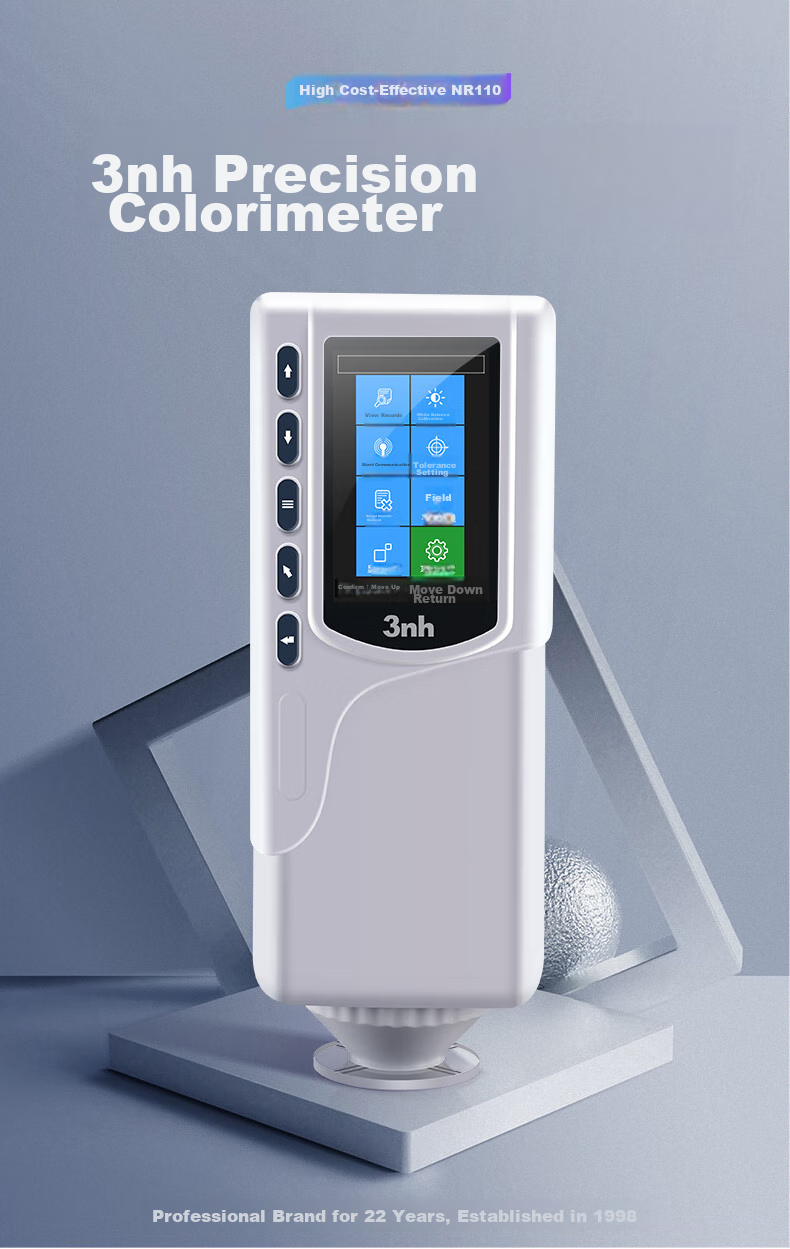

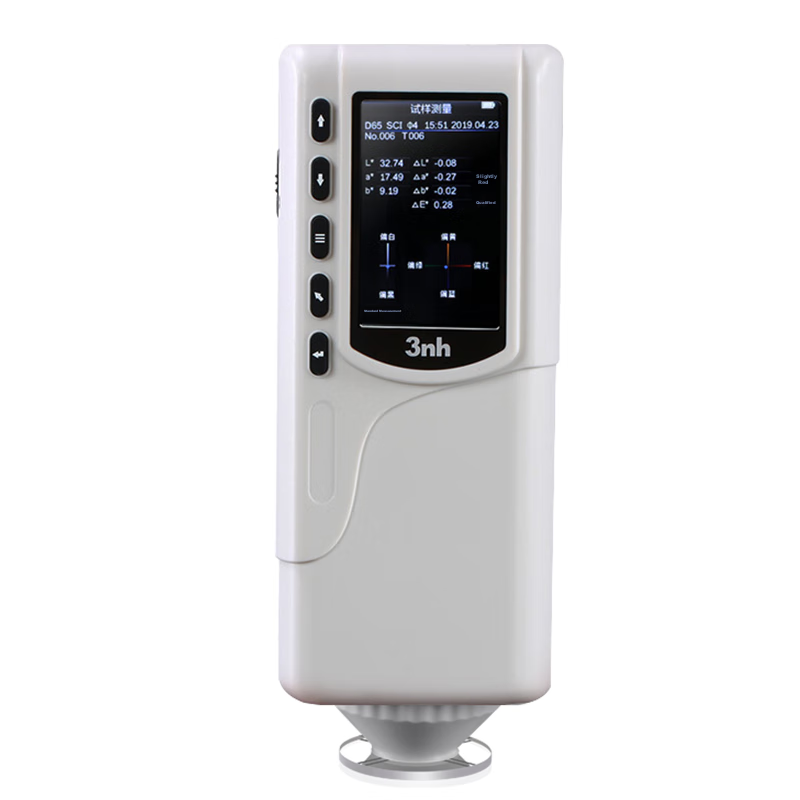

3Nh Portable Handheld Plastic Paint Color Difference Meter, Dual-Diameter Colorimeter for Coatings, NR110
Specifications
Category Portable colorimeter
Sensor type Triple Stimulus Value Variants / Sale Attributes Model: NR110 (Dual Diameter 4MM)
Package Contents Power adapter, user manual, quality management software (official website download), data cable, whiteboard, wristband, Φ4 platform measuring caliber, Φ4 nozzle measuring caliber
Friendly reminder: NR10QC and SC10 do not support computer management software, no calibration whiteboard, automatic calibration at startup

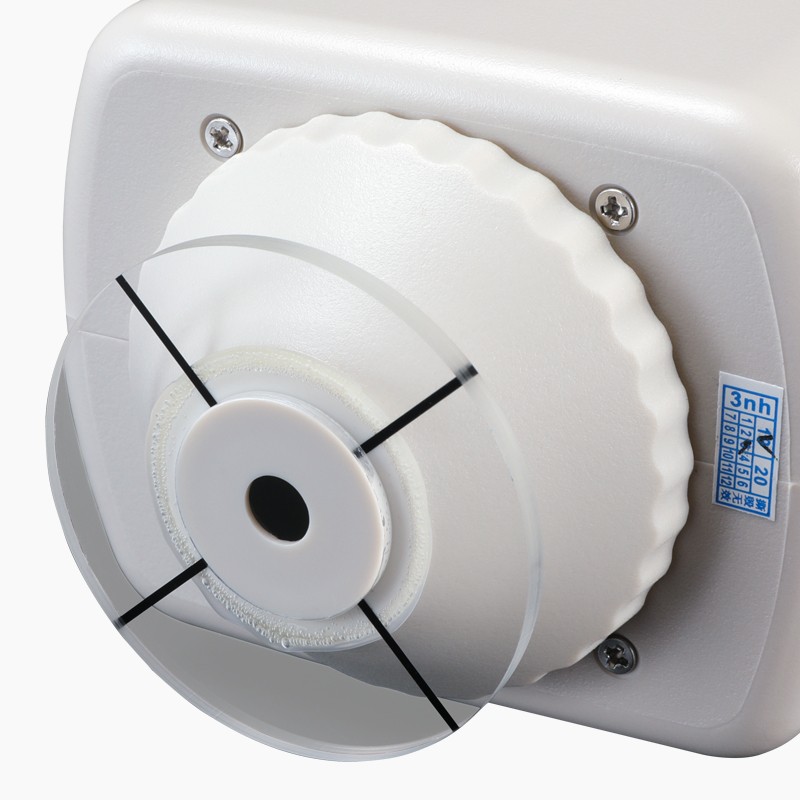

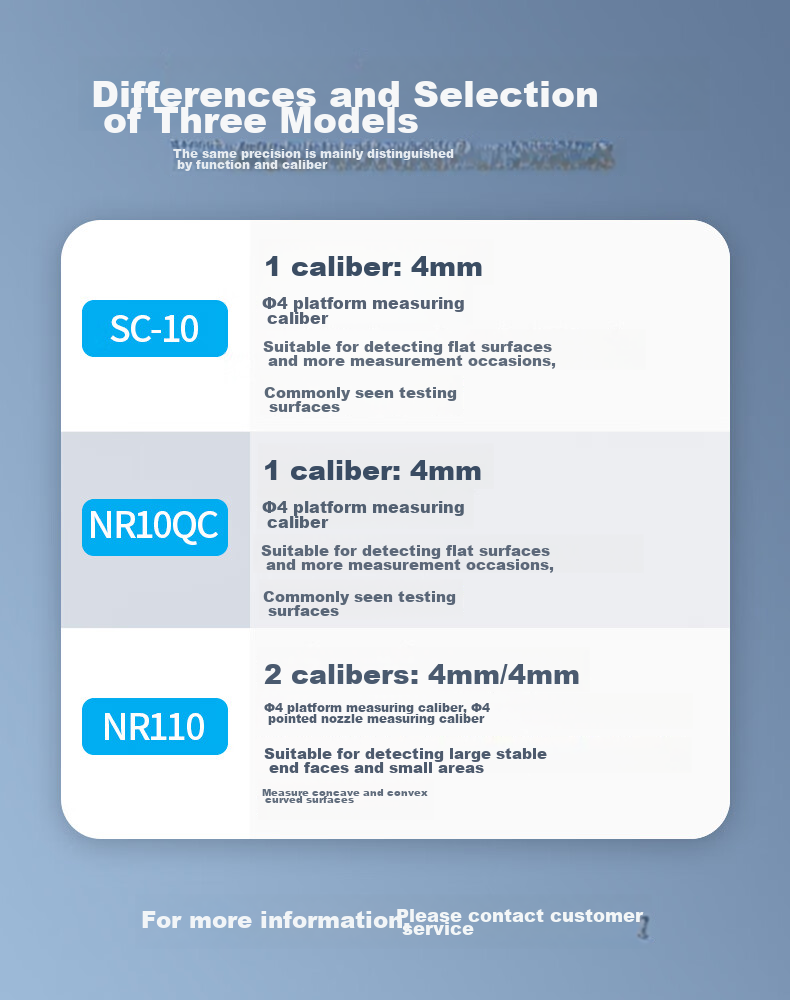

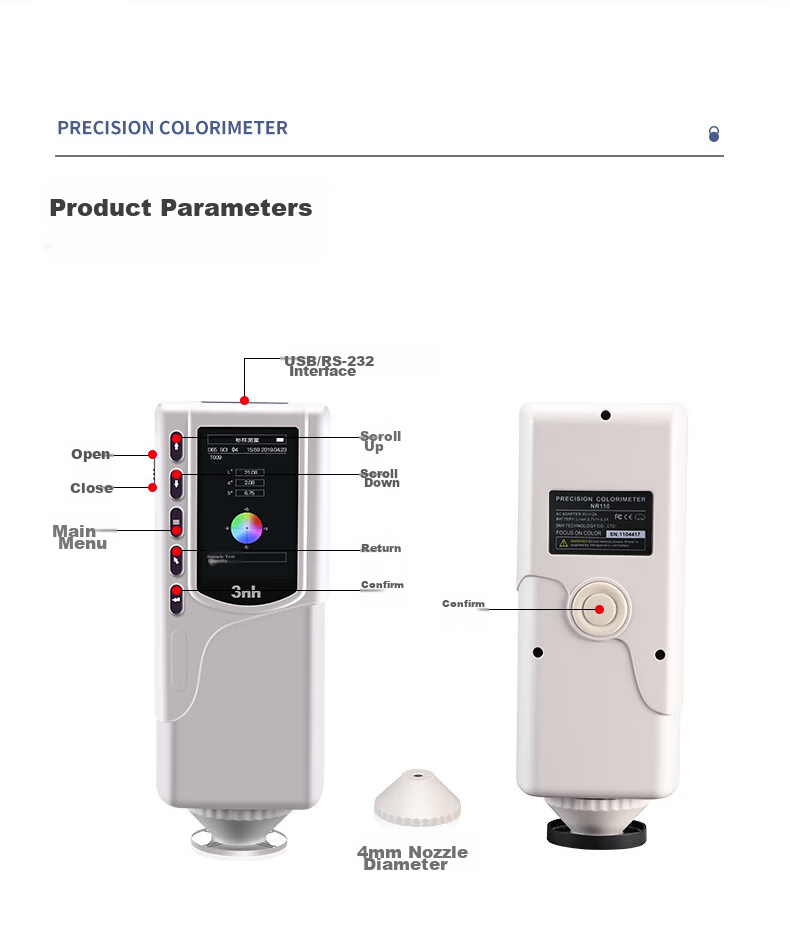

Product Description Model Differences and Selection SC-10: Measurement Aperture: 4mm, Φ4 platform measurement aperture Suitable for flat surface and various measurement occasions Commonly used for testing flat surfaces NR10QC: Measurement Aperture: 4mm, Φ4 platform measurement aperture Suitable for flat surface and various measurement occasions Commonly used for testing flat surfaces NR110: Measurement Aperture: 4mm/4mm, Φ4 platform measurement aperture, Φ4 nozzle measurement aperture Suitable for stable large area end faces and small areas, measuring concave and convex curved surfaces Features Precision colorimeter with white calibration, communication activation, tolerance setting, field recording, average measurement, display mode, power setting Similar Products

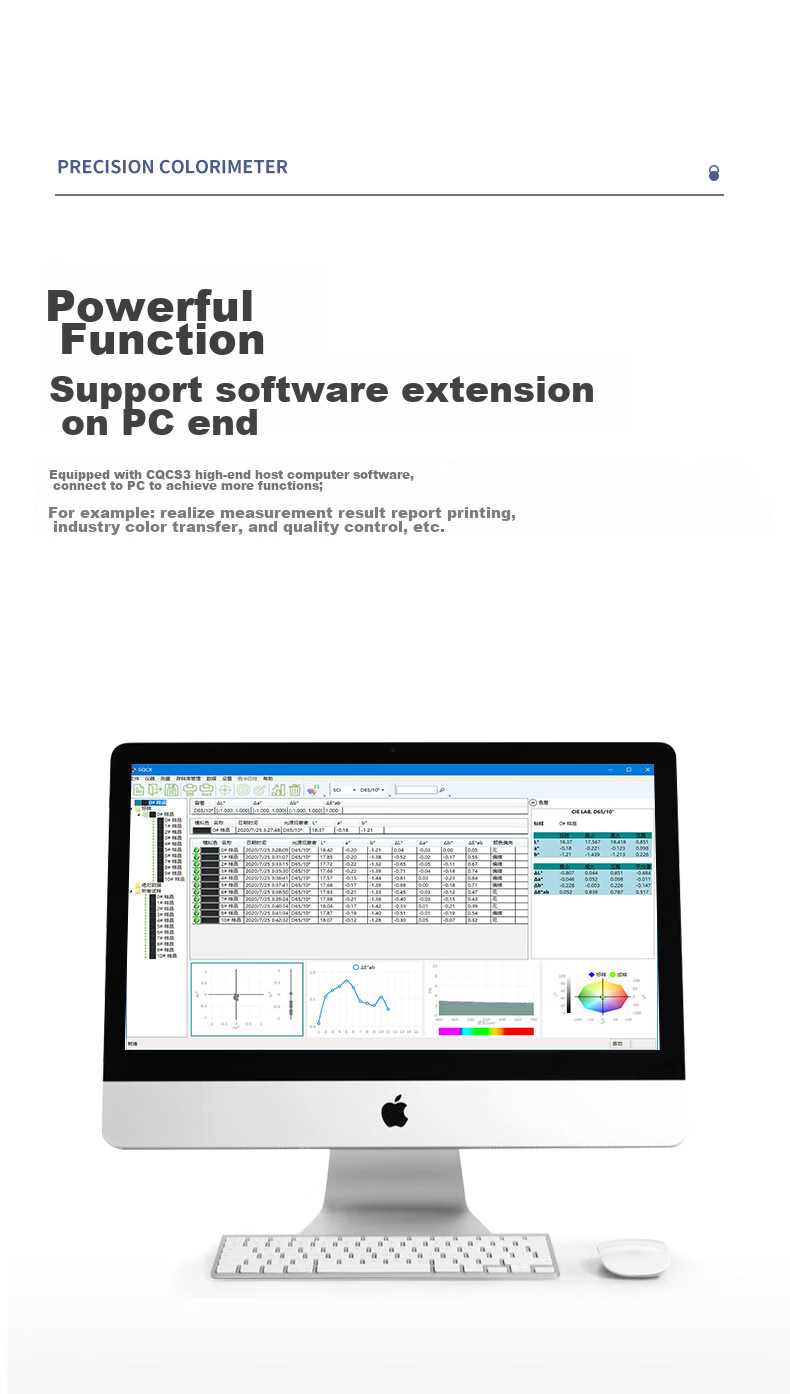

Equipped with lithium battery for charging, high repeatability, PC extension support, 4mm measurement aperture

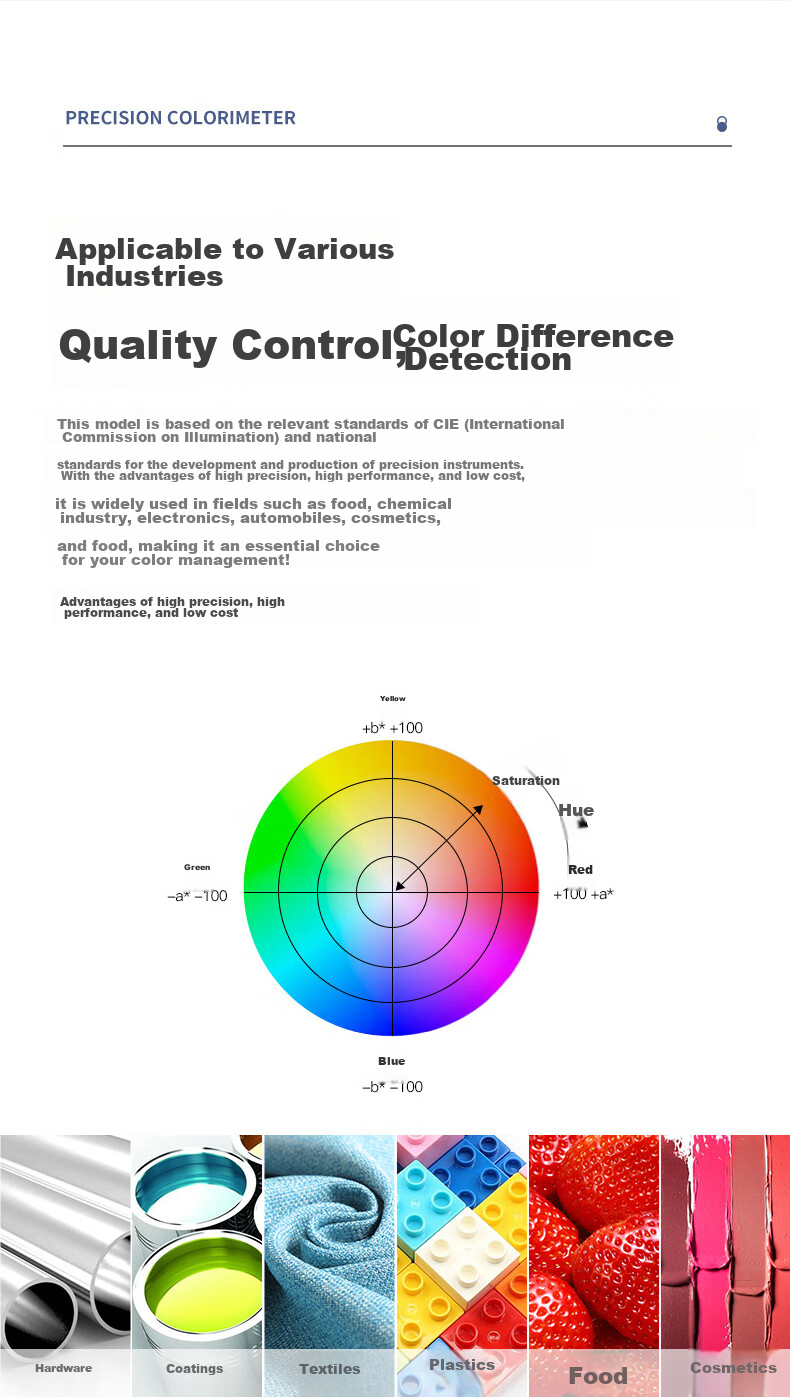

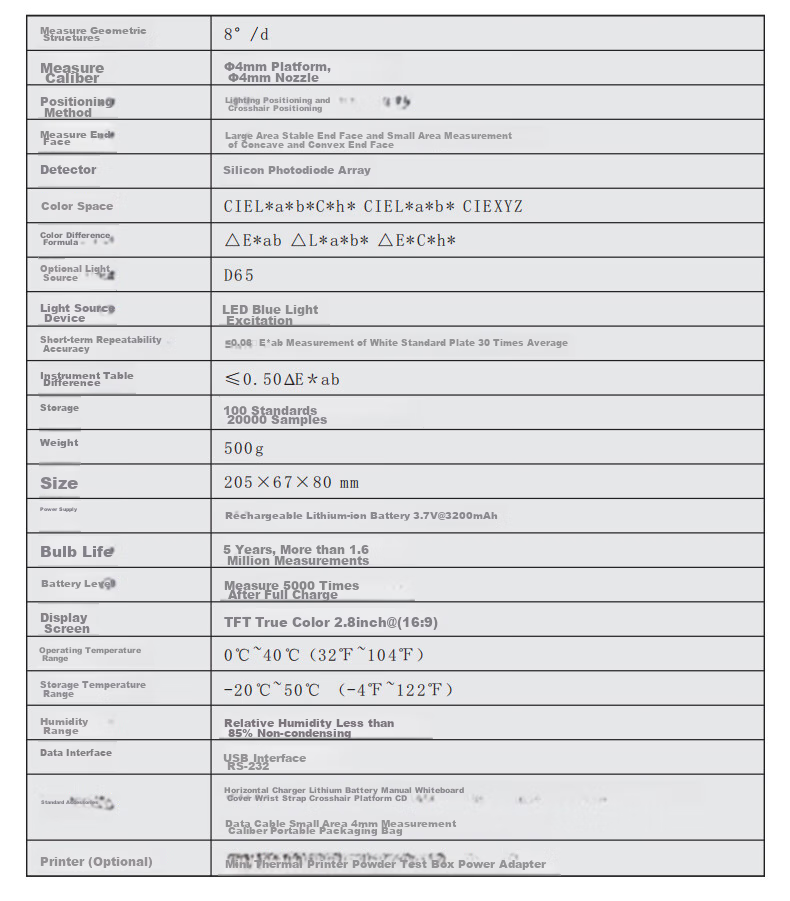

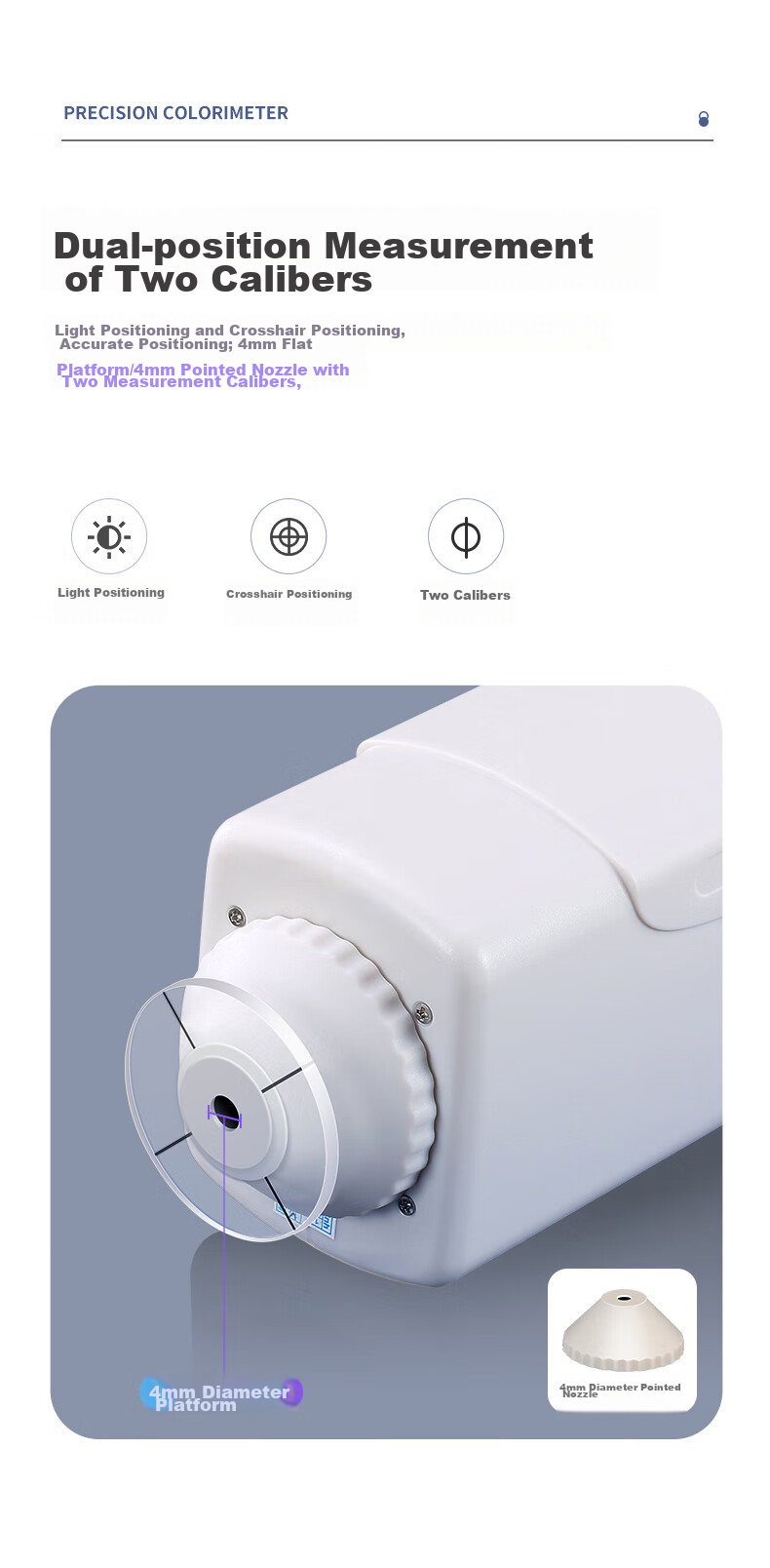

Suitable for various industries for quality control and color difference detection Product Characteristics Accuracy: ≤0.08 Double positioning function Lithium battery rechargeable Repeatable accuracy Supports PC software extension Instant use upon startup Additional Information Suitable for industries such as hardware, coatings, textiles, plastics, food, cosmetics Meets international standards set by CIE Wide application in various fields due to high precision, performance, and cost-effectiveness Accessories USB cable, RS-232 interface Charger, lithium battery, manual, wrist strap, cross platform, 4mm measurement aperture, protective plug Optional accessories: Mini thermal printer, powder test box, power adapter Measurement Parameters Item Detail Geometry 8°/d Measurement Aperture Φ4 mm platform, Φ4 mm nozzle Positioning Light positioning and cross positioning Measuring End Faces Stable large area end faces and small area concave and convex end faces Detector Silicon photodiode array Color Space CIEL*a*b*C*h*, CIEL*a*b*, CIEXYZ Color Difference Formula △E*ab, △L*a*b*, △E*C*h Optional Light Source D65 Light Source Device LED blue light excitation Short-term Repeatability ≤0.08△E*ab (average value of 30 measurements on white standard plate) Inter-instrument Difference ≤0.50△E*ab Storage 100 standards, 20,000 samples Weight 500 g Dimensions 205×67×80 mm Power Rechargeable lithium-ion battery 3.7V@3200mAh Lamp Life 5 years, over 1.6 million measurements Battery Life Up to 5000 measurements on full charge Display TFT color 2.8-inch screen (16:9) Operating Temperature 0°C~40°C (32°F~104°F) Storage Temperature -20°C~50°C (-4°F~122°F) Humidity Below 85% RH without condensation Data Interface USB, RS-232

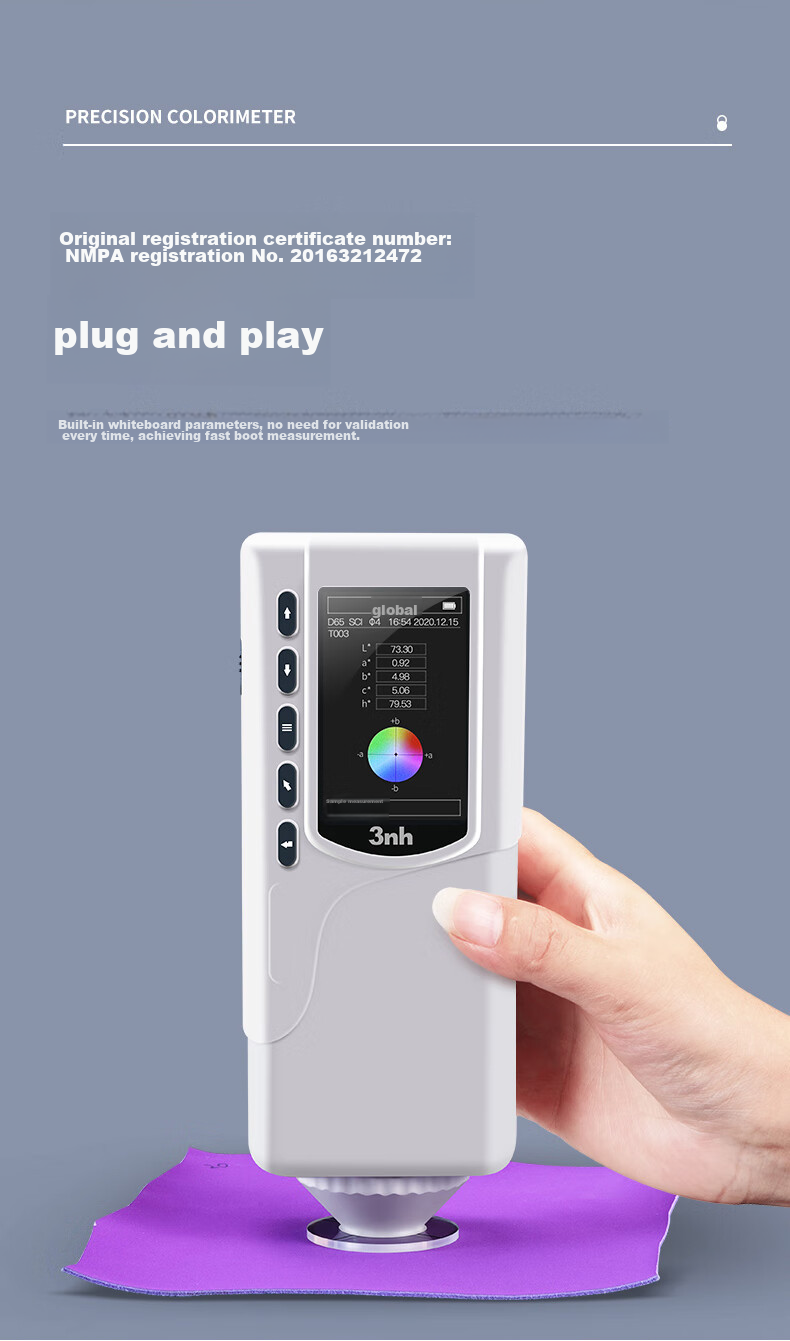

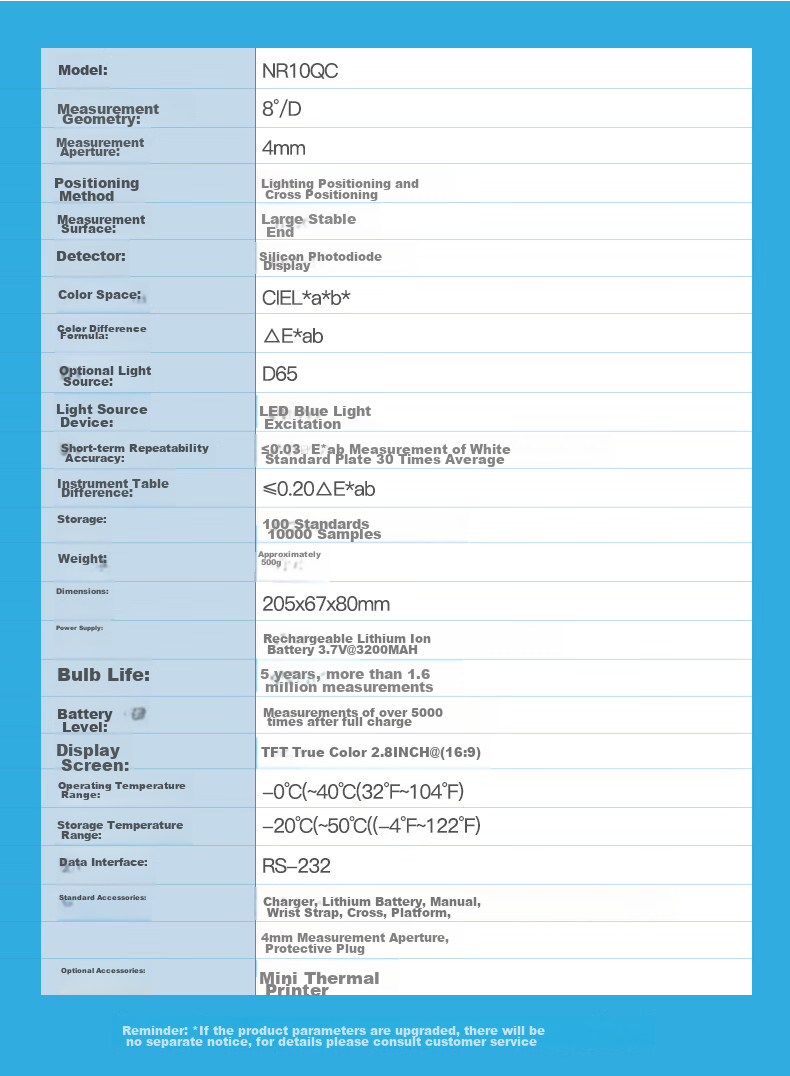

Built-in Whiteboard Parameters Instant use with built-in whiteboard parameters Eliminates the need for calibration before each measurement Model NR10QC Item Detail Measurement Geometry 8/D Measurement Aperture 4 mm Positioning Light positioning and cross positioning Measuring End Faces Stable large area end faces Detector Silicon photodiode array Color Space CIEL*a*b Color Difference Formula △E*ab Optional Light Source D65 Light Source Device LED blue light excitation Short-term Repeatability ≤0.03△E*ab (average value of 30 measurements on white standard plate) Inter-instrument Difference ≤0.20△E*ab Storage 100 standards, 10,000 samples Weight Approx. 500 g Dimensions 205x67x80 mm Power Rechargeable lithium-ion battery 3.7V@3200mAh Lamp Life 5 years, over 1.6 million measurements Battery Life Over 5000 measurements on full charge Display TFT color 2.8-inch screen (16:9) Operating Temperature -0°C~40°C (32°F~104°F) Storage Temperature -20°C~50°C (-4°F~122°F) Data Interface RS-232
Standard Accessories Charger, lithium battery, manual, wrist strap, cross platform, 4mm measurement aperture, protective plug Product specifications are subject to change without prior notice. For details, please contact customer service.
