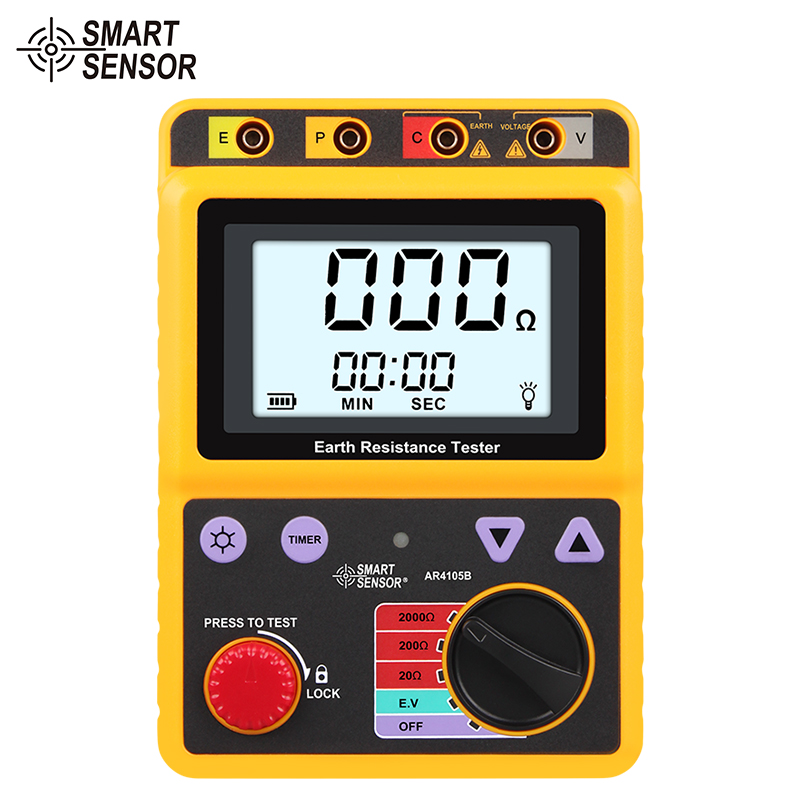

Xima Ground Resistance Tester, Megohmmeter, Digital Lightning Protection Tester And Measuring Instrument with Range AR4105B

•Resistance tester

Xima Ground Resistance Tester, Megohmmeter, Digital Lightning Protection Tester And Measuring Instrument with Range AR4105B

CN¥519.00

SKU: 100000434018

Status:In Stock (1)

ID: 100000434018

Weight: 2740.00 g

Dims:332x307x111 mm

Specifications

Category: Ground resistance tester

Variants / Sale Attributes

Model: AR4105B (Range 0.01-2000Ω)

Package Contents

1 grounding resistance tester

Product Description

Overview

Brand: SMART, brand: Sigma
Product: Earth Resistance Tester
Model: AR4105A+

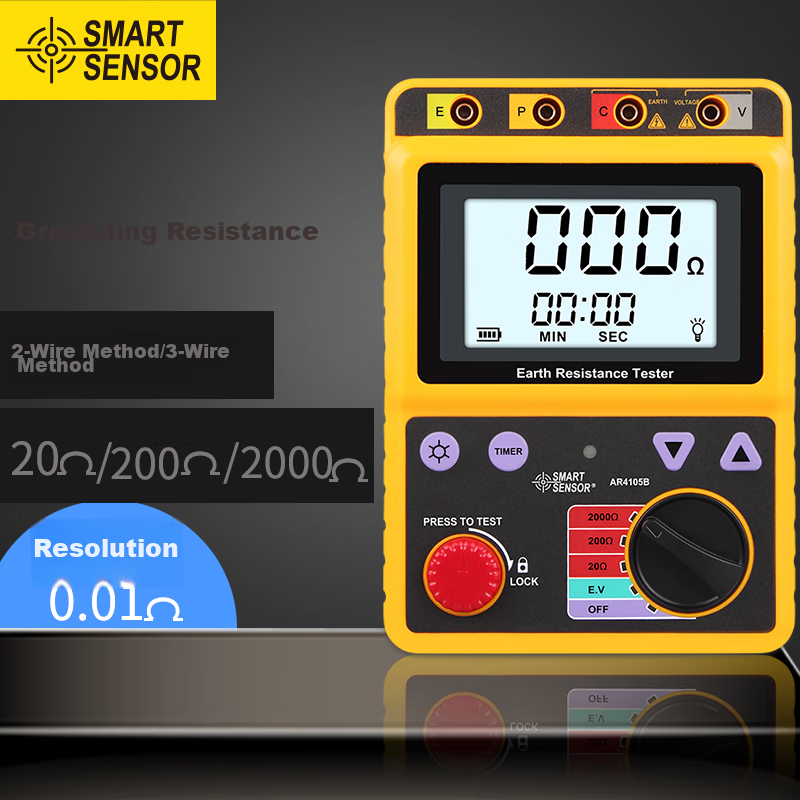

Measurement Method: 2-wire method / 3-wire method
Ground Voltage: 0~200V

Accuracy

±2%rdg±0.02Ω(2Ω)
±2%rdg±0.1Ω(20Ω)
±2%rdg±3dgt(200Ω/2000Ω)

Additional details

Auto Power Off: Yes (automatically turns off after about 10 minutes of inactivity)

Similar Products

In Stock

Xima AS982 Surface Resistance Tester, Impedance Meter, Insulation Resistance Detector, Electrostatic Tester

希玛Resistance tester

Xima AS982 Surface Resistance Tester, Impedance Meter, Insulation Resistance Detector, Electrostatic Tester

resistance testing

CN¥106.00

In Stock

Suwei Milliohm Meter DC Low Resistance Tester Micro Ohmmeter Ohmmeter Micro Ohm Meter Milliohm Resistance Tester SW6205

suweiResistance tester

Suwei Milliohm Meter DC Low Resistance Tester Micro Ohmmeter Ohmmeter Micro Ohm Meter Milliohm Resistance Tester SW6205

SW6205 Auto Range (0.01mΩ~30KΩ)

CN¥721.00

In Stock

XIANGRUIDE.2012 Xiangruide Megohmmeter, Insulation Resistance Tester, Electrical Inspection Device, ZC25-3 Plastic Case, 500V/500M

XIANGRUIDE.2012Resistance tester

XIANGRUIDE.2012 Xiangruide Megohmmeter, Insulation Resistance Tester, Electrical Inspection Device, ZC25-3 Plastic Case, 500V/500M

ZC25-3 (For You) Plastic Case, 500V/500M

CN¥108.00

Data Lock

Yes

Low Voltage Prompt / Backlight

Yes

Safety Standards

IEC61010-1/IEC61010-2-31/IEC61557-1,5/IEC60529

Overload Protection

Item	Detail
Ground Resistance Range	200VAC (10 seconds)
Ground Voltage Range	300VAC (30 seconds)

Response Time

Item	Detail
Ground Resistance Measurement	Approx. 5 seconds
Ground Voltage Measurement	Approx. 2 seconds

Additional details

Product Dimensions: 174 × 122 × 65 mm
Net Weight / Power Source: Approx. 533 g, 6 AA batteries
Display: LCD with backlight

Resolution

Item	Detail
Ground Resistance	0.001Ω
Range	0.5~1999Ω

Additional details

Display Digits: 4 digits
Integral Type: Two range measurements available: AR4105A+, AR4105B

Measurement Ranges

Item	Detail
2Ω	0.5~1.999Ω
20Ω	0.5~19.99Ω
200Ω	20~199.9Ω
2000Ω	200~1999Ω

Additional details

Accessories: Toolbox, test leads, auxiliary nails (2), certificate of conformity, batteries, factory certificate, user manual

Additional Features

Backlit display screen
Measurement time limit setting
Adjustable backlight

Design Features

Ground terminal
Ground voltage test port
Electrode position
Yellow test lead port
Current pole (red test lead port)

Innovative Design

Professional earth resistance tester
Customizable measurement time

LCD Display

Large screen with backlight for clear readings

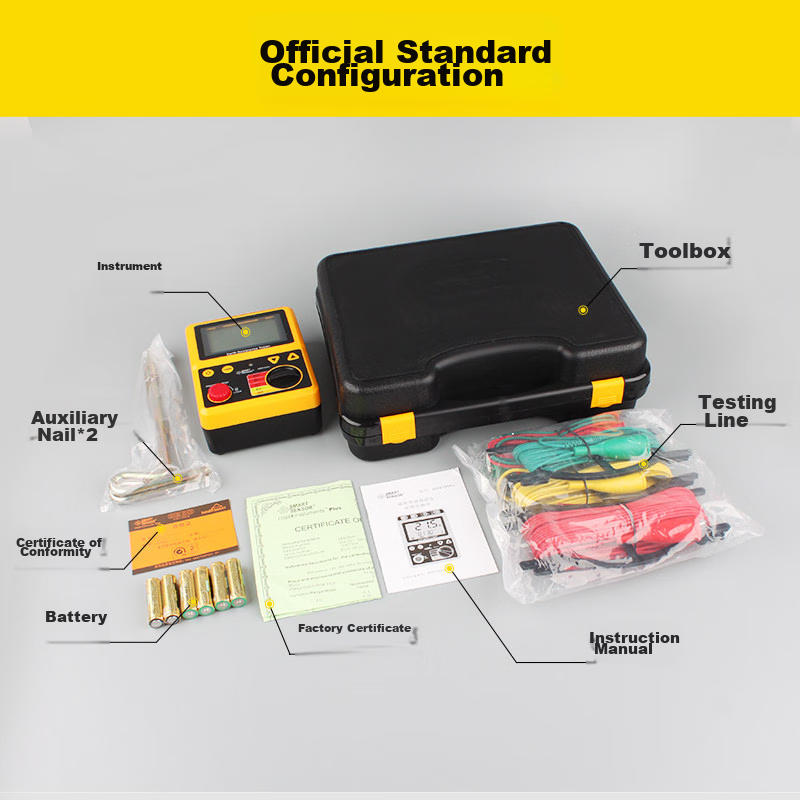

Package Contents

Toolbox, instrument, test leads, auxiliary nails (2), certificate of conformity, batteries, factory certificate, user manual

Detail Appreciation

Focus on every detail of the product
Meticulous craftsmanship and simple operation
Convenient DC9V power interface for direct power supply

The specifications are subject to change without prior notice.
