HIOKI FT6031-50 Earth Resistance Tester Ground Resistance Meter Megohmmeter 3-Year Warranty

High interference resistance with allowable low voltage expanded from 10Vrms to 25Vrms for stable measurements

Live circuit warning display, zero adjustment, continuous measurement mode, comparator function

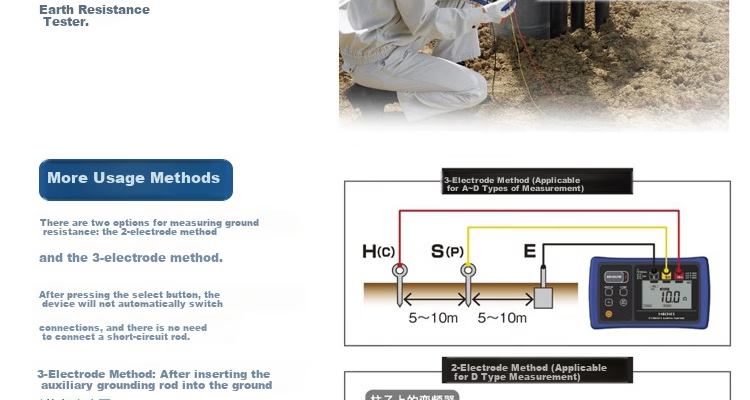

3-electrode method (suitable for A to D type measurements)

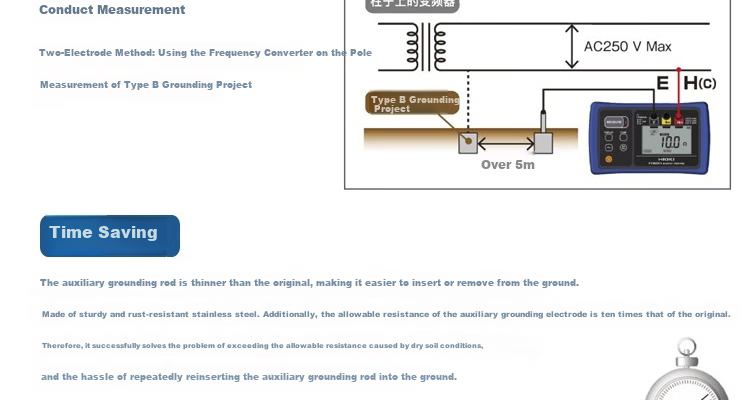

2-electrode method (suitable for D type measurements)

Auxiliary grounding rods made of sturdy, rust-resistant stainless steel with 10 times higher permissible resistance than previous models, facilitating easier insertion and removal even in dry soil conditions

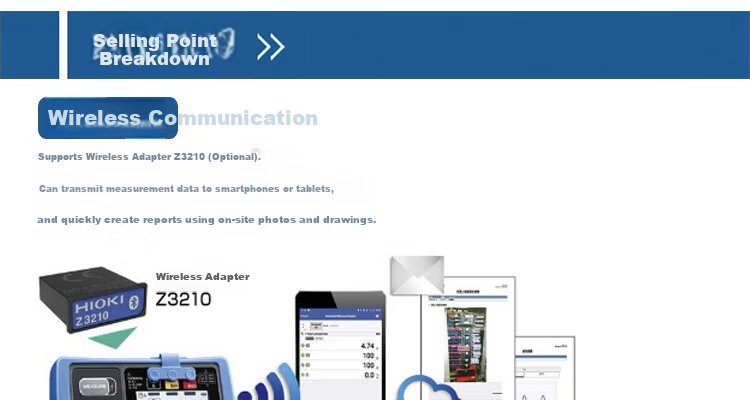

Enables wireless data transmission to mobile devices

Approx. 185 mm (W) × 111 mm (H) × 44 mm (D)

Approx. 570 g (including batteries and protective cover, excluding terminal protection and other accessories)

Ground voltage measurement with automatic range switching

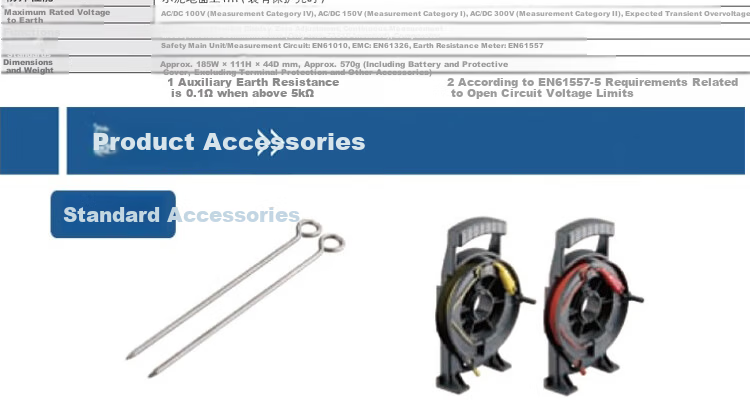

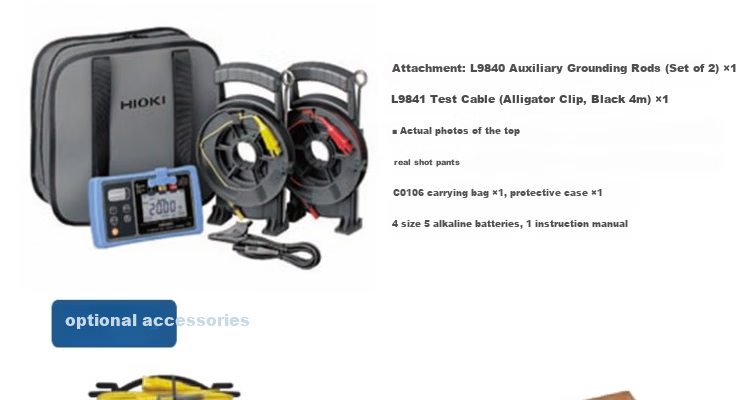

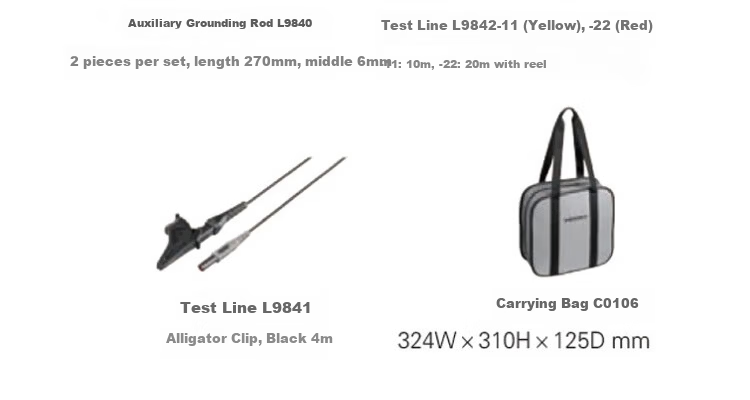

Auxiliary grounding rods L9840 (2 rods per set)

Test leads L9842-11 (yellow, 10 m with reel), L9842-22 (red, 20 m with reel)

Test lead L9841 (black, 4 m with alligator clip)

Carrying case C0106

Protective cover

Four AA alkaline batteries

Instruction manual

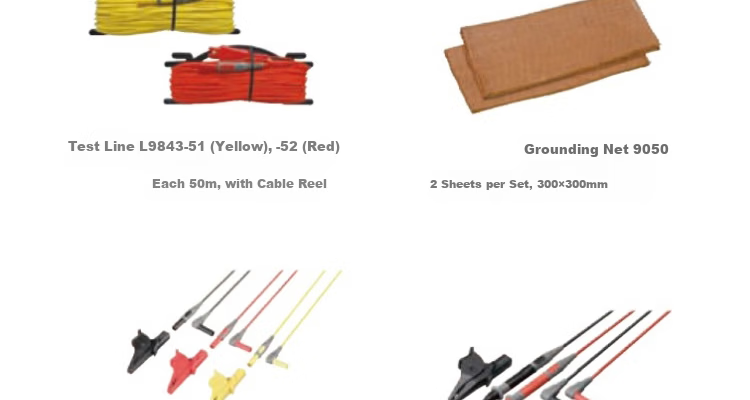

Test leads L9843-51 (yellow), L9843-52 (red), 50 m with reel

Grounding mesh 9050 (2 sheets per set, 300 mm × 300 mm)

Test leads L9844 and L9787 for grounding terminal plate, 1.2 m length, for 2-electrode method (indoor use)

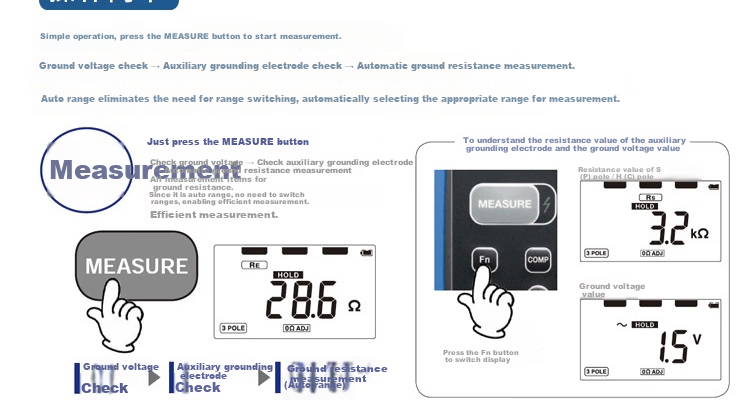

Automatic measurement sequence includes ground voltage check, auxiliary grounding rod resistance check, and ground resistance measurement

Wireless communication available only when Z3210 adapter is installed

Designed for use in dusty, muddy, and harsh environments due to IP67 rating and washable design
