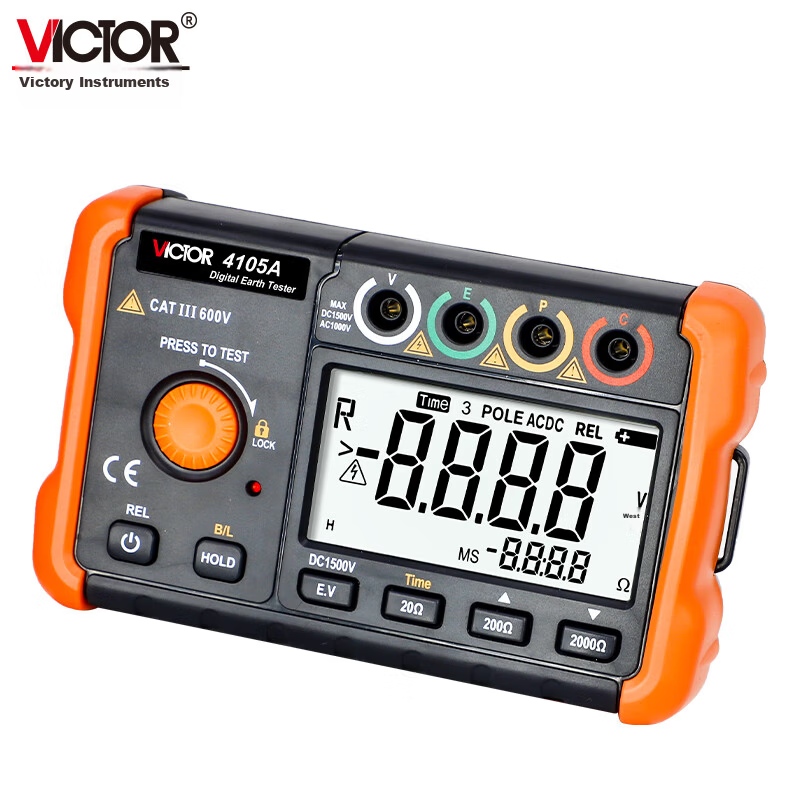

VICTOR Lightning Protection Ground Resistance Tester VC4105A Digital Earth Resistance Meter with Power Adapter

VICTOR•Resistance tester

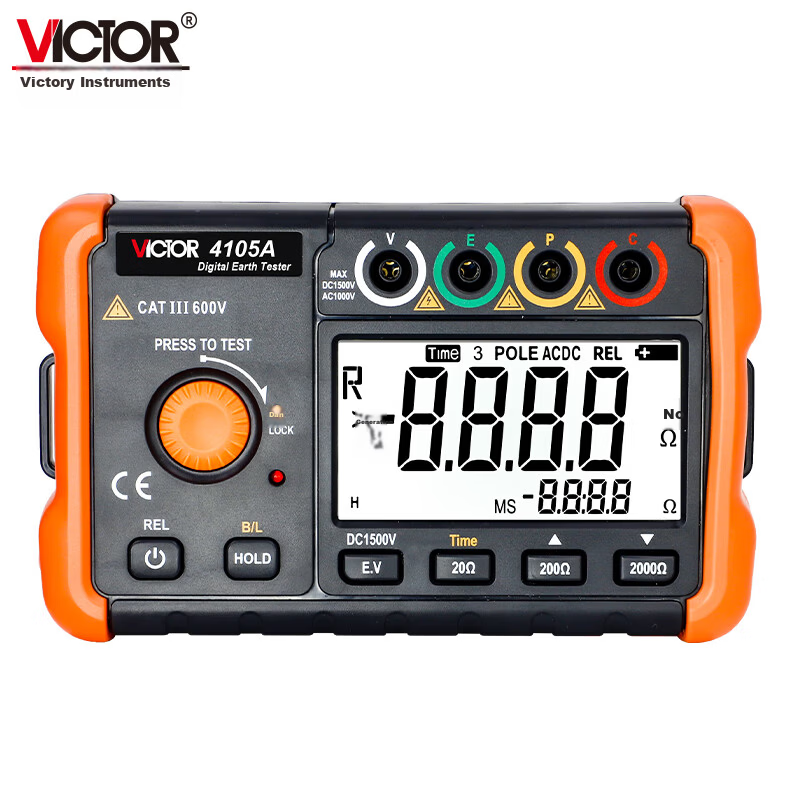

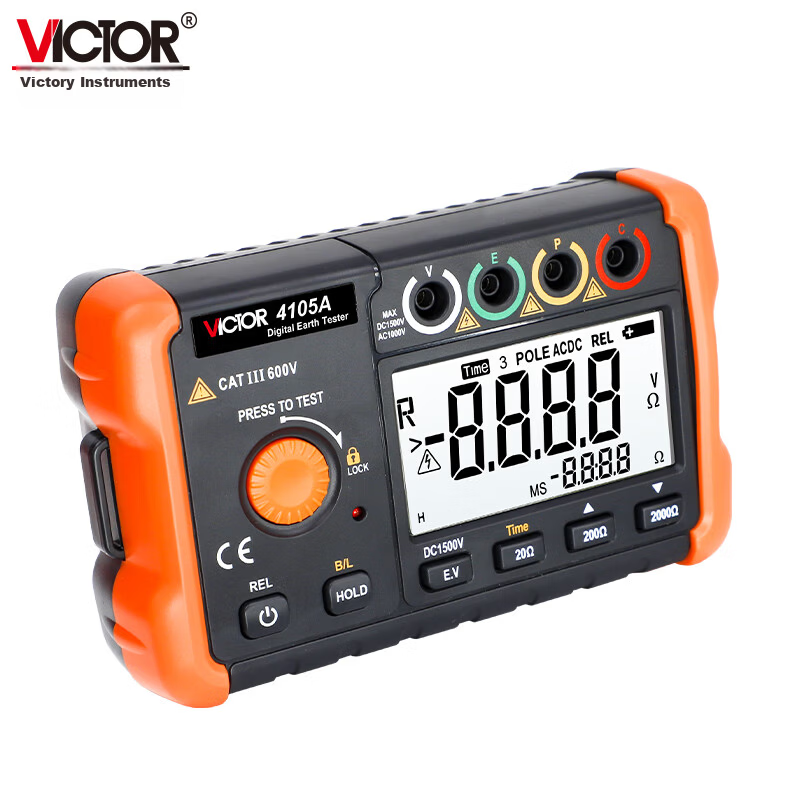

VICTOR Lightning Protection Ground Resistance Tester VC4105A Digital Earth Resistance Meter with Power Adapter

CN¥510.00

SKU: 100003549446

Status:In Stock (10)

ID: 100003549446

Weight: 2520.00 g

Dims:280x242x125 mm

Specifications

Functions: resistance testing, Voltage testing
Category: Ground resistance tester

Variants / Sale Attributes

Model: 4105A with power adapter

Package Contents

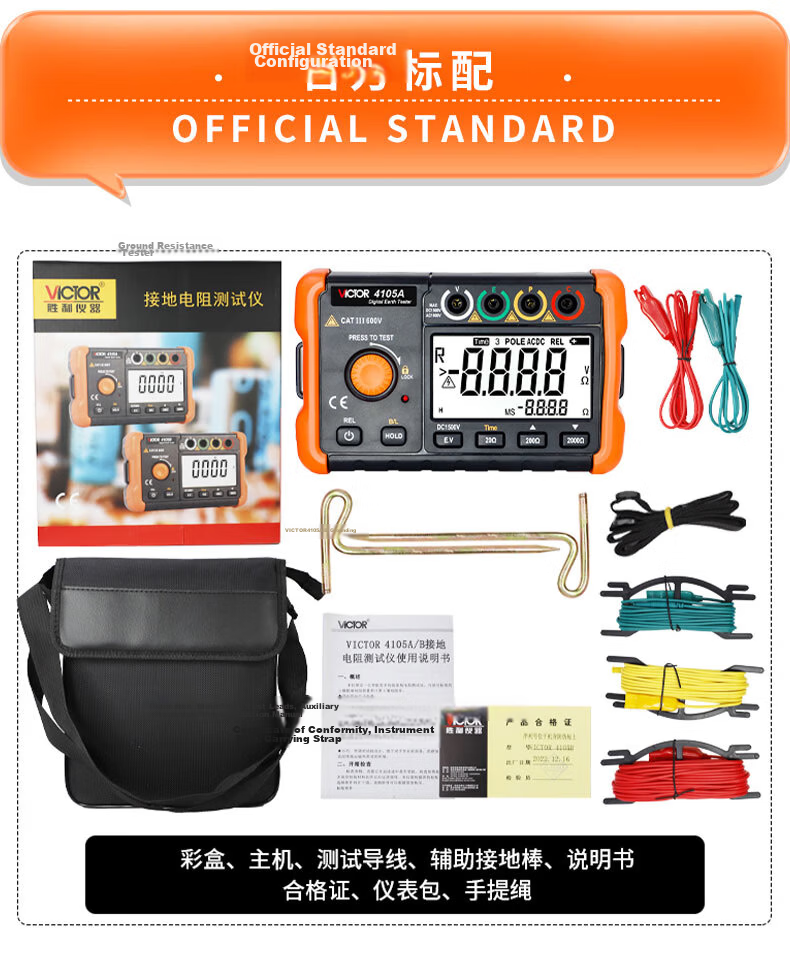

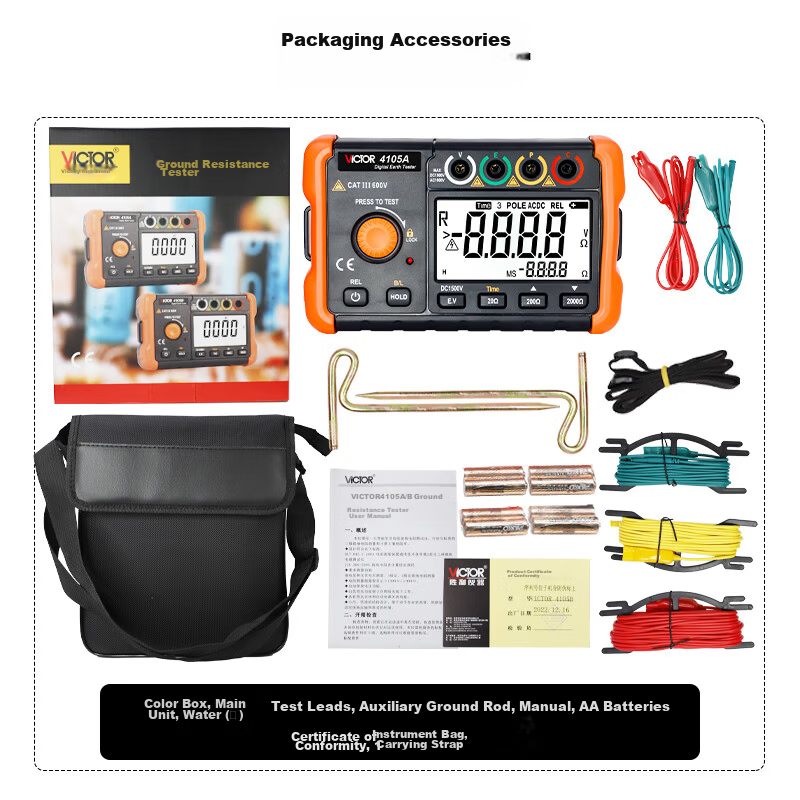

Main unit, auxiliary grounding rod, test leads, simple test leads, battery, instruction manual, certificate of conformity, canvas bag.

Product Description

Product Specifications

Overview

Brand: VICTOR
Model: 4105A, 4105B
Product Type: Ground Resistance Tester (Earth Resistance Tester)

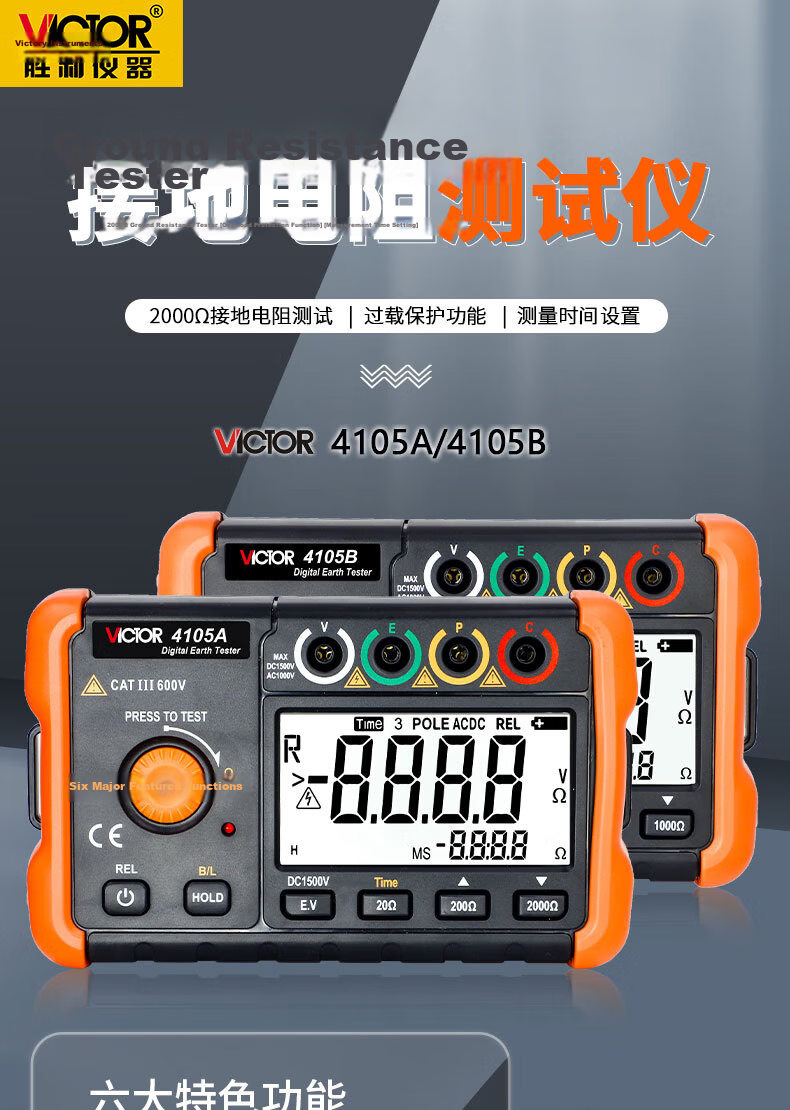

Intelligent multifunction ground resistance tester with compact and robust design

Six major special functions focusing on quality and performance stability

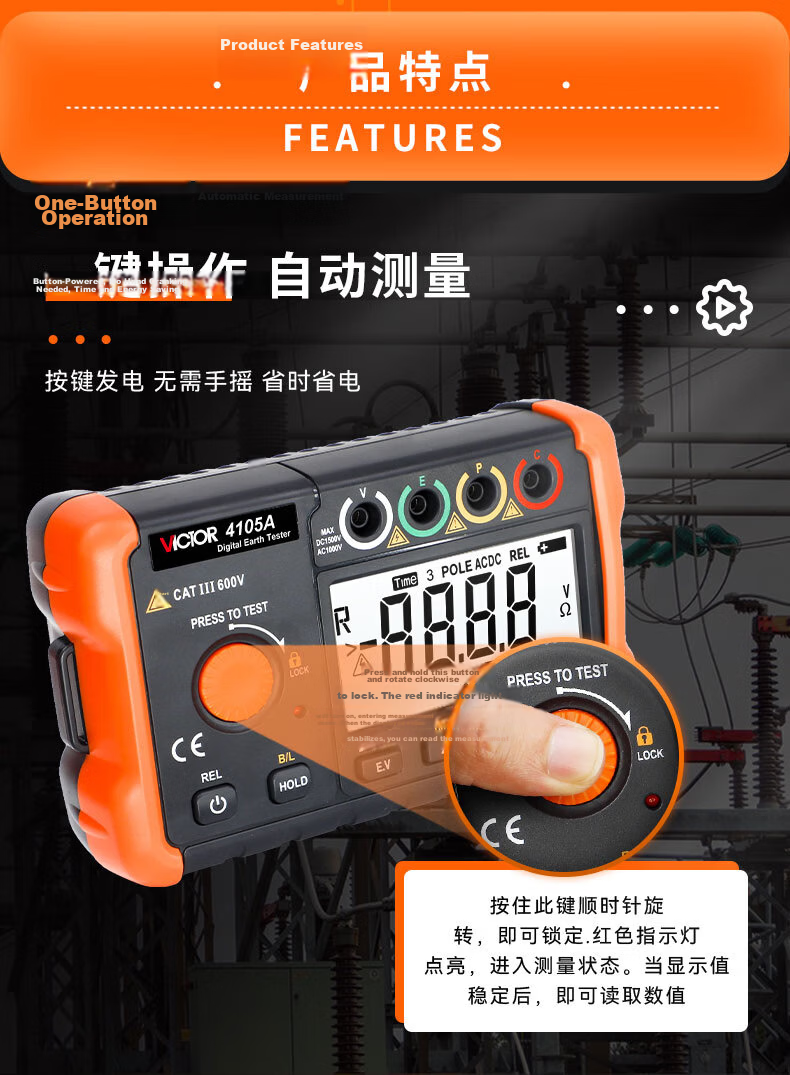

One-button operation and automatic measurement

No hand-crank power generation; button-generated power saving time and energy

Multiple measurement ranges for ground resistance and voltage

Measurement time setting and overload protection function

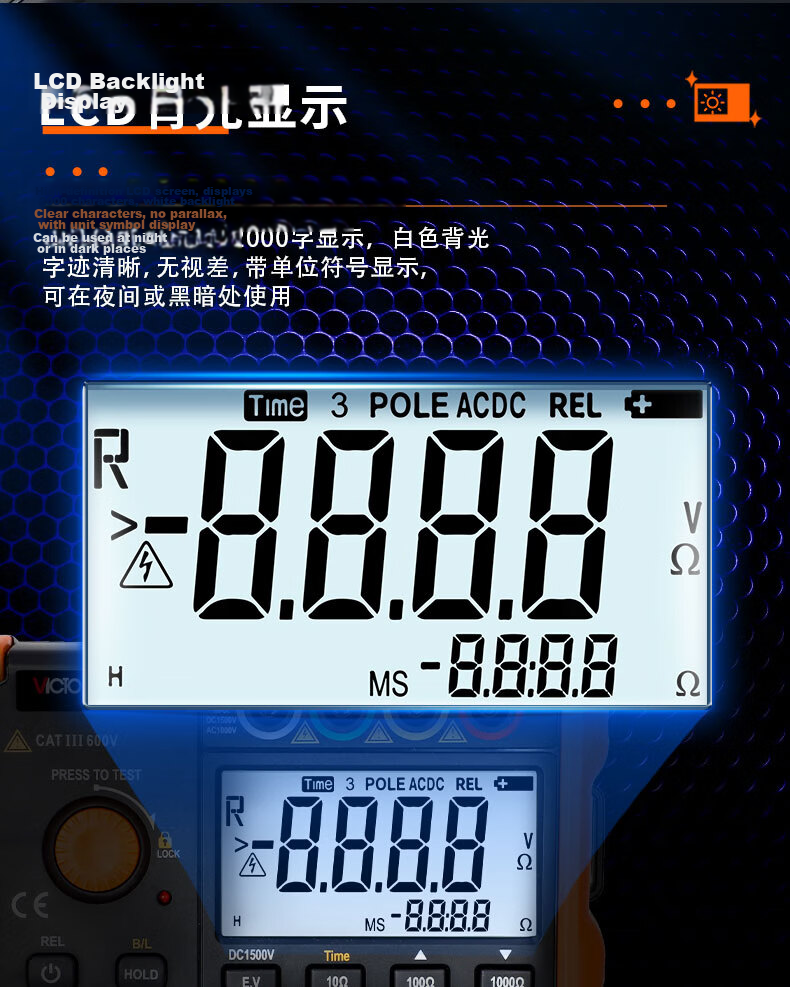

Large LCD backlit display with 2000 counts, clear white backlight, and unit symbols for easy reading in dark environments

Data hold and backlight keys

Additional details

Similar Products

In Stock

希玛Resistance tester

Xima AS982 Surface Resistance Tester, Impedance Meter, Insulation Resistance Detector, Electrostatic Tester

resistance testing

CN¥106.00

View

In Stock

suweiResistance tester

Suwei Milliohm Meter DC Low Resistance Tester Micro Ohmmeter Ohmmeter Micro Ohm Meter Milliohm Resistance Tester SW6205

SW6205 Auto Range (0.01mΩ~30KΩ)

CN¥721.00

View

In Stock

XIANGRUIDE.2012Resistance tester

XIANGRUIDE.2012 Xiangruide Megohmmeter, Insulation Resistance Tester, Electrical Inspection Device, ZC25-3 Plastic Case, 500V/500M

ZC25-3 (For You) Plastic Case, 500V/500M

CN¥108.00

View

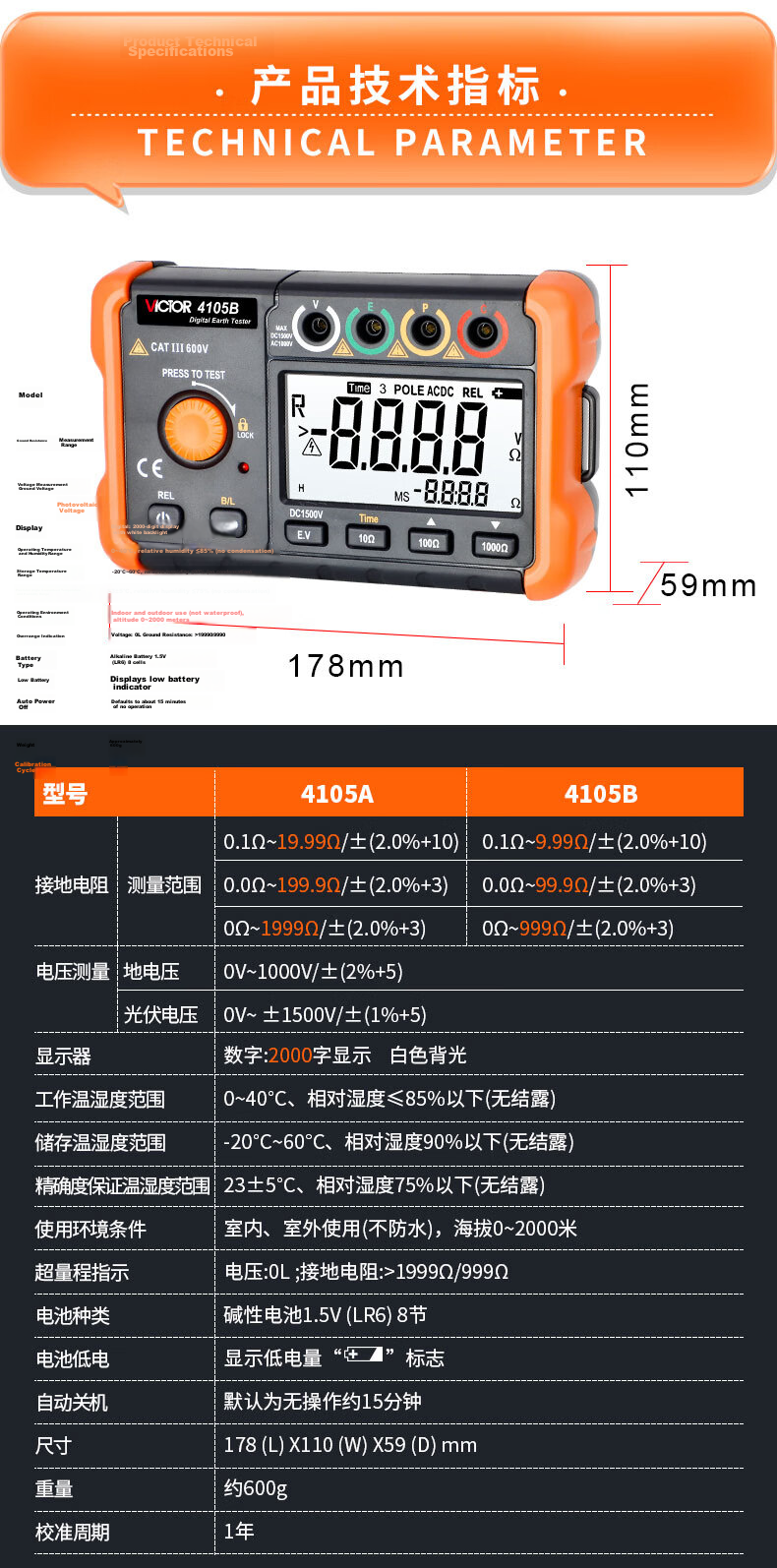

Voltage measurement range

Earth voltage 0V~1000V (±2%+5), Photovoltaic voltage 0V~±1500V (±1%+5)

Ground resistance measurement ranges

Item	Detail
4105A	0.00~199.90Ω (±2.0%+3), 0.00~1999.0Ω, 0.00~19990Ω
4105B	0.00~99.90Ω (±2.0%+3), 0.00~999.0Ω, 0.00~1000Ω

Additional details

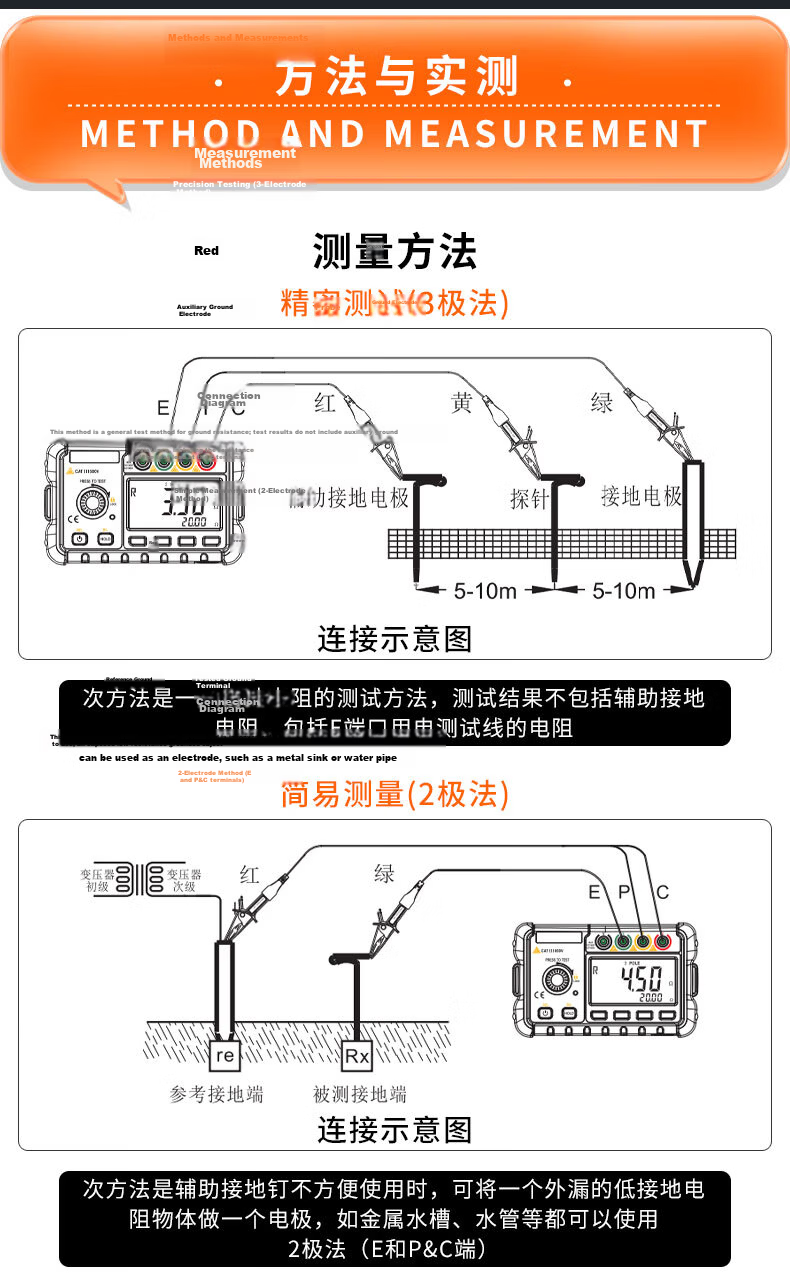

Measurement method: Precision 3-pole method and simplified 2-pole method
Overrange indication: Voltage “0L”, Ground resistance >19990Ω (4105A), >9990Ω (4105B)

Automatic power off after approximately 15 minutes of inactivity

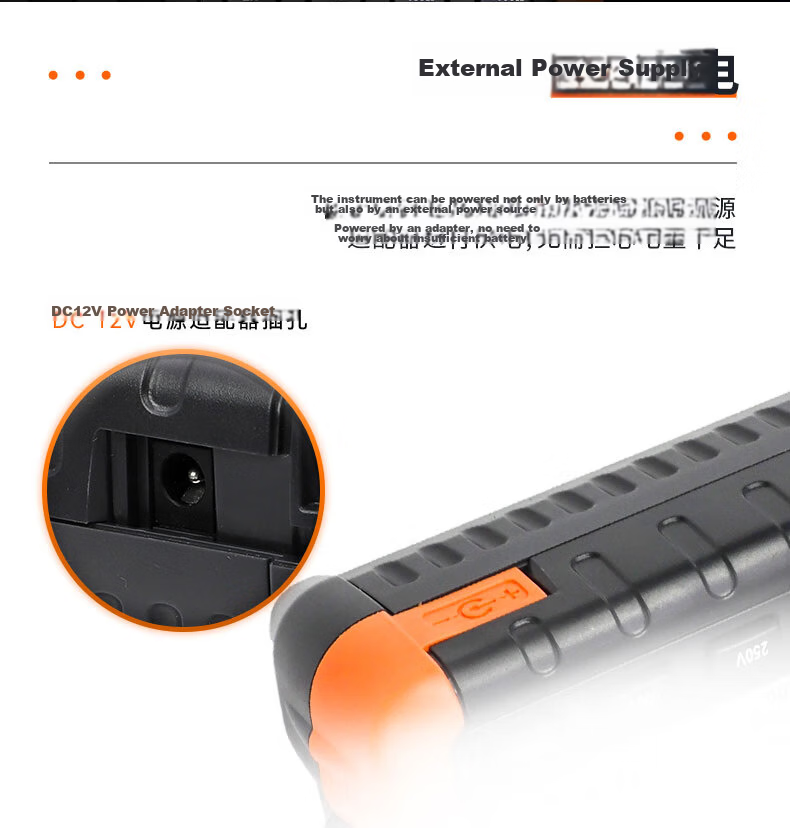

External power supply supported via DC 12V adapter in addition to 8x 1.5V LR6 (AA) alkaline batteries

CAT III 600V safety rating (4105A/B)

Stable performance and easy operation suitable for indoor and outdoor use (not waterproof)

Additional details

Operating temperature: 0~40°C, Relative humidity ≤85% (non-condensing)
Storage temperature: -20~60°C, Relative humidity ≤90% (non-condensing)
Altitude: 0~2000 meters
Calibration cycle: 1 year
Dimensions (L x W x D): 178 mm x 110 mm x 59 mm
Weight: Approx. 600 g

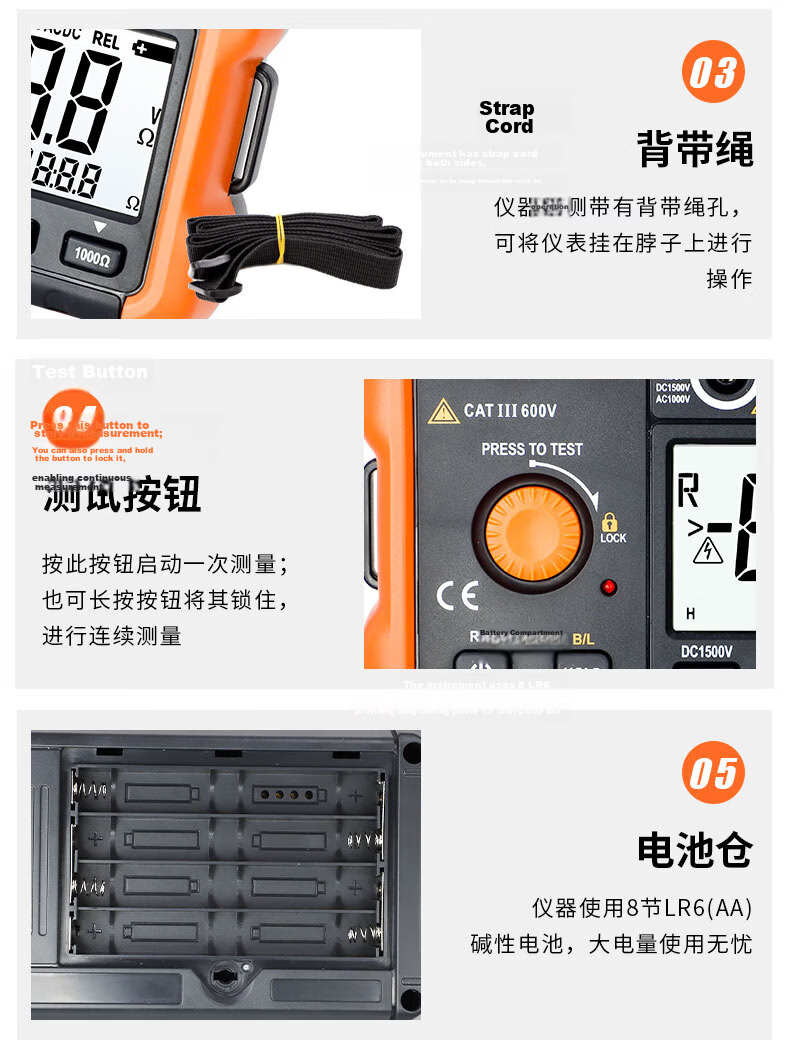

Includes neck strap holes for convenient carrying

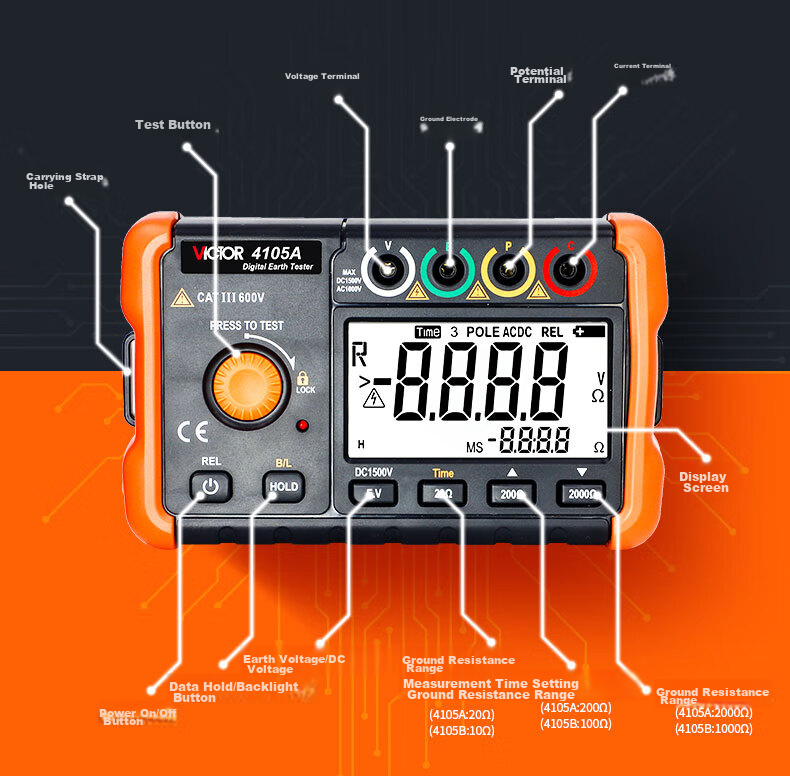

Digital LCD with 2000 counts, white backlight, clear and no parallax

Auxiliary ground rods

Calibration certificate

Overload protection function

Lock function with red indicator light for continuous measurement

Relative measurement (REL)

Measurement time setting

Voltage selection for earth and photovoltaic voltage

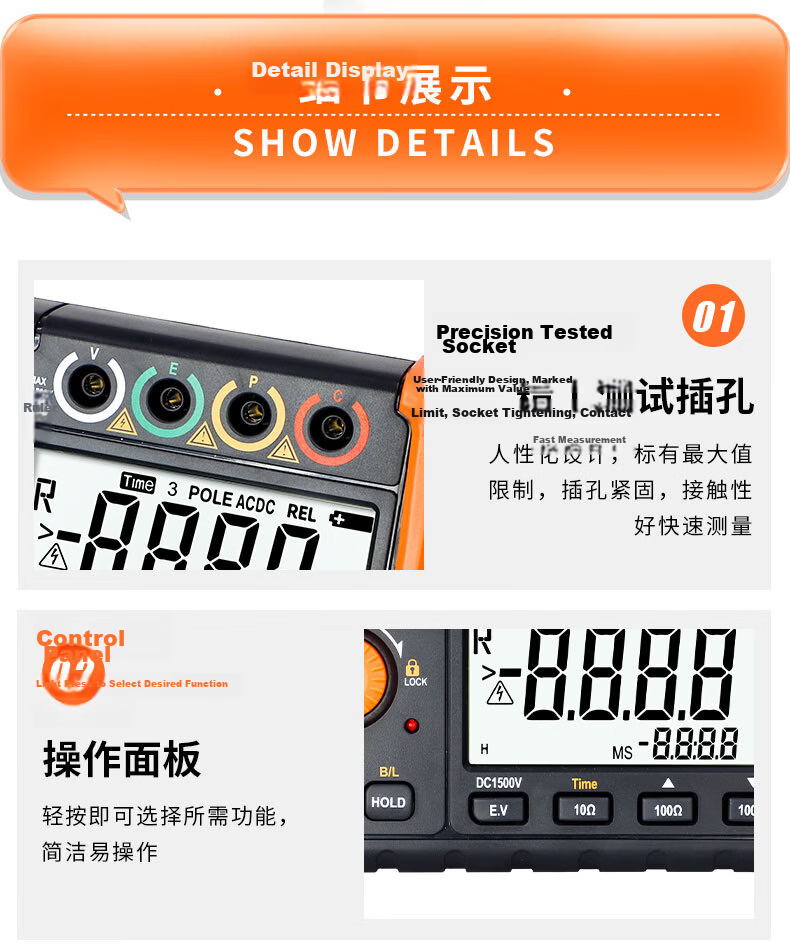

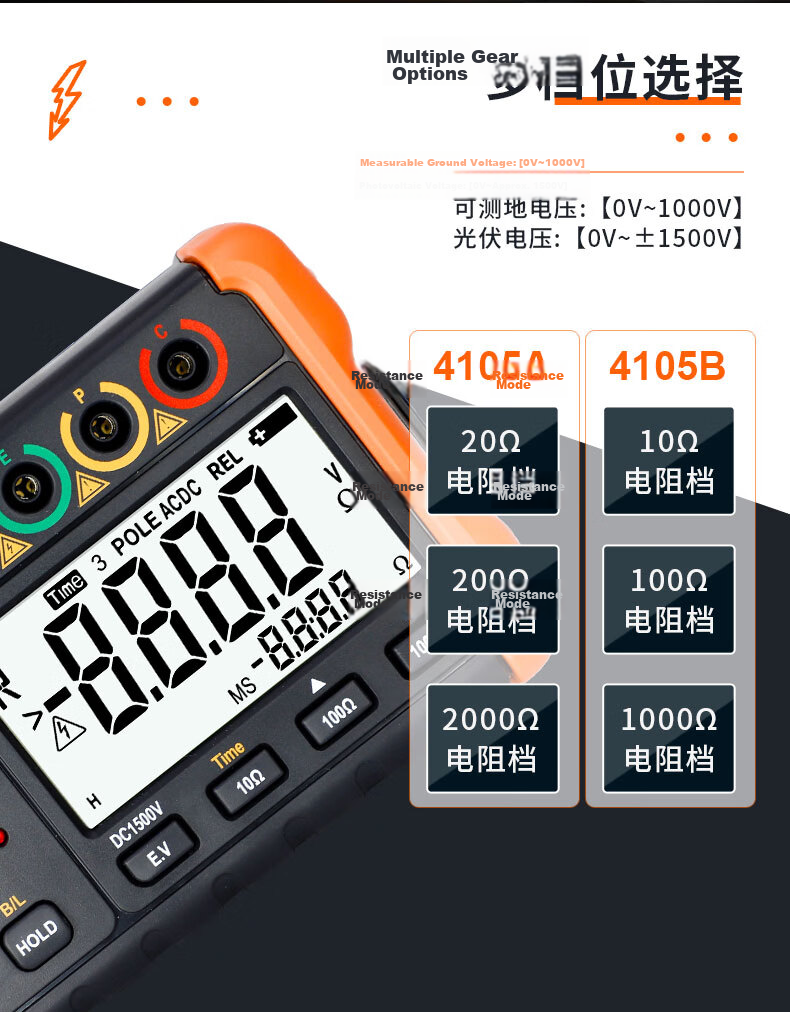

Multi-range selection for resistance and voltage

Test button for single or continuous measurement

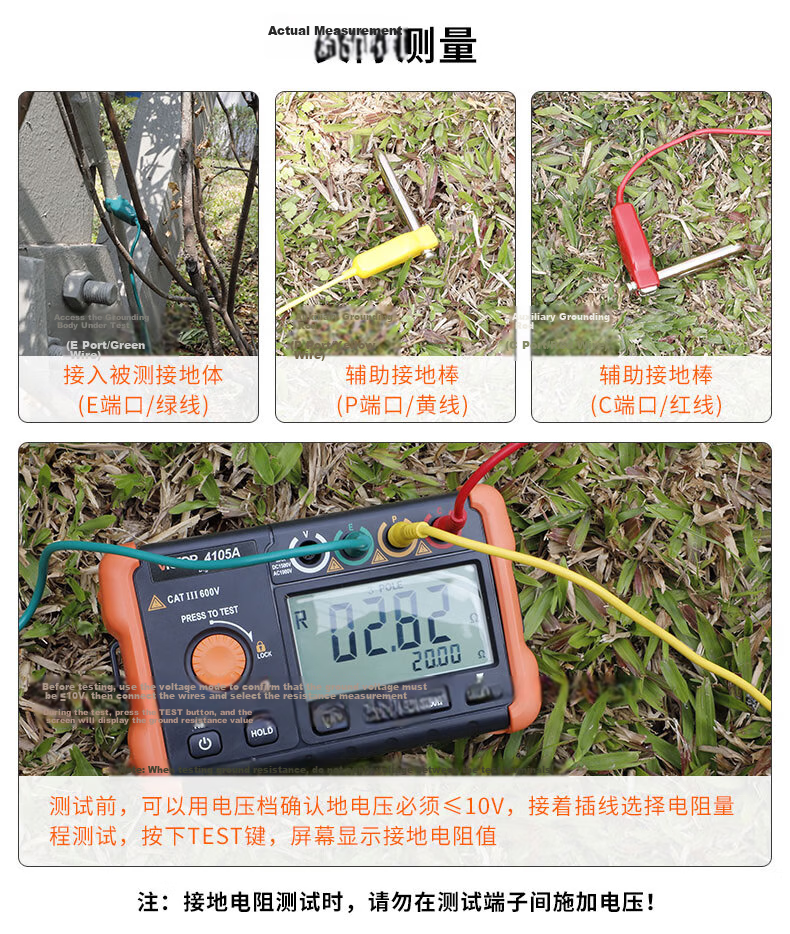

Before testing ground resistance, confirm earth voltage ≤10V using voltage mode

Do not apply voltage between test terminals during resistance measurement

Suitable for harsh environments and field transportation due to rugged design
