Renmin Megohmmeter, Insulation Resistance Tester, Electrical Inspection Meter, 1000V/1000MΩ, ZC25-4

•Resistance tester

Renmin Megohmmeter, Insulation Resistance Tester, Electrical Inspection Meter, 1000V/1000MΩ, ZC25-4

CN¥198.70

SKU: 100036616997

Status:In Stock (8)

ID: 100036617013

Weight: 1510.00 g

Dims:230x175x150 mm

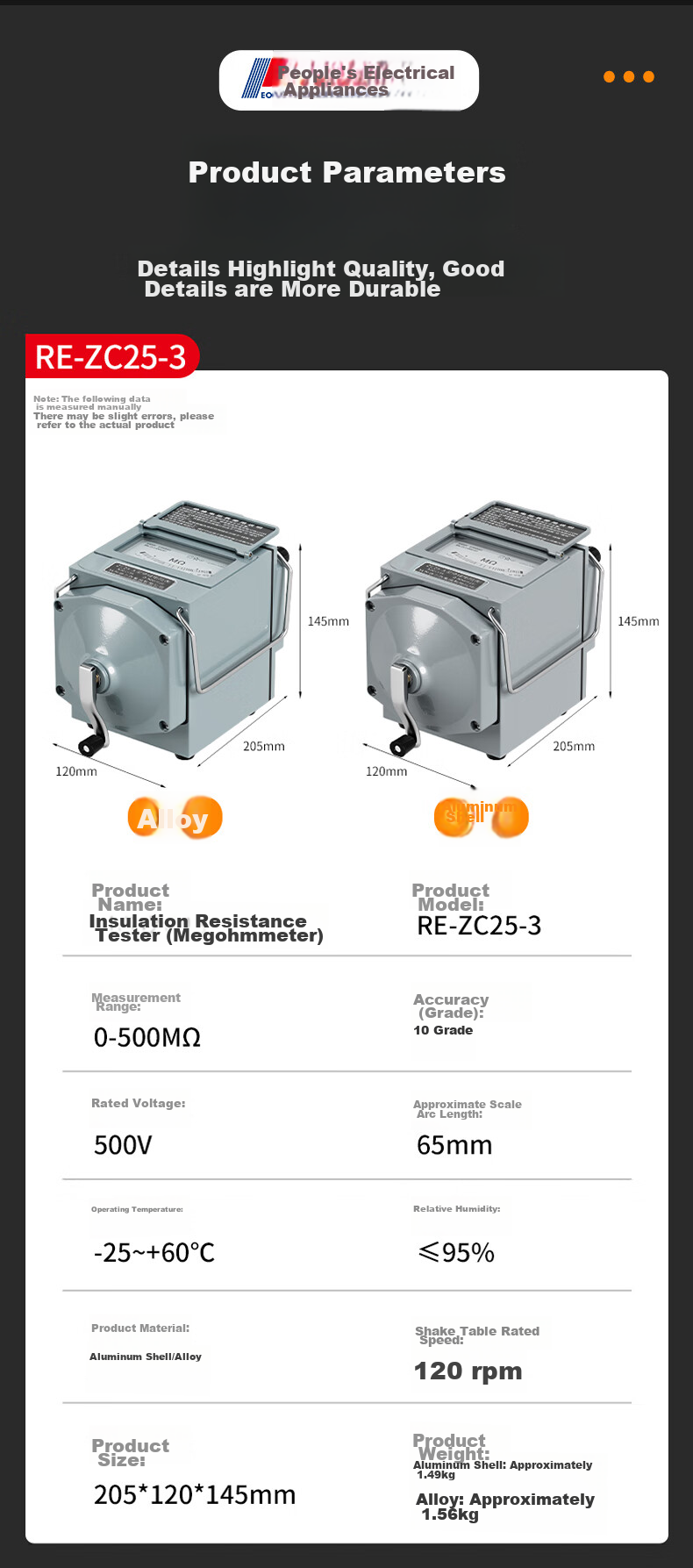

Specifications

Functions: resistance testing
Category: Insulation resistance tester

Variants / Sale Attributes

Model: [Aluminum Shell] 1000V-1000MΩ

Measuring range: Resistor Tester | Labor-Saving Tachometer

Package Contents

Main product * 1

Product Description

Overview

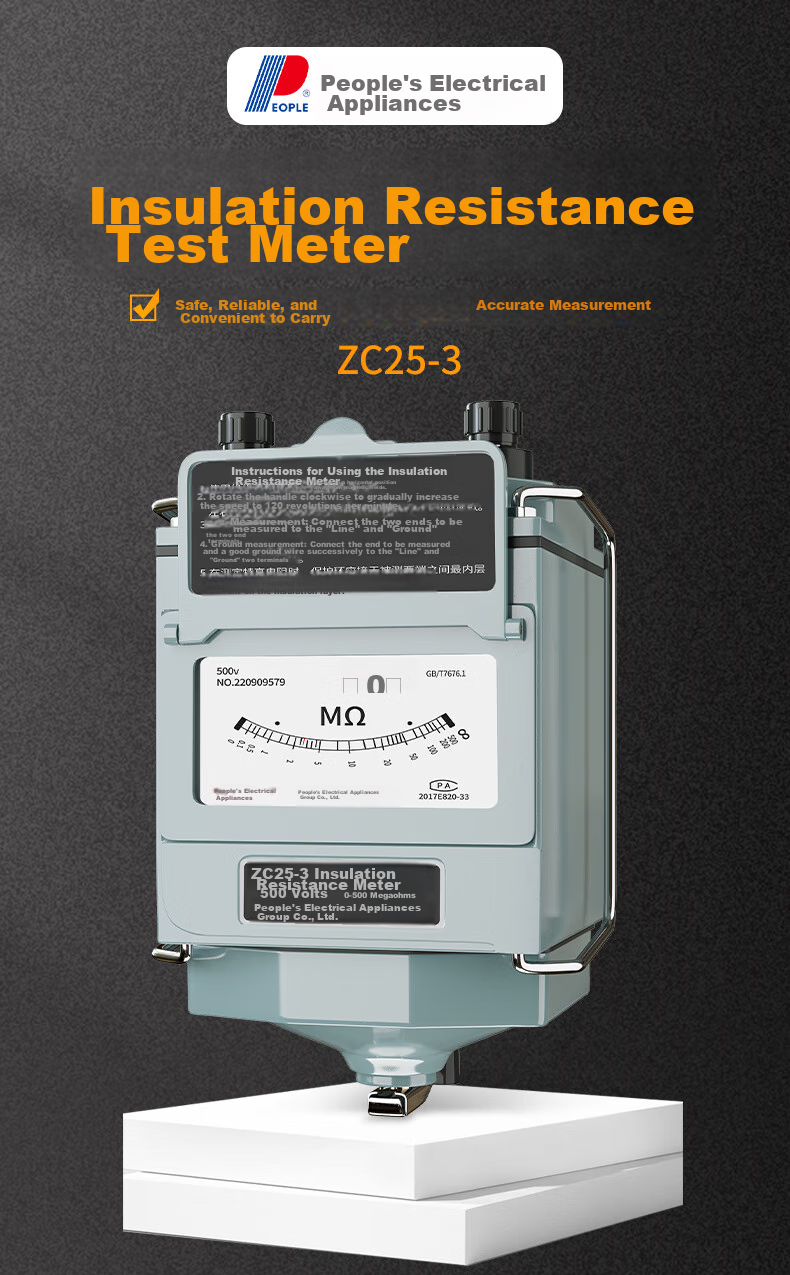

Product Name: ZC25-4 Insulation Resistance Tester
Brand: People's Appliance

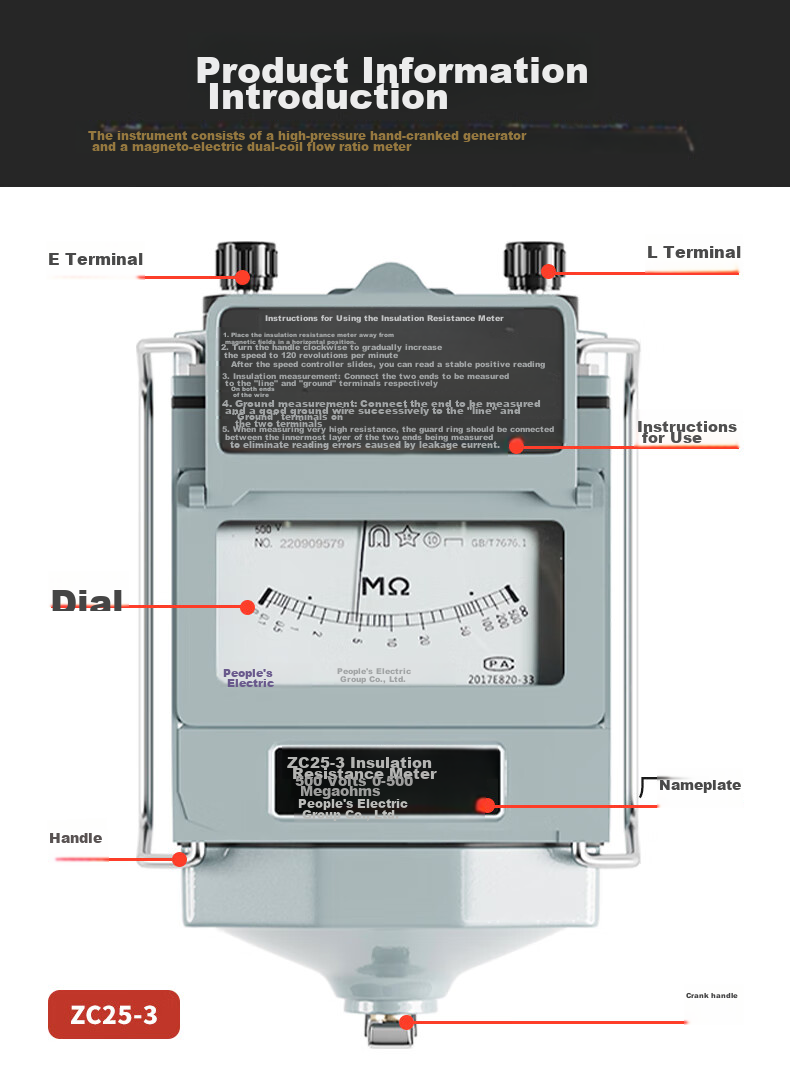

Components: High-voltage hand-crank generator, magnetic-electric dual-coil flow meter

Features

E terminal
L terminal

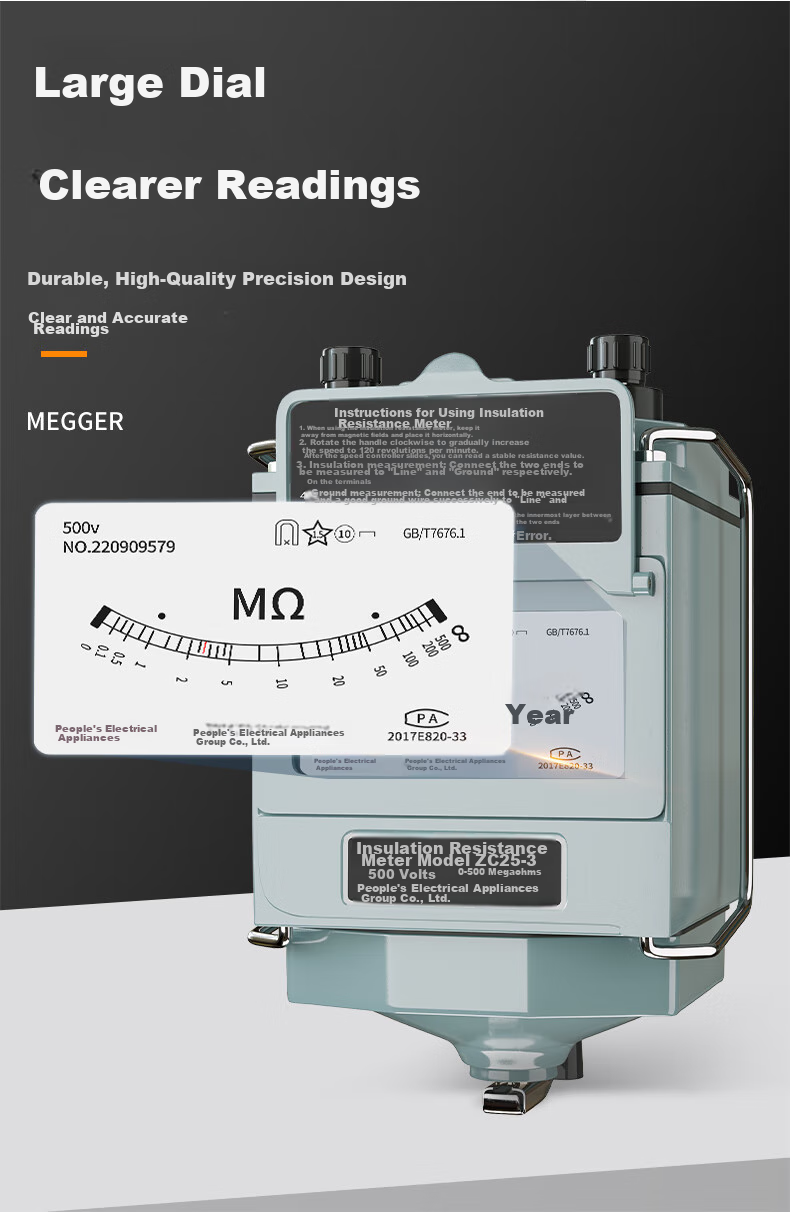

Insulation resistance meter

1. Place the insulation resistance meter away from magnetic fields in a horizontal position.

Similar Products

In Stock

希玛Resistance tester

Xima AS982 Surface Resistance Tester, Impedance Meter, Insulation Resistance Detector, Electrostatic Tester

resistance testing

CN¥106.00

View

In Stock

suweiResistance tester

Suwei Milliohm Meter DC Low Resistance Tester Micro Ohmmeter Ohmmeter Micro Ohm Meter Milliohm Resistance Tester SW6205

SW6205 Auto Range (0.01mΩ~30KΩ)

CN¥721.00

View

In Stock

XIANGRUIDE.2012Resistance tester

XIANGRUIDE.2012 Xiangruide Megohmmeter, Insulation Resistance Tester, Electrical Inspection Device, ZC25-3 Plastic Case, 500V/500M

ZC25-3 (For You) Plastic Case, 500V/500M

CN¥108.00

View

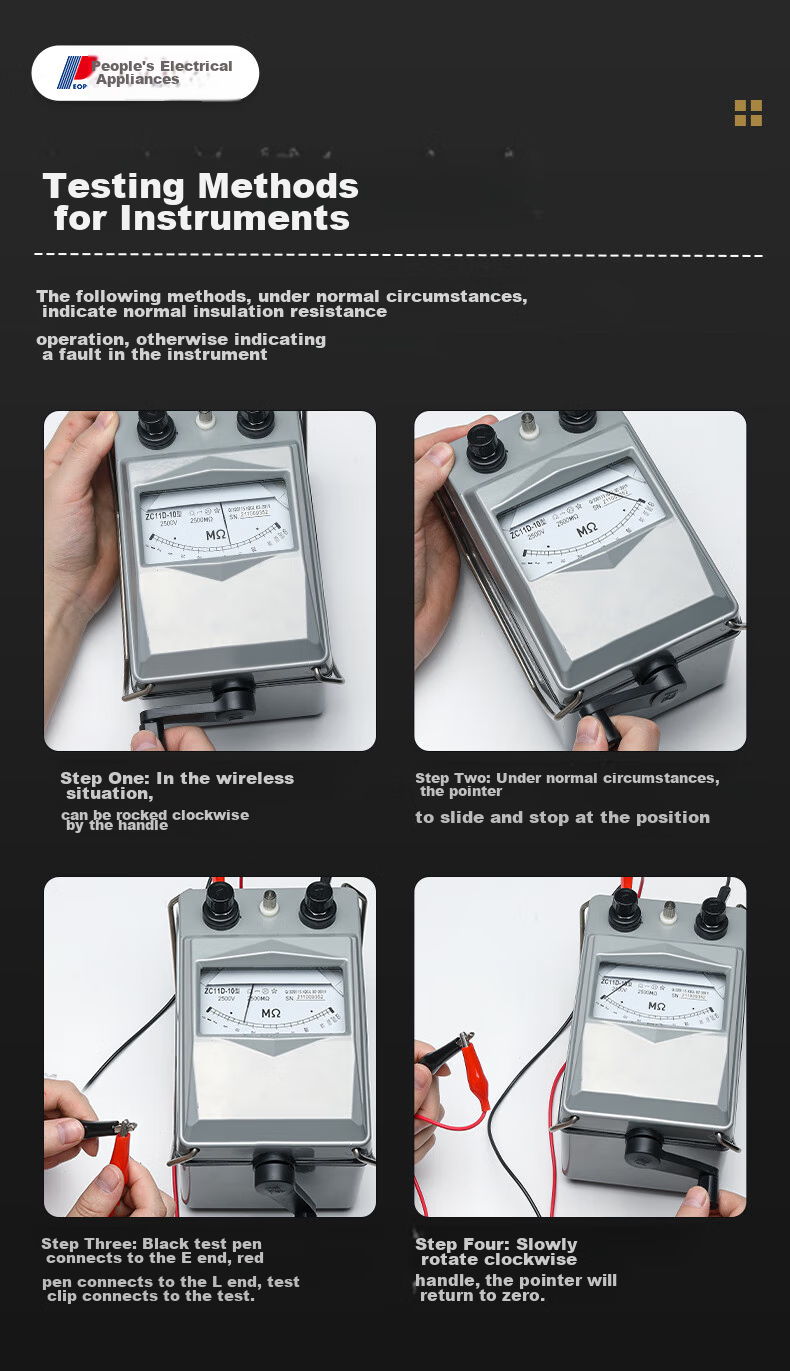

2. Rotate the handle clockwise to gradually increase the speed to 120 revolutions per minute. Once the speed stabilizes, the resistance reading can be obtained.

Additional details

3. Insulation Measurement: Connect the two ends of the test object to the "line" and "ground" terminals respectively.
4. Ground Measurement: Connect the test end and a good ground wire to the "line" and "ground" terminals respectively.

5. For measuring very high resistance, the protective ring should be placed on the innermost insulation layer between the two ends of the test object to eliminate reading errors caused by leakage current.
