Back to Catalog

CEM High Voltage Megohmmeter Insulation Resistance Tester 10KV Digital Insulation Resistance Meter ST3128

•Resistance tester

CEM High Voltage Megohmmeter Insulation Resistance Tester 10KV Digital Insulation Resistance Meter ST3128

CN¥2,533.00

SKU: 100051900135

Status:In Stock (2)

ID: 100051900135

Weight: 6270.00 g

Dims:473x393x230 mm

Specifications

Functions: resistance testing, Voltage testing, Polarization index test, Absorption rate test
Category: Insulation resistance tester

Variants / Sale Attributes

Model: ST3128 test voltage 10,000V

Package Contents

resistance tester

Product Description

Overview

Brand: XIMA, OSMART, XIMA Instruments, SENSOR
Product Type: Insulation Resistance Tester

Multi-range selection with overload protection and buzzer alarm

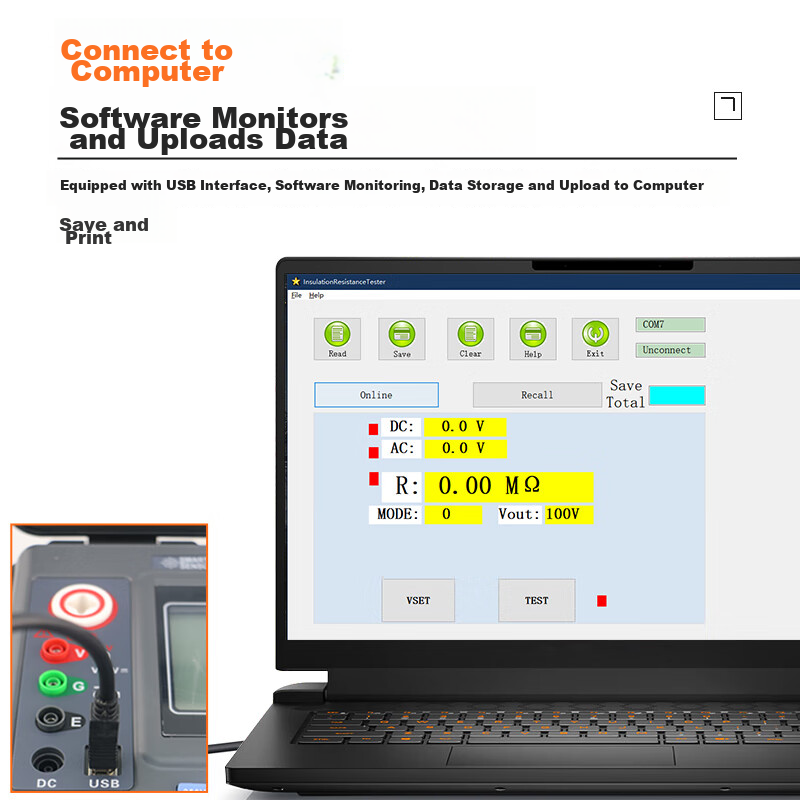

Computer connectivity with USB interface for data upload, monitoring, and printing

Additional details

Measurement step increments: 0.00 to 500 (units vary by test)

12 major technological highlights

Additional details

Measurement modes: Insulation resistance, AC voltage, DC voltage, PI (Polarization Index), DAR (Dielectric Absorption Ratio), HOLD, data lock, alarm setting, data storage, backlight control

Similar Products

In Stock

希玛Resistance tester

Xima AS982 Surface Resistance Tester, Impedance Meter, Insulation Resistance Detector, Electrostatic Tester

resistance testing

CN¥106.00

View

In Stock

suweiResistance tester

Suwei Milliohm Meter DC Low Resistance Tester Micro Ohmmeter Ohmmeter Micro Ohm Meter Milliohm Resistance Tester SW6205

SW6205 Auto Range (0.01mΩ~30KΩ)

CN¥721.00

View

In Stock

XIANGRUIDE.2012Resistance tester

XIANGRUIDE.2012 Xiangruide Megohmmeter, Insulation Resistance Tester, Electrical Inspection Device, ZC25-3 Plastic Case, 500V/500M

ZC25-3 (For You) Plastic Case, 500V/500M

CN¥108.00

View

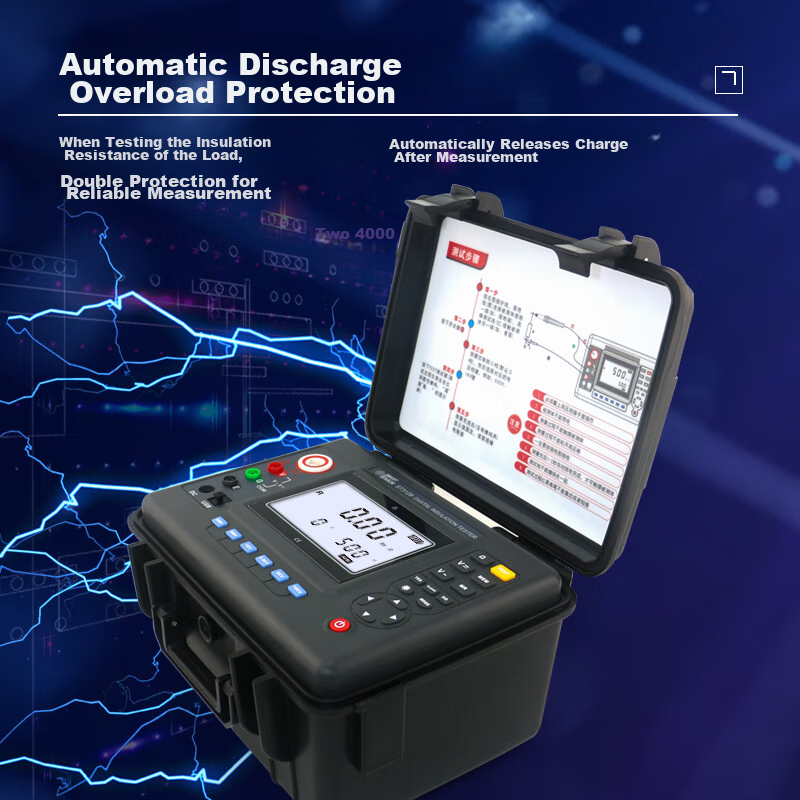

Automatic discharge after measurement for safety

Additional details

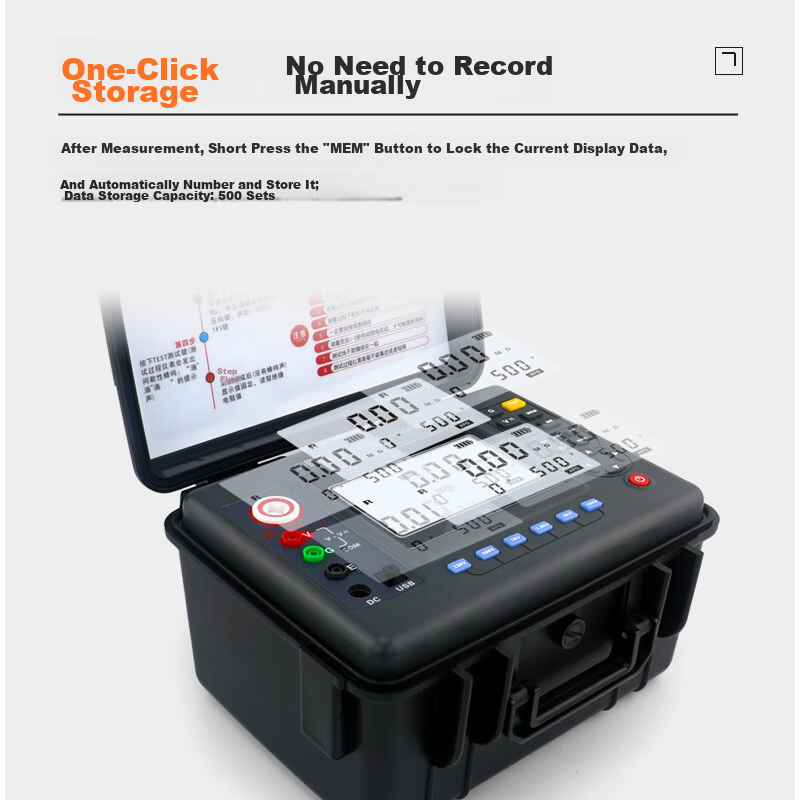

Data storage capacity: 500 groups with auto numbering and retrieval function

Alarm function with audible and visual alerts when values exceed preset thresholds

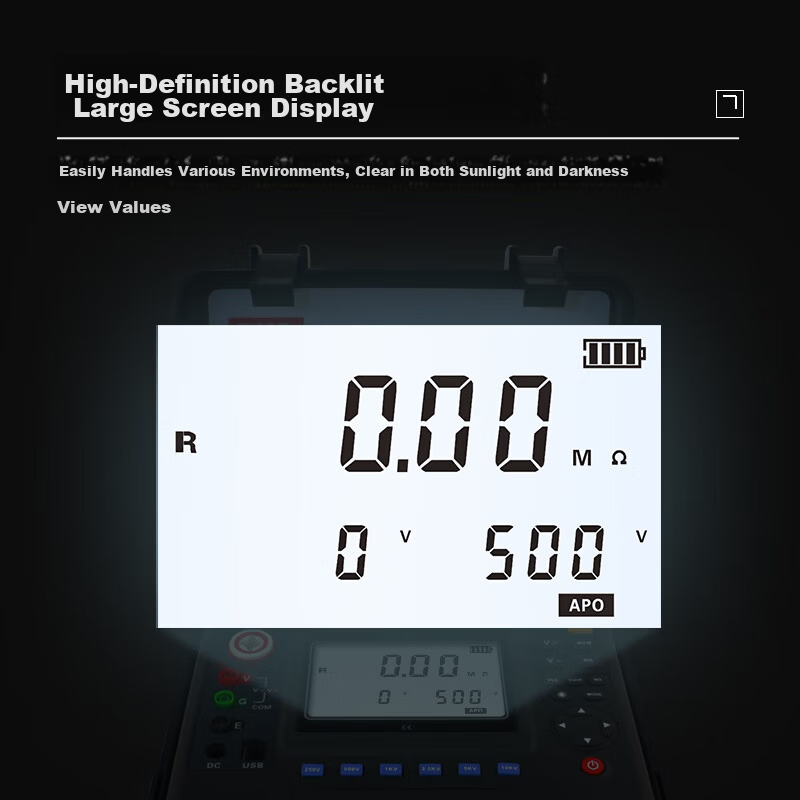

Large LCD display with controllable gray-white backlight for visibility in various lighting conditions

Rechargeable 12.6V lithium battery with charging function

Automatic power off after 15 minutes of inactivity

Lightweight and portable design (2750g including battery)

Insulation Resistance

Item	Detail
0.1 MΩ to 10 MΩ	±3% reading ±5 digits, resolution 0.01 MΩ
10 MΩ to 100 MΩ	±3% reading ±5 digits, resolution 0.1 MΩ
100 MΩ to 1000 MΩ	±3% reading ±5 digits, resolution 1 MΩ
1 GΩ to 10 GΩ	±5% reading ±5 digits, resolution 0.01 GΩ
10 GΩ to 30 GΩ	±20% reading ±5 digits, resolution 0.1 GΩ
Extended ranges up to 3000 GΩ with varying accuracy and resolution depending on voltage applied	—

Additional details

Test Voltages: 250V, 500V, 1000V, 2500V, 5000V, 10000V (±10%)
AC Voltage Measurement: 0 to 750V, resolution 0.1V, output short circuit current ≥5mA (at 10kV)
DC Voltage Measurement: Supported

Polarization Index and Absorption Ratio measurements included

Overload protection and automatic discharge to ensure user safety

Compliance with IEC61010-1, IEC1010-2-31, IEC61557-1, IEC61557-5, IEC60529 (IP54), CAT II 300V
