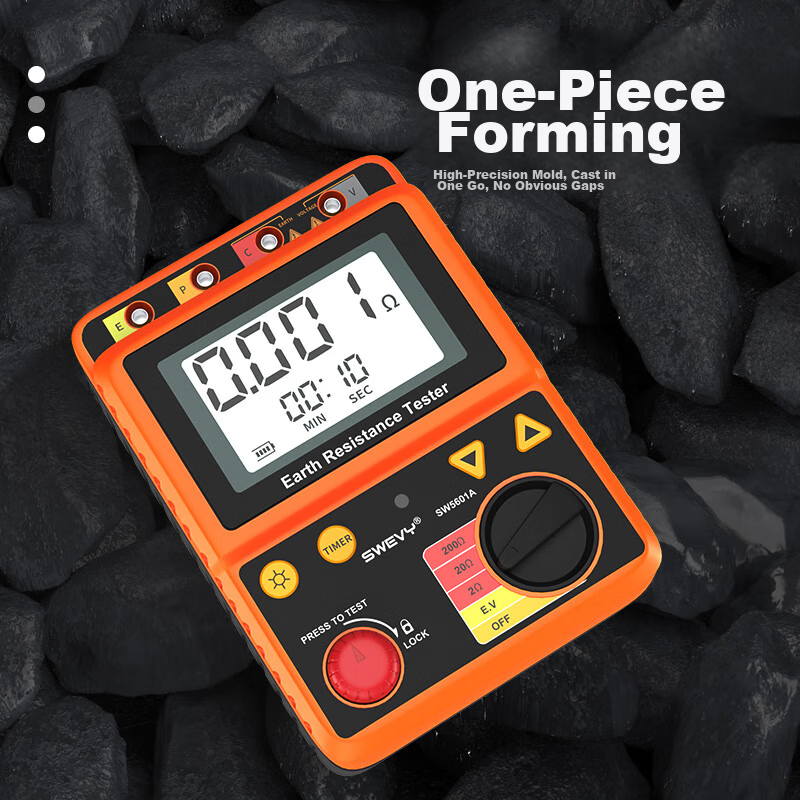

Suwei Lightning Protection Grounding Resistance Tester, Earth Resistance Meter, Digital Electronic Megohmmeter, Resistance Detector SW5601A
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
suwei•Resistance tester

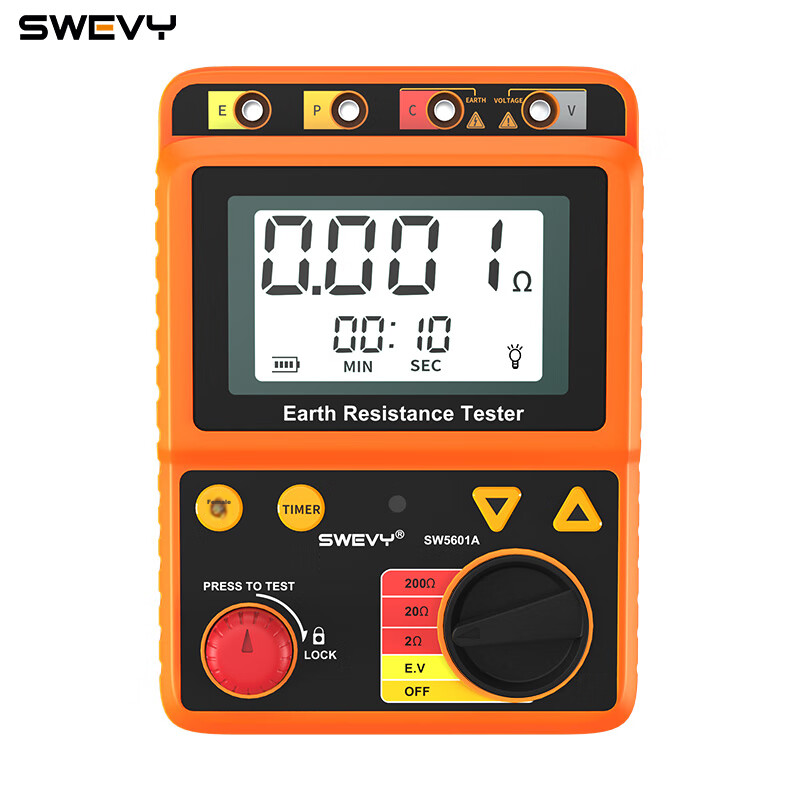

Suwei Lightning Protection Grounding Resistance Tester, Earth Resistance Meter, Digital Electronic Megohmmeter, Resistance Detector SW5601A

CNÂ¥346.00
SKU: 100076194081
Status:In Stock (14)
ID: 100076194081
Weight: 2970.00 g
Dims:333x289x118 mm

Specifications

Category
Ground resistance tester
Functions
resistance testing

Variants / Sale Attributes

Model: [Best-Selling] SW5601A (0.001~200Ω)

Package Contents

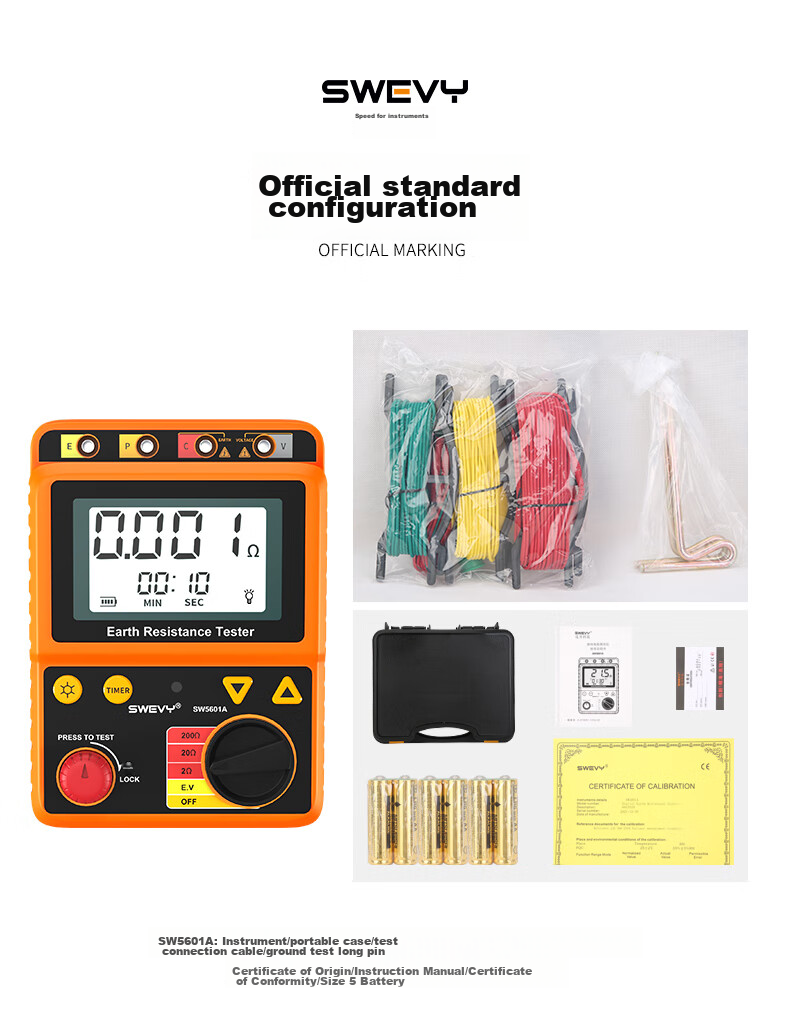

Standard configuration: instrument/portable case/test connection cable/ground test spike/factory certificate/instruction manual/qualification certificate/size 5 battery

Product Description

Overview

Brand
SWEVY
Product
Earth Resistance Tester
Models
SWEVY8, SW5601, RESSTOTEST

Features

  • Ground resistance measurement
  • Multiple models available
  • Fast response speed

Similar Products

In Stock
Xima AS982 Surface Resistance Tester, Impedance Meter, Insulation Resistance Detector, Electrostatic Tester
希玛Resistance tester

Xima AS982 Surface Resistance Tester, Impedance Meter, Insulation Resistance Detector, Electrostatic Tester

resistance testing

CNÂ¥106.00

View
In Stock
Suwei Milliohm Meter DC Low Resistance Tester Micro Ohmmeter Ohmmeter Micro Ohm Meter Milliohm Resistance Tester SW6205
suweiResistance tester

Suwei Milliohm Meter DC Low Resistance Tester Micro Ohmmeter Ohmmeter Micro Ohm Meter Milliohm Resistance Tester SW6205

SW6205 Auto Range (0.01mΩ~30KΩ)

CNÂ¥721.00

View
In Stock
XIANGRUIDE.2012 Xiangruide Megohmmeter, Insulation Resistance Tester, Electrical Inspection Device, ZC25-3 Plastic Case, 500V/500M
XIANGRUIDE.2012Resistance tester

XIANGRUIDE.2012 Xiangruide Megohmmeter, Insulation Resistance Tester, Electrical Inspection Device, ZC25-3 Plastic Case, 500V/500M

ZC25-3 (For You) Plastic Case, 500V/500M

CNÂ¥108.00

View
Numeric lock function
  • Large high-definition screen
  • Data storage capability

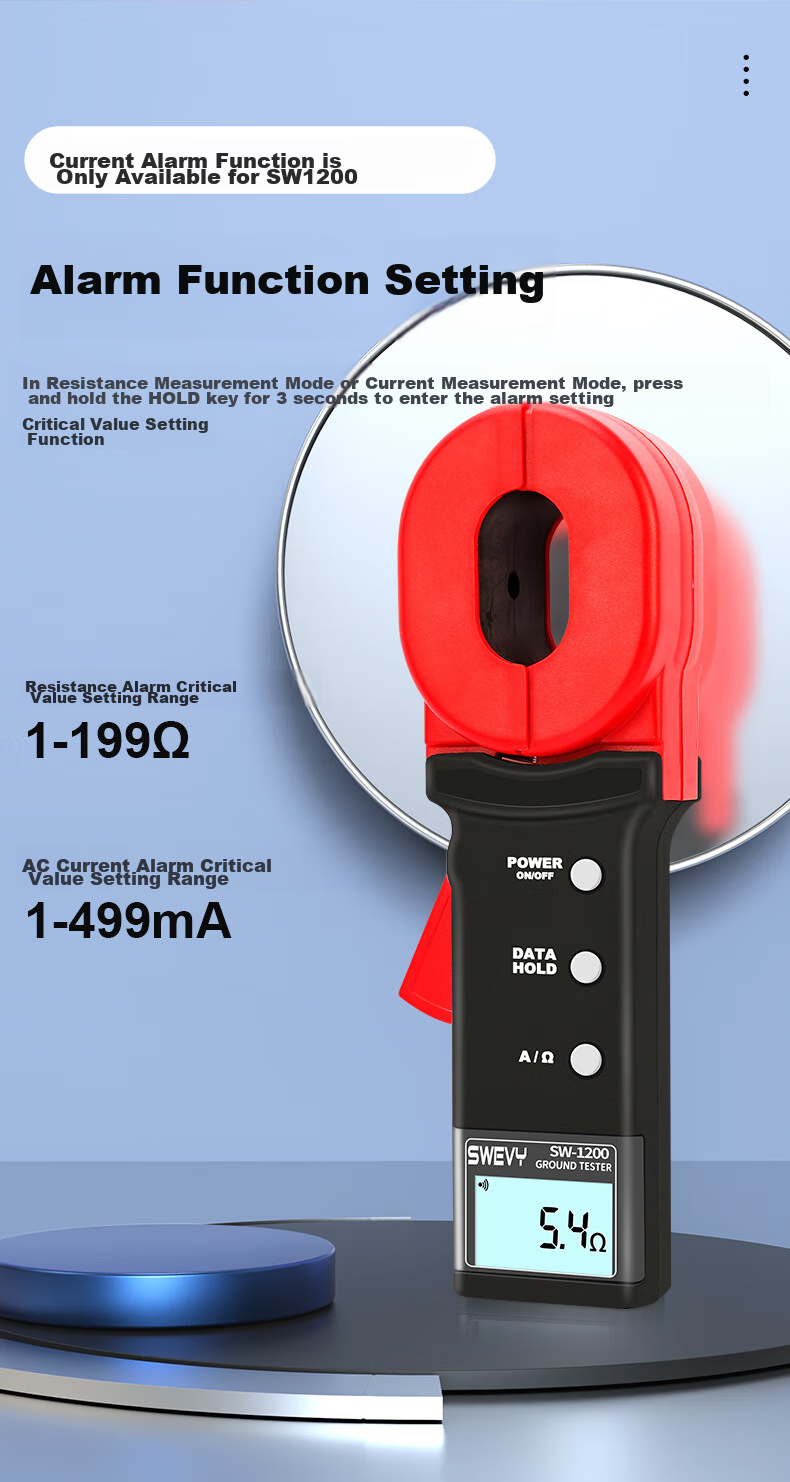

  • Alarm function
  • Overload protection

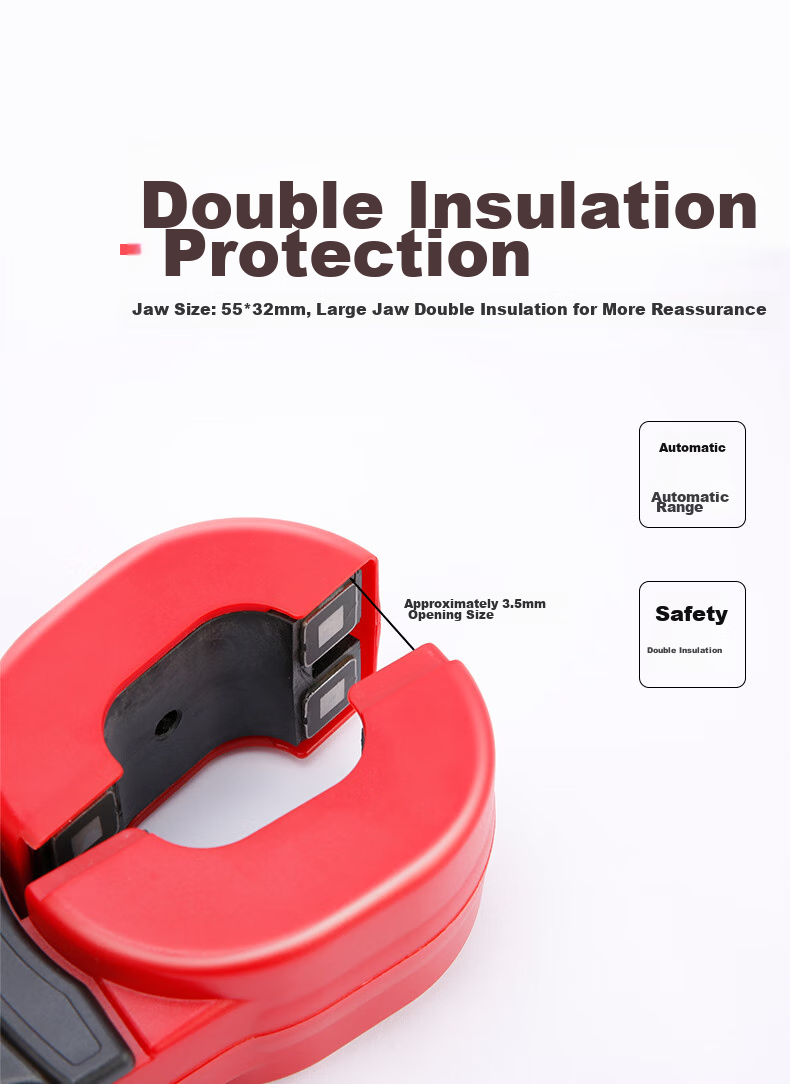

  • Dual insulation protection
  • Applications

    • Widely used in various fields such as tower/railway grounding, building grounding, lightning protection, soil grounding, transformer testing, power plant substation testing, and electrical industry testing

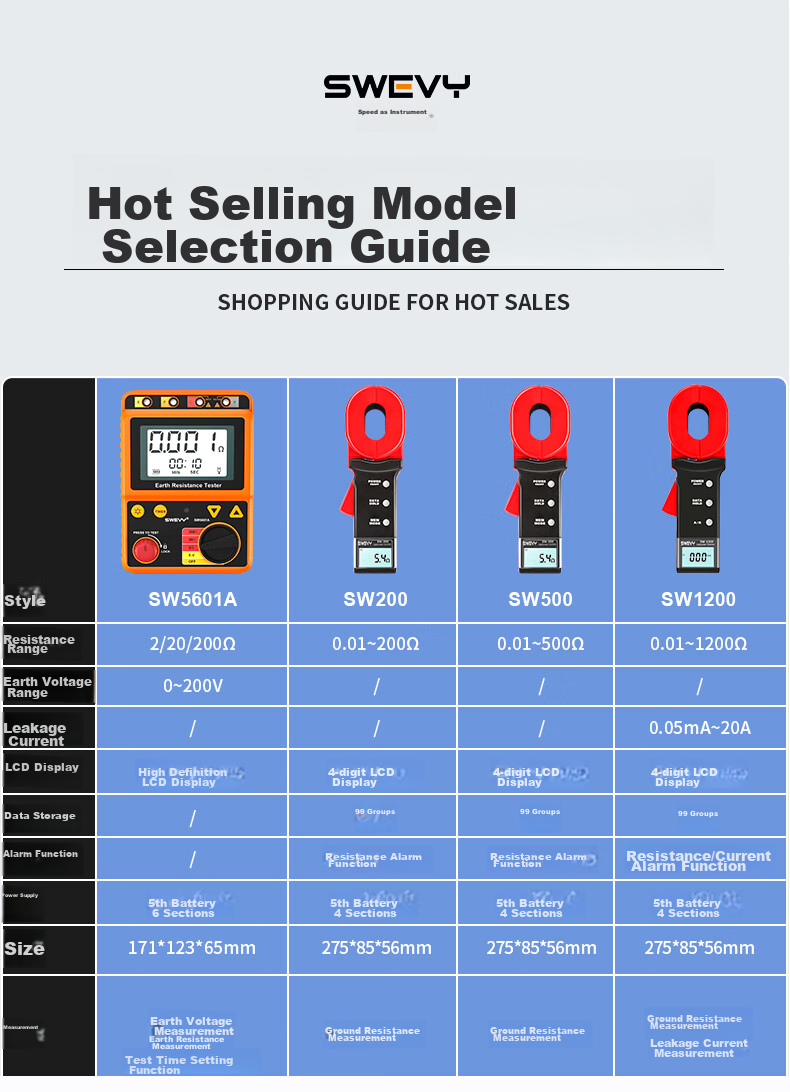

    Hot-selling Models

    • SW5601A, SW200, SW500, SW1200

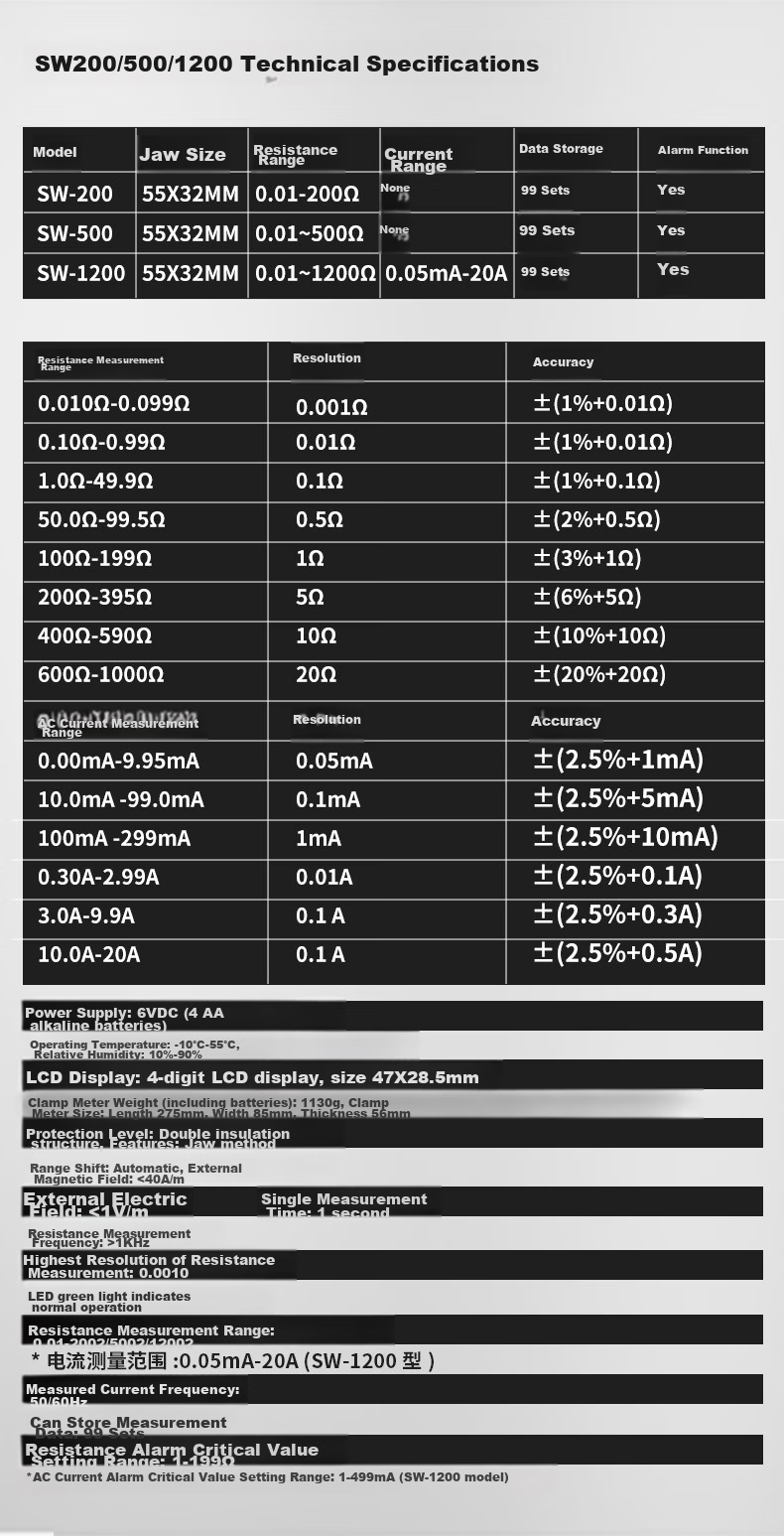

    Specifications

    ItemDetail

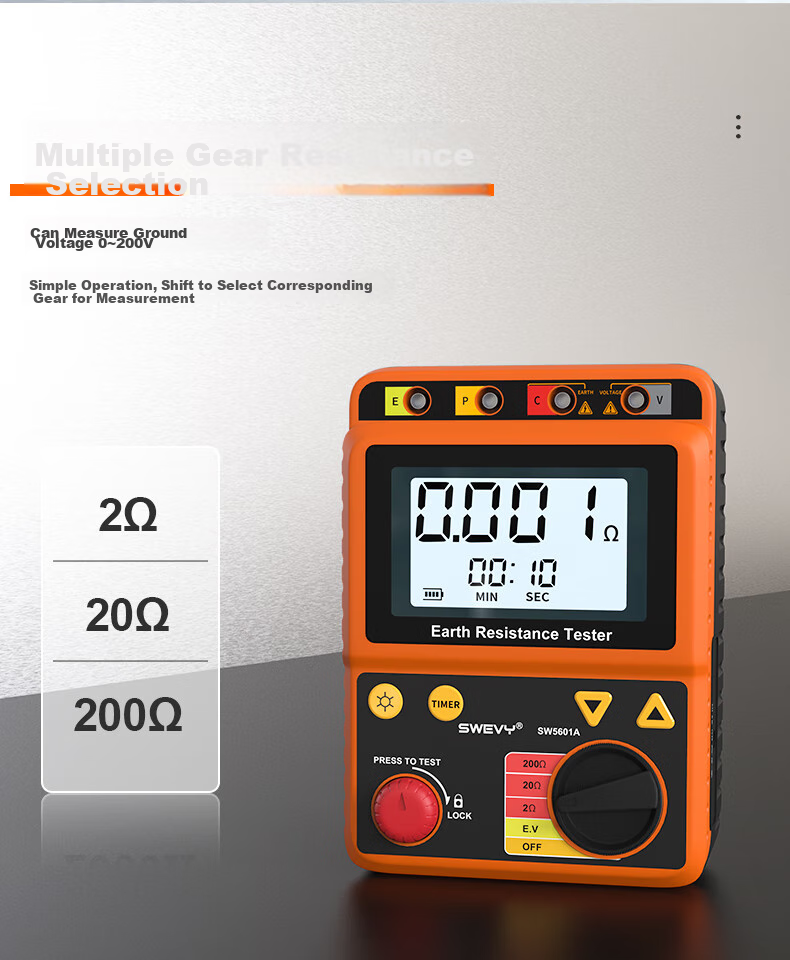

    Resistance range0.01-200Ω to 0.01-1200Ω
    Ground voltage range0-200V
    Leakage current0.05mA-20A
    LCD display—

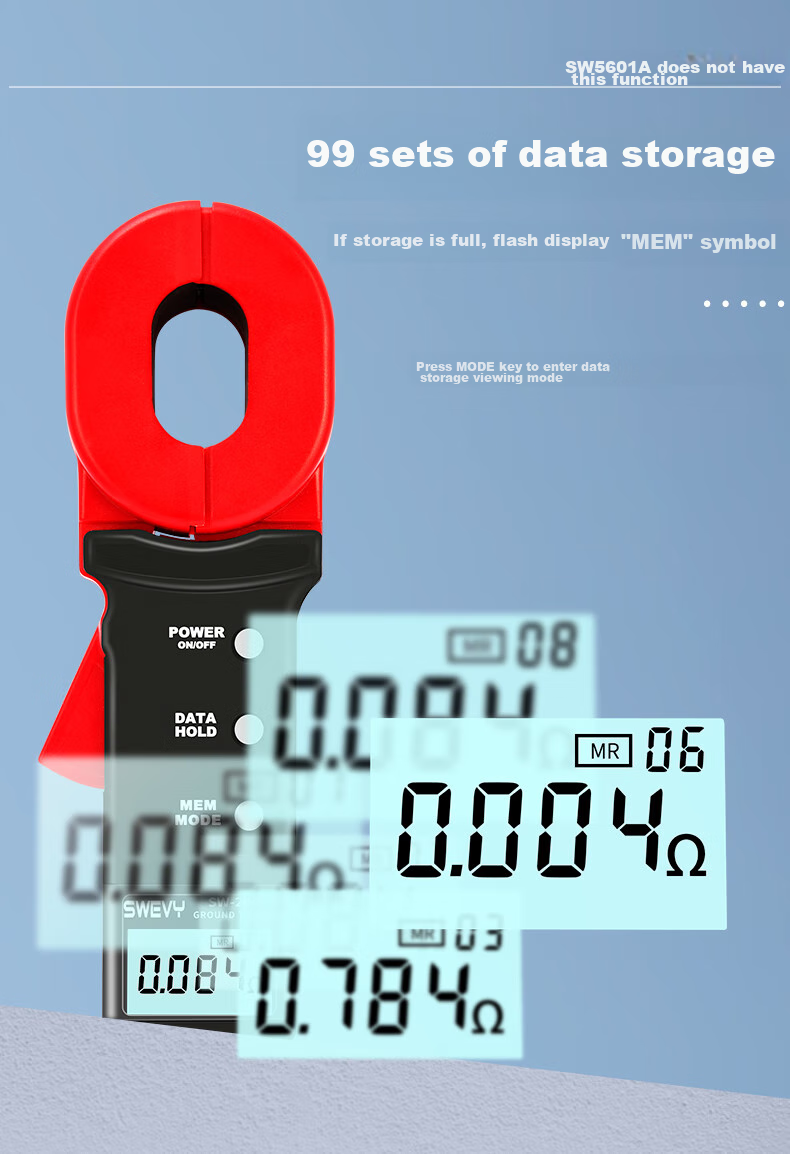

    Data storageUp to 99 sets
    Alarm threshold setting1-199Ω

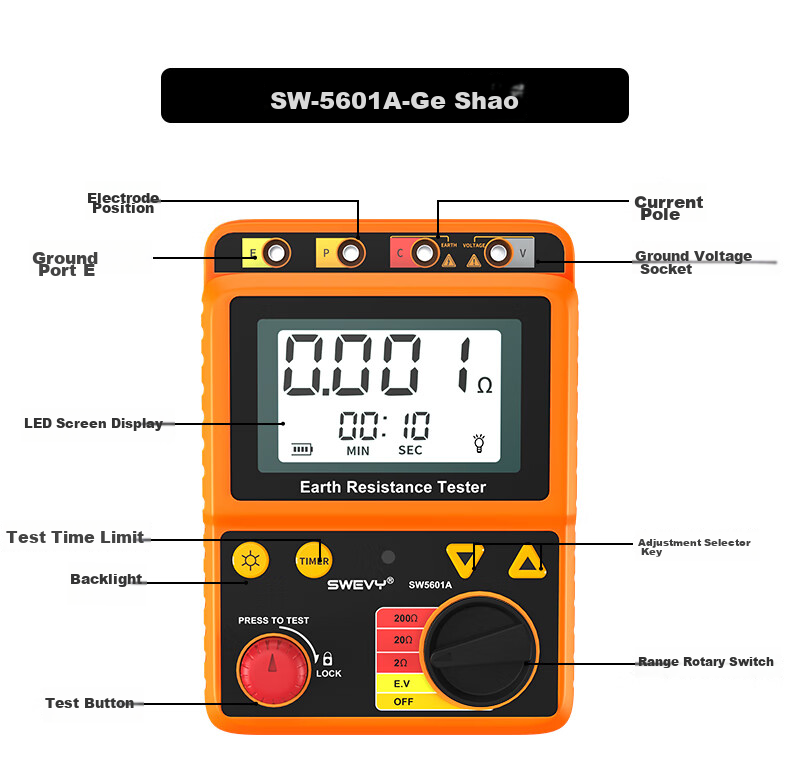

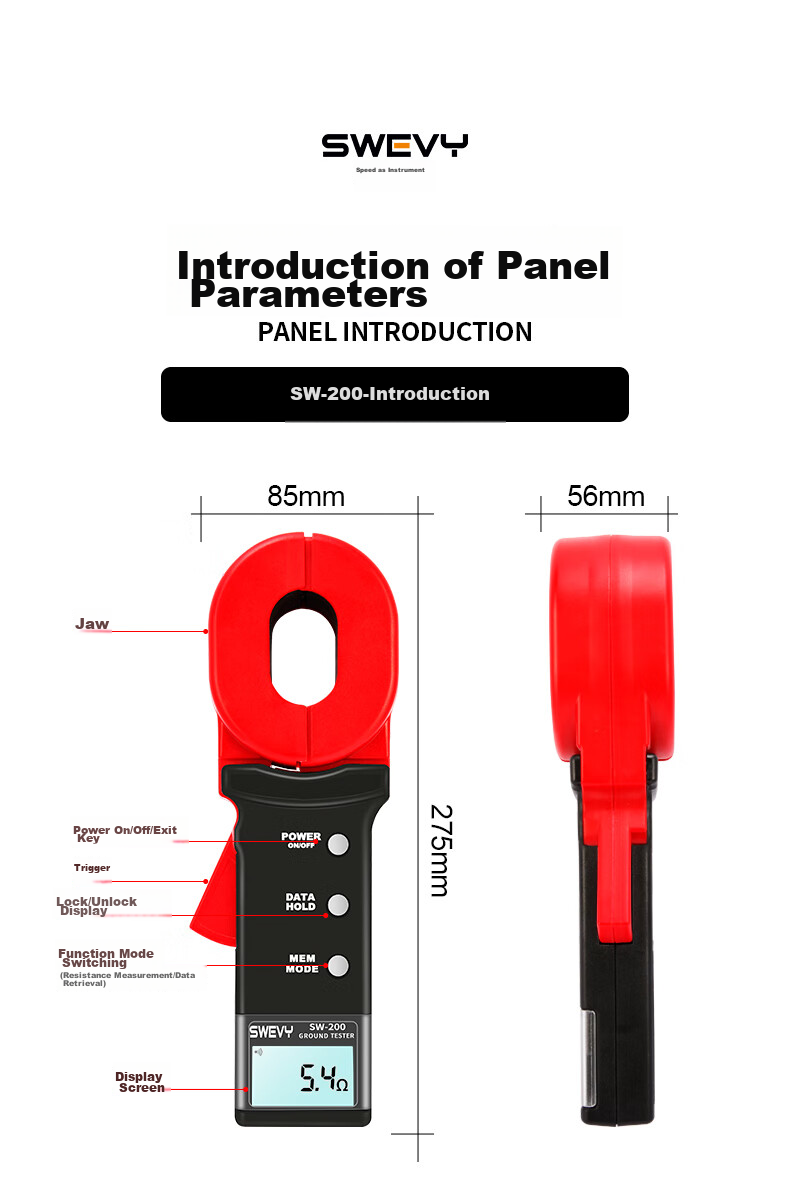

    Panel Introduction

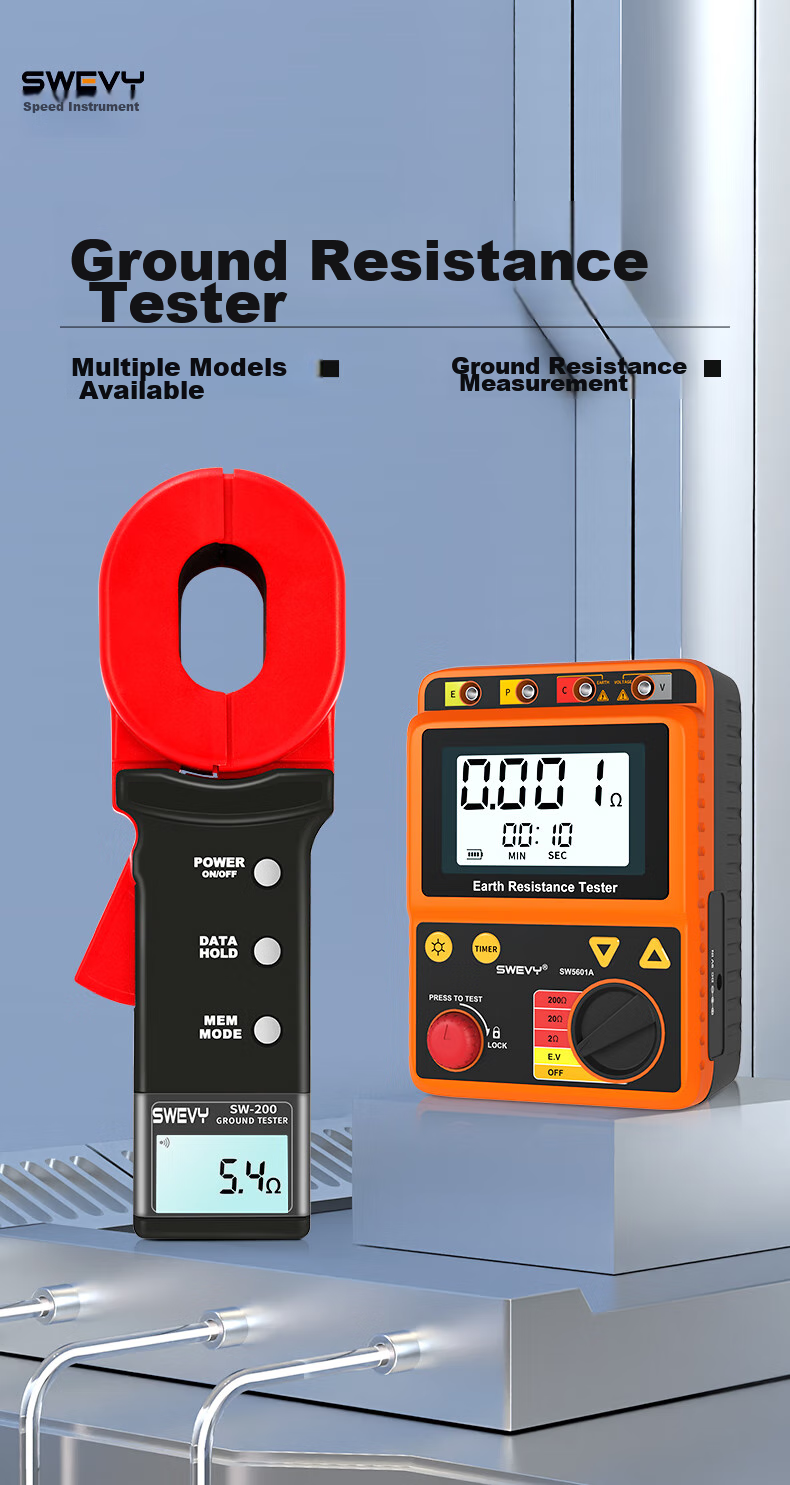

    • Features vary by model (SW-200, SW-500, SW-1200)

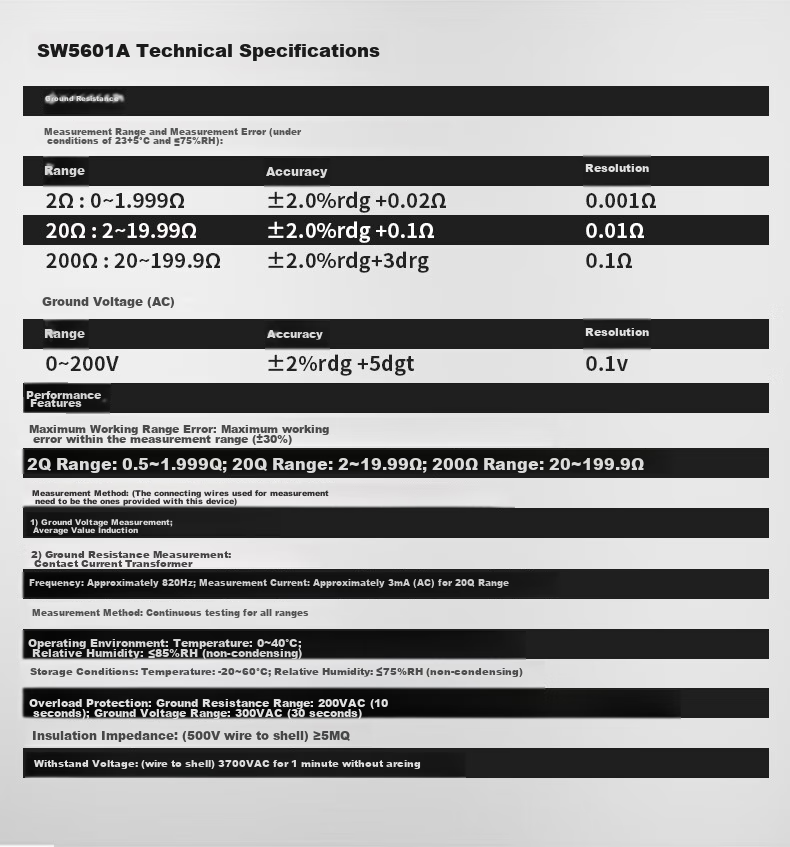

    Technical Specifications

    ItemDetail
    Power source6VDC (4 x AA batteries)
    Operating temperature-10°C to 55°C
    Relative humidity10%-90%
    LCD display4-digit LCD
    Weight1130 g
    Dimensions275 mm x 85 mm x 56 mm
    Protection levelDual insulation

    Accessories

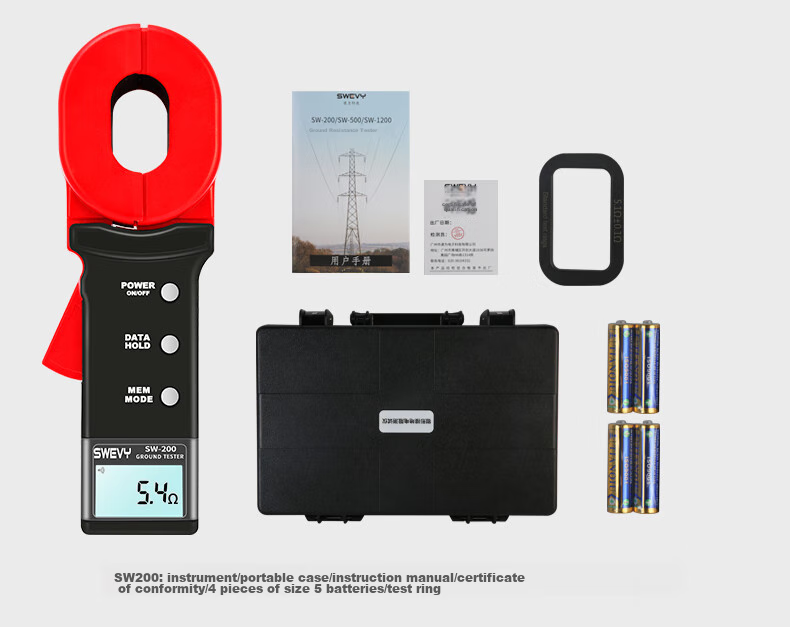

    • Standard accessories vary by model (SW5601A, SW200, SW500, SW1200)

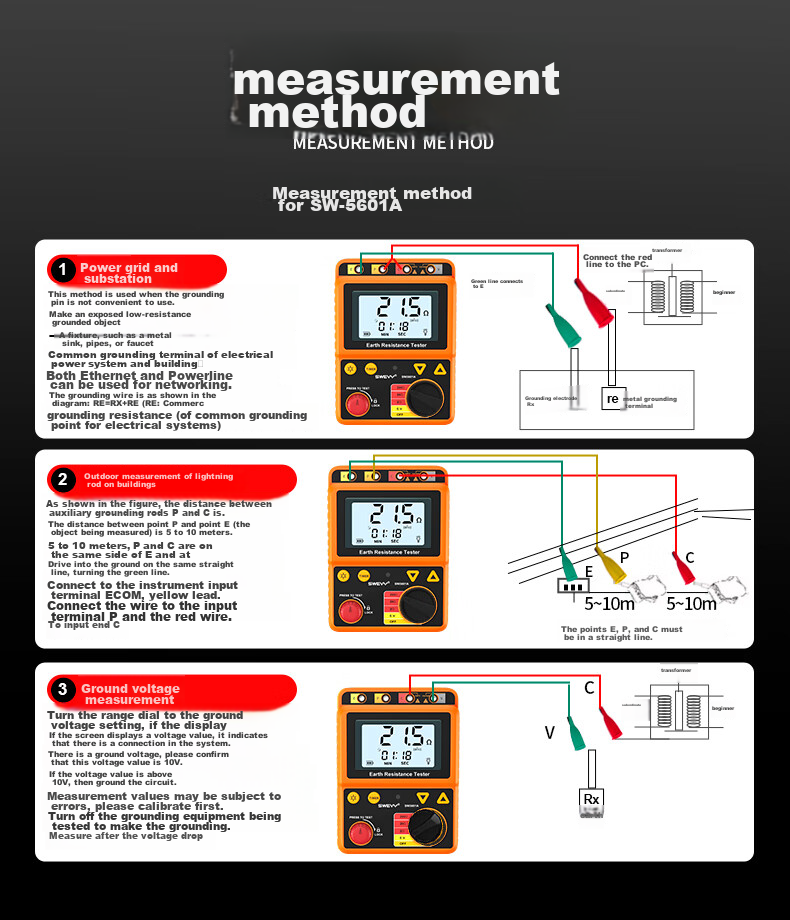

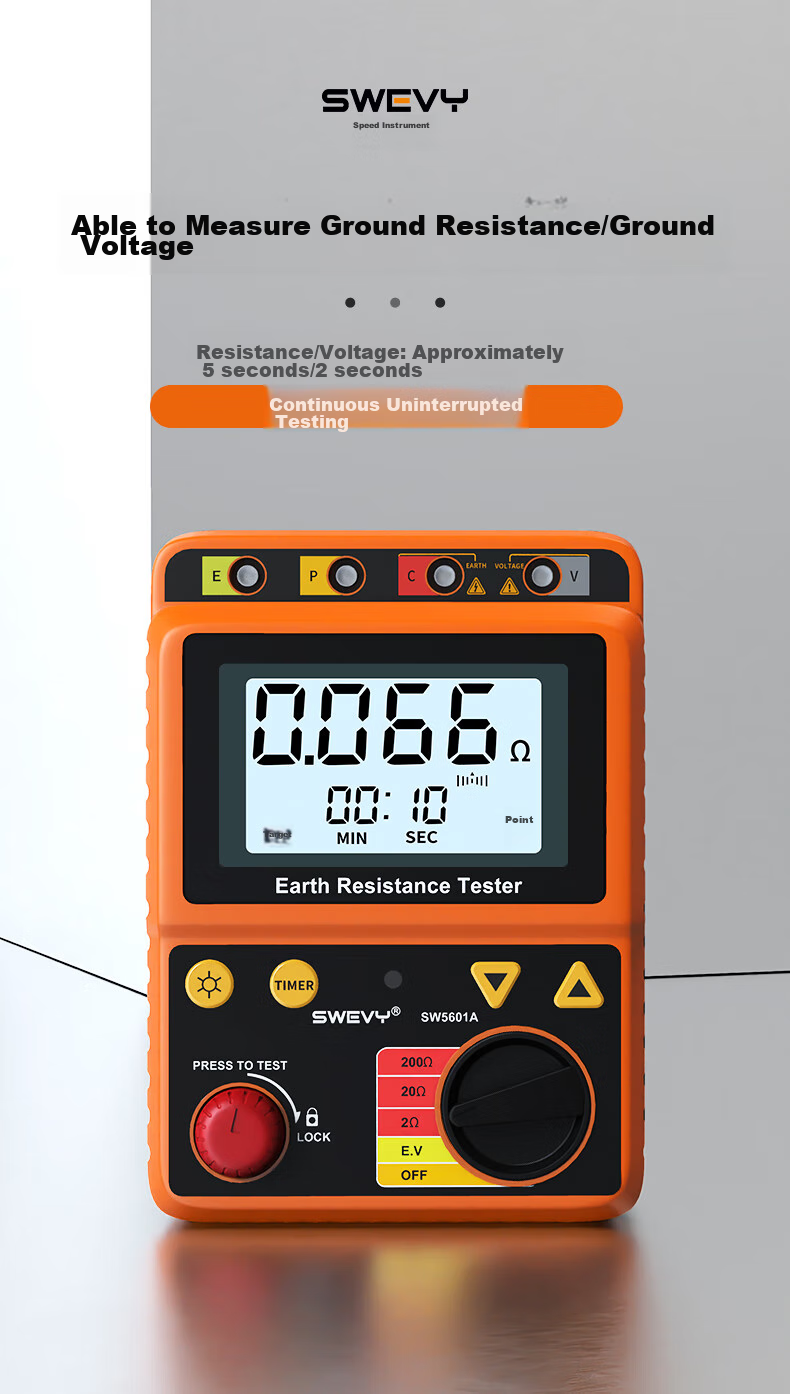

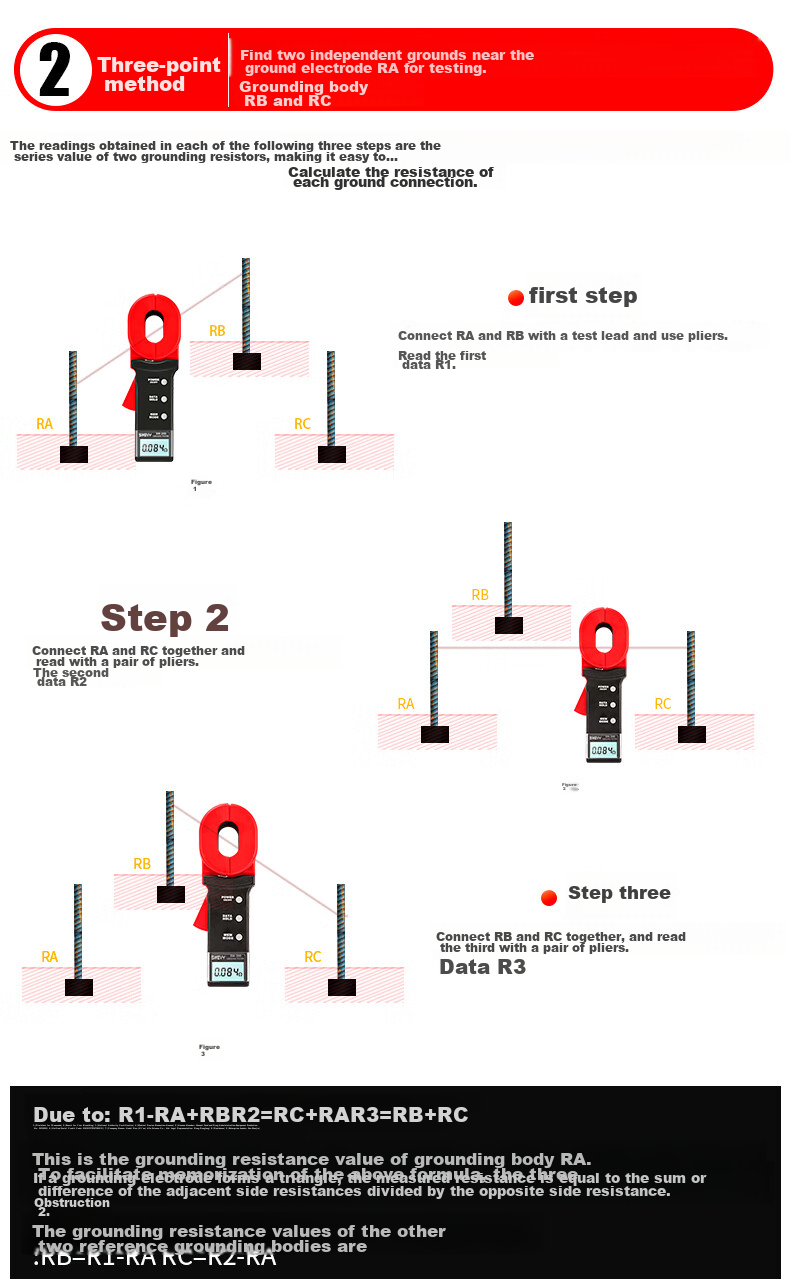

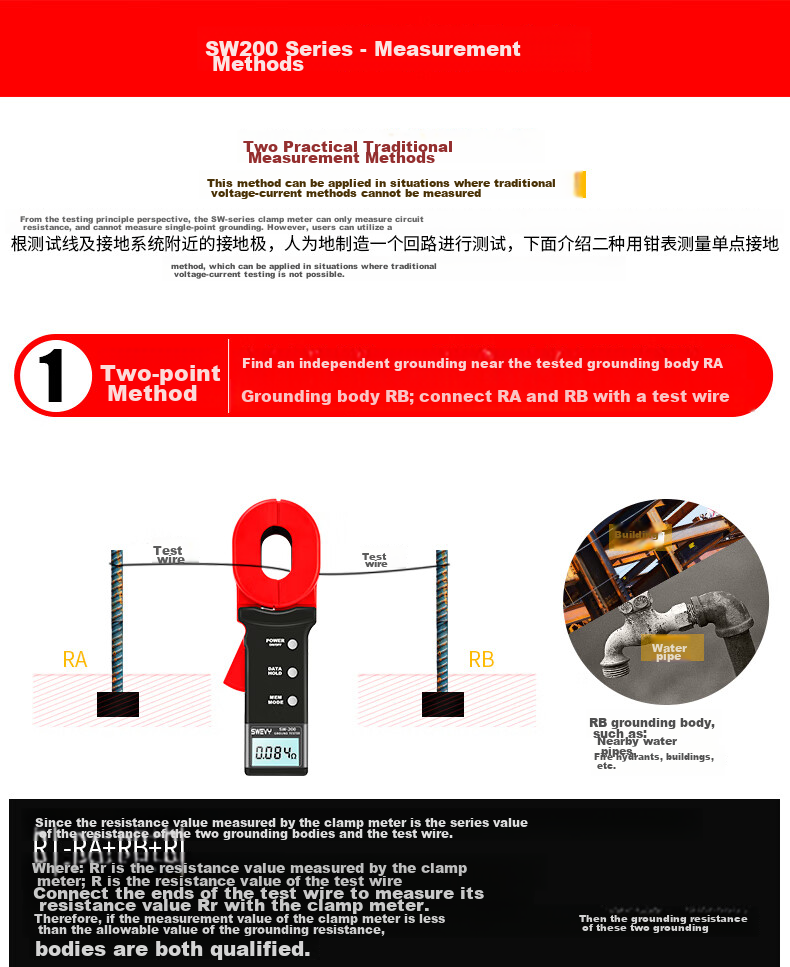

    Measurement Methods

    ItemDetail
    Various methods for ground resistance and voltage measurement—

    Performance Features

    • Maximum working range error
    • Measurement frequency: >1KHz
    • LED indicator for normal operation

    Safety Features

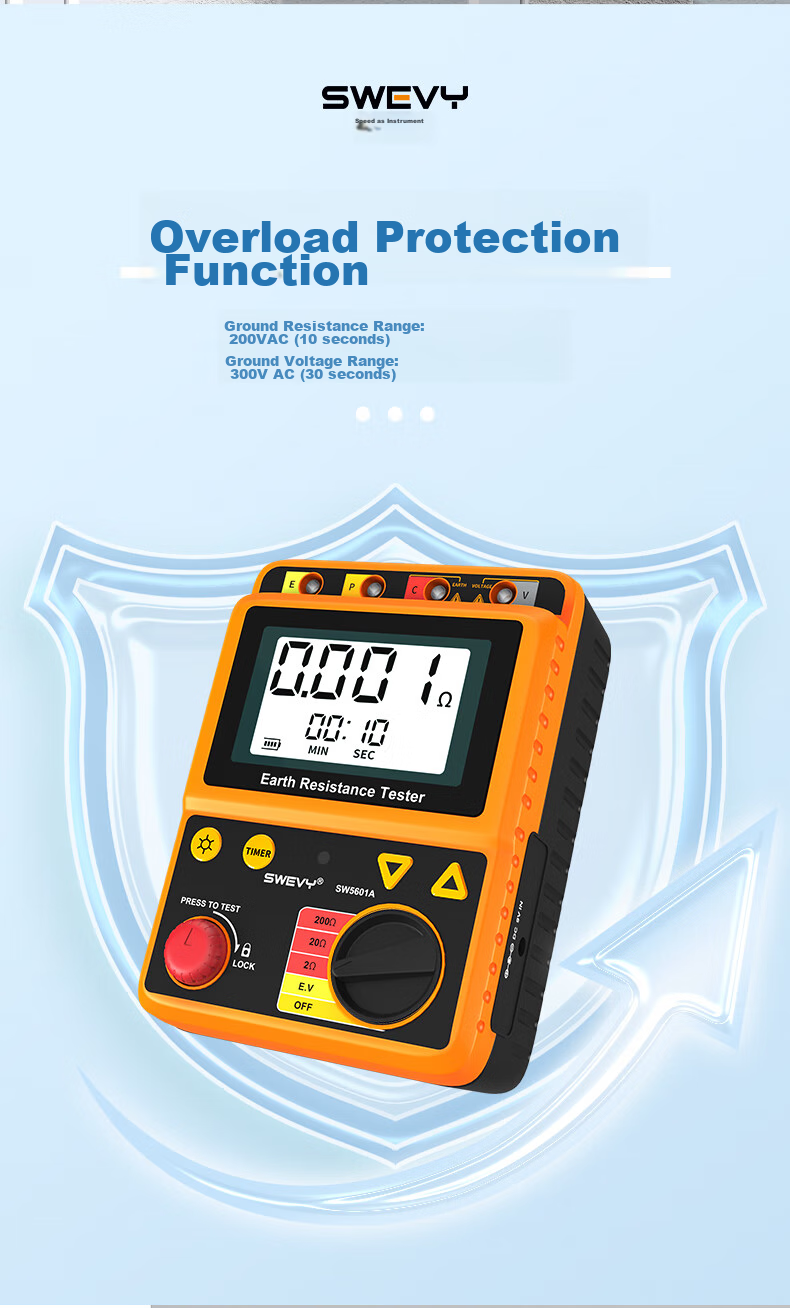

    • Overload protection for ground resistance and voltage ranges
    • Insulation impedance: ≥5MΩ
    • Withstand voltage: 3700VAC for 1 minute

    The above specifications are based on the provided information and may vary by model.
