Irith ETCR2000A+ Clamp Type Ground Resistance Tester Clamp Ground Resistance Meter 65×32mm Range 200Ω
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
ETCR•Resistance tester

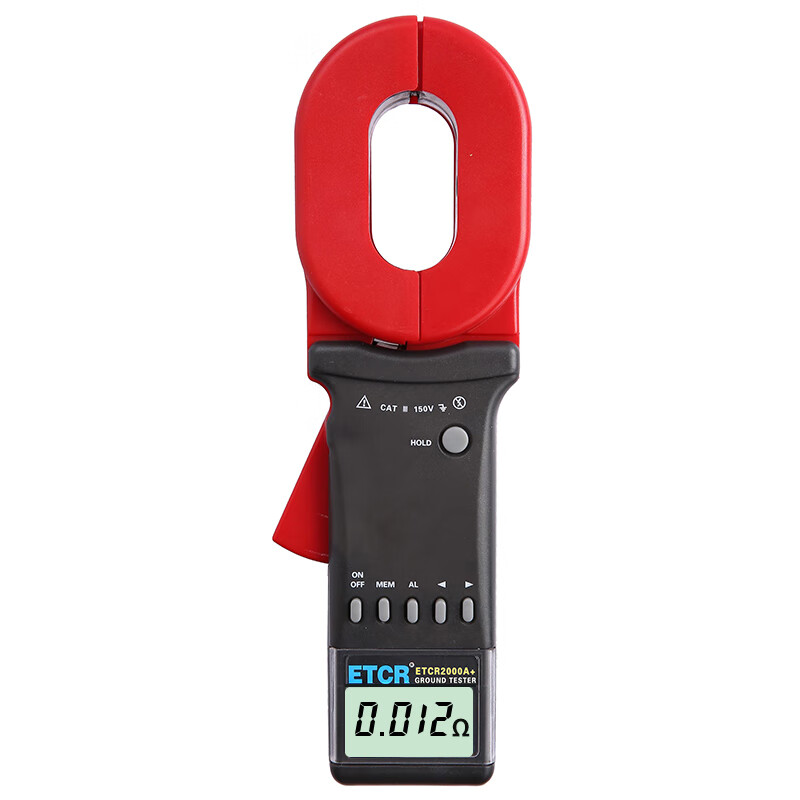

Irith ETCR2000A+ Clamp Type Ground Resistance Tester Clamp Ground Resistance Meter 65×32mm Range 200Ω

CNÂ¥1,061.00
SKU: 100208345579
Status:In Stock (13)
ID: 100208345579
Weight: 2270.00 g
Dims:344x254x112 mm

Specifications

Functions
resistance testing
Category
Ground resistance tester

Variants / Sale Attributes

Model: ETCR2000A+

Package Contents

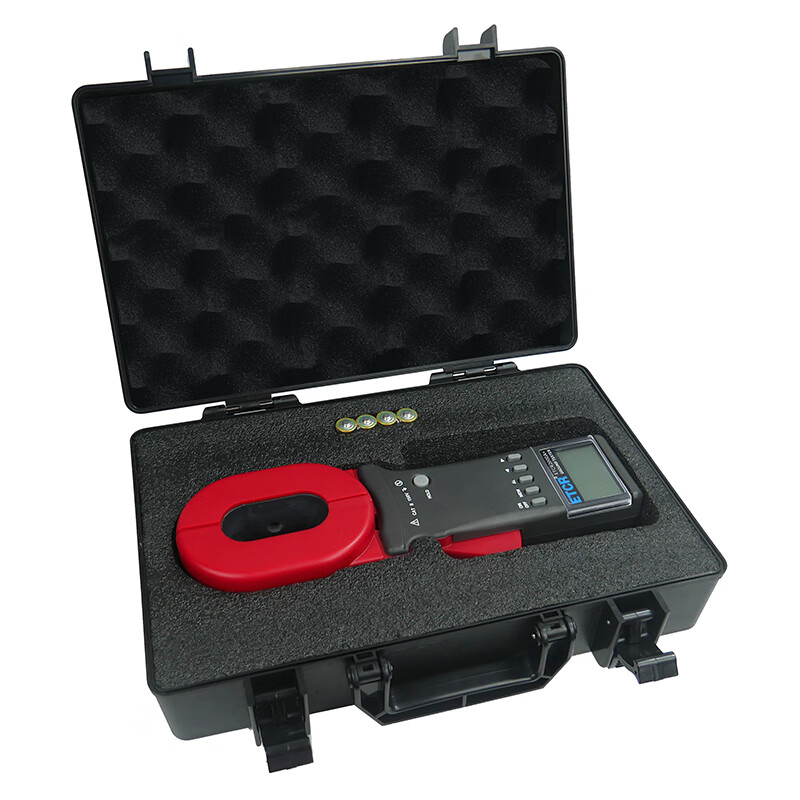

Clamp meter: 1 piece; test loop: 1 piece; LR6 batteries: 4 pieces; instrument case: 1 piece

Product Description

Product Specifications

Overview

Brand
(Yitai)
Model
ETCR2000A+
Product Type
Clamp Ground Resistance Tester

Measurement of multi-point ground resistance

Measurement of loop resistance

Measurement of circuit resistance

Bluetooth communication enabled

Additional details

Clamp Jaw Size
65 mm × 32 mm
Clamp Jaw Opening Size
32 mm

Similar Products

In Stock
Xima AS982 Surface Resistance Tester, Impedance Meter, Insulation Resistance Detector, Electrostatic Tester
希玛Resistance tester

Xima AS982 Surface Resistance Tester, Impedance Meter, Insulation Resistance Detector, Electrostatic Tester

resistance testing

CNÂ¥106.00

View
In Stock
Suwei Milliohm Meter DC Low Resistance Tester Micro Ohmmeter Ohmmeter Micro Ohm Meter Milliohm Resistance Tester SW6205
suweiResistance tester

Suwei Milliohm Meter DC Low Resistance Tester Micro Ohmmeter Ohmmeter Micro Ohm Meter Milliohm Resistance Tester SW6205

SW6205 Auto Range (0.01mΩ~30KΩ)

CNÂ¥721.00

View
In Stock
XIANGRUIDE.2012 Xiangruide Megohmmeter, Insulation Resistance Tester, Electrical Inspection Device, ZC25-3 Plastic Case, 500V/500M
XIANGRUIDE.2012Resistance tester

XIANGRUIDE.2012 Xiangruide Megohmmeter, Insulation Resistance Tester, Electrical Inspection Device, ZC25-3 Plastic Case, 500V/500M

ZC25-3 (For You) Plastic Case, 500V/500M

CNÂ¥108.00

View
Resistance Range
0.01Ω to 200Ω
Resistance Resolution
0.001Ω
Measurement Frequency
>1KHz
Single Measurement Time
0.5 seconds
Data Storage Capacity
99 sets

Audible and visual alarm ("beep-beep-beep")

Alarm toggle via AL key

Additional details

Alarm threshold setting range
1Ω to 199Ω
Power Supply
6V DC (4 × AA alkaline batteries)
Temperature
-20°C to 55°C
Humidity
10% RH to 90% RH
Display
4-digit LCD, size 47 mm × 28.5 mm
Weight
1160 g (including batteries)
Dimensions
285 mm × 85 mm × 56 mm

Double insulation protection

CAT II 150V rating

Clamp-type current transformer (CT)

Fully automatic range switching

Additional details

External magnetic field interference
<40A/m
External electric field interference
<1V/m

Two-point method using a natural grounding point as auxiliary

Three-point method using two independent grounding points for calculation

Standard resistance ring for calibration and accuracy verification

For single-point grounding systems where direct clamping is not possible, auxiliary methods such as two-point or three-point measurement techniques are recommended.
