Irte ETCR2000C+ Multifunction Clamp Ground Resistance Tester 65×32mm Range 1200Ω/30A

Alarm settings adjustable from 1Ω to 199Ω

Supports single-point and multi-point/repeated grounding measurements

Direct clamp-on measurement for multi-point/repeated grounding systems

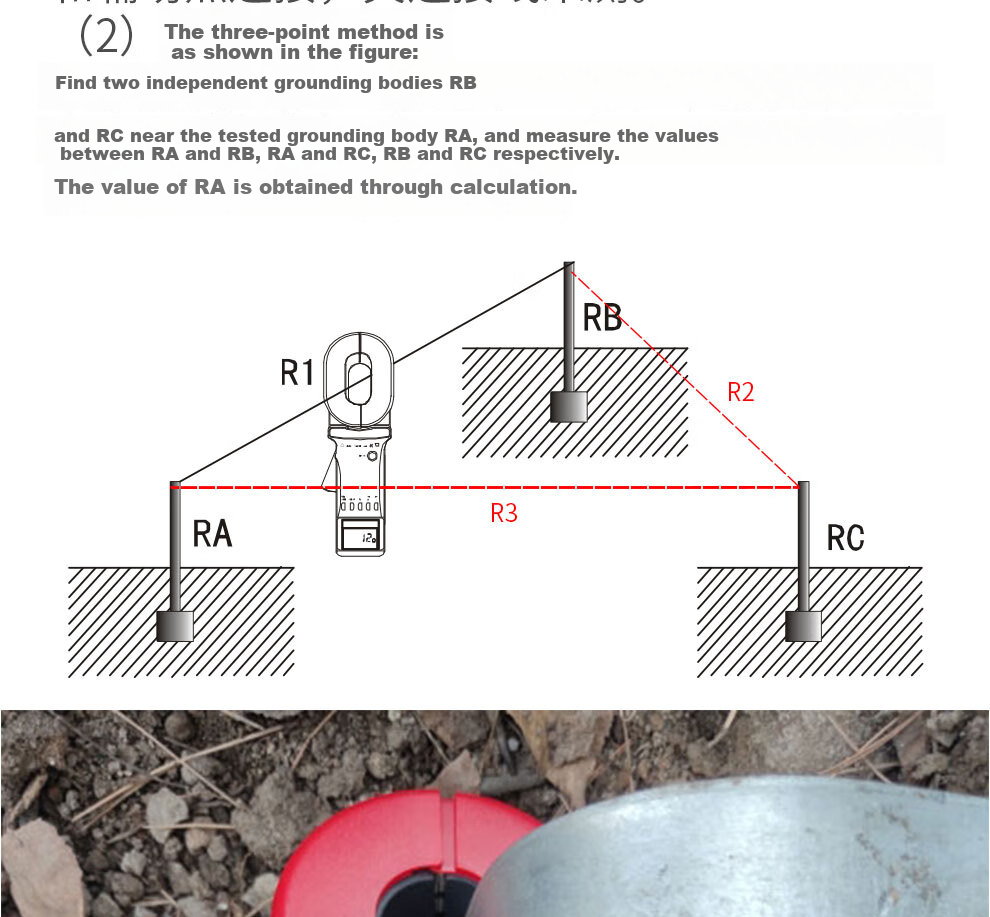

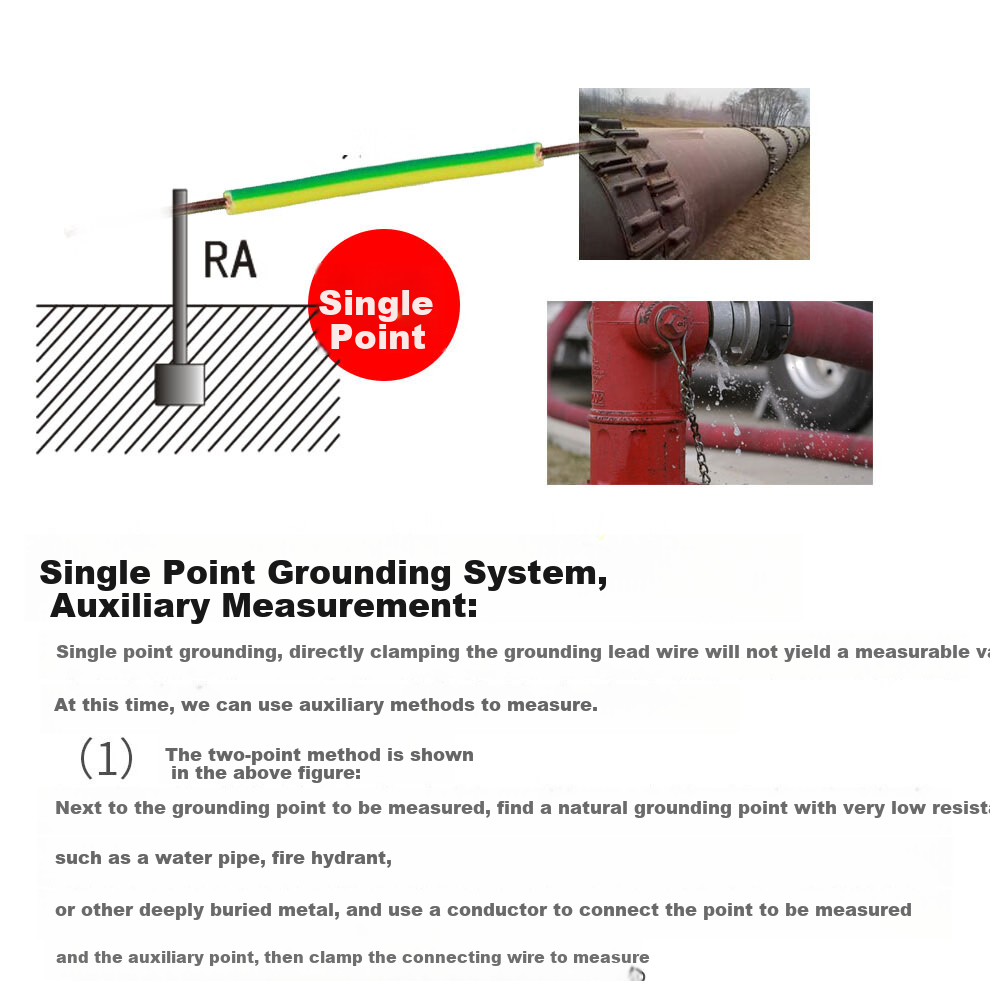

Auxiliary measurement for single-point grounding systems using two-point or three-point methods

0.010Ω to 0.099Ω, resolution 0.001Ω, accuracy ±(1% reading + 0.01Ω)

0.10Ω to 0.99Ω, resolution 0.01Ω, accuracy ±(1% reading + 0.01Ω)

1.0Ω to 49.9Ω, resolution 0.1Ω, accuracy ±(1% reading + 0.1Ω)

50.0Ω to 99.5Ω, resolution 0.5Ω, accuracy ±(1.5% reading + 0.5Ω)

100Ω to 199Ω, resolution 1Ω, accuracy ±(2% reading + 1Ω)

200Ω to 395Ω, resolution 5Ω, accuracy ±(5% reading + 5Ω)

400Ω to 590Ω, resolution 10Ω, accuracy ±(10% reading + 10Ω)

600Ω to 880Ω, resolution 20Ω, accuracy ±(20% reading + 20Ω)

900Ω to 1200Ω, resolution 30Ω, accuracy ±(25% reading + 30Ω)

0.00mA to -9.95mA, resolution 0.05mA, accuracy ±(2.5% reading + 1mA)

10.0mA to -99.0mA, resolution 0.1mA, accuracy ±(2.5% reading + 5mA)

100mA to -300mA, resolution 1mA, accuracy ±(2.5% reading + 10mA)

0.30A to 2.99A, resolution 0.01A, accuracy ±(2.5% reading + 0.1A)

3.0A to 9.9A, resolution 0.1A, accuracy ±(2.5% reading + 0.3A)

10.0A to 20.0A, resolution 0.1A, accuracy ±(2.5% reading + 0.5A)

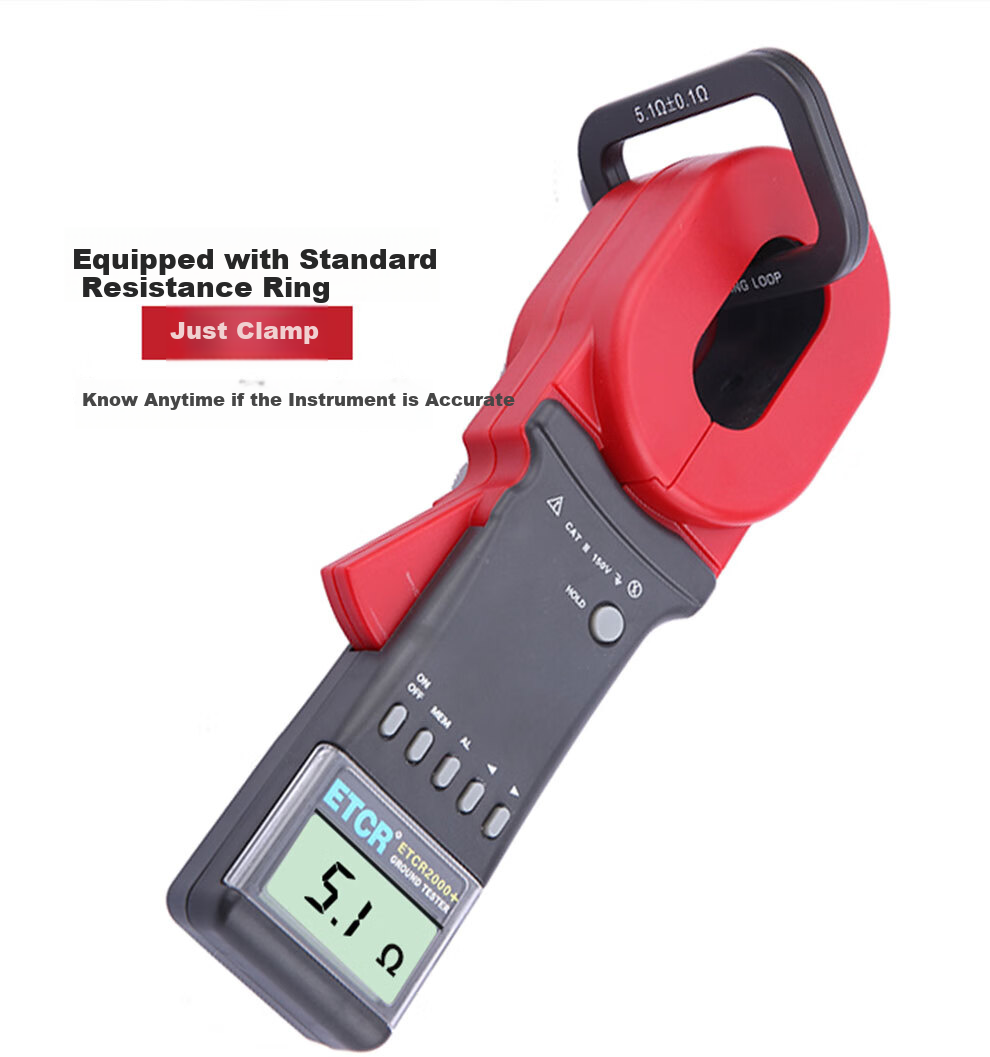

Comes with standard resistance loop for verification

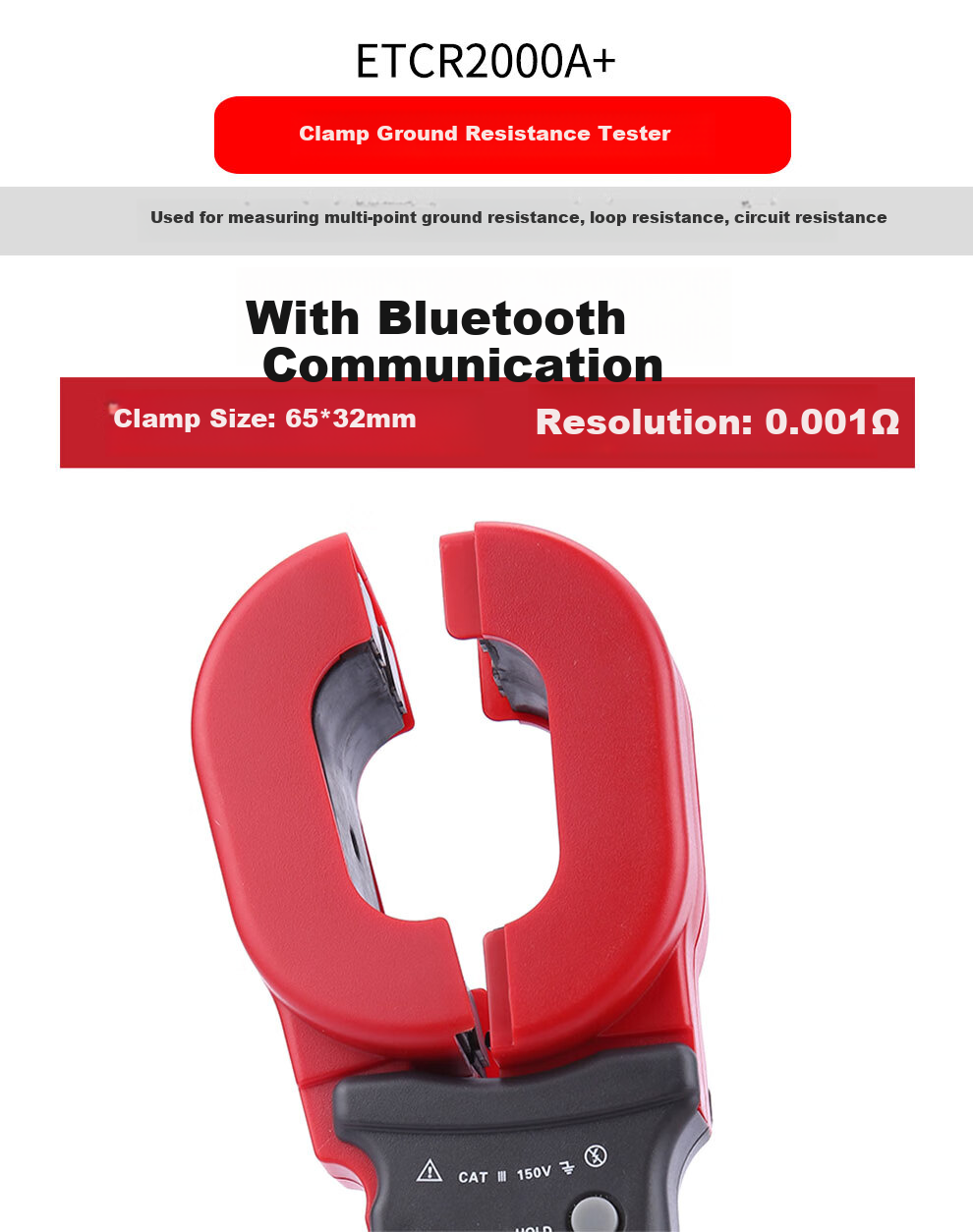

Large clamp jaw (65mm x 32mm) enhances practicality for larger conductors

Includes plastic carrying case, certificate of conformity, batteries, product warranty card, and user manual

Instrument

Standard resistance loop

Batteries

Plastic carrying case

Certificate of conformity

Warranty card

Product manual
