ETCR specializes in the research, development, and manufacturing of electrical testing instruments with a focus on technological innovation and product quality. The product line includes multiple models of clamp-type ground resistance testers with comprehensive functions and upgraded features.

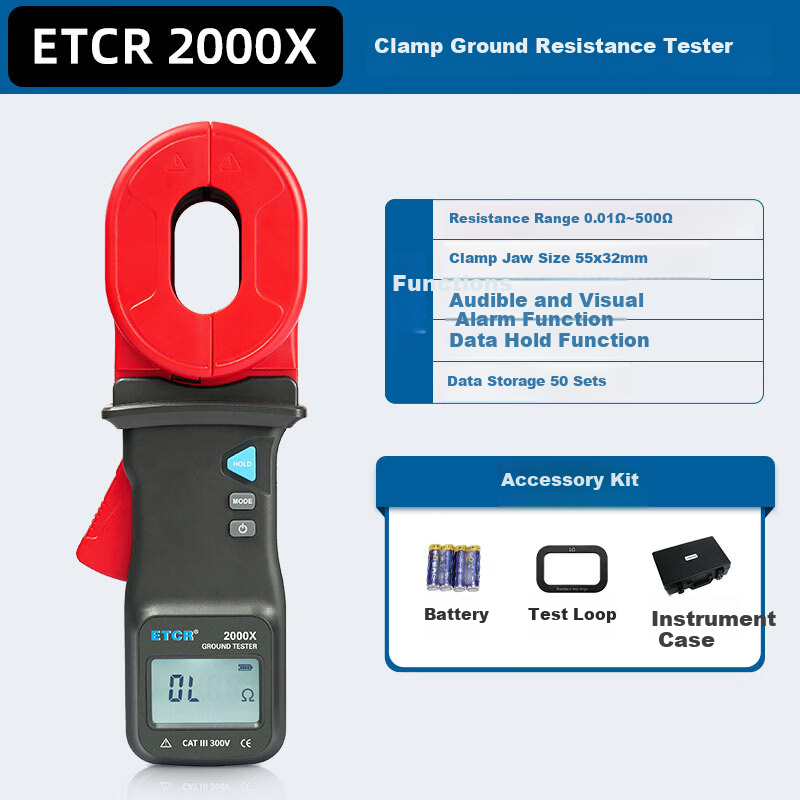

ETCR2000X
ETCR2000A
ETCR2000
ETCR2000C
ETCR2000A+
ETCR2000+
ETCR2000B+
ETCR2000C+
ETCR2200
Additional details
Measurement Functions
Ground loop resistance measurement, ground current measurement, ground fault detection
Resistance alarm value adjustable from 1 to 1990Ω; current alarm value adjustable from 1 to 499mA (select models)
Data Storage
50 to 999 groups depending on model
Data Hold Function with “HOLD” indicator
Data Overflow indicated by “OL”
Audible and visual alarms triggered when measurement exceeds preset alarm values
Battery Voltage Indicator alerts for low battery or charging
Additional details
Power Supply

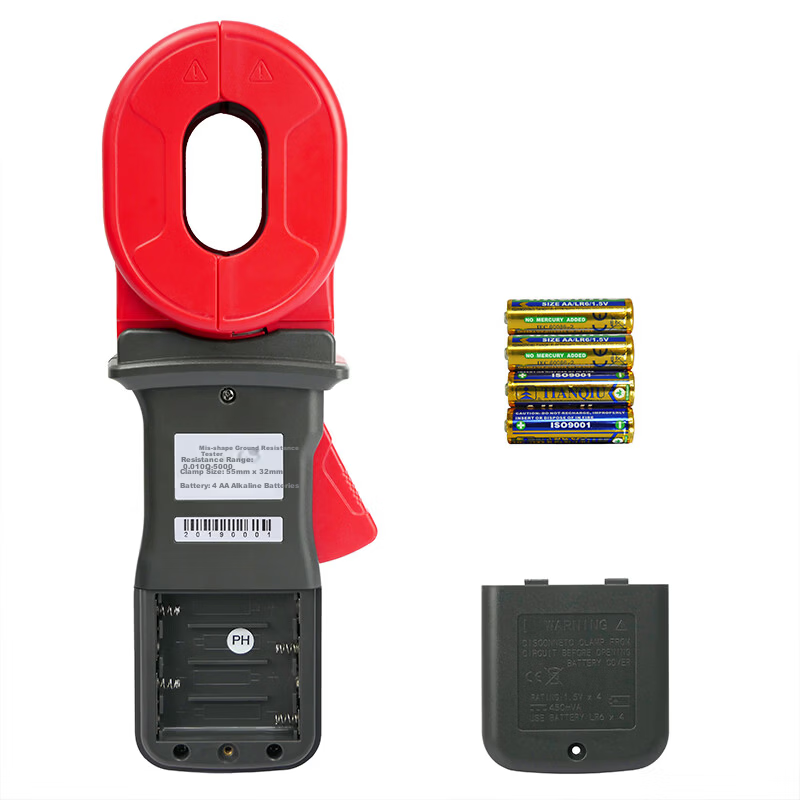

4 x AA batteries (LR6 1.5V) or rechargeable lithium battery (3.7V 2600mAh for ETCR2200)
Display
4-digit LCD digital display
Bluetooth Communication
Supported on select models for Android devices via dedicated app
USB Communication
Supported on select models for data upload to PC via dedicated software
Automatic self-calibration with supplied calibration ring
Explosion-proof certification (ExialIBT3Ga) for hazardous environments (select models)
Additional details
Compliance
IEC61010-1, IEC1010-2-31, IEC61557-1, Pollution Degree 2, CAT II 300V, JG1054-2009
Dimensions
Size
Unfolded dimensions
ETCR2000 series
277×100×57 mm
ETCR2000+ series
285×95×56 mm
Weight
Item
Detail
ETCR2000 series
approx. 880 g
ETCR2000+ series
approx. 1034 g to 1100 g
Double insulation for safety
Sound and light alarms
Automatic power off
Ergonomic button design with lock/unlock and mode switching keys

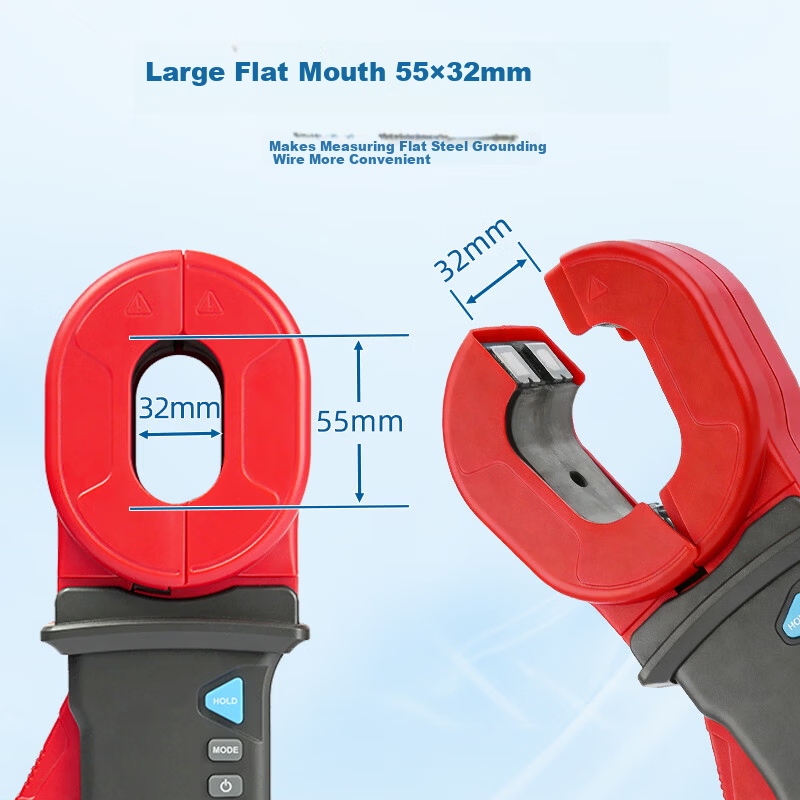

Large clamp opening for easier measurement of flat steel grounding conductors
Data storage full indicator (“MEM” symbol)
Overload display (“OL” symbol)
Supports multiple industry applications including power, petrochemical, lightning protection, telecommunications, rail transit, and mining enterprises

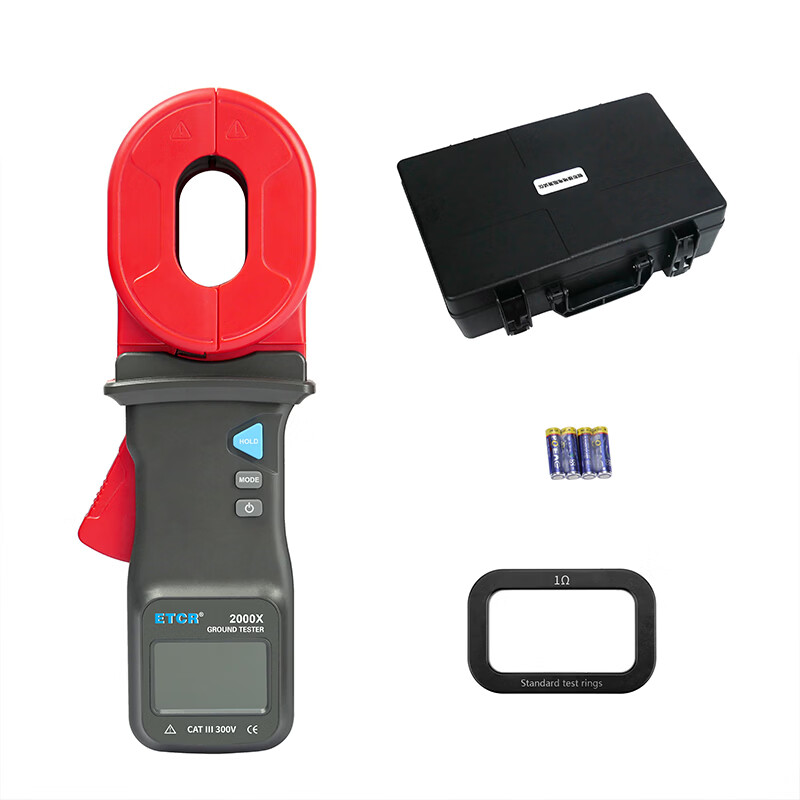

Carrying toolbox
Batteries (AA or lithium rechargeable depending on model)
Calibration/test ring
Charger (for lithium battery models)
User manual and calibration certificate (CNAS accredited)
MA, PAL, PCEC explosion-proof certification
Additional details
Calibration certificate number
40012
Conformity certificate of explosion-proof
Product passed strict factory inspection and quality assurance
Additional details
Temperature
-10°C to 55°C
Humidity
10% to 90% RH
Suitable for CAT II 300V environments
Clamp-type non-contact measurement eliminates the need for grounding stakes or disconnection
Quick and accurate ground loop resistance testing
Bluetooth and USB communication enable convenient data management and remote monitoring
This comprehensive product line from ETCR offers reliable, safe, and efficient solutions for ground resistance and current measurement in various industrial and field applications.
