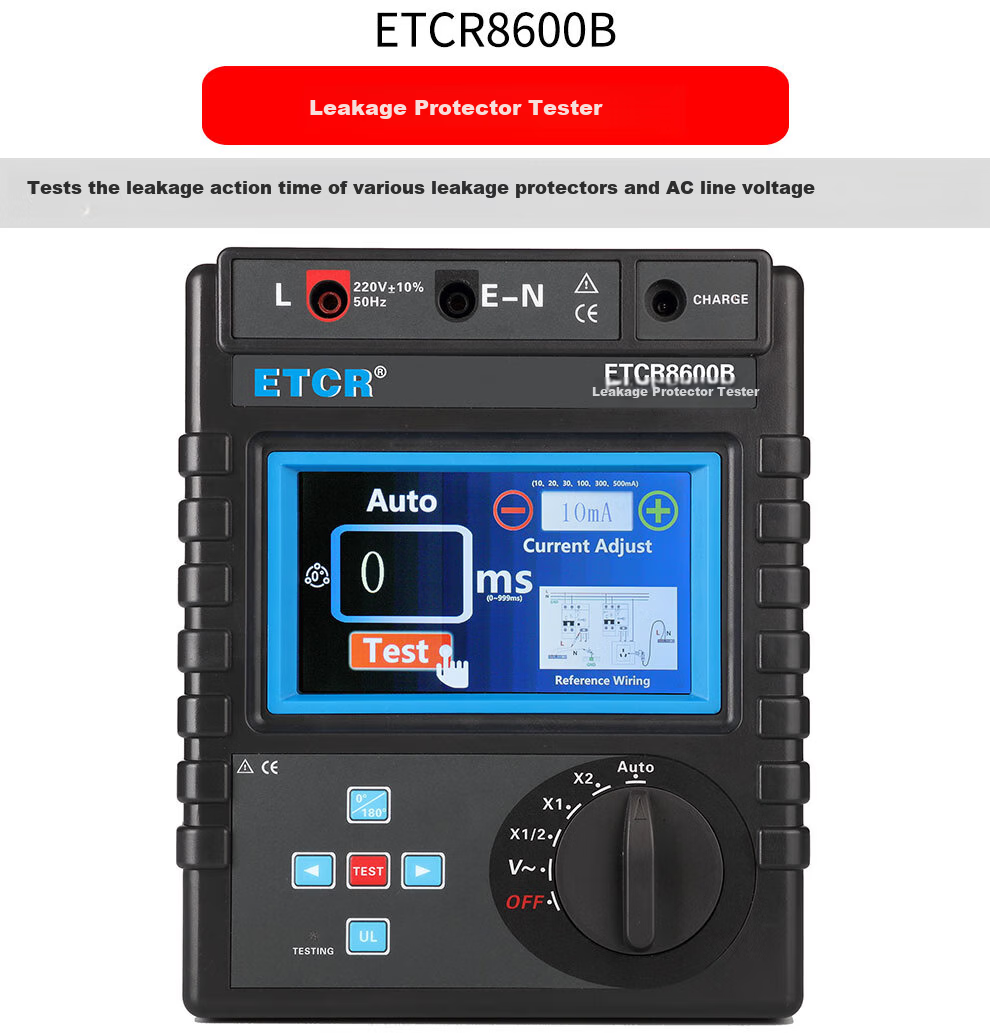

ETCR8600B Leakage Protector Tester Leakage Circuit Breaker Detector Leakage Protection Tester

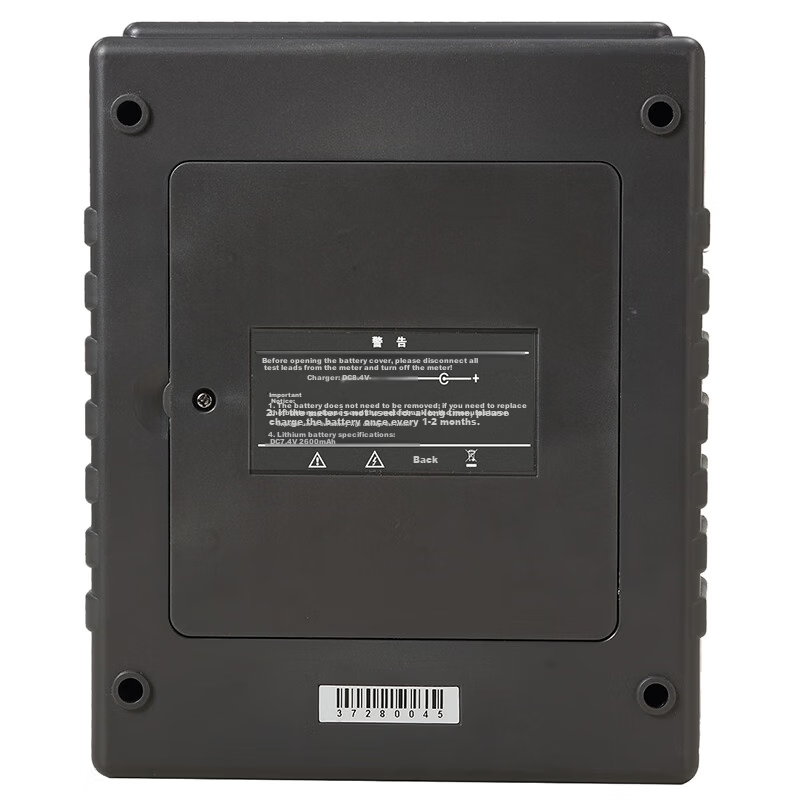

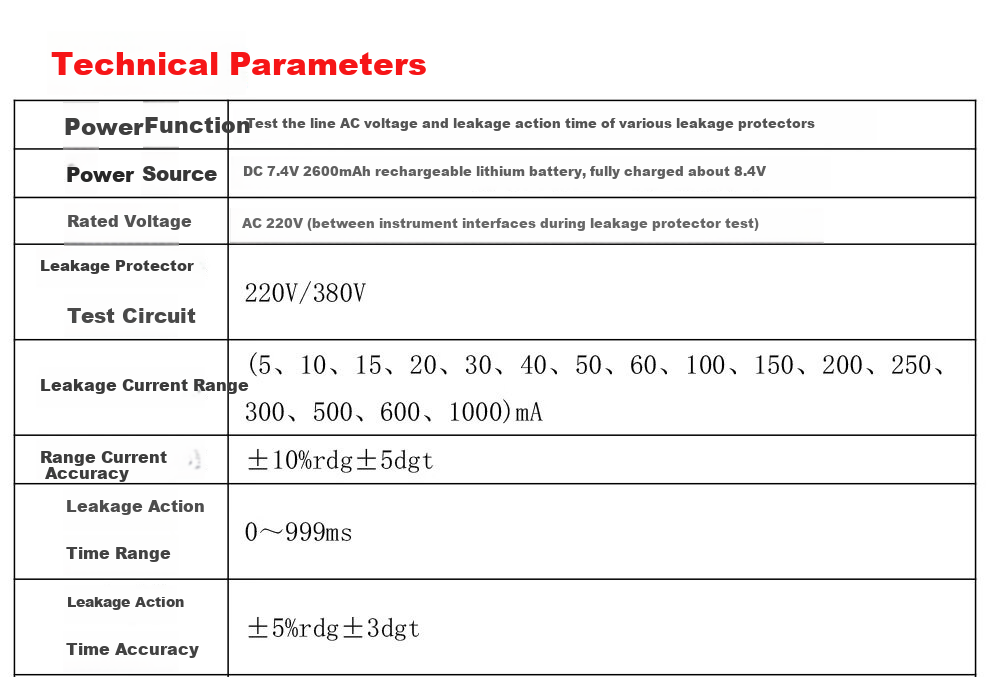

Rechargeable Lithium Battery DC 7.4V, 2600mAh

Fully charged voltage approx. 8.4V

Low battery warning at 7.0V

5-inch TFT color touchscreen

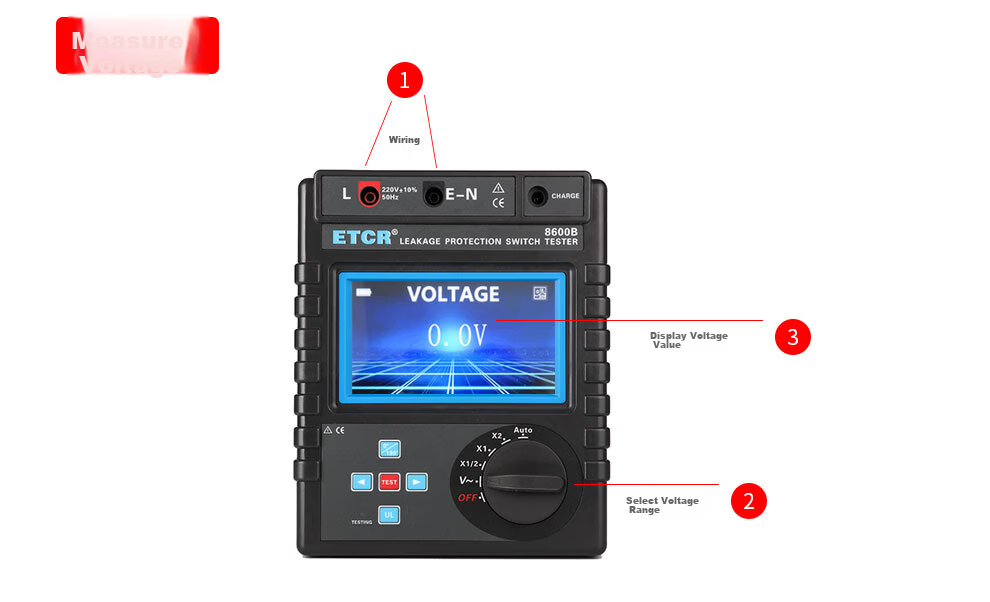

Displays voltage, leakage current, action time, and test status

Overrange indication (“999”) for timeout or invalid test

Shows rated leakage current and action time of tested device

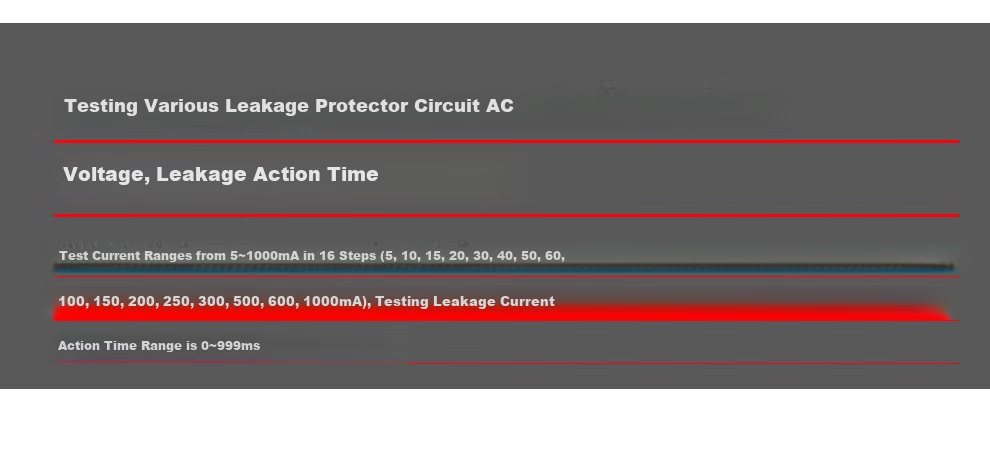

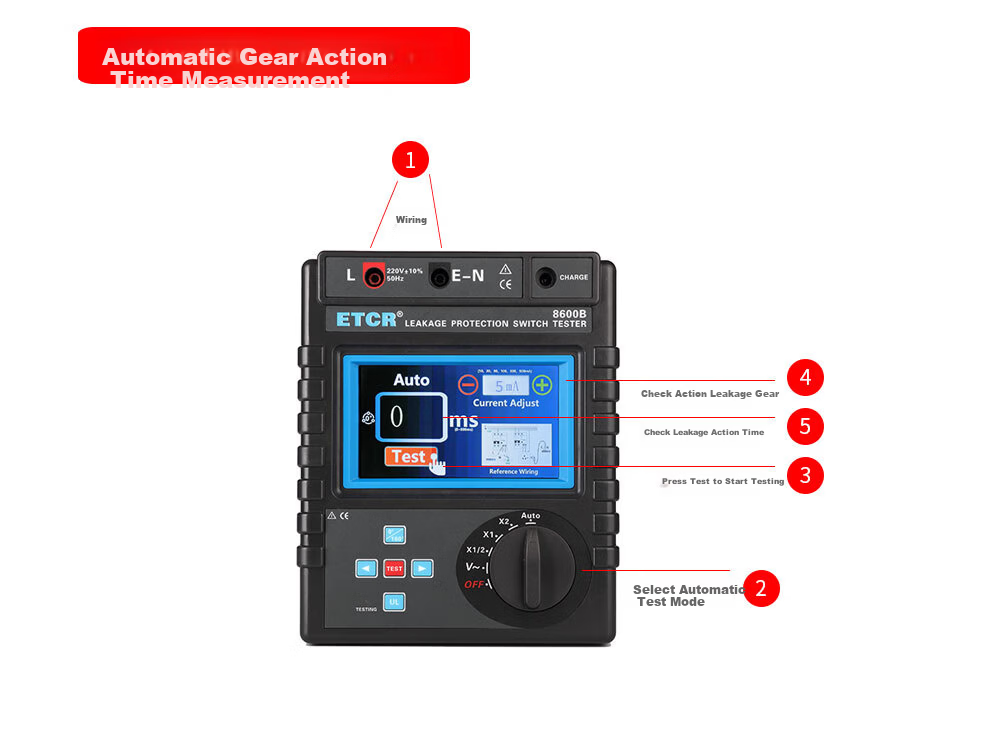

Automatic test mode with selectable leakage current levels (e.g., 10, 20, 30, 100, 300, 500mA)

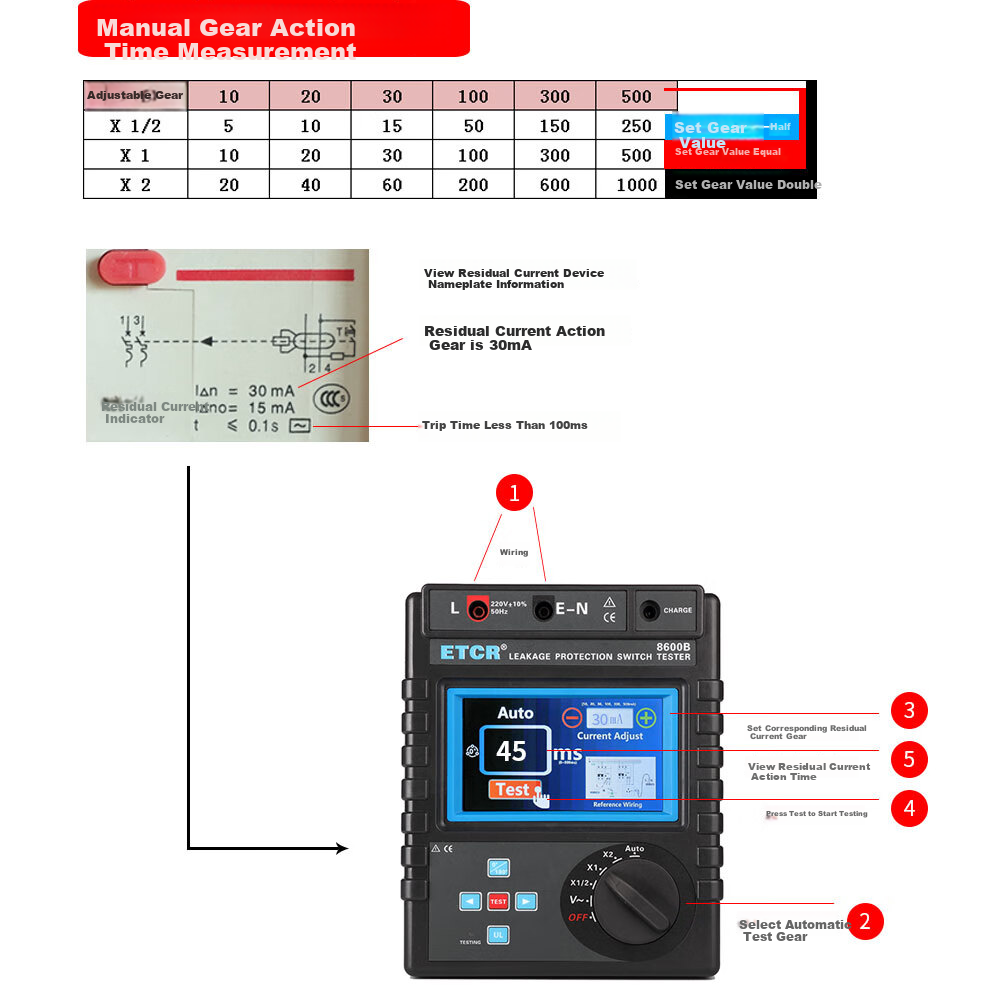

Manual test mode with adjustable current steps and current adjustment function

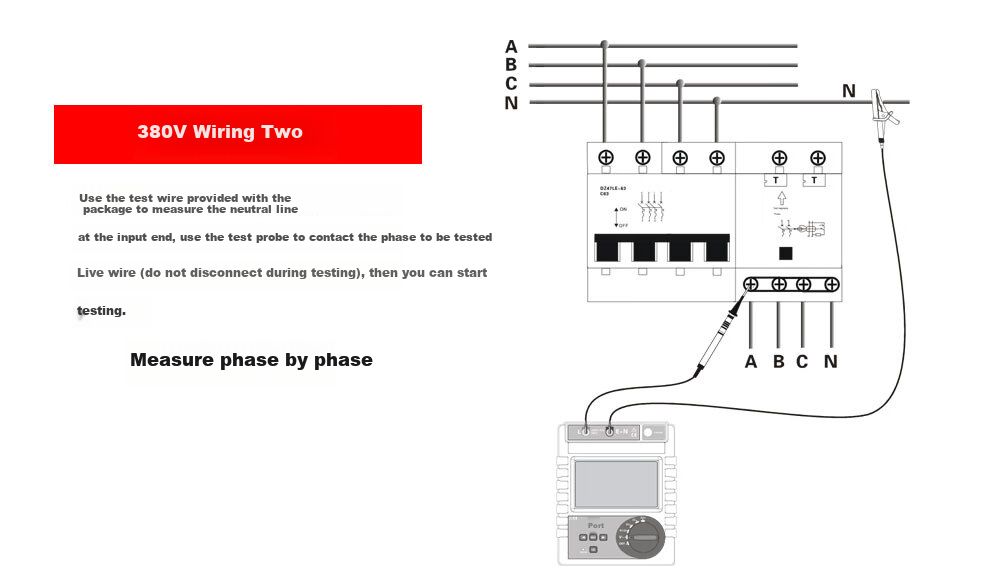

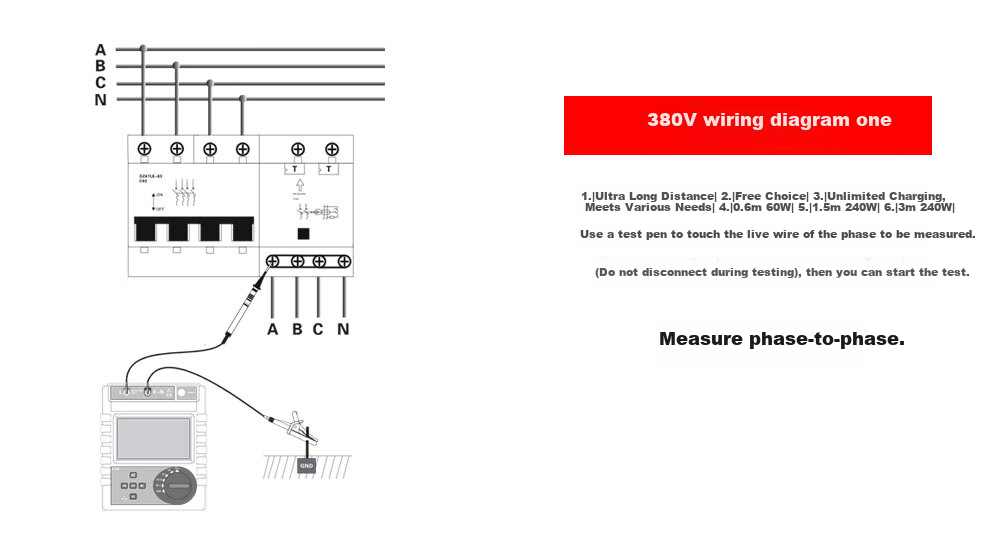

Reference wiring diagrams displayed on screen

Supports testing of 220V and 380V leakage protection switches

Stores up to 100 test records

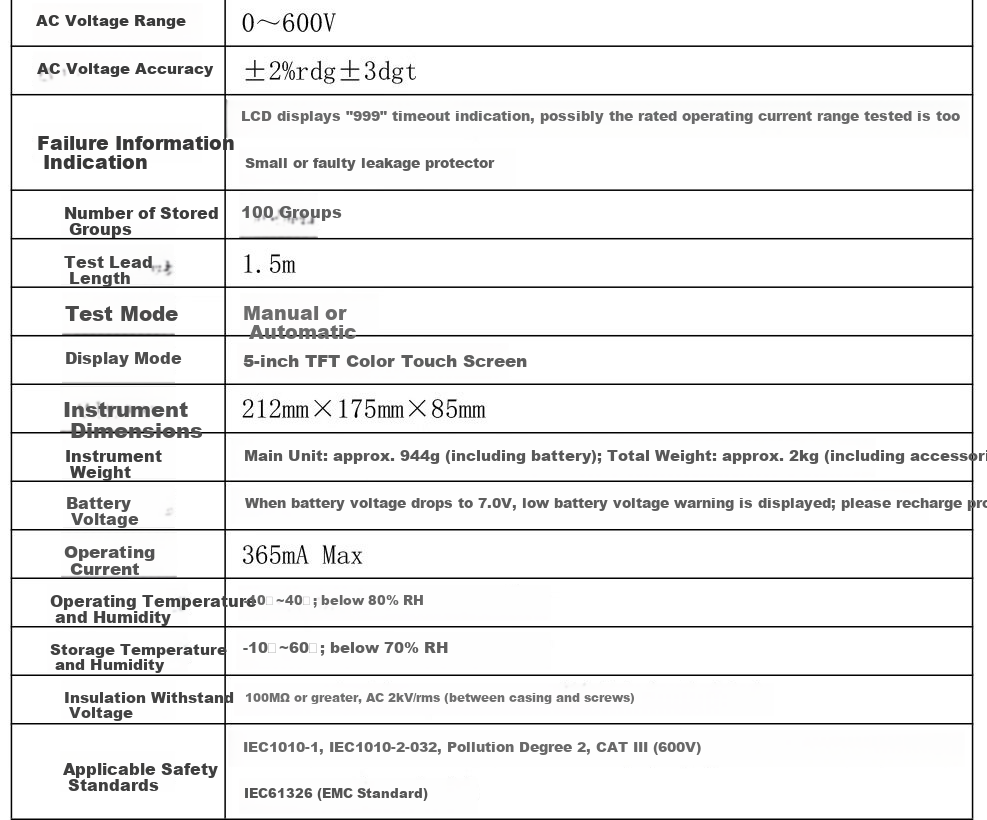

Complies with IEC1010-1, IEC1010-2-032, Pollution Degree 2, CAT III (600V)

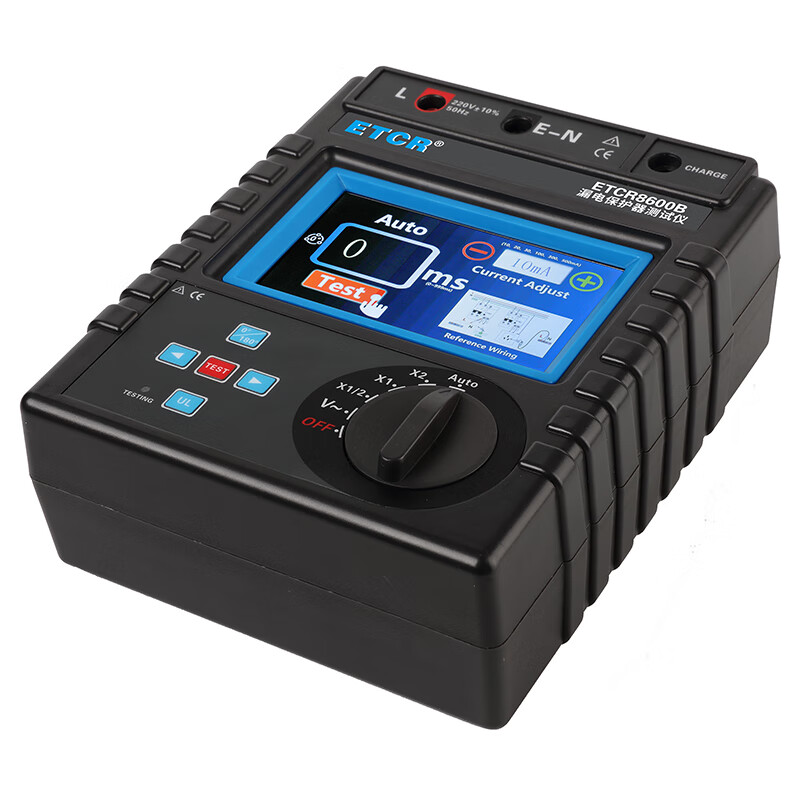

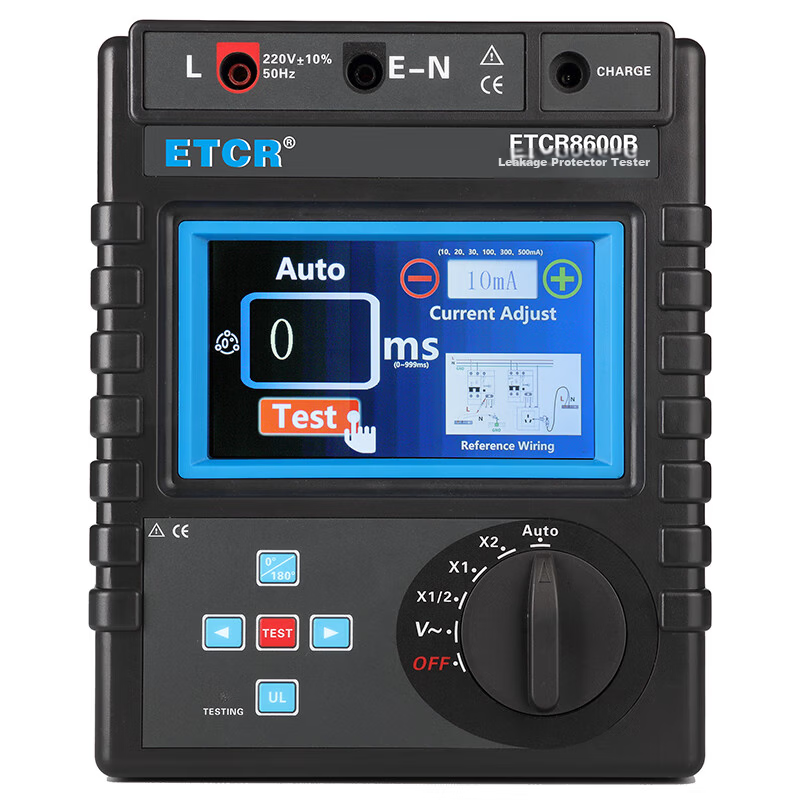

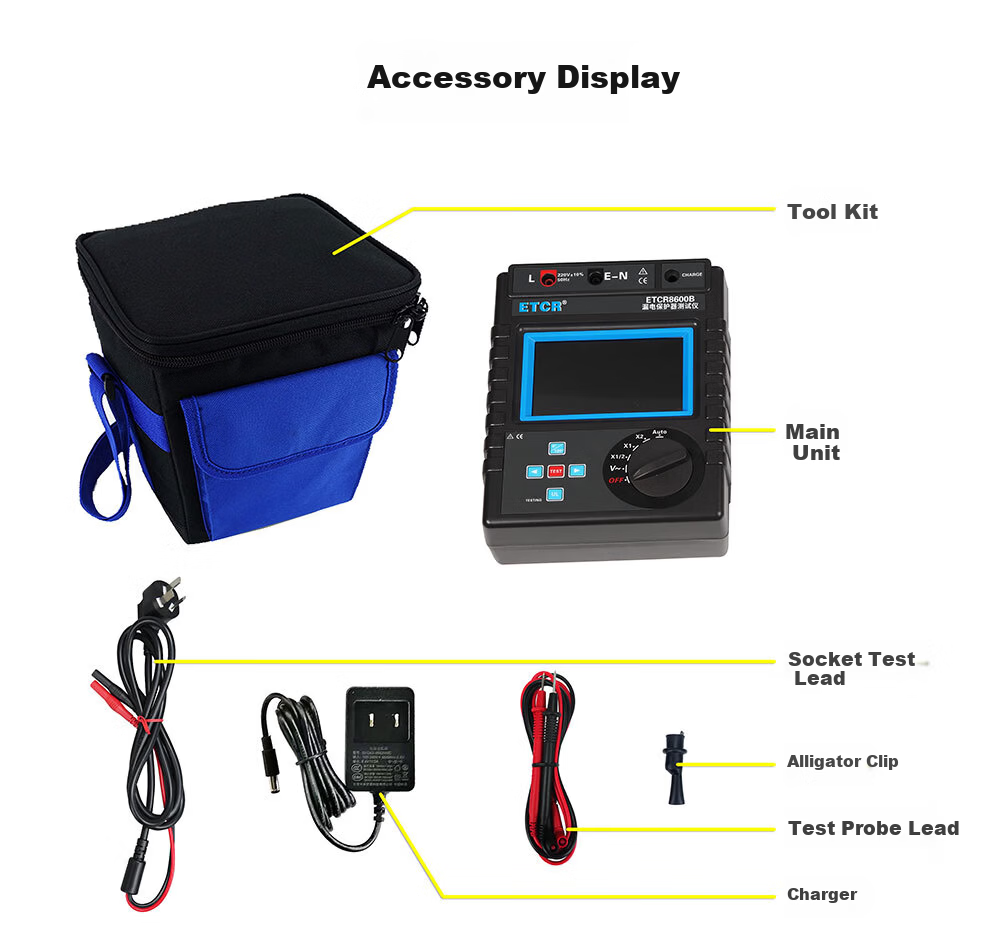

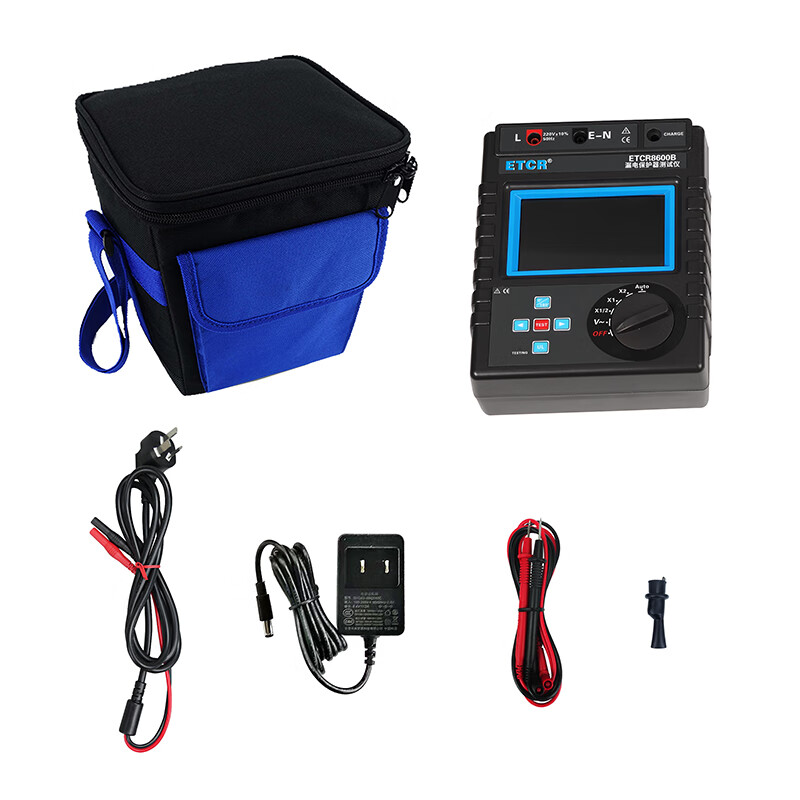

Main unit ETCR8600B

Socket test lead

Crocodile clip

Test probe leads

Charger

Tool bag

CE and UL certified

Charging interface available

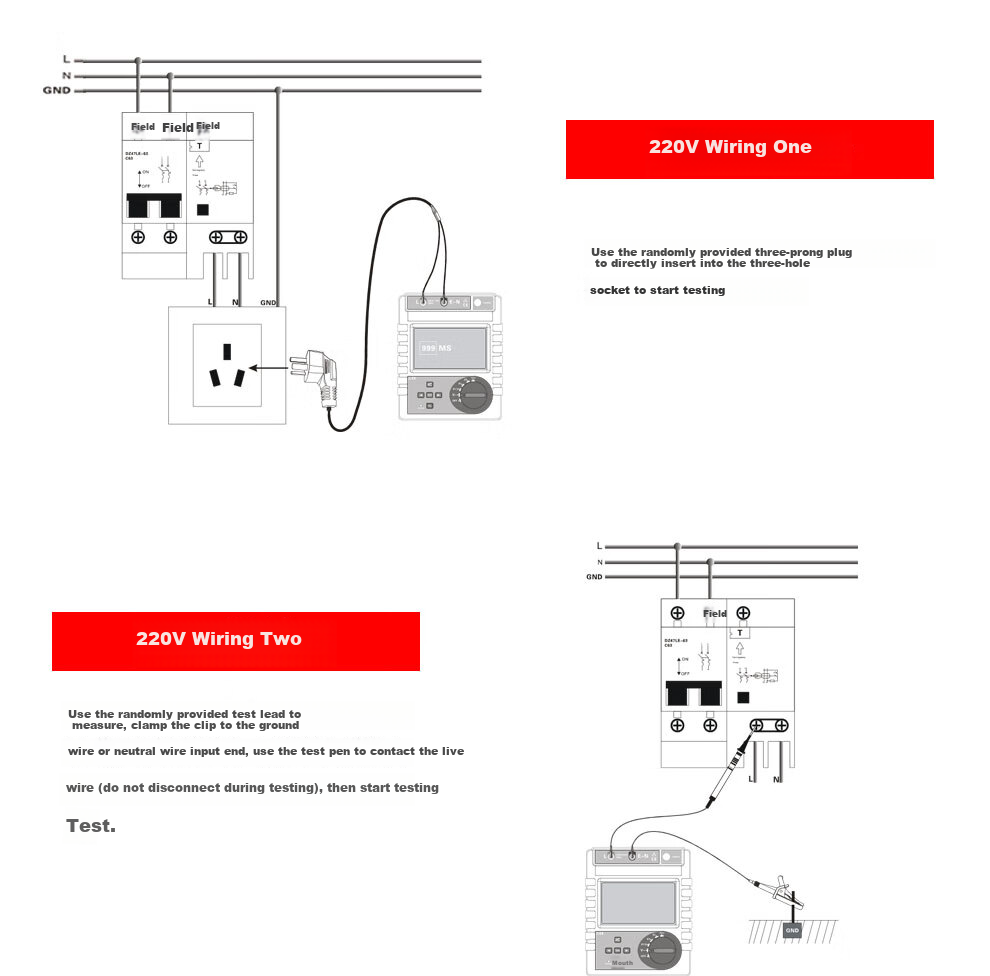

Supports testing with three-prong plug directly inserted into socket or via test leads

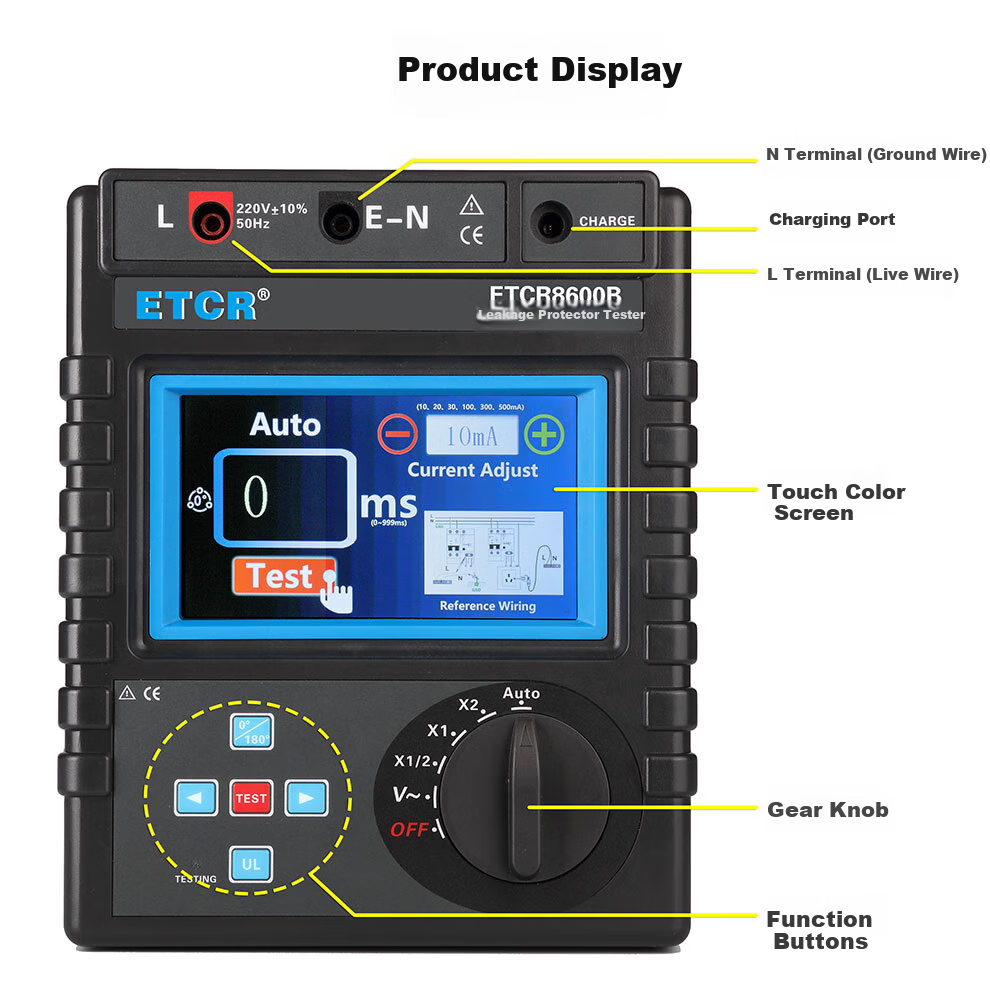

Touchscreen interface with function keys and rotary dial for mode selection
